Hyundai HX75

2016 Hyundai HX75

1/8
Used Hyundai HX75 Excavator 2016 Model / 1
Used Hyundai HX75 Excavator 2016 Model / 2

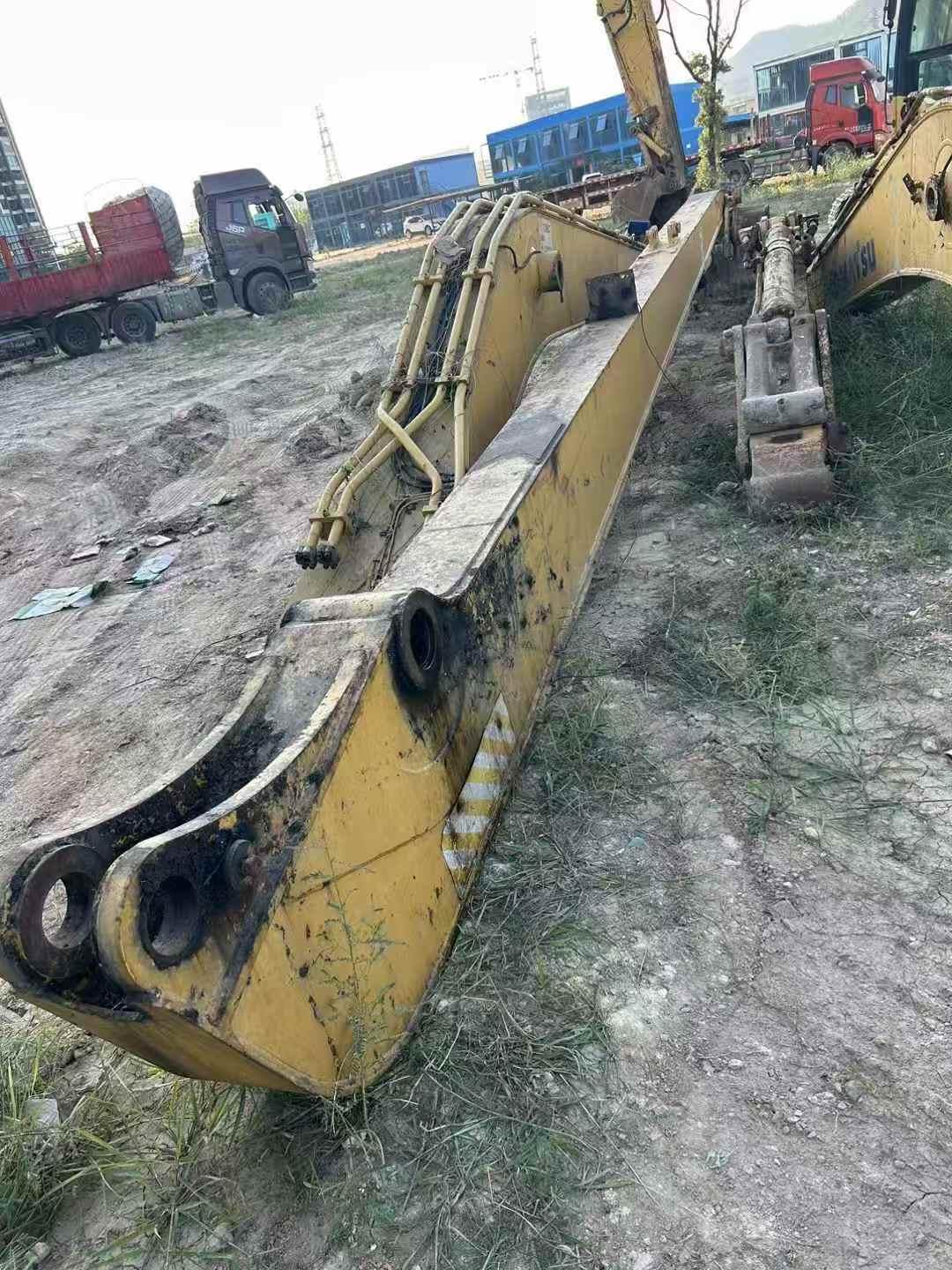

Used Hyundai HX75 Excavator 2016 Model / 3

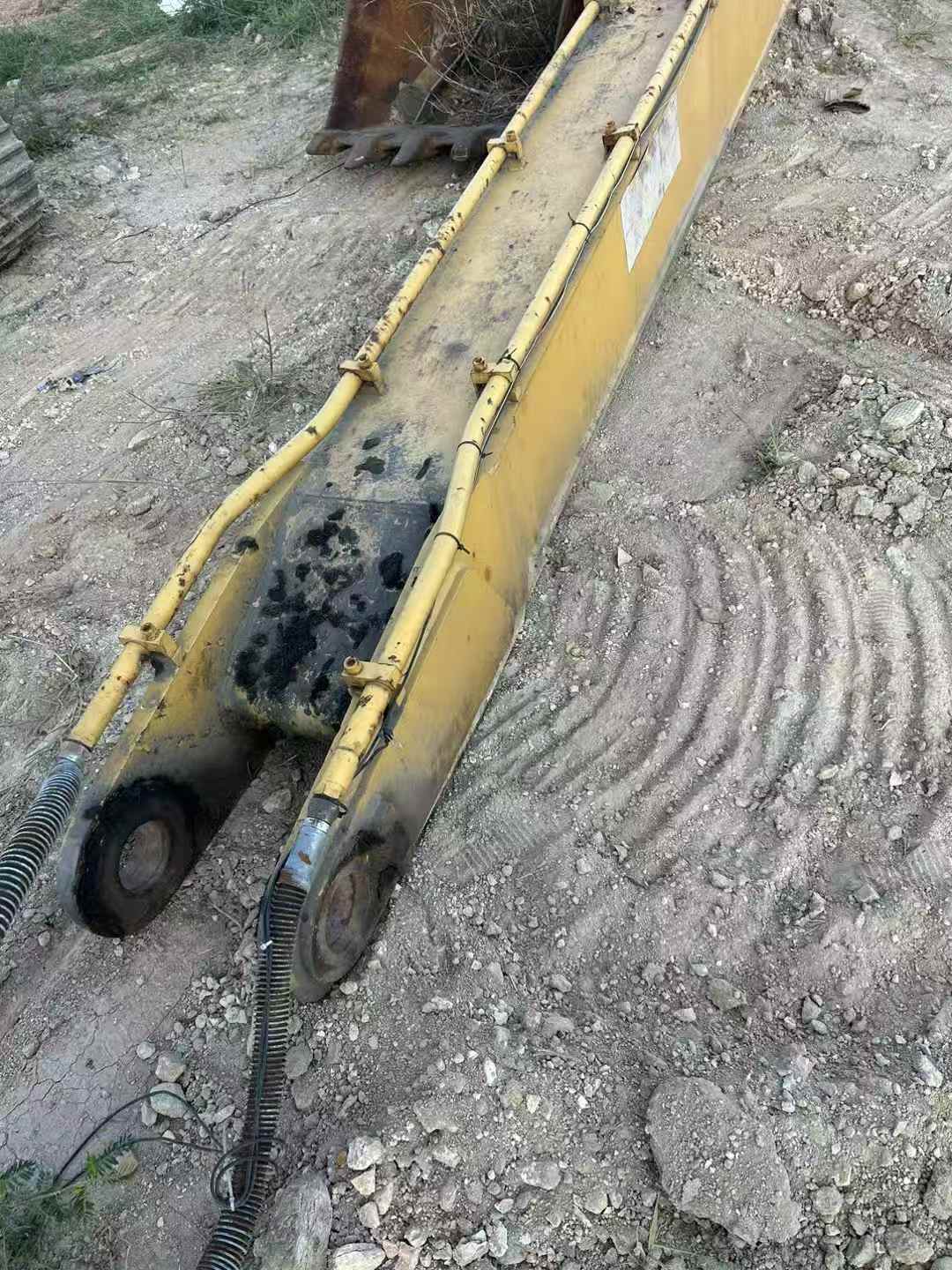

Used Hyundai HX75 Excavator 2016 Model / 4

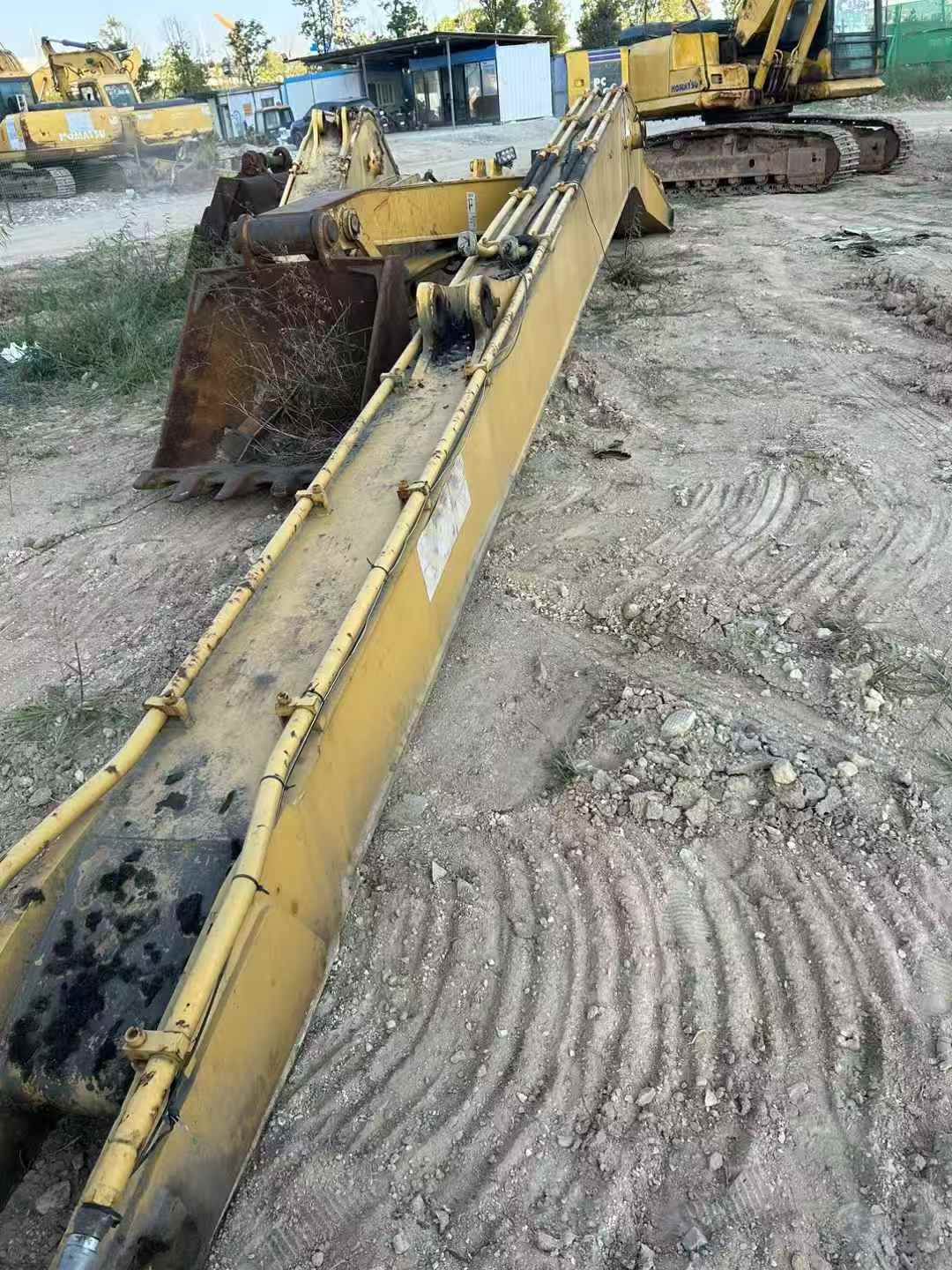

Used Hyundai HX75 Excavator 2016 Model / 5
Used Hyundai HX75 Excavator 2016 Model / 6
Used Hyundai HX75 Excavator 2016 Model / 7
Used Hyundai HX75 Excavator 2016 Model / 8
Product Description
SpecificationsValue
No.969899
Tonnage (tons)7
Working weight (kg)7000
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-Z
Rated power (kw/rpm)44.4/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)55.9
Rod digging force (kN)43.9
Travel speed (km/h)4.0/2.4
Maximum flow of main pump (l/min)158
Main pump typeVariable piston pump
Fuel Tank (L)140
Hydraulic Tank (L)130
Engine Oil changes (L)9.2
Coolant (L)11
Hydraulic System (L)75
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2550
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1730
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6335
Maximum digging depth (mm)4015
Maximum excavation height (mm)7175
Maximum unloading height (mm)5080
Maximum vertical digging depth (mm)3120
Maximum excavation radius of stop surface (mm)6185
see more

Description

【 Used Hyundai R375LC-9 Excavator 】 This second-hand Hyundai R375LC-9 excavator has been in use since 2015, with a total working time of 4,800 hours. It is well maintained and in excellent condition. It is equipped with a Cummins QSL9-C325 engine, with a maximum power output of 240kW (325 horsepower). Not only is it powerful, but it also has good fuel economy, maintaining efficient operation even under complex working conditions. Adopting advanced electronically controlled common rail injection technology ensures a perfect combination of low emissions and high efficiency. In terms of the hydraulic system, this machine is equipped with a high-performance LUDV load-sensitive hydraulic system, which can achieve precise control and rapid response. It can handle operations such as excavation, loading and crushing with ease. It is particularly worth mentioning that this excavator is equipped with a 23-meter-long extended arm, which greatly expands its working range and performs well in special scenarios such as deep foundation pit excavation and river dredging. In addition, due to the use of high-strength steel for manufacturing, even when used for a long time in harsh environments, this long arm still maintains excellent rigidity and stab

Overview

No.969899

Brand Name:

Hyundai

Model Number:

HX75

Year:

2016

Location:

Guangdong China
