Product Description

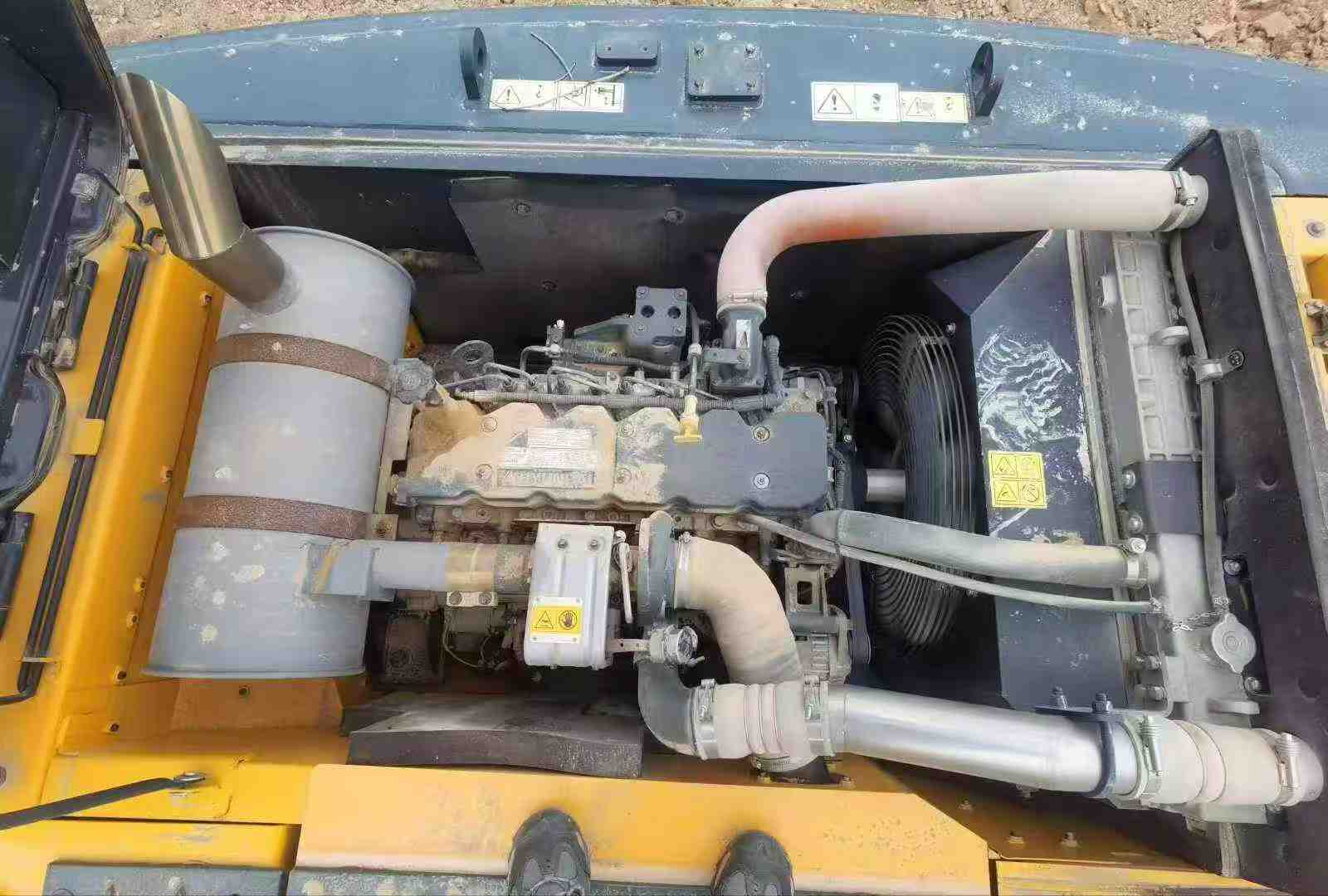

Built for reliability and engineered to last, this 2020 Hyundai HX75 excavator delivers proven performance with 7-ton capacity and robust Yanmar 4TNV98-Z engine producing 44.4kW of power. Located in Zhejiang Shaoxing, this compact yet powerful machine features a 0.32m³ bucket capacity and impressive 6.3m maximum digging radius, making it ideal for urban construction and utility work.
Hyundai's reputation in the used equipment market stems from exceptional parts availability and strong resale value retention. With extensive dealer networks across Asia and standardized components, maintenance costs remain predictable while downtime stays minimal. Key specifications include:
- 55.9kN bucket digging force with 4.0m maximum digging depth
- Variable piston pump delivering 158L/min hydraulic flow
- 12.5 rpm rotation speed for efficient operation cycles
- 140L fuel tank capacity for extended working periods
- Compact transport dimensions: 6080mm × 2260mm × 2550mm
Joint venture manufacturing ensures quality control standards while water-cooled engine design provides consistent performance in demanding conditions. This HX75 represents smart investment in proven technology.
| Specifications | Value |
|---|---|
| No. | 981109 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98-Z |
| Rated power (kw/rpm) | 44.4/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 55.9 |
| Rod digging force (kN) | 43.9 |
| Travel speed (km/h) | 4.0/2.4 |
| Maximum flow of main pump (l/min) | 158 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 9.2 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 75 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2550 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1730 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6335 |
| Maximum digging depth (mm) | 4015 |
| Maximum excavation height (mm) | 7175 |
| Maximum unloading height (mm) | 5080 |
| Maximum vertical digging depth (mm) | 3120 |
| Maximum excavation radius of stop surface (mm) | 6185 |
