2016 Hyundai R 60VS

1/6
Used Hyundai R 60VS Excavator 2016 Model / 1

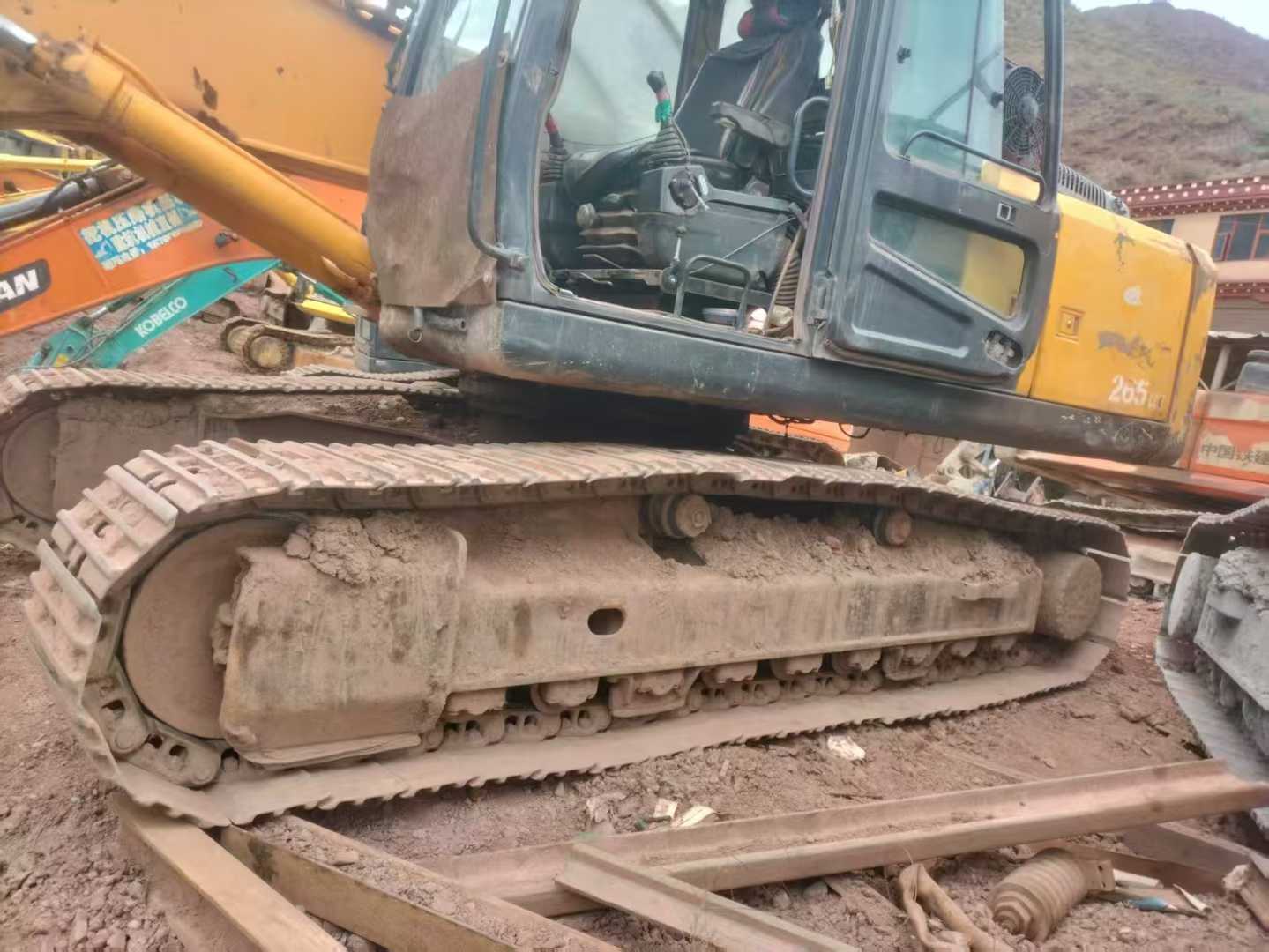

Used Hyundai R 60VS Excavator 2016 Model / 2

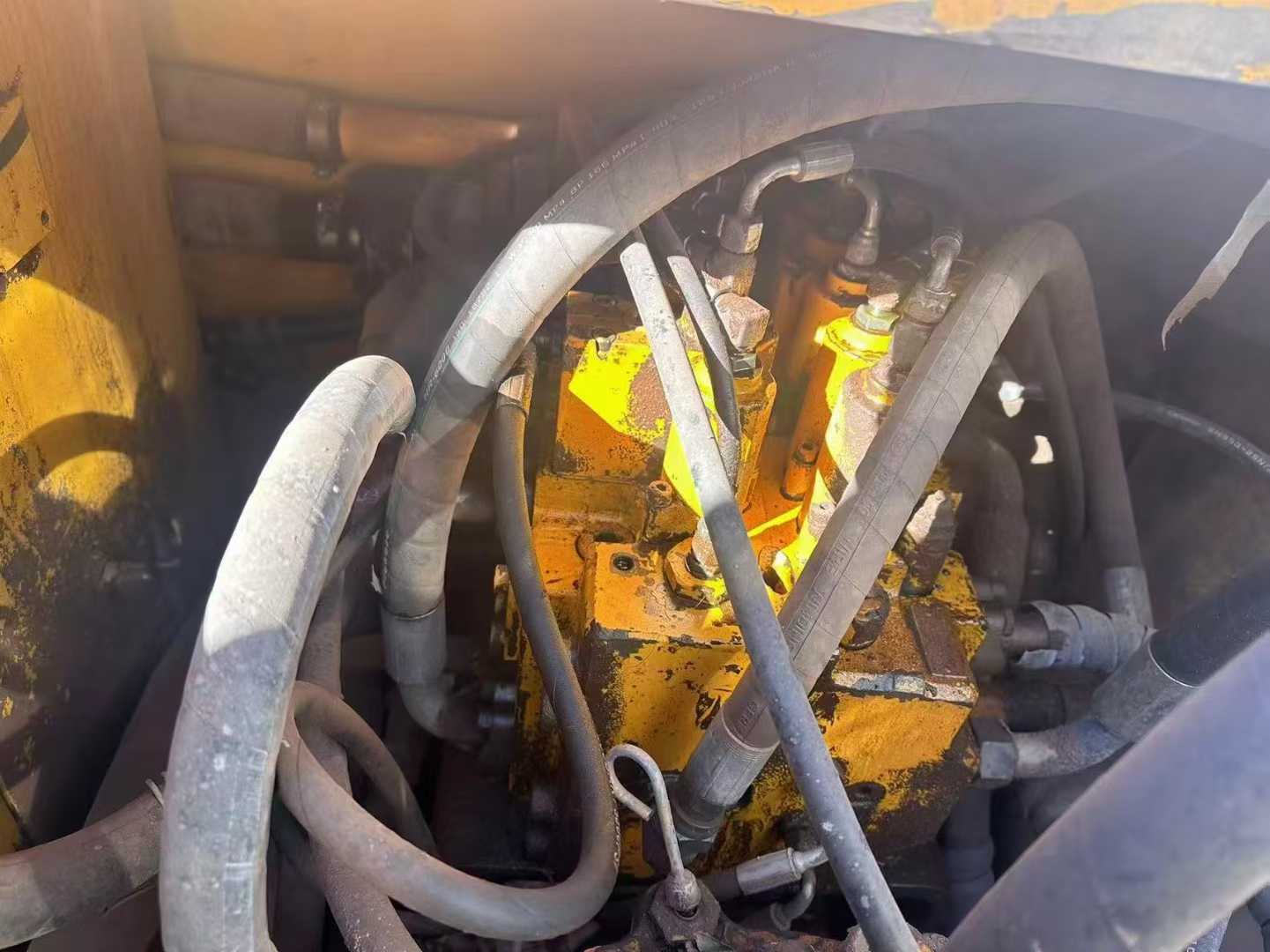

Used Hyundai R 60VS Excavator 2016 Model / 3

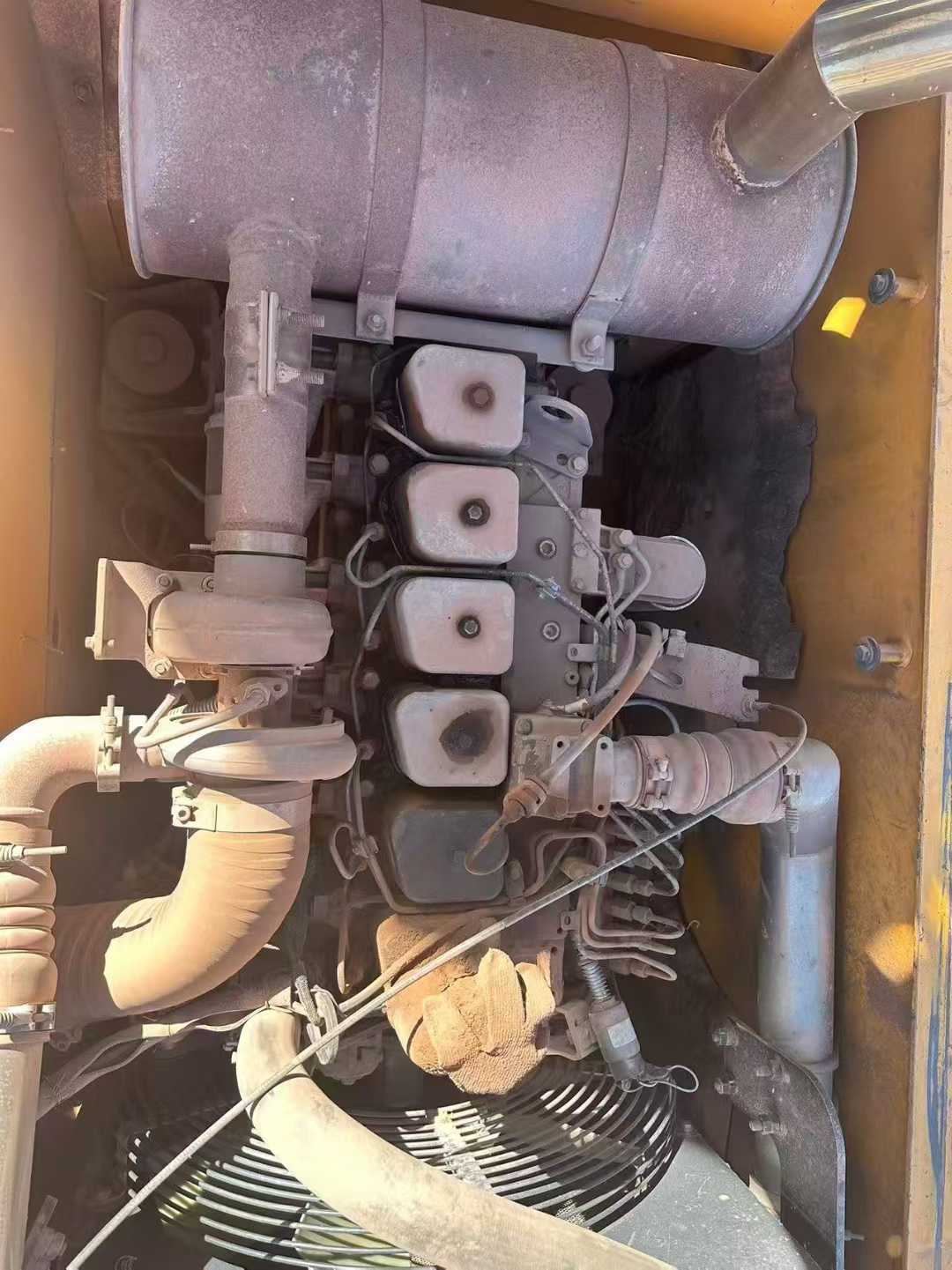

Used Hyundai R 60VS Excavator 2016 Model / 4

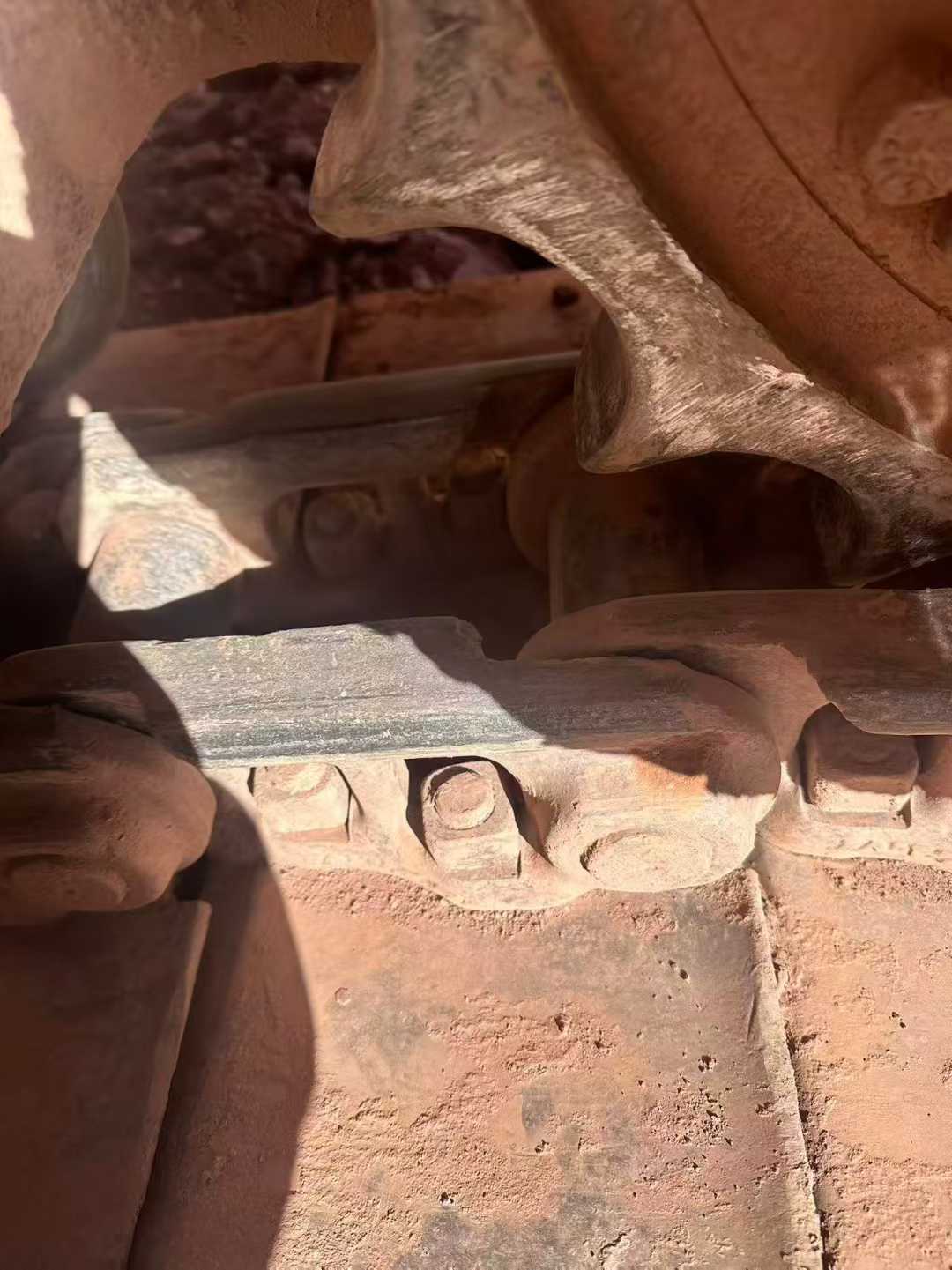

Used Hyundai R 60VS Excavator 2016 Model / 5

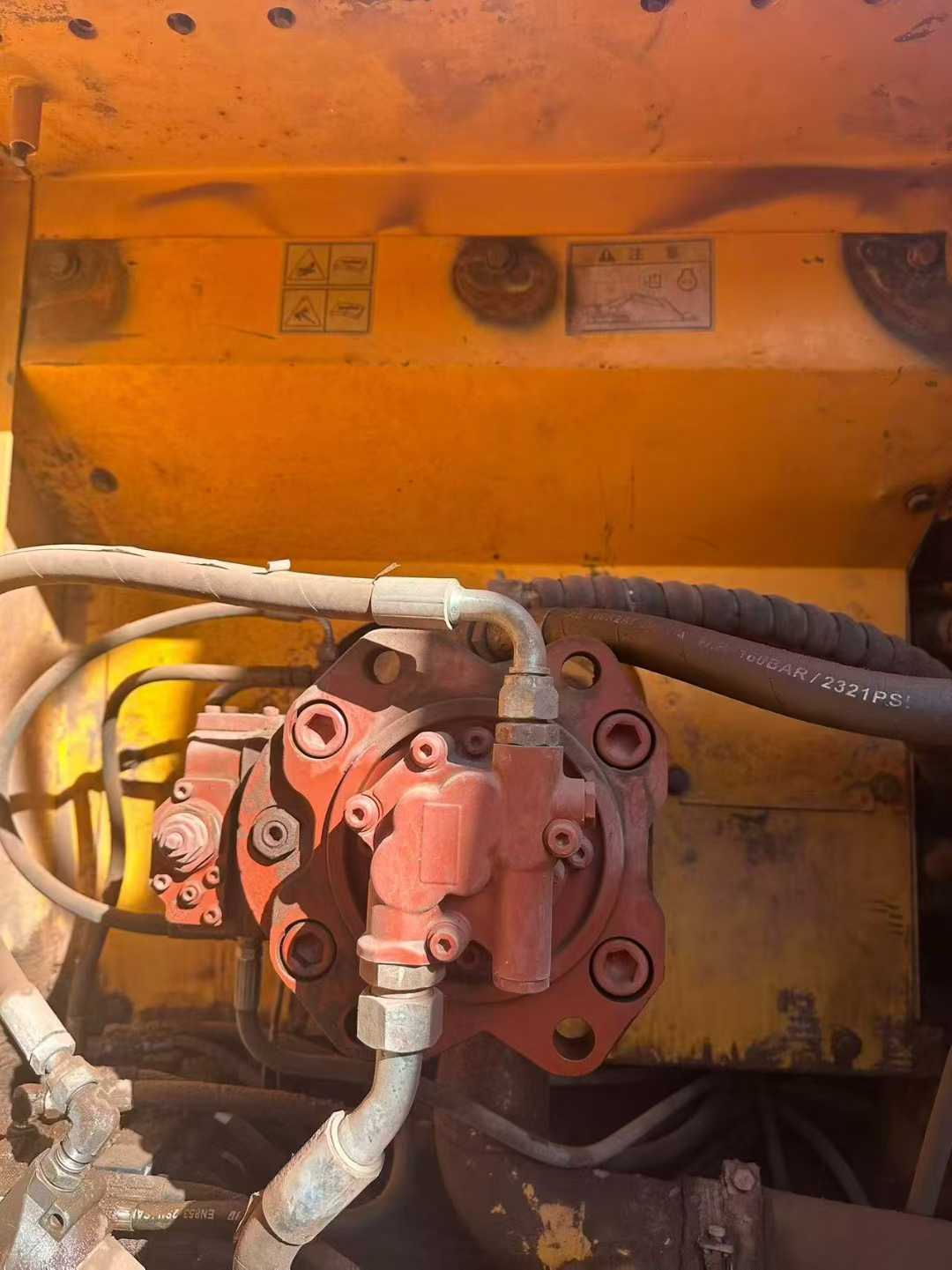

Used Hyundai R 60VS Excavator 2016 Model / 6

Product Description

"Modern second-hand excavators, outstanding performance, immediate shipment This modern second-hand excavator is one of the most favored models in the market, having won the trust of many users with its outstanding stability and efficient working performance. The cumulative working time of this excavator is 4,800 hours. For a second-hand device, such a usage period indicates that it is in the best mechanical performance condition, which not only ensures high working efficiency but also effectively reduces the failure rate. In terms of the power system, this machine is equipped with a powerful and reliable engine, which not only provides abundant power support to ensure easy handling in various complex working conditions, but also has excellent fuel economy. Over long-term use, it can save users a lot of costs. In addition, advanced emission control technology makes this engine more environmentally friendly and meets the increasingly strict environmental protection requirements at present. The hydraulic system, as a core component of the excavator, has been fully optimized on this machine. By adopting high-quality hydraulic components provided by internationally renowned brands and combining them with a precise control system design,

SpecificationsValue
No.972475
Tonnage (tons)6
Working weight (kg)5850
Bucket capacity (m³)0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98
Rated power (kw/rpm)54.3 / 2400
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 (3.86 ") x 110 (4.33 ").
Maximum torque (N.m)20.6 / 1800
Displacement (L)3.319
Working form4 cylinder 4 stroke water cooled direct injection engine
Climbing ability (%)70
Travel speed (km/h)4.0 / 2.2
Maximum flow of main pump (l/min)2 x 55
Traveling Hydraulic Circuit (Mpa)220
Rotary Hydraulic Circuit (Mpa)220
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)220
Pilot Oil Circuit (MPa)30
Bucket cylinders - Number × diameter × stroke (mm)1-80 x 50 x 660 (3.1 "x 26.0")
Bucket rod cylinders - Number × diameter × stroke (mm)1-90×55×850 (3.5 "×33.5")
Boom cylinders - Number × diameter × stroke (mm)1-110×65×715 (4.3 "×28.1")
Fuel Tank (L)120
Hydraulic Tank (L)70
Engine Oil changes (L)12
Coolant (L)10
Hydraulic System (L)120
Total transport length (mm)5900
Total transport width (mm)1920
Total transport height (mm)2550
Full cab height (mm)2550
Counterweight ground clearance (mm)690
Minimum ground clearance (mm)380
Back end turning radius (mm)1650
Onboard width (mm)1830
Total track length (mm)2530
Track gauge (mm)1500
Track plate width (mm)400
Track ground length (mm)1990
Maximum height at minimum turning radius (mm)2350
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6150
Maximum digging depth (mm)3820
Maximum excavation height (mm)5780
Maximum unloading height (mm)4050
Maximum vertical digging depth (mm)3200
Maximum excavation radius of stop surface (mm)6010
Maximum effective digging depth (mm)3420
see more

Overview

No.972475

Brand Name:

Hyundai

Model Number:

R 60VS

Year:

2016

Location:

Gansu China
