| Specifications | Value |
|---|---|
| No. | 965526 |
| Tonnage (tons) | 11 |
| Working weight (kg) | 11200 |
| Bucket capacity (m³) | 0.30-0.59 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2260 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi S4K-T |
| Rated power (kw/rpm) | 70/1950 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 371.4 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.2 |
| Working form | Four-cylinder, four-stroke turbocharged direct injection diesel engine |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 78.5 |
| Rod digging force (kN) | 55.7 |
| Travel speed (km/h) | 3.4-5.5 |
| Rotary hydraulic motor type | Quantitative swash plate plunger motor |
| Type of walking hydraulic motor | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 112 |
| Traveling Hydraulic Circuit (Mpa) | 33 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 33 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 100 |
| Engine Oil changes (L) | 17.5 |
| Total transport length (mm) | 7270 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2800 |
| Full cab height (mm) | 2800 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2380 |
| Back end turning radius (mm) | 2130 |
| Onboard width (mm) | 2800 |
| Total track length (mm) | 3340 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2610 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5090 |
| Maximum excavation height (mm) | 8070 |
| Maximum unloading height (mm) | 5710 |
| Maximum vertical digging depth (mm) | 4430 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 7610 |
| Maximum effective digging depth (mm) | 4870 |
Description

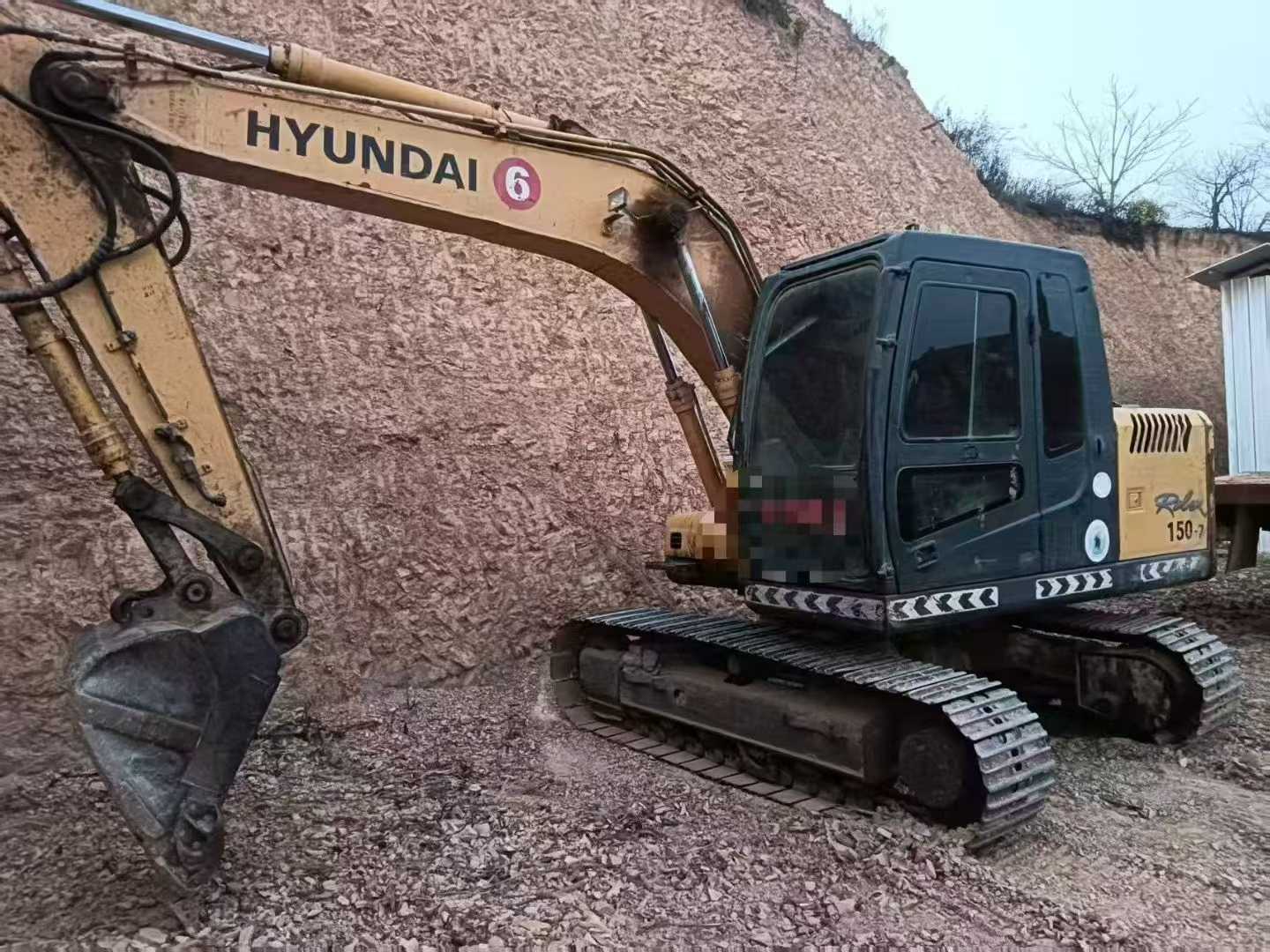

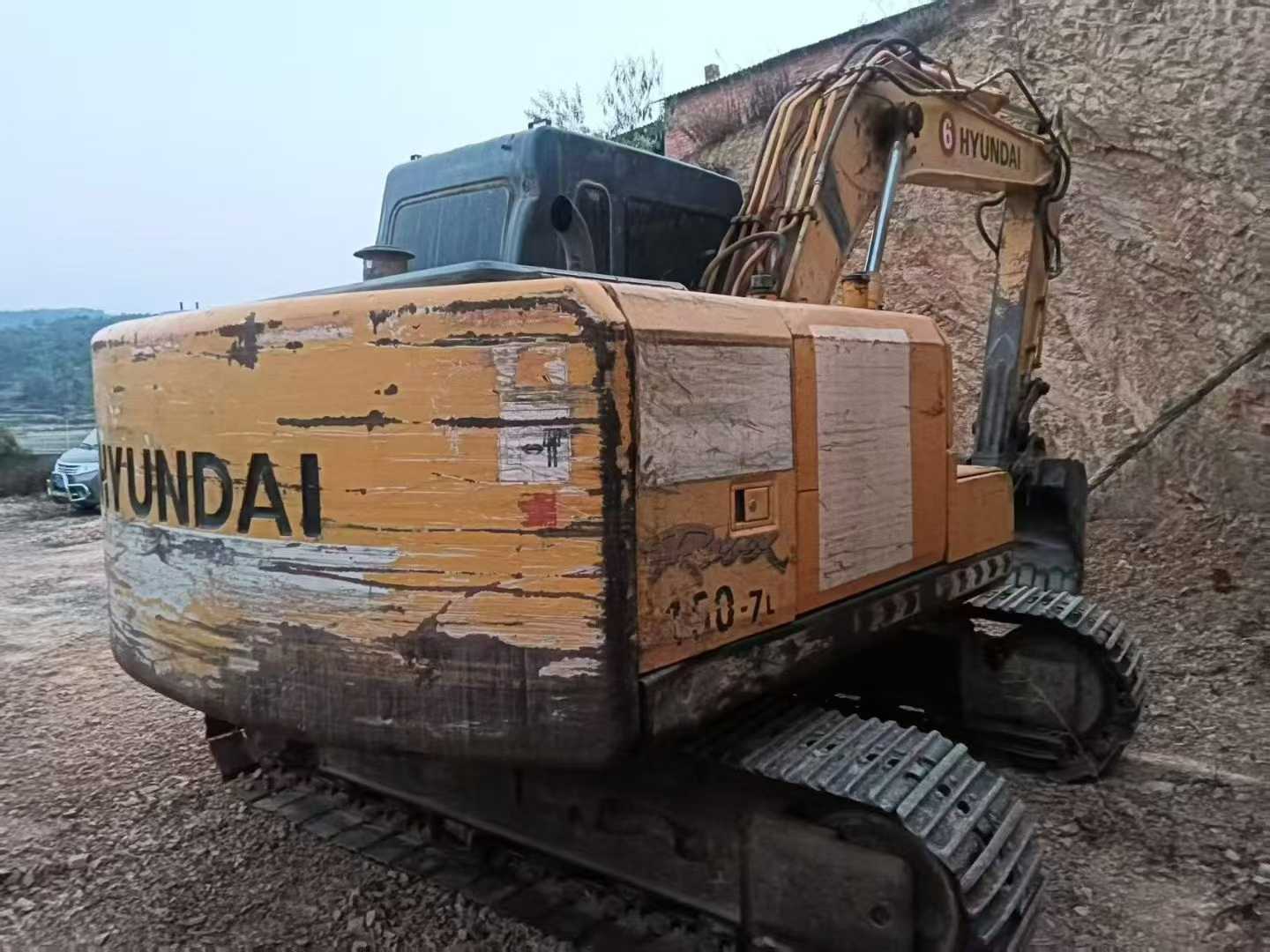

Detailed Introduction of the used Modern R110-7 Excavator This modern R110-7 excavator, manufactured in 2016, is a small excavator with stable performance and flexible operation. Since leaving the factory, it has only been in operation for 4,500 hours and is in good working condition, making it highly suitable for small-scale engineering projects such as urban construction, landscaping, and farmland renovation. In terms of the power system, this aircraft is equipped with an efficient diesel engine, with a maximum power output of up to 60KW (approximately 81 horsepower), featuring excellent fuel economy and strong power output. Even in complex working environments, it can ensure stable operational efficiency. Meanwhile, its low-noise design makes it more user-friendly when operating in residential areas or noise-sensitive regions. The hydraulic system adopts advanced load sensing technology, ensuring rapid and precise action response, and can handle both excavation and loading with ease. In addition, it is equipped with an automatic idle function, which can automatically reduce the speed when not in operation, further saving fuel consumption. It is worth mentioning that this R110-7 features a spacious and comfortable cab with a wide
