Product Description

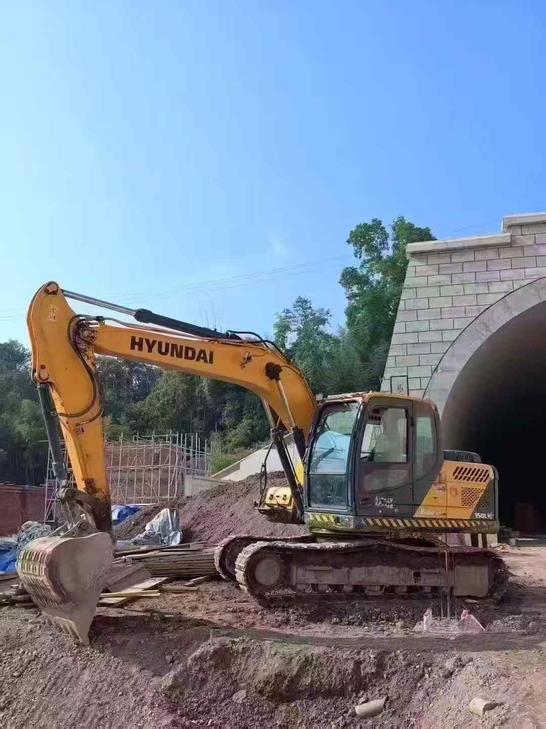

Built for demanding construction environments, this 2020 Hyundai R150LVS excavator delivers exceptional operator comfort and precision control. With its 15-ton working capacity and robust Mitsubishi D04FRC-TAA engine producing 98kW of power, operators benefit from smooth hydraulic response and reliable performance across varied terrain.
Key operator advantages include:
- Enhanced cabin visibility with 2860mm full cab height for superior worksite awareness
- Precise handling through dual variable plunger pump system (2 x 124 l/min flow)
- Stable operation with 940mm counterweight ground clearance and 70% climbing capability
- Efficient reach capabilities: 8330mm maximum digging radius, 5550mm digging depth
- Comfortable travel speeds of 5.5/3.2 km/h with 12 rpm rotation for positioning accuracy
Located in Anshun, Guizhou Province, this well-maintained excavator combines proven Japanese engine technology with Hyundai's engineering expertise. The spacious operator environment and responsive controls make extended work shifts more productive and less fatiguing for experienced operators.
| Specifications | Value |
|---|---|
| No. | 986112 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13980 |
| Bucket capacity (m³) | 0.58 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi D04FRC-TAA |
| Rated power (kw/rpm) | 98 / 2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Maximum torque (N.m) | 49.2 / 1350 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.5/3.2 |
| Maximum flow of main pump (l/min) | 2 x 124 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 100 x ø 70 x 840 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 115 x ø 80 x 1138 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 105 x ø 75 x 1075 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 15.3 |
| Hydraulic System (L) | 210 |
| Total transport length (mm) | 7820 |
| Total transport width (mm) | 2600 |
| Total transport height (mm) | 2780 |
| Full cab height (mm) | 2860 |
| Counterweight ground clearance (mm) | 940 |
| Minimum turning radius of front working device (mm) | 2650 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 8330 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8500 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5330 |
| Maximum excavation radius of stop surface (mm) | 8180 |
