| Specifications | Value |
|---|---|
| No. | 963398 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13700 |
| Bucket capacity (m³) | 0.23-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2100 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Total displacement (L) | 5.9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 37 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 101.9 |
| Rod digging force (kN) | 65.6 |
| Maximum tractive force (kN) | 83.3 |
| Driving form | Hydraulic motor |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 168 |
| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | Quantitative swash plate plunger motor |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 126 |
| Total transport length (mm) | 7760 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3137 |
| Counterweight ground clearance (mm) | 1233 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 900×20-14PR |
| Total tire outside width (mm) | 2495 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 365 |
| Onboard width (mm) | 2500 |
| Maximum digging radius (mm) | 7920 |
| Maximum excavation radius (mm) | 7700 |
| Maximum digging depth (mm) | 4850 |
| Maximum excavation height (mm) | 8470 |
| Maximum unloading height (mm) | 6040 |
| Maximum vertical digging depth (mm) | 4460 |
| Minimum turning radius (mm) | 2670 |
| Dodging plate width × height (mm) | 2490 x 559 |
Description

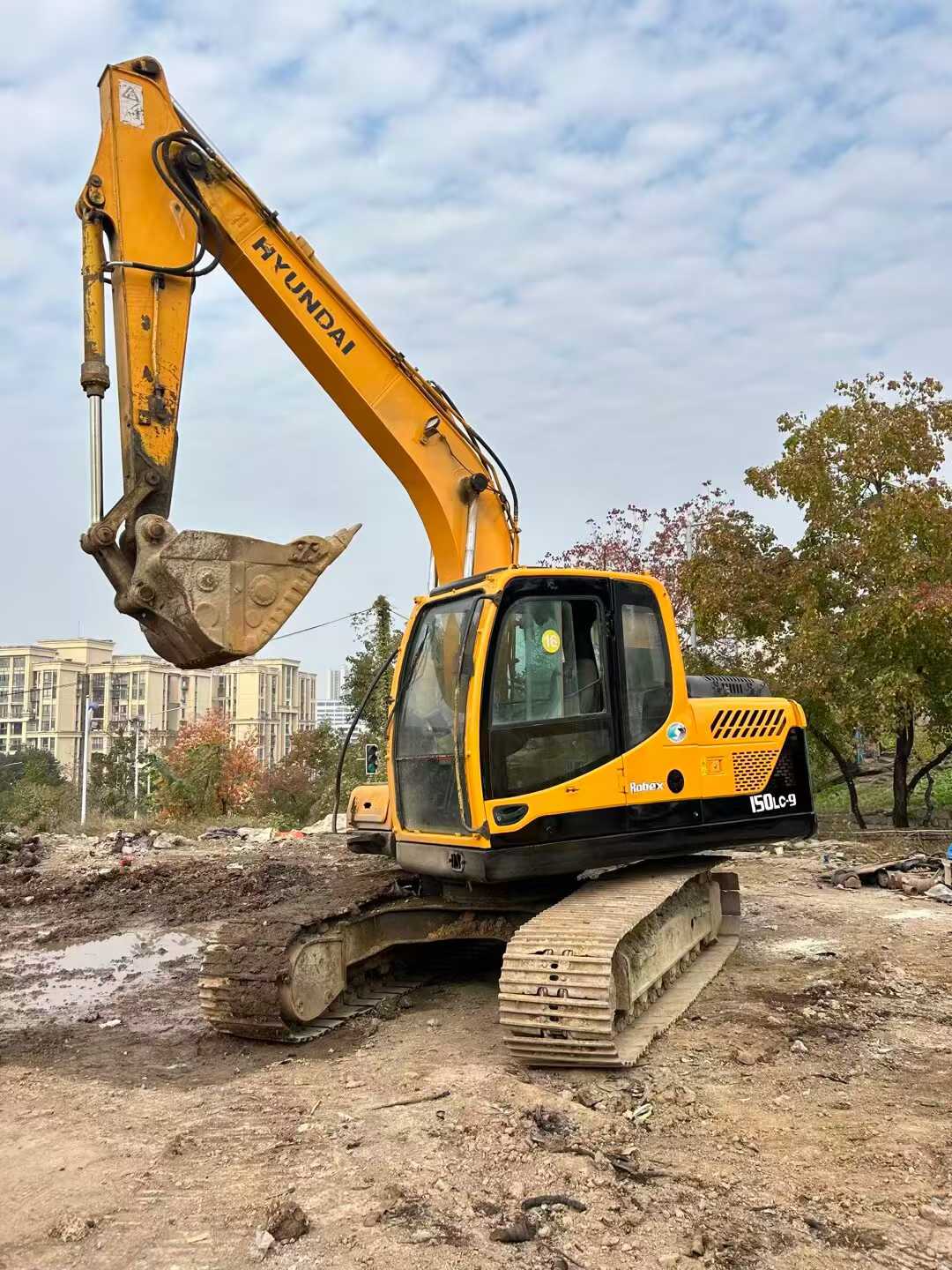

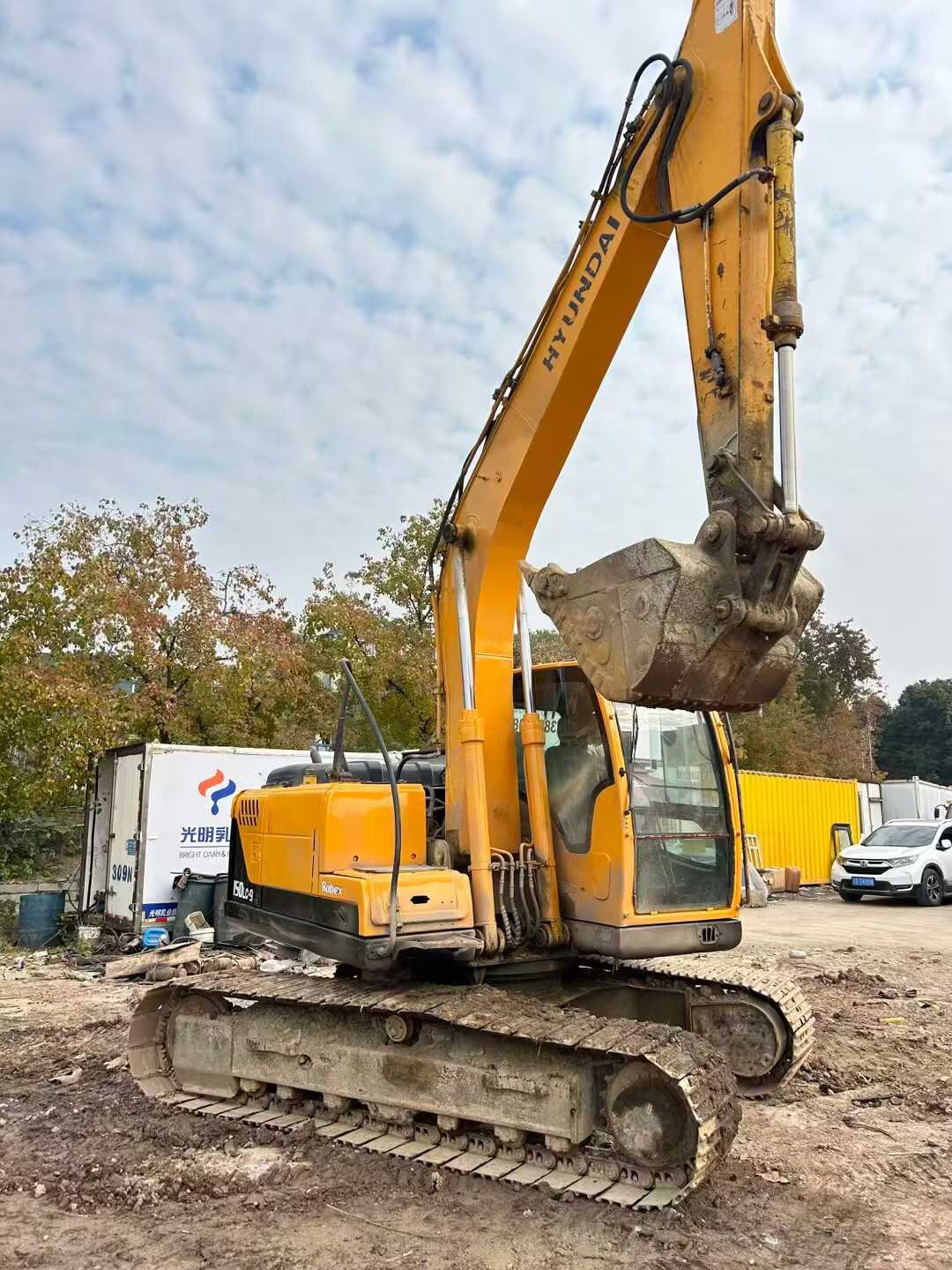

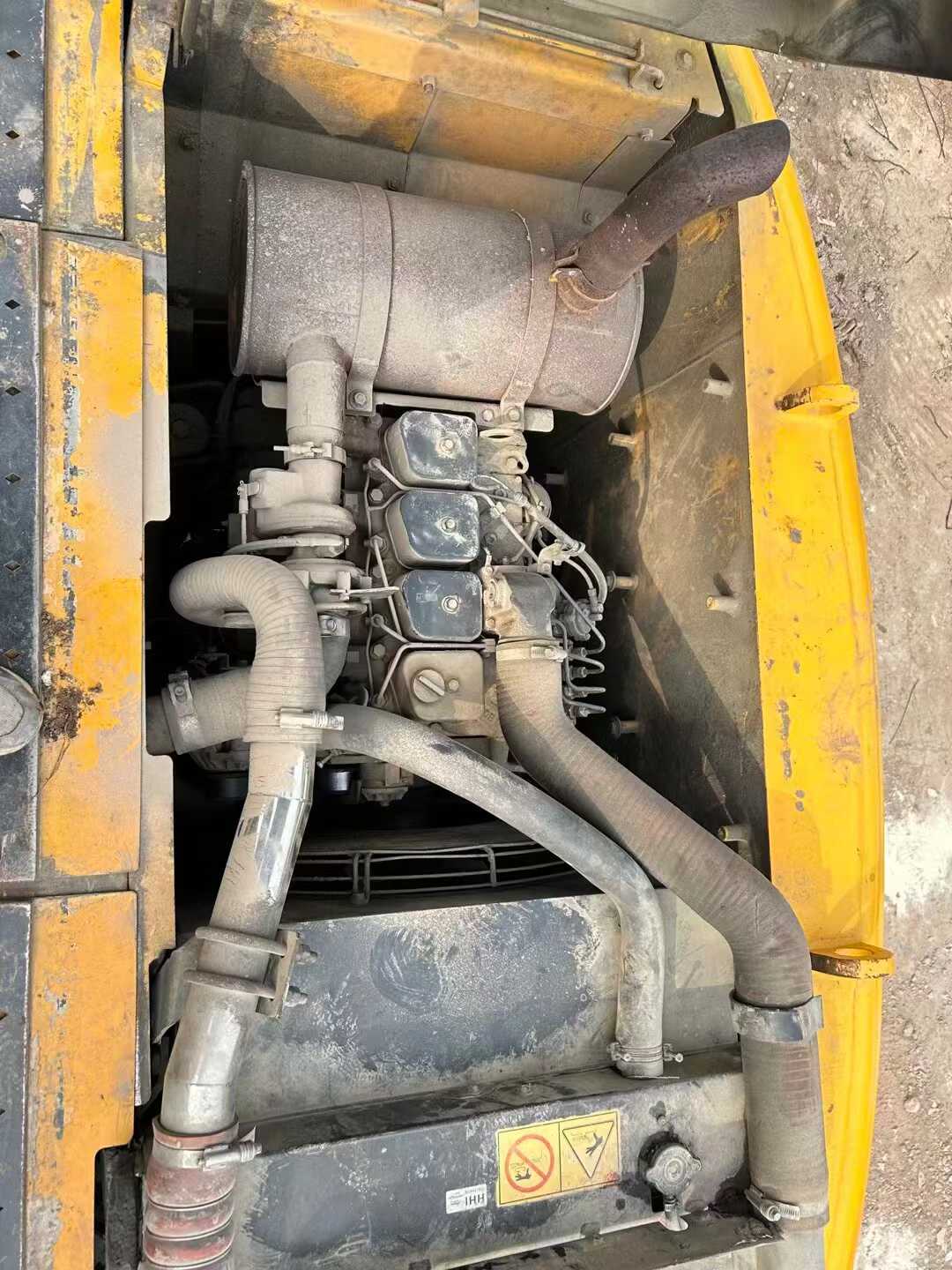

"Modern 150-9 second-hand excavator This modern 150-9 excavator is a consignment product of our customer. Due to business adjustments, the customer no longer needs this equipment and has decided to sell it. Although this excavator has been in use for some time, its overall condition is very good. Its working time is only about 2,000 hours, which is far lower than the average service life of similar equipment. This means that it still has a long service life waiting for its new owner to dig. In terms of the power system, this machine is equipped with a Cummins engine that has been well-tested in the market. This engine is renowned for its powerful output and excellent fuel economy, and can easily handle the operational demands under various complex working conditions. More importantly, this engine has been meticulously maintained and serviced by a professional team, ensuring it is in good operating condition and can be immediately put into work. In terms of the hydraulic system, the modern 150-9 is equipped with an advanced load sensing control system, which not only enhances work efficiency but also significantly reduces energy consumption, making the operation more stable and smooth. In addition, all key components have undergone c
