| Specifications | Value |
|---|---|
| No. | 970257 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13700 |
| Bucket capacity (m³) | 0.23-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2100 |
| Country of origin | Peking |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins B5.9-C |
| Rated power (kw/rpm) | 112/1950 |
| Total displacement (L) | 5.9 |
| Cooling mode | water-cooling |
| remark | Six-cylinder four-stroke turbocharged direct injection engine |
| Maximum torque (N.m) | 613.48 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 37 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 101.9 |
| Rod digging force (kN) | 65.6 |
| Maximum tractive force (kN) | 83.3 |
| Driving form | Hydraulic motor |
| Main overflow set pressure (Mpa) | 350 |
| Rotary hydraulic motor type | Variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 168 |
| Main pump type | Variable swash plate piston pump |
| Working Hydraulic Circuit (Mpa) | Quantitative swash plate plunger motor |
| Fuel Tank (L) | 270 |
| Hydraulic Tank (L) | 126 |
| Total transport length (mm) | 7760 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3137 |
| Counterweight ground clearance (mm) | 1233 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 900×20-14PR |
| Total tire outside width (mm) | 2495 |
| Wheel base (mm) | 1944 |
| Minimum ground clearance (mm) | 365 |
| Onboard width (mm) | 2500 |
| Maximum digging radius (mm) | 7920 |
| Maximum excavation radius (mm) | 7700 |
| Maximum digging depth (mm) | 4850 |
| Maximum excavation height (mm) | 8470 |
| Maximum unloading height (mm) | 6040 |
| Maximum vertical digging depth (mm) | 4460 |
| Minimum turning radius (mm) | 2670 |
| Dodging plate width × height (mm) | 2490 x 559 |
Description

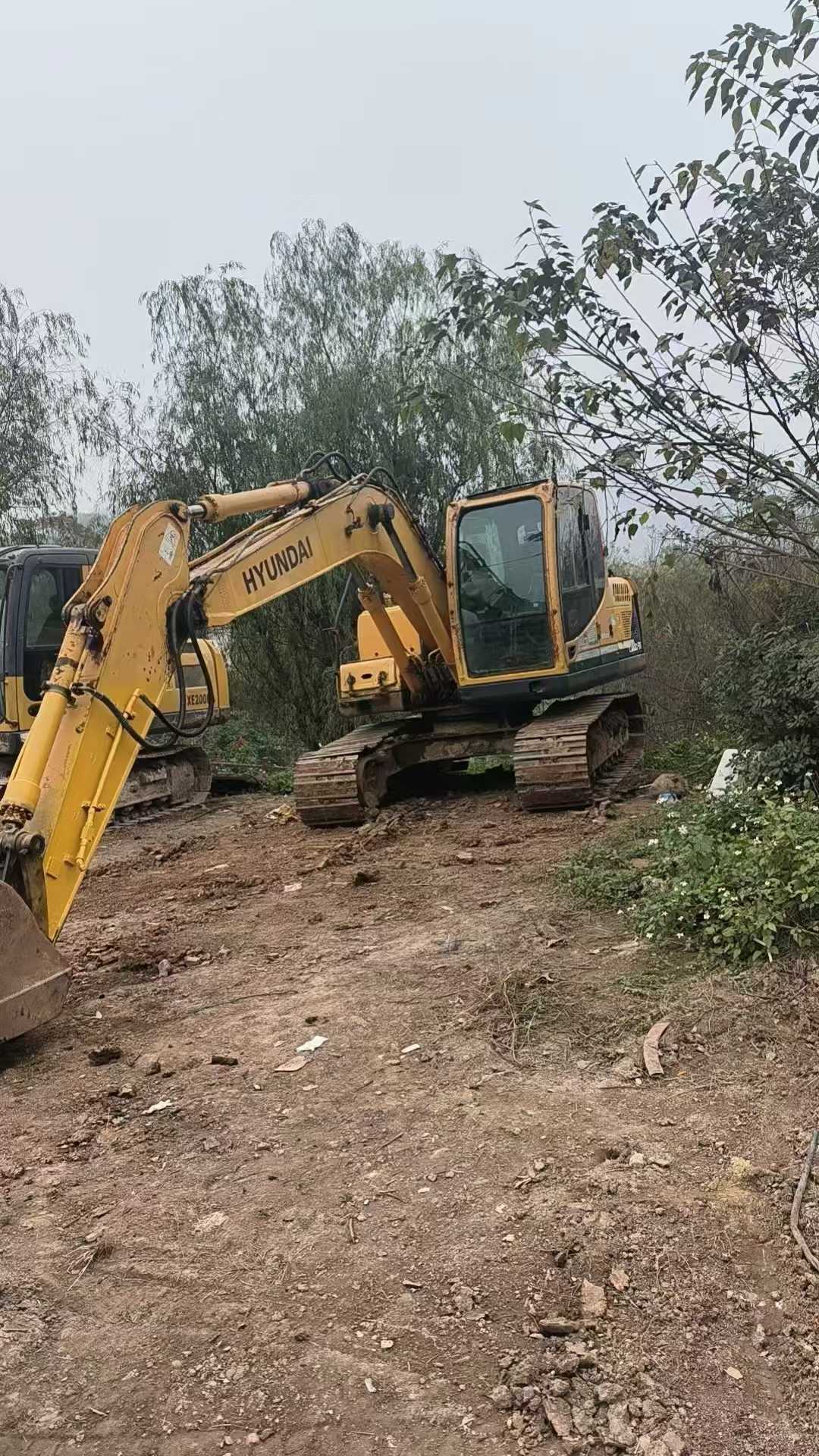

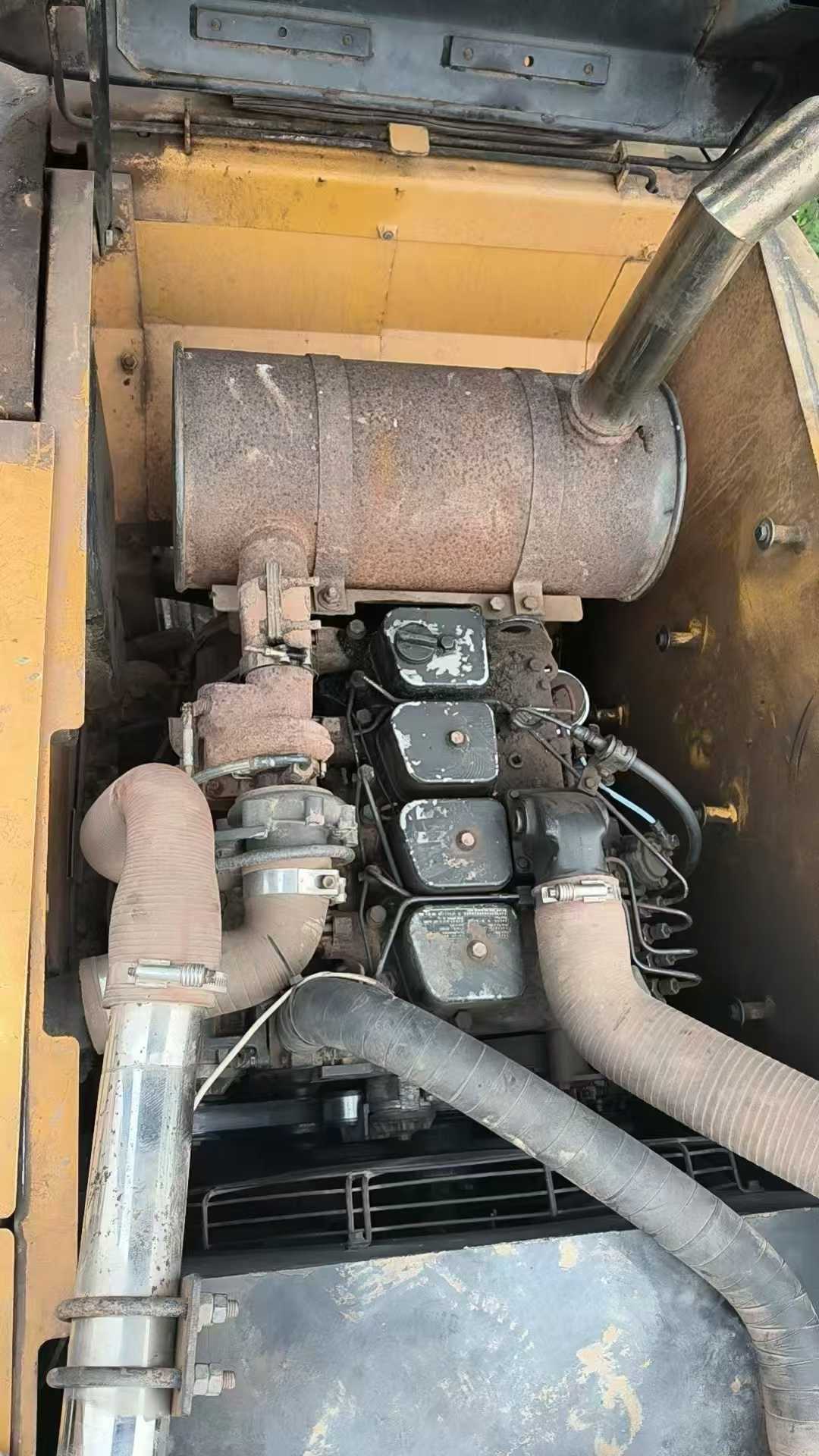

"Modern 150-9 second-hand excavator This modern 150-9 excavator is a high-quality second-hand device carefully selected by us. Currently, it is being consigned by a customer at a price of only 78,000 yuan. It features outstanding performance and excellent durability, making it an ideal choice for small and medium-sized engineering projects. Working time: The cumulative working time of this equipment is 3,200 hours, which means it is in the best condition for use. There is neither the high cost of a new machine nor the frequent maintenance problems of an old one. For engineering projects that require long-term stable operation, this is definitely a very economical and practical choice. Power system: It adopts an original imported high-performance engine, ensuring strong and stable power output. Even in harsh working environments, it can easily handle various complex working conditions. Meanwhile, its features of low fuel consumption and low emissions also meet the current environmental protection requirements, saving users a large amount of operating costs. Hydraulic system: Equipped with an advanced load-sensing hydraulic control system, it makes operation more precise and smooth, and improves work efficiency. Whether it is excavati
