| Specifications | Value |
|---|---|
| No. | 970754 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20,800 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai HE6.7 |
| Rated power (kw/rpm) | 129/2200 |
| Total displacement (L) | 6.7 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 9.3/37.9 |
| Rotation speed (rpm) | 10.3 |
| Minimum turning radius (m) | 6.69 |
| Maximum flow of main pump (l/min) | 2*228 |
| Main pump type | Two variable plunger pump |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 9,680 / 9,570 / 9,500 |
| Total transport width (mm) | 2,490 |
| Total transport height (mm) | 3,180 |
| Counterweight ground clearance (mm) | 1305 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 345 |
| Back end turning radius (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum excavation radius (mm) | 9750 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7160 |
| Maximum vertical digging depth (mm) | 5810 |
| Minimum turning radius (mm) | 3580 |
| Bulldozer lift or depth (mm) | 445*120 |
| Dodging plate width × height (mm) | 2,490*610 |
Description

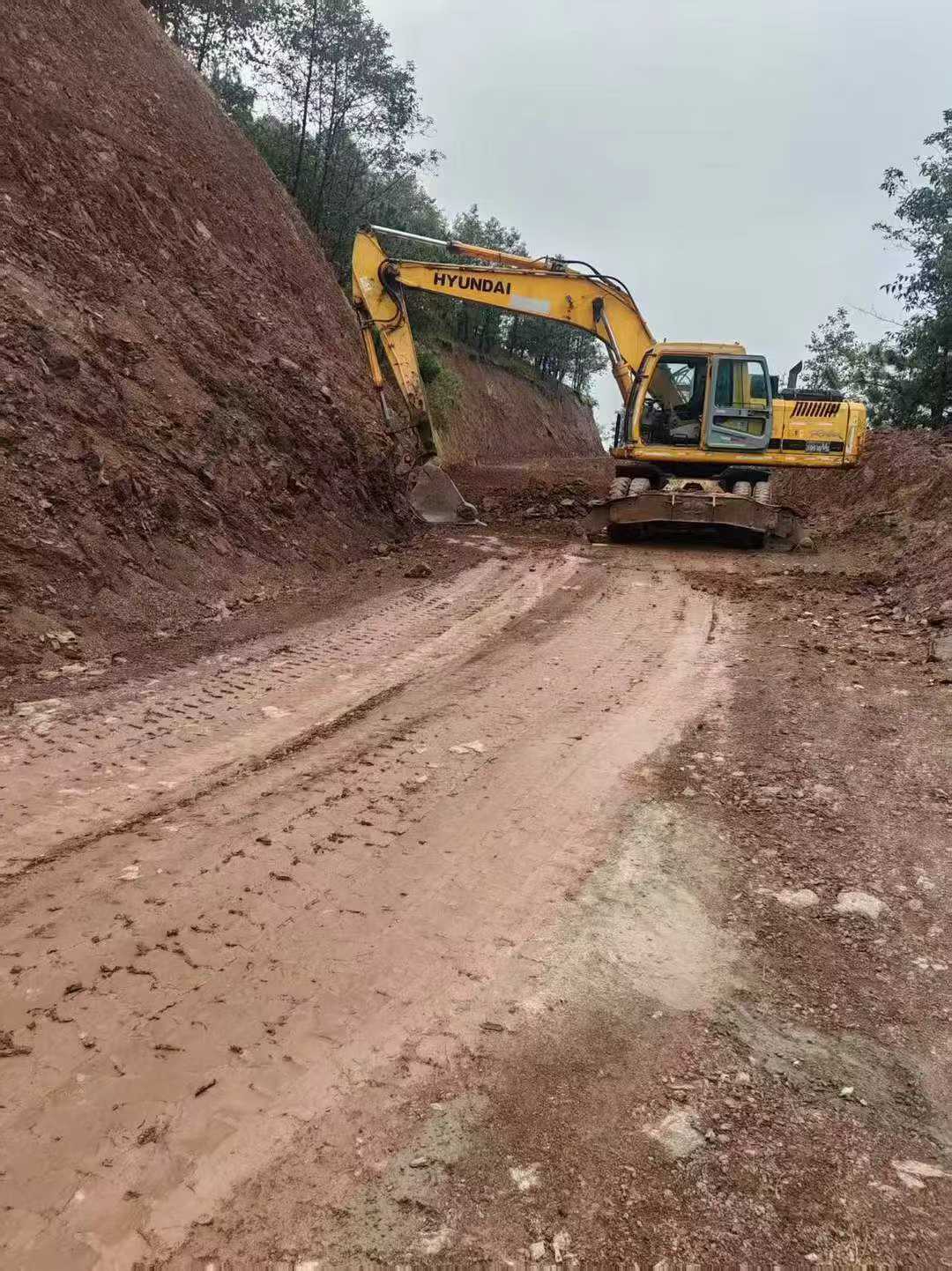

【 Detailed Introduction of Modern 210 Second-hand Excavator This Hyundai 210 excavator, as a highly praised premium working vehicle in the market, has won the favor of many users with its outstanding working performance and stable mechanical condition. Since it was put into use, it has only accumulated 3,500 hours of operation, which is far lower than the average service life of similar equipment. This means that it still has a very long service life. In terms of power, this machine is equipped with a high-performance engine, which not only has strong power but also excellent fuel economy. It can maintain stable output under various complex working conditions. Whether it is digging, loading or leveling the ground, it can handle it with ease. More importantly, this engine has been meticulously maintained and serviced, ensuring its reliability and durability during long-term operation. The hydraulic system is one of the key factors in evaluating the quality of an excavator. This Hyundai 210 model adopts an advanced closed center load-sensitive hydraulic control system, which can achieve rapid response and smooth operation, while effectively reducing energy consumption. In addition, the entire set of hydraulic components are all from w
