Product Description

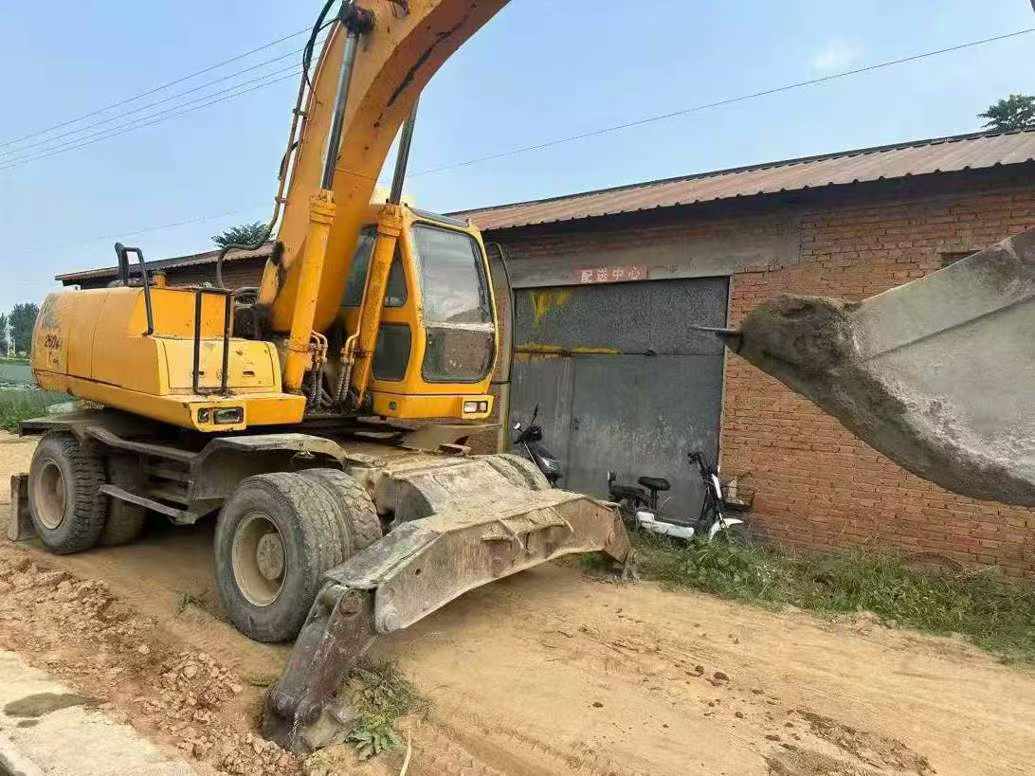

Skip the factory lead times with this proven 2016 Hyundai R210WVS wheeled excavator, available now from 河北秦皇岛 for immediate deployment to your construction site. Built for versatility and reliability, this 21-ton machine delivers consistent performance with its robust 6.7L Hyundai HE6.7 engine producing 129kW of rated power.

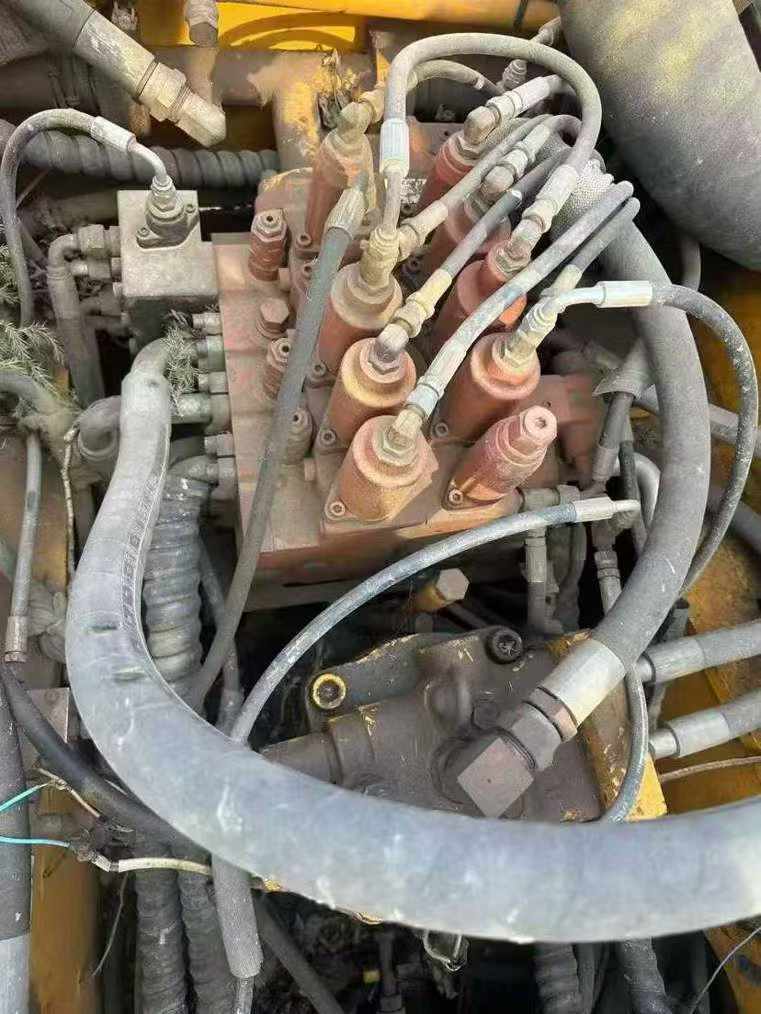

Engineered for demanding jobsites, the R210WVS features a 0.92m³ bucket capacity and impressive reach specifications: 9.96m maximum digging radius and 6.38m maximum digging depth. Advanced hydraulics with dual variable plunger pumps ensure smooth operation, while the wheeled configuration provides superior mobility with forward speeds up to 37.9 km/h between work areas.
- 21-ton working weight with 20,800kg operational capacity
- Fast site-to-site mobility eliminates transport delays
- 310L fuel tank for extended operation cycles
- Water-cooled 6-cylinder engine for reliable performance
- Ready for immediate delivery from Qinhuangdao logistics hub
Maximize your project timeline with this field-tested excavator that combines proven Hyundai engineering with the logistics advantage of immediate availability.
| Specifications | Value |
|---|---|
| No. | 983115 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20,800 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hyundai HE6.7 |
| Rated power (kw/rpm) | 129/2200 |
| Total displacement (L) | 6.7 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 9.3/37.9 |
| Rotation speed (rpm) | 10.3 |
| Minimum turning radius (m) | 6.69 |
| Maximum flow of main pump (l/min) | 2*228 |
| Main pump type | Two variable plunger pump |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 340 |
| Total transport length (mm) | 9,680 / 9,570 / 9,500 |
| Total transport width (mm) | 2,490 |
| Total transport height (mm) | 3,180 |
| Counterweight ground clearance (mm) | 1305 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 345 |
| Back end turning radius (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum excavation radius (mm) | 9750 |
| Maximum digging depth (mm) | 6380 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7160 |
| Maximum vertical digging depth (mm) | 5810 |
| Minimum turning radius (mm) | 3580 |
| Bulldozer lift or depth (mm) | 445*120 |
| Dodging plate width × height (mm) | 2,490*610 |
