2014 Hyundai R215-7

1/9

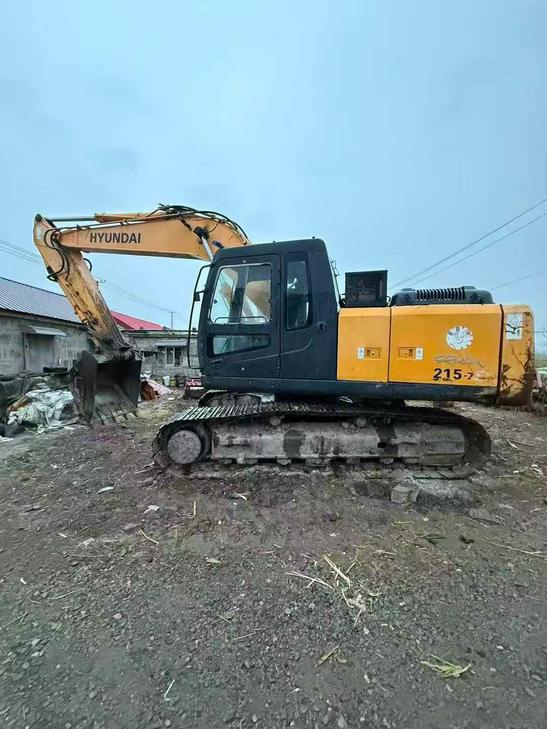

Used Hyundai R215-7 Excavator 2014 Model / 1
Used Hyundai R215-7 Excavator 2014 Model / 2
Used Hyundai R215-7 Excavator 2014 Model / 3
Used Hyundai R215-7 Excavator 2014 Model / 4
Used Hyundai R215-7 Excavator 2014 Model / 5
Used Hyundai R215-7 Excavator 2014 Model / 6
Used Hyundai R215-7 Excavator 2014 Model / 7
Used Hyundai R215-7 Excavator 2014 Model / 8
Used Hyundai R215-7 Excavator 2014 Model / 9

Product Description

【 Premium Recommendation 】 A second-hand Hyundai 215-7s excavator, purchased in 2014, has only been in use for 3,000 hours and is in excellent condition, almost 90% new. The paint surface of the lower frame of this excavator is still as bright as new, with almost no signs of wear and tear. Its appearance is neat and beautiful, which is quite eye-catching. The engine performs exceptionally well, runs smoothly, and has no exhaust emissions at all. The turntable operates smoothly without any gaps. Both the power system and the hydraulic system have undergone professional testing and are in good condition, so there is no need to worry about any potential faults. Its powerful output and efficient hydraulic configuration ensure operational efficiency while significantly reducing maintenance costs. Whether it is earthwork excavation, crushing operations or meticulous construction, they can all be handled with ease. The current price is only 95,000 RMB, offering an extremely high cost performance. It is an ideal choice that you cannot find! In addition, we also offer comprehensive after-sales service support, including but not limited to free technical consultation, regular follow-up inspections and other value-added services, striving to ens

SpecificationsValue
No.971617
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.971617

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2014

Location:

Jiangsu China
