2014 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2014 Model / 1

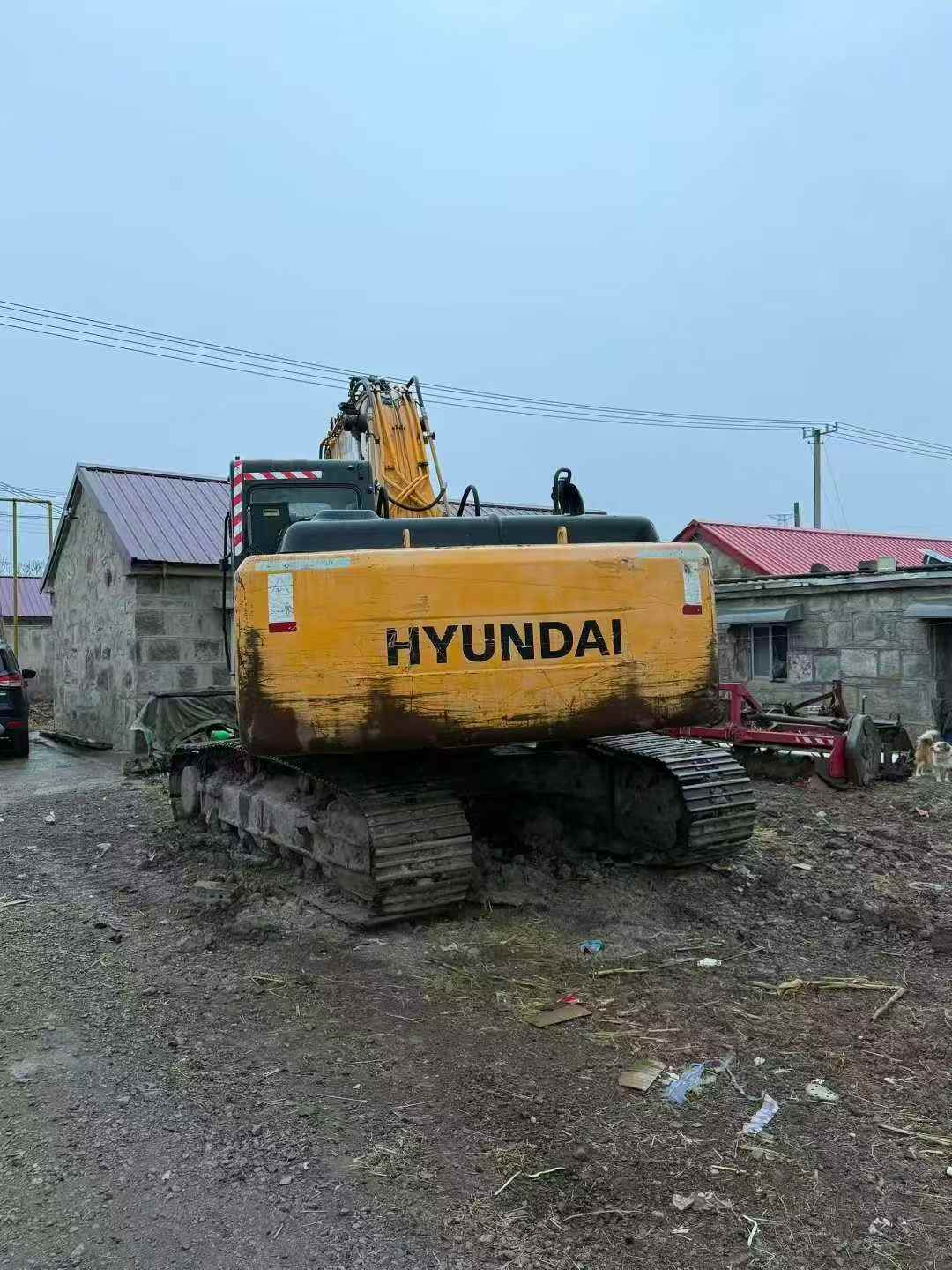

Used Hyundai R215-7 Excavator 2014 Model / 2

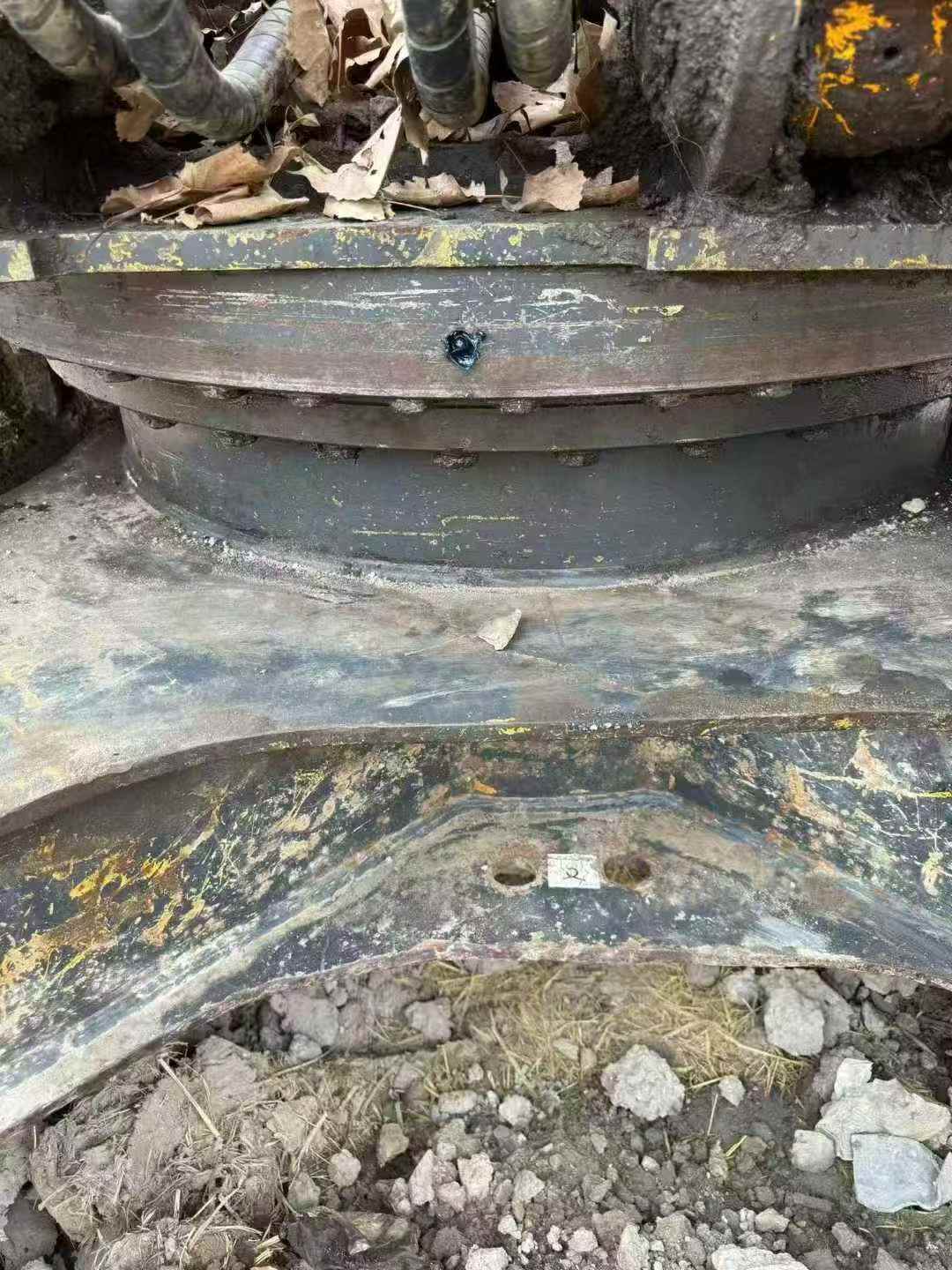

Used Hyundai R215-7 Excavator 2014 Model / 3

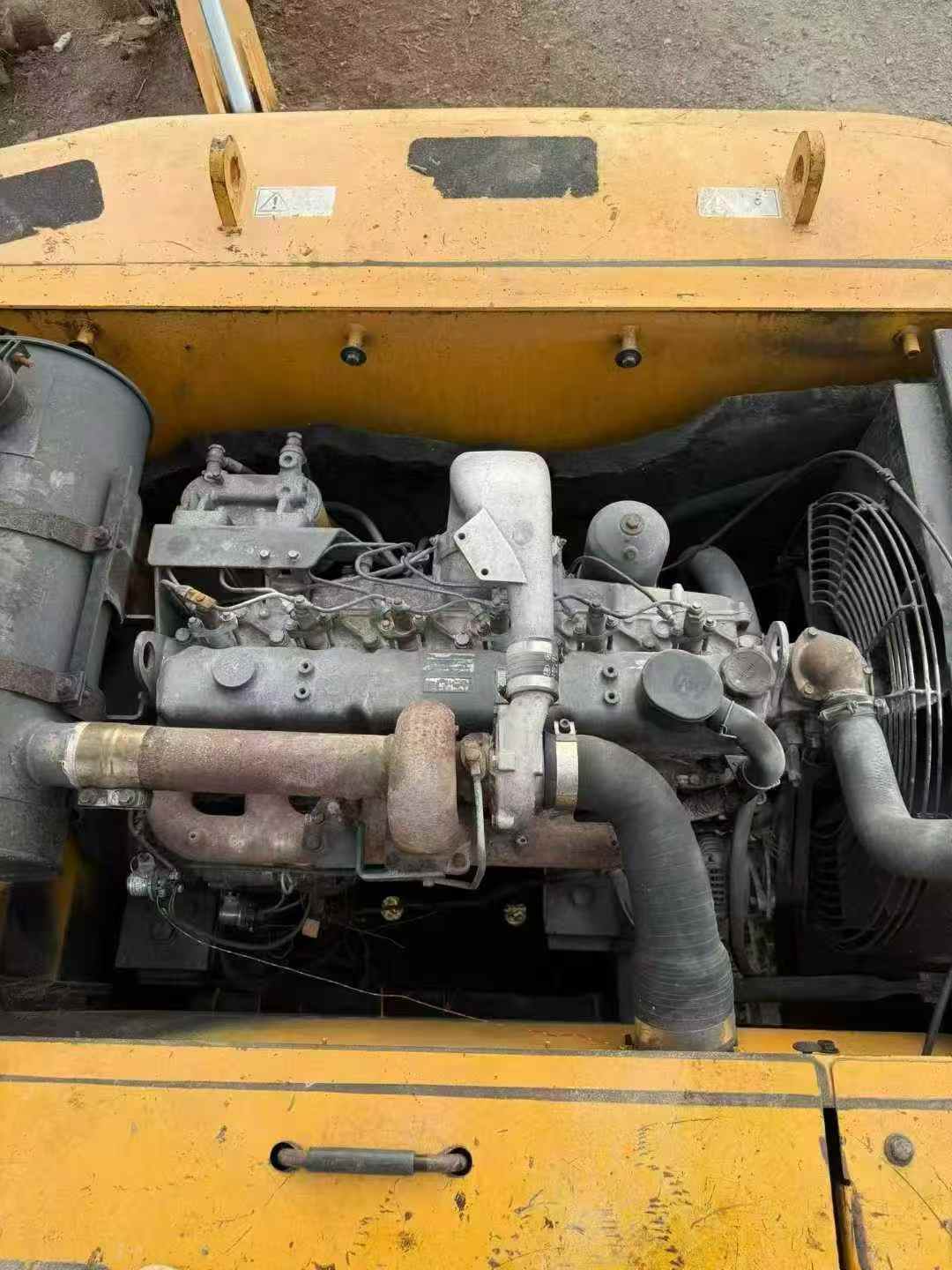

Used Hyundai R215-7 Excavator 2014 Model / 4

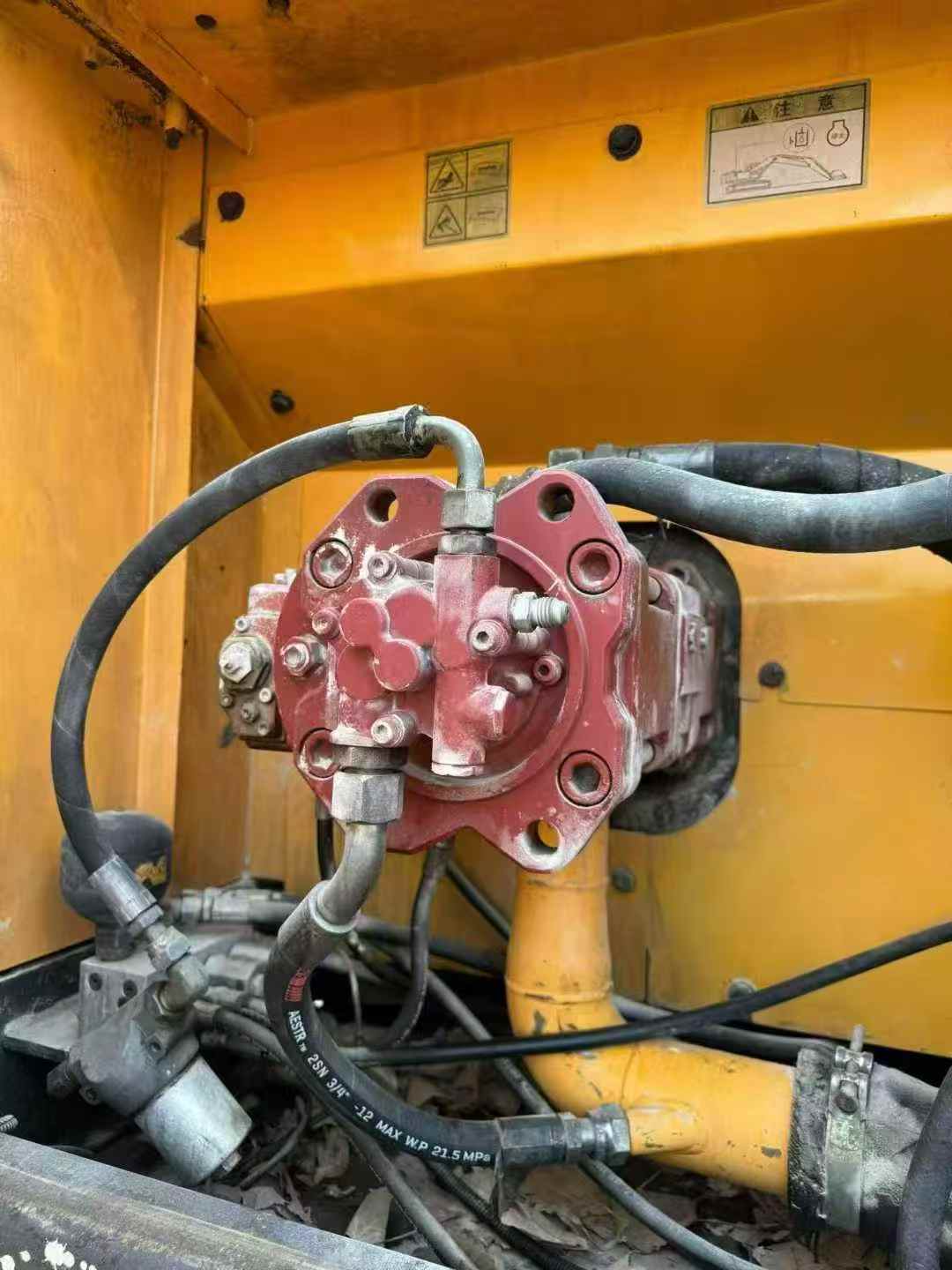

Used Hyundai R215-7 Excavator 2014 Model / 5

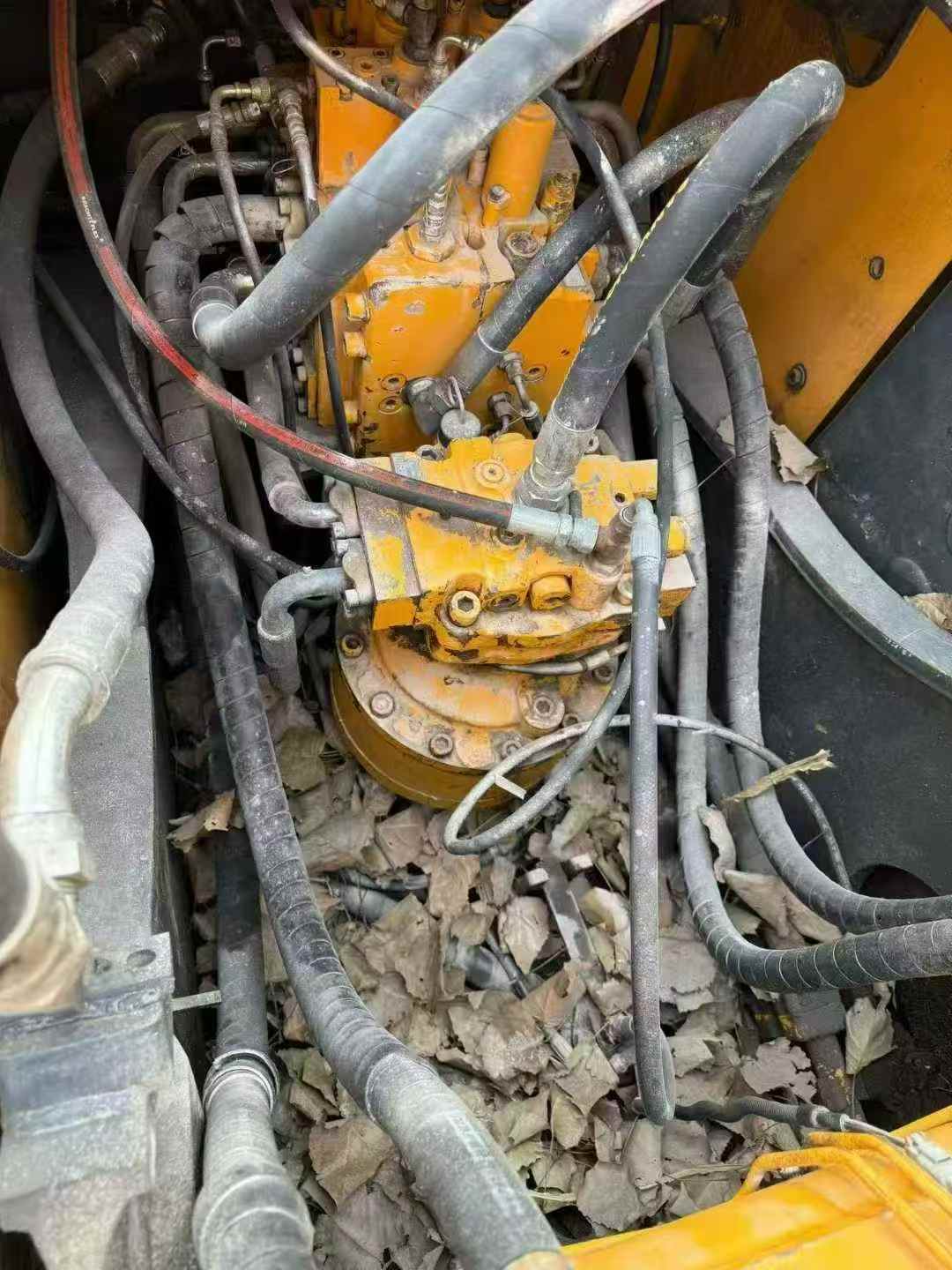

Used Hyundai R215-7 Excavator 2014 Model / 6
Used Hyundai R215-7 Excavator 2014 Model / 7
Used Hyundai R215-7 Excavator 2014 Model / 8
Used Hyundai R215-7 Excavator 2014 Model / 9

Product Description

We are selling a second-hand Hyundai R215-7S excavator purchased in 2014. It has been in operation for only about 5,000 hours and is in excellent overall condition. This equipment is equipped with a Cummins 6BTAA engine, which has a powerful output of 130kW, abundant power and stable operation. There is no issue of exhaust emissions, and the gap between the turntable is negligible, fully ensuring the working efficiency and operational accuracy. In terms of the hydraulic system, it is equipped with a high-quality main pump and motor combination, ensuring smooth operation and rapid response of the entire machine. Both the digging ability and the lifting capacity are outstanding, and it can easily handle the construction demands under various complex working conditions. In addition, this machine also pays special attention to energy-saving and emission-reduction design. While ensuring efficient operation, it effectively reduces fuel consumption and saves operating costs for users. In terms of appearance, the paint on the lower frame is well-preserved, with almost no obvious signs of wear and tear. The 90% new condition makes it hard to believe that this is a machine with a long history of use. The current price is only 93,000 yuan, offe

SpecificationsValue
No.975916
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.975916

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2014

Location:

Jiangsu China
