2014 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2014 Model / 1
Used Hyundai R215-7 Excavator 2014 Model / 2

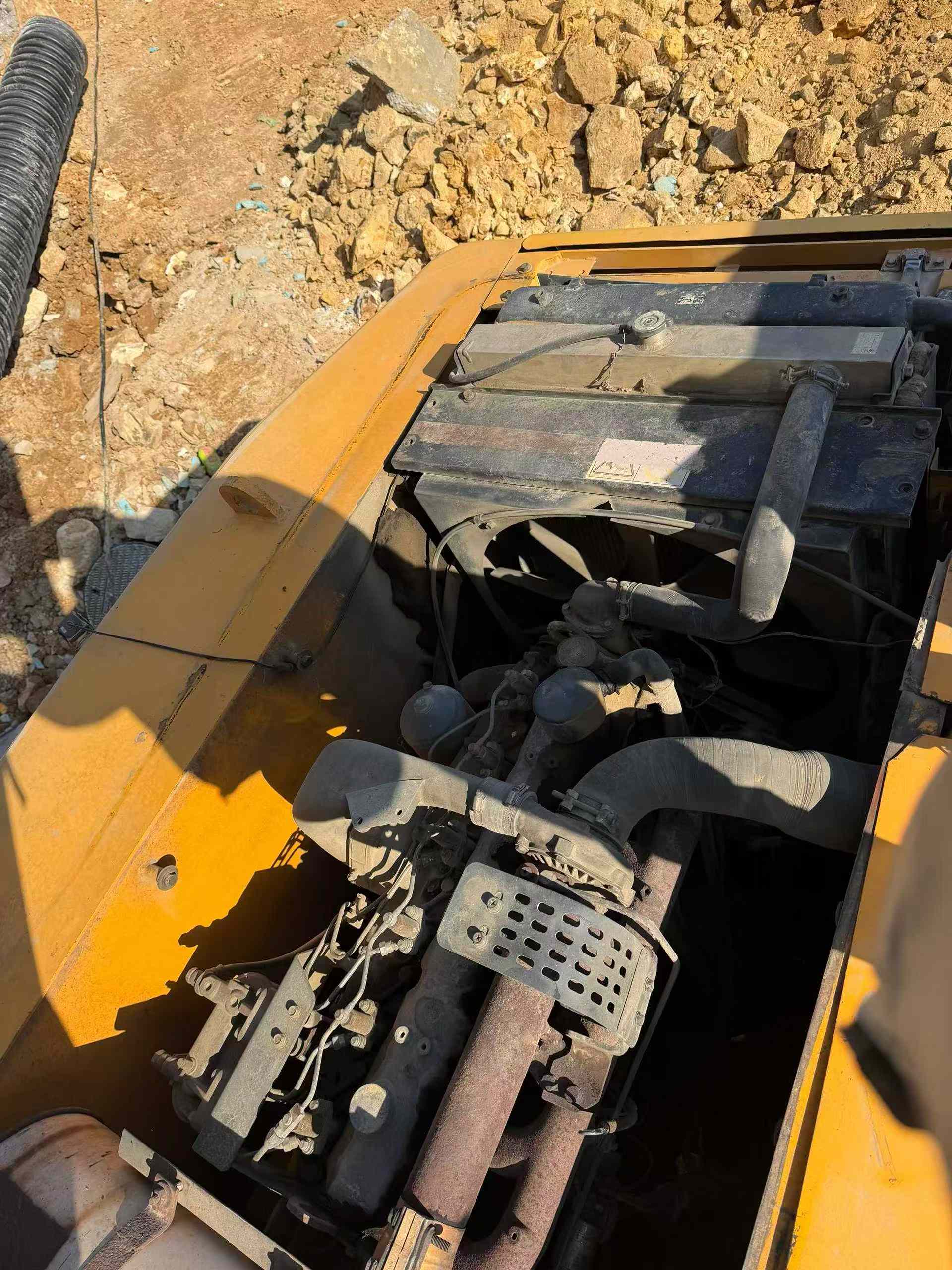

Used Hyundai R215-7 Excavator 2014 Model / 3

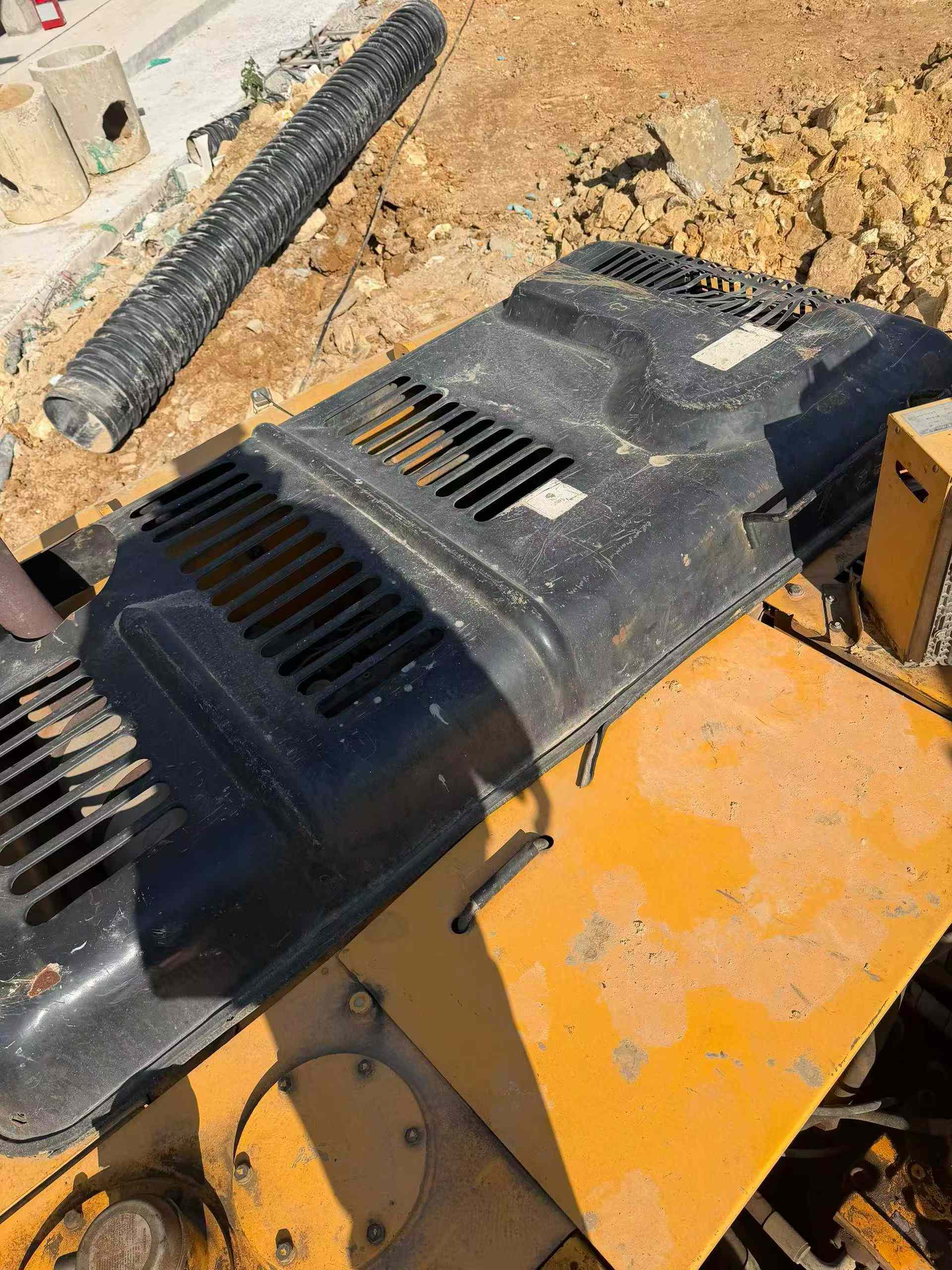

Used Hyundai R215-7 Excavator 2014 Model / 4

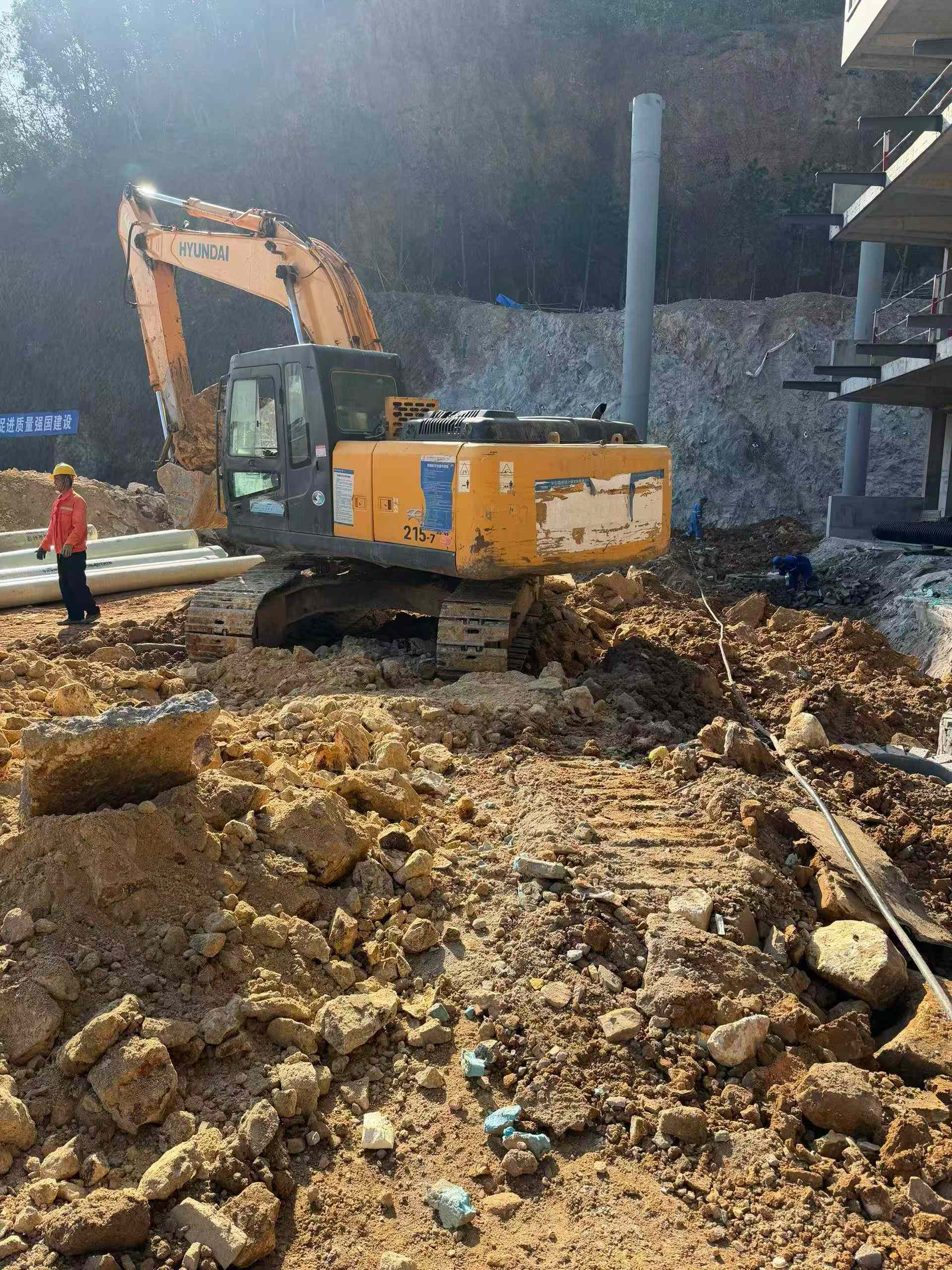

Used Hyundai R215-7 Excavator 2014 Model / 5
Used Hyundai R215-7 Excavator 2014 Model / 6

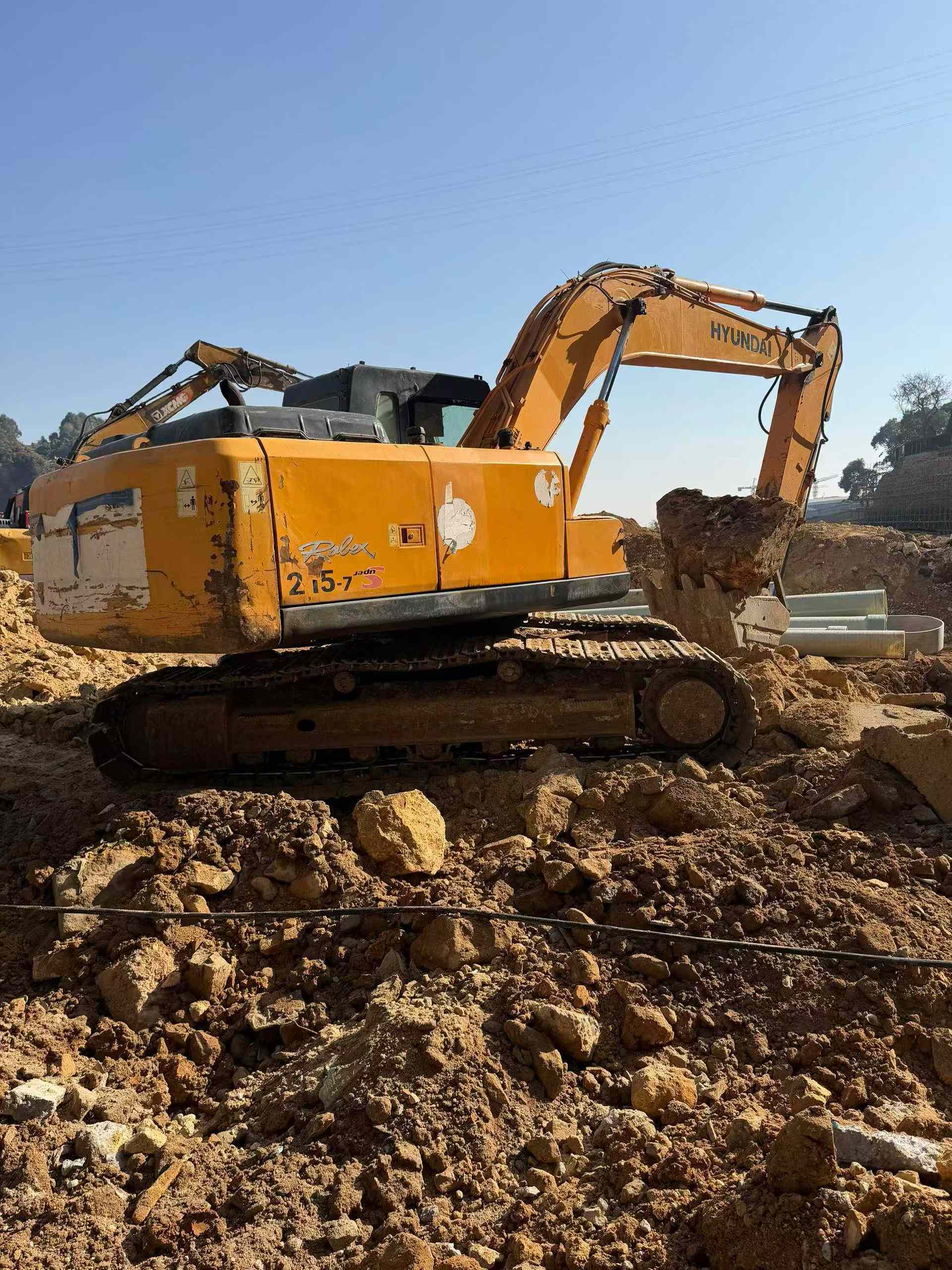

Used Hyundai R215-7 Excavator 2014 Model / 7
Used Hyundai R215-7 Excavator 2014 Model / 8

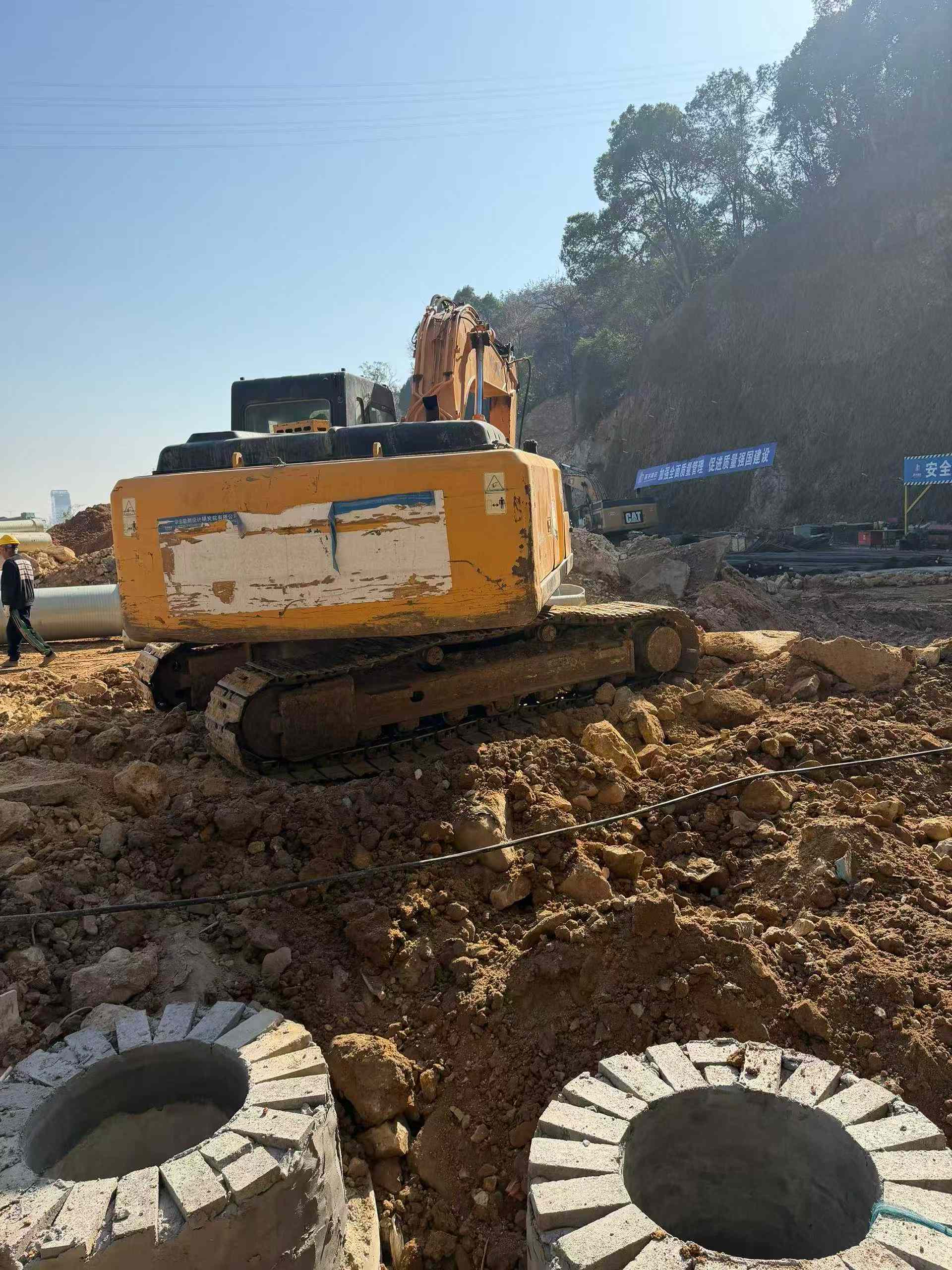

Used Hyundai R215-7 Excavator 2014 Model / 9

Product Description

There is currently a second-hand Hyundai R215-7S excavator produced in 2014. The working time of this equipment is moderate, with an estimated usage time of 8,000 to 10,000 hours, and it is in good condition. In terms of the power system, this excavator is equipped with a high-performance Cummins 6BTAA engine with a rated power of 130kW (approximately 174 horsepower), ensuring strong and stable output. It can handle both heavy-load excavation and rapid movement with ease. The hydraulic system adopts advanced negative flow control technology, combined with an efficient main pump and motor combination, ensuring smoothness and response speed during operation. It may be equipped with variable piston pumps and high-quality hydraulic motors, which can effectively reduce energy loss, improve work efficiency and also lower maintenance costs. In addition, this model also has the following major advantages: Firstly, the spacious and comfortable cab design provides an excellent operating field of vision; Secondly, the sturdy and durable structural components make the entire machine more reliable and long-lasting. Finally, the feature of being easy to maintain and repair greatly saves users' later expenses. In conclusion, this is a second-hand e

SpecificationsValue
No.976316
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.976316

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2014

Location:

Zhejiang China
