HOME>>Brands>>Hyundai R215-7

2016 Hyundai R215-7

1/7

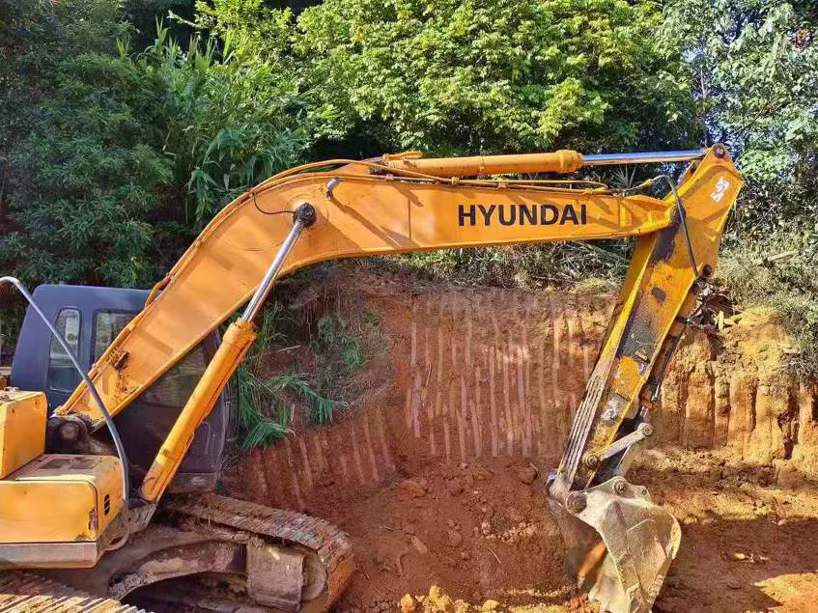

Used Hyundai R215-7 Excavator 2016 Model / 1

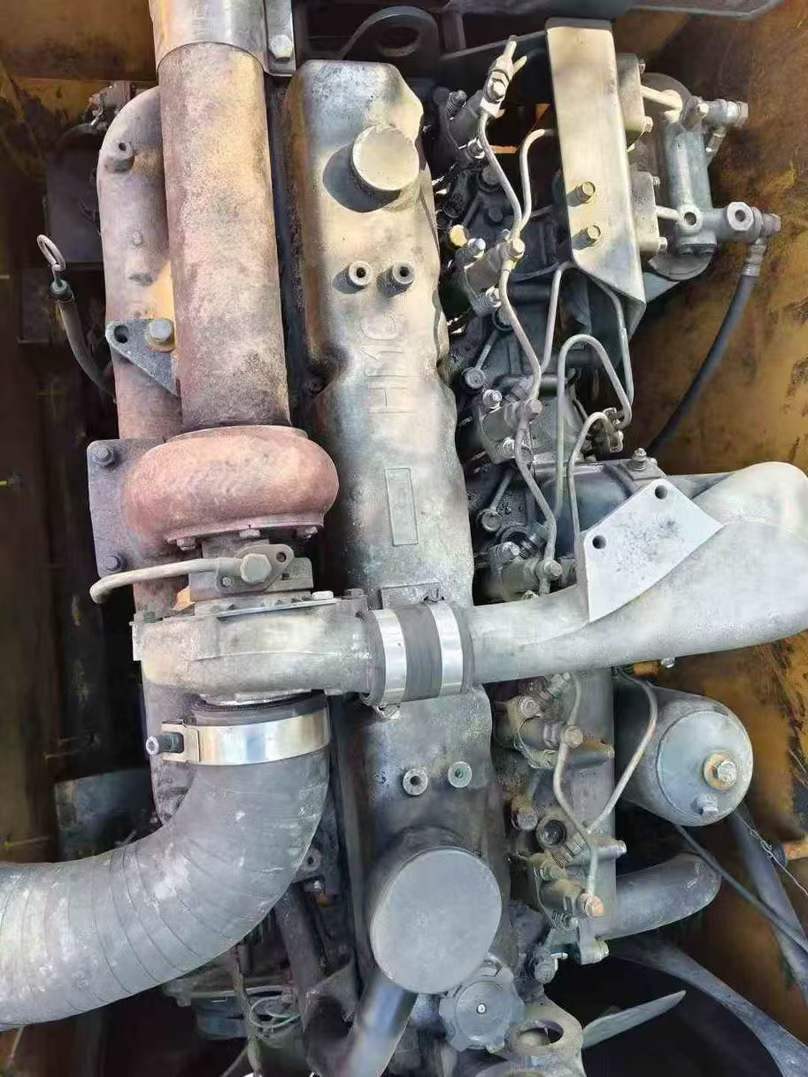

Used Hyundai R215-7 Excavator 2016 Model / 2

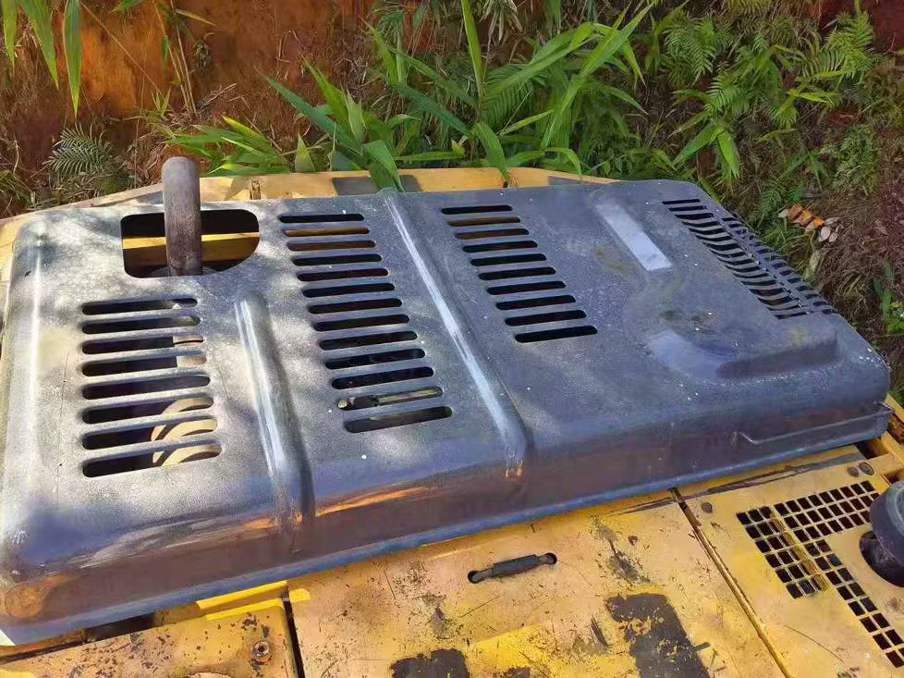

Used Hyundai R215-7 Excavator 2016 Model / 3

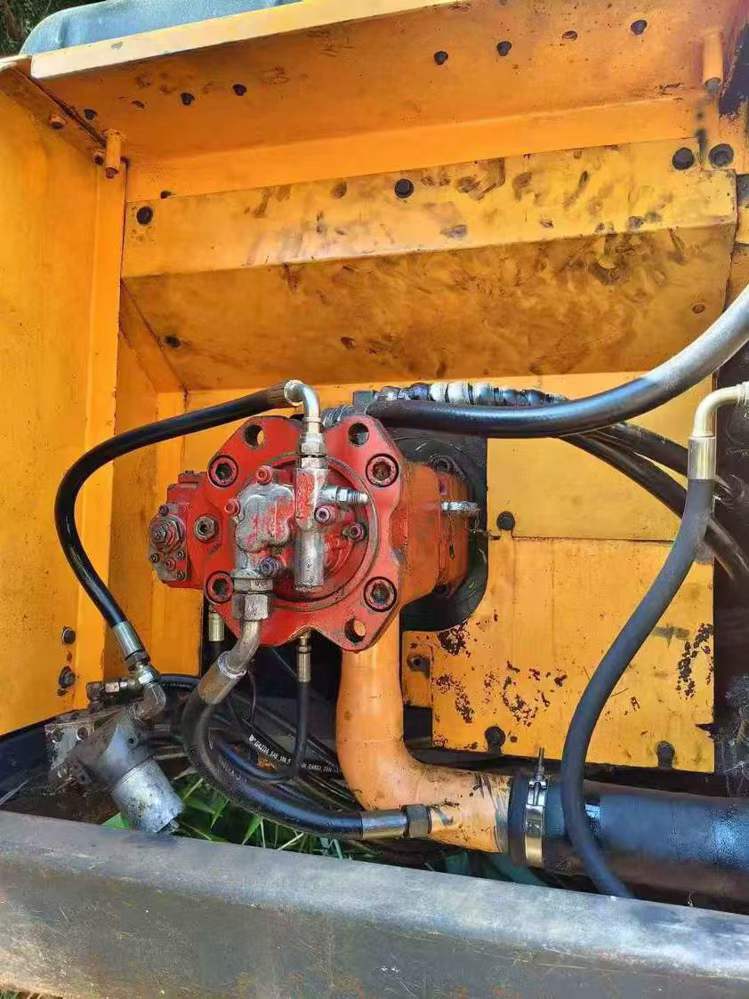

Used Hyundai R215-7 Excavator 2016 Model / 4

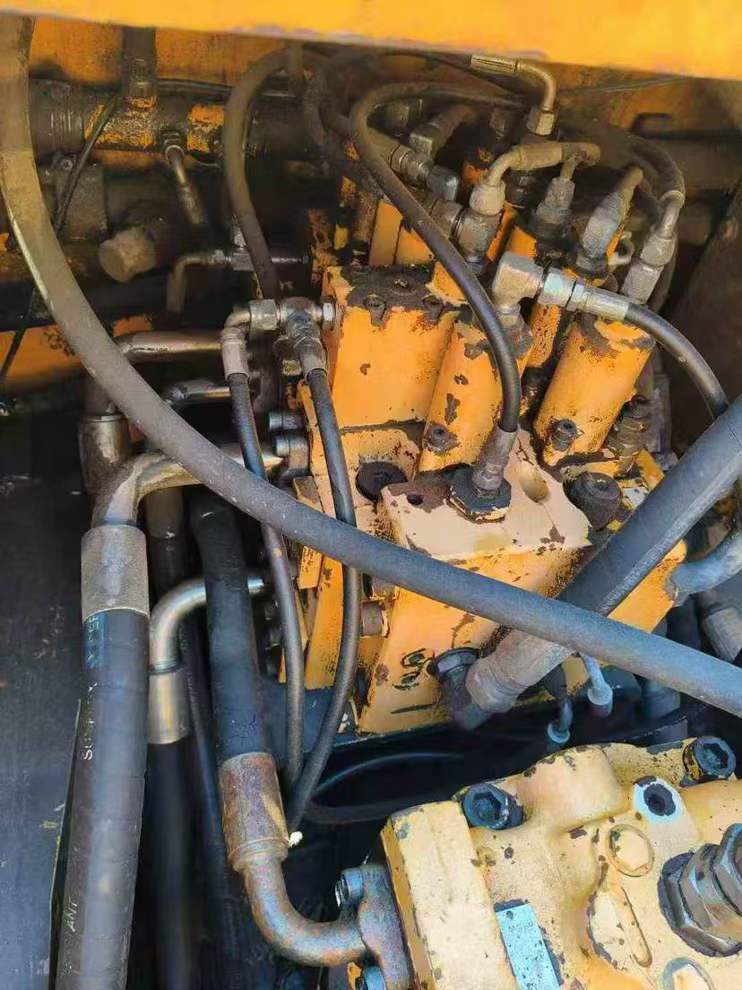

Used Hyundai R215-7 Excavator 2016 Model / 5

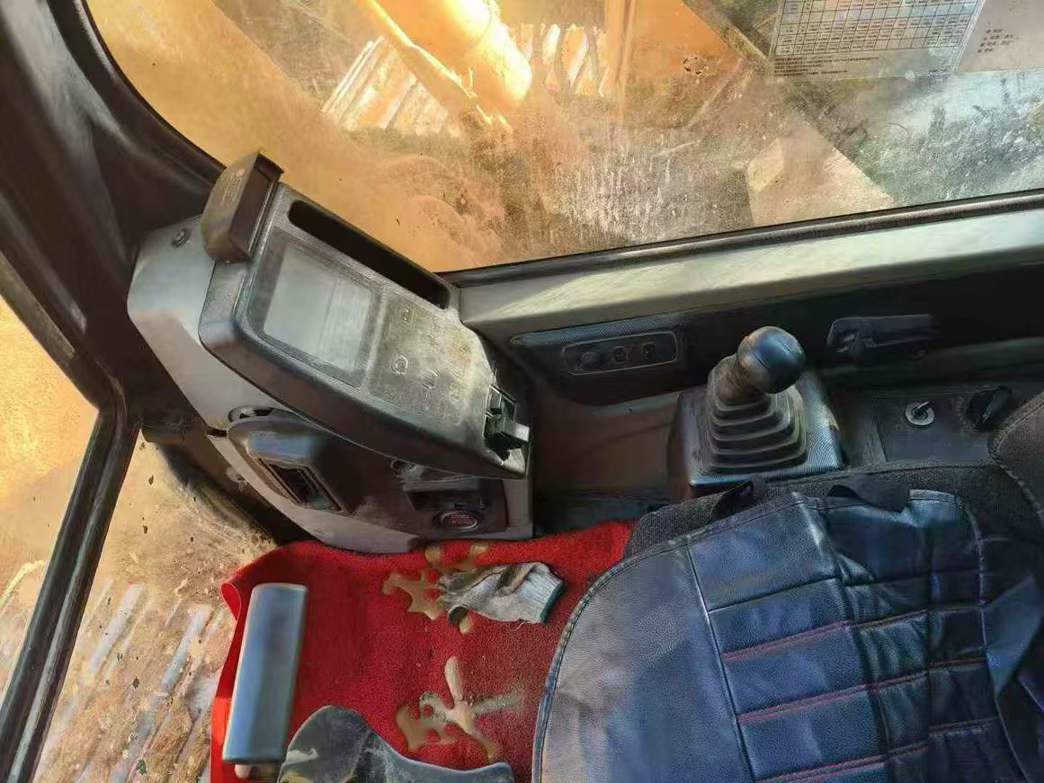

Used Hyundai R215-7 Excavator 2016 Model / 6
Used Hyundai R215-7 Excavator 2016 Model / 7

Product Description

There is currently a second-hand Hyundai 215-7 excavator, priced at only 58,000 yuan. This device is equipped with detailed pictures and video materials for your reference, ensuring that you can have a comprehensive understanding of its condition. The excavator is expected to work for about 4,000 hours. It is well maintained overall and has stable and reliable performance. In terms of power, the Hyundai 215-7 is equipped with an efficient and reliable engine, which may be from Cummins or a brand of the same class, with a rated power of approximately 130 horsepower (the specific model is subject to actual conditions), ensuring strong power output and smooth operation performance. Efficient fuel economy not only reduces operating costs but also minimizes the impact on the environment. The hydraulic system is a major highlight of this excavator. It adopts an advanced combination of hydraulic pumps and motors, providing outstanding operational sensitivity and response speed. Whether it is digging hard soil or doing meticulous work, it can handle it with ease. In addition, the optimized rotary mechanism enables the entire machine to maintain good stability and flexibility even in complex terrains. As a medium-sized excavator with extreme

SpecificationsValue
No.976549
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.976549

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2016

Location:

Guangdong China
