2014 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2014 Model / 1
Used Hyundai R215-7 Excavator 2014 Model / 2

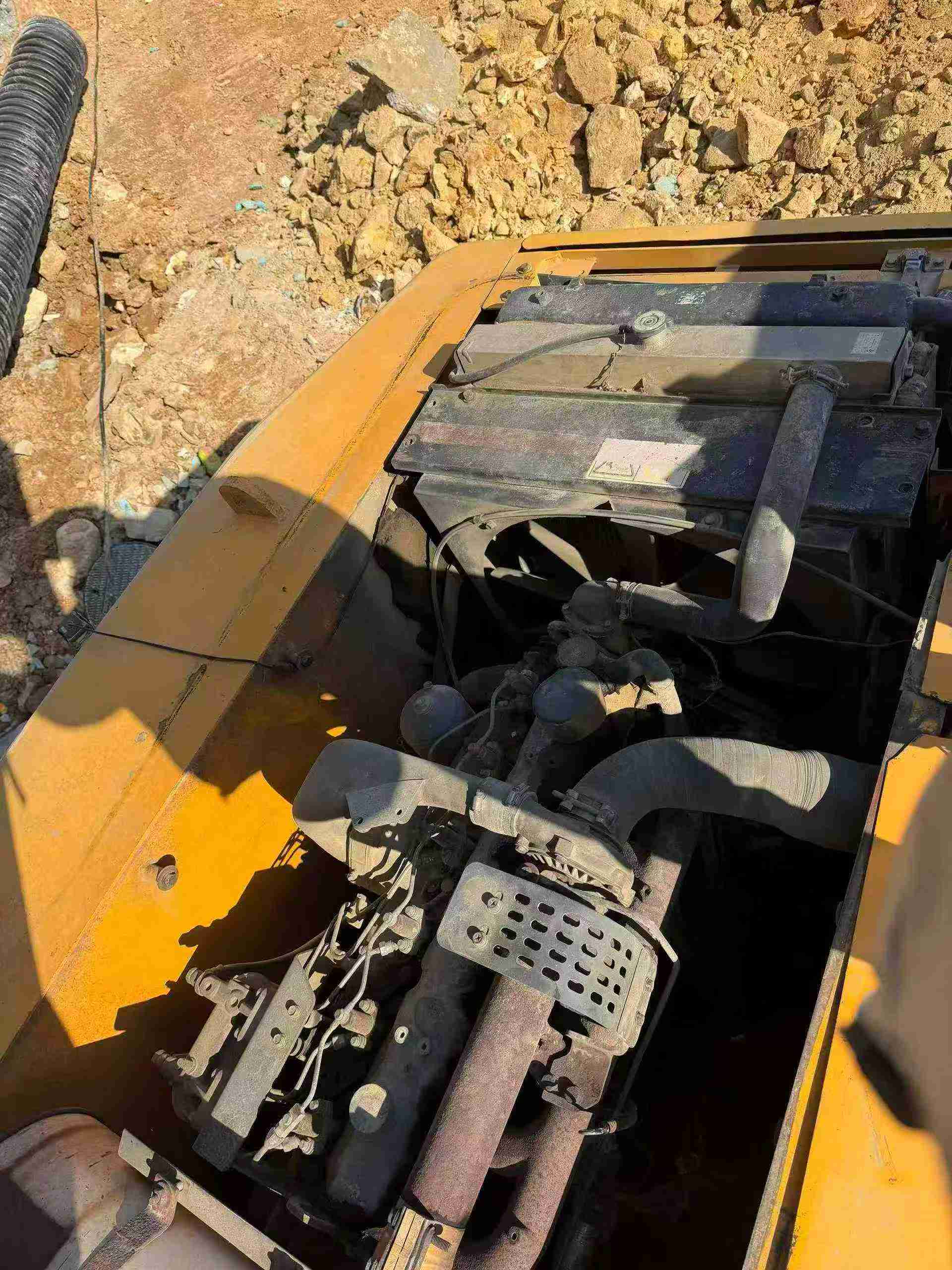

Used Hyundai R215-7 Excavator 2014 Model / 3

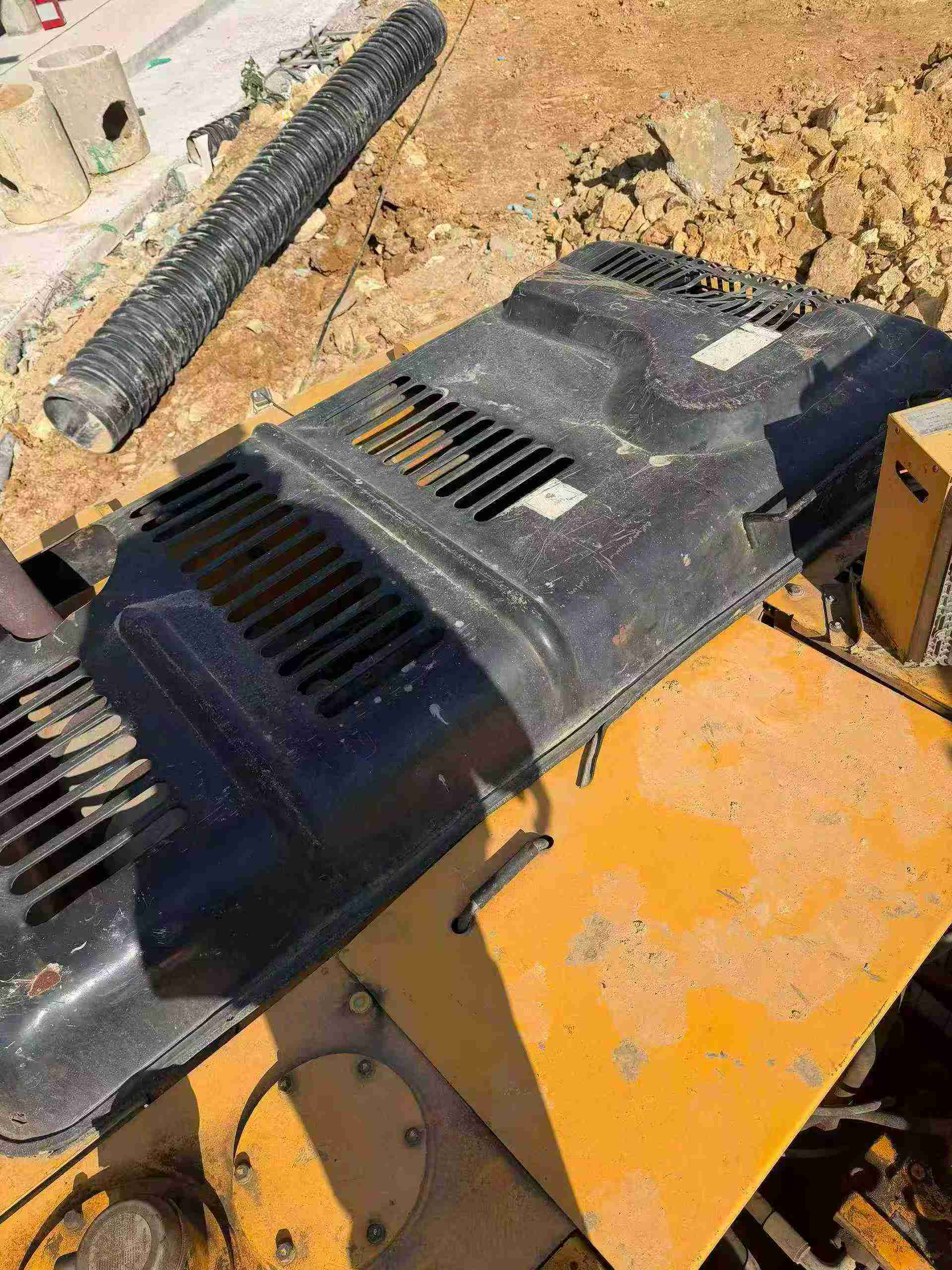

Used Hyundai R215-7 Excavator 2014 Model / 4

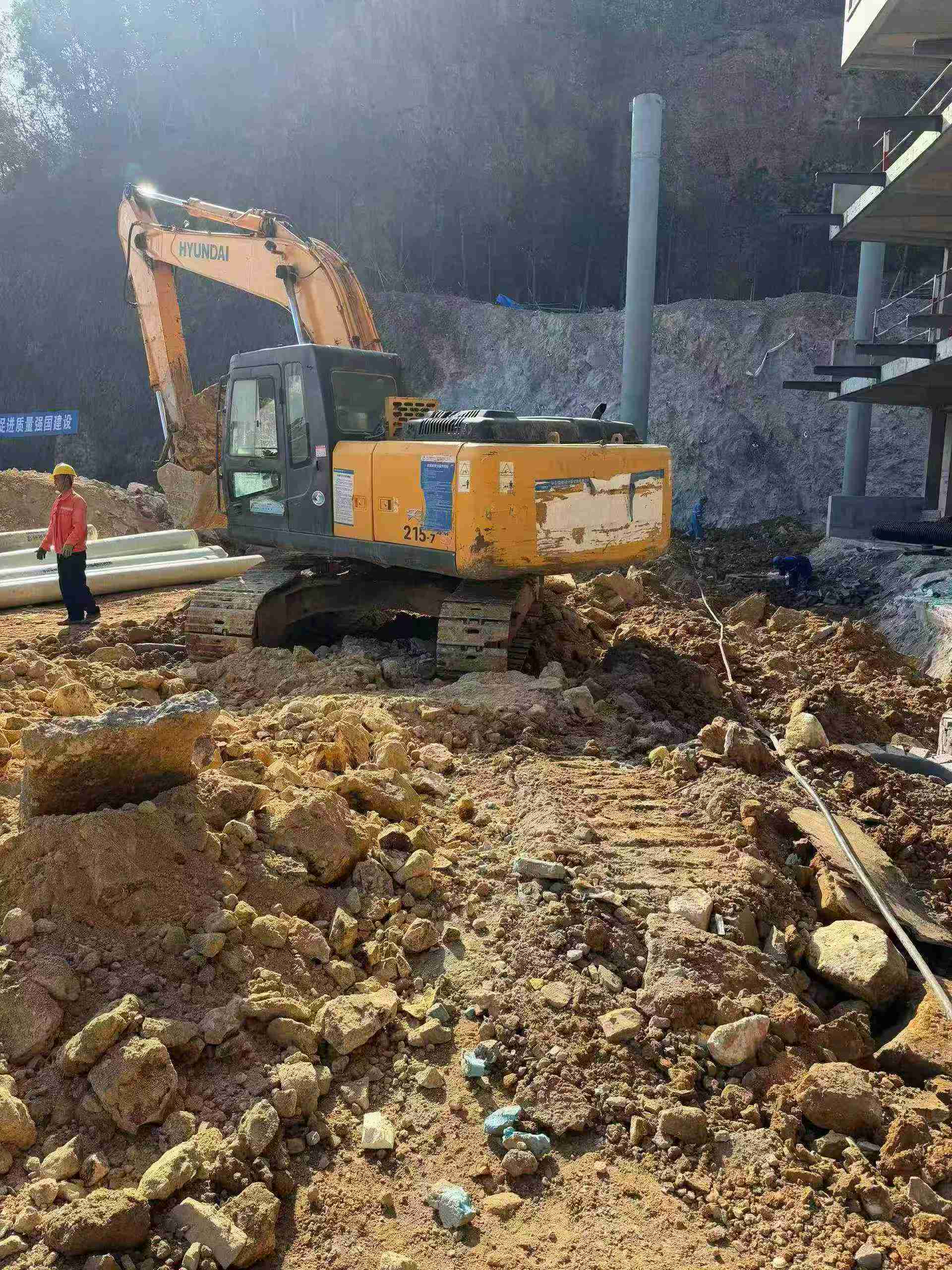

Used Hyundai R215-7 Excavator 2014 Model / 5

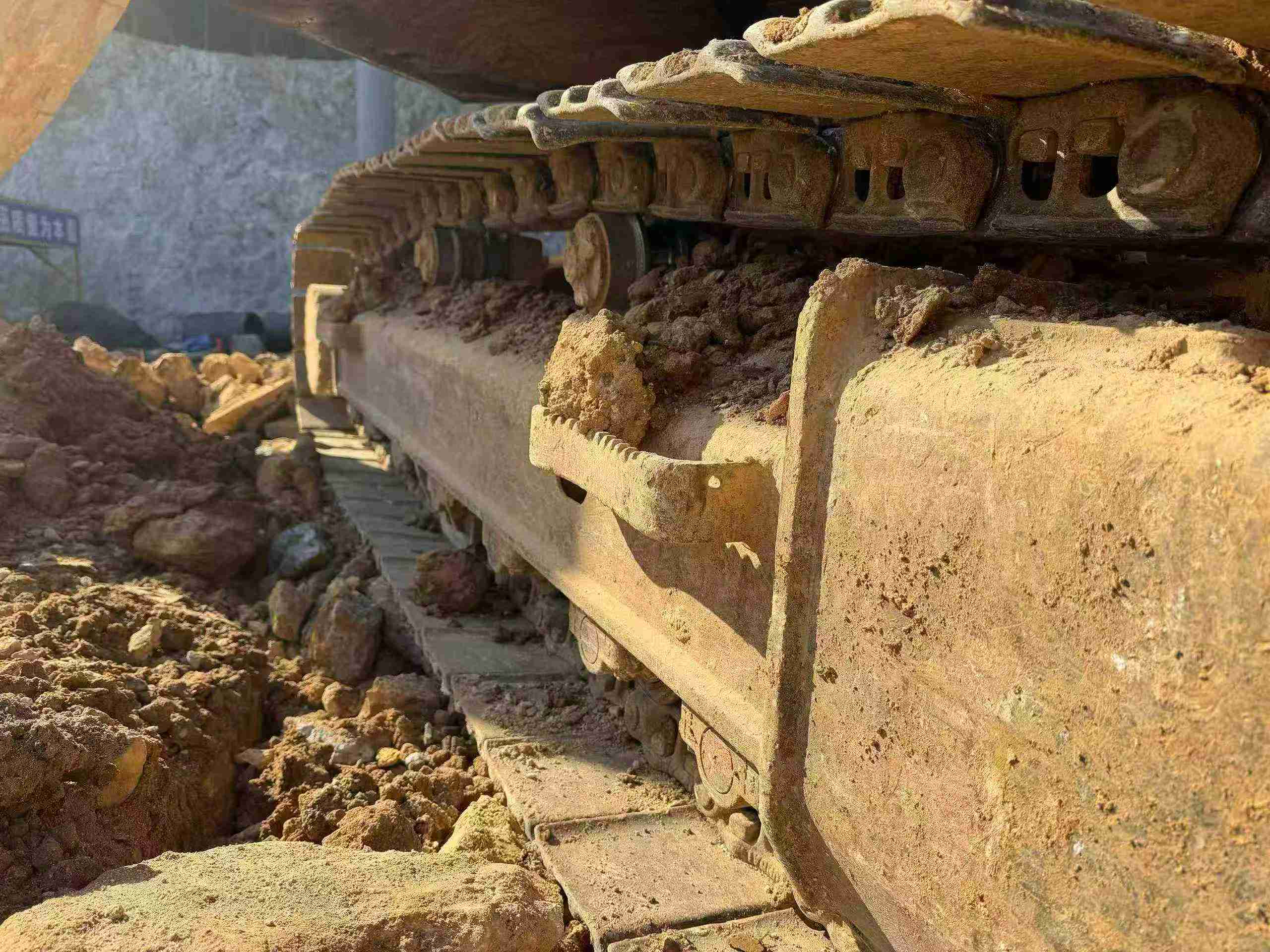

Used Hyundai R215-7 Excavator 2014 Model / 6

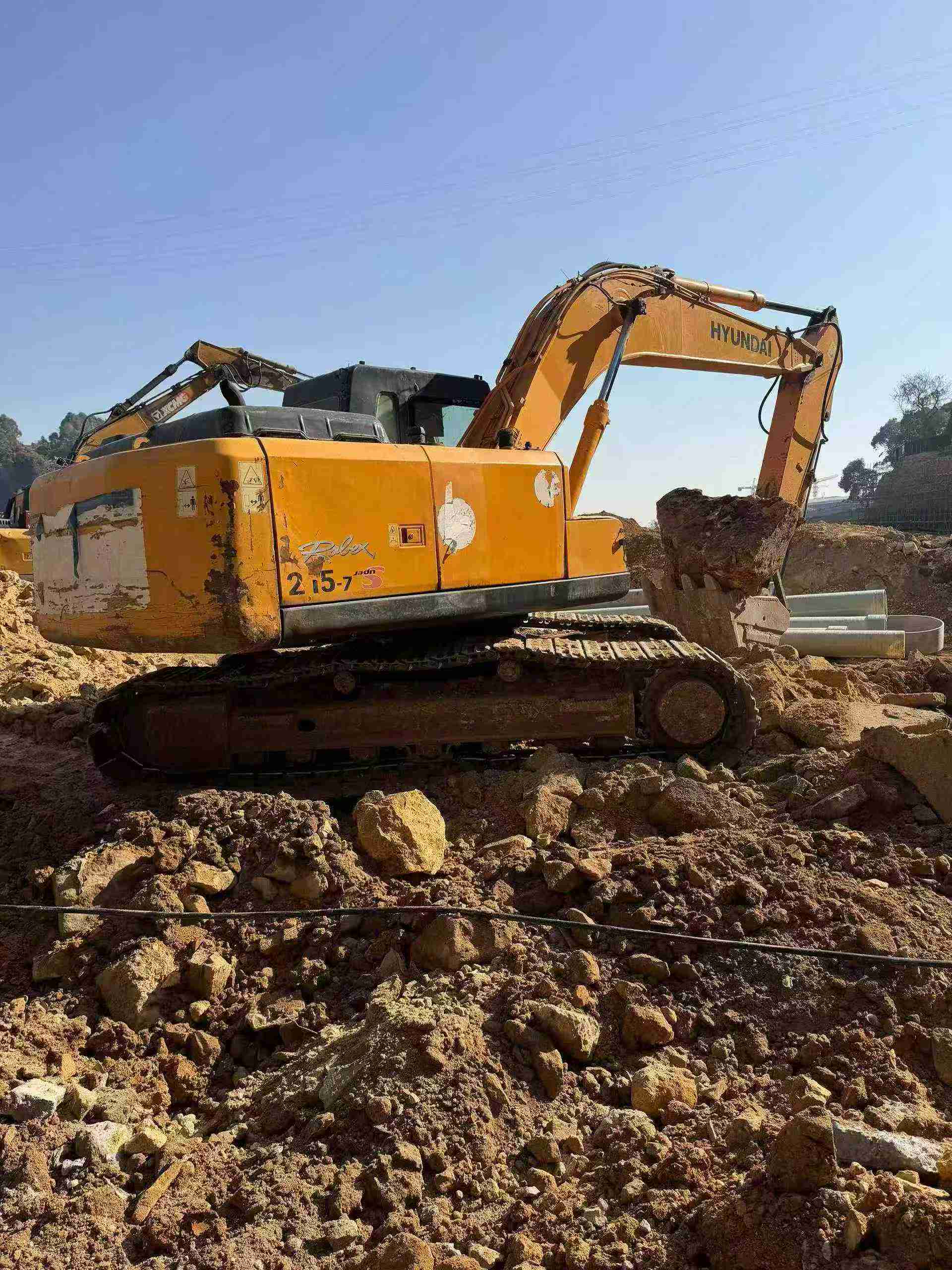

Used Hyundai R215-7 Excavator 2014 Model / 7

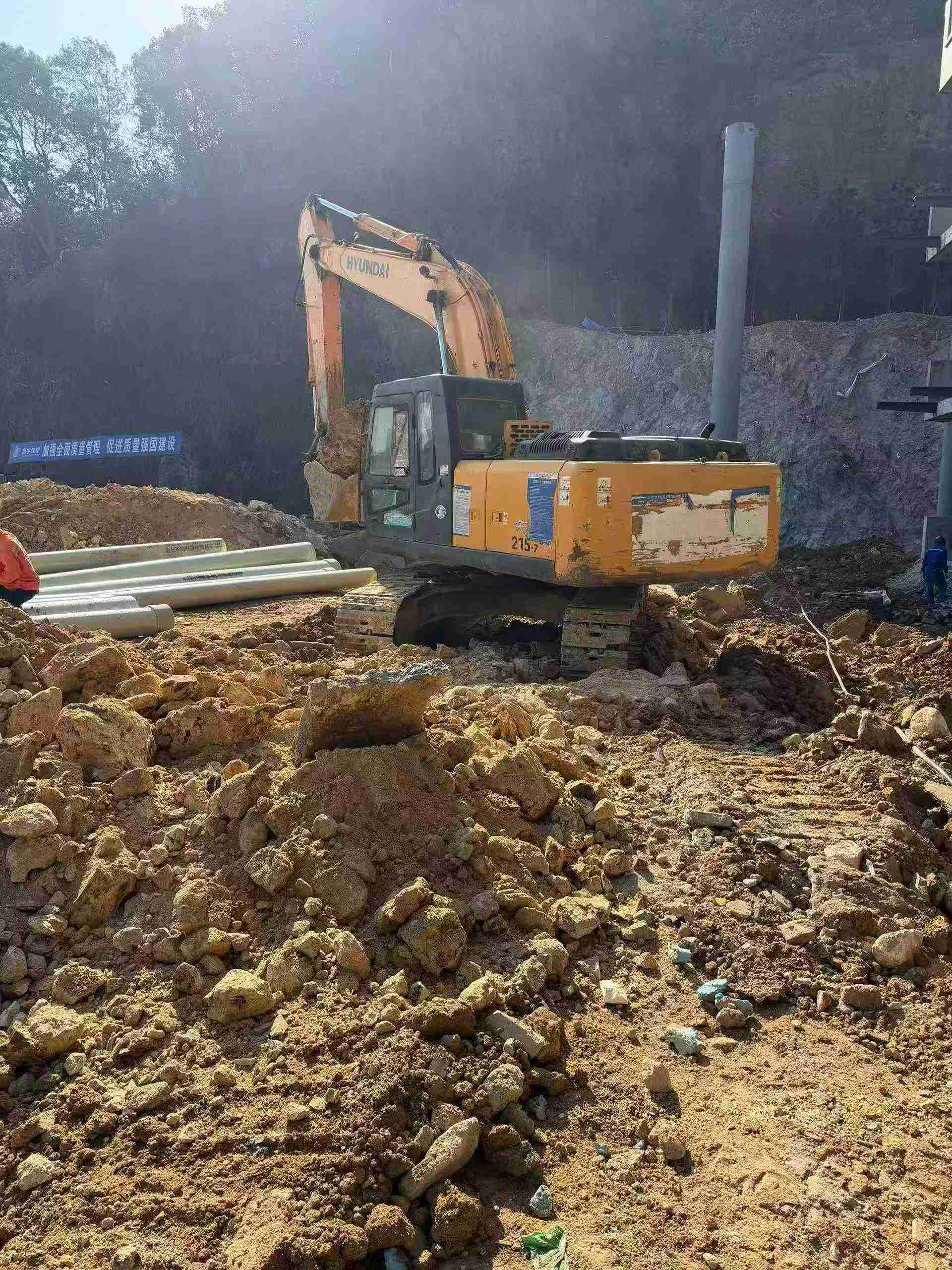

Used Hyundai R215-7 Excavator 2014 Model / 8

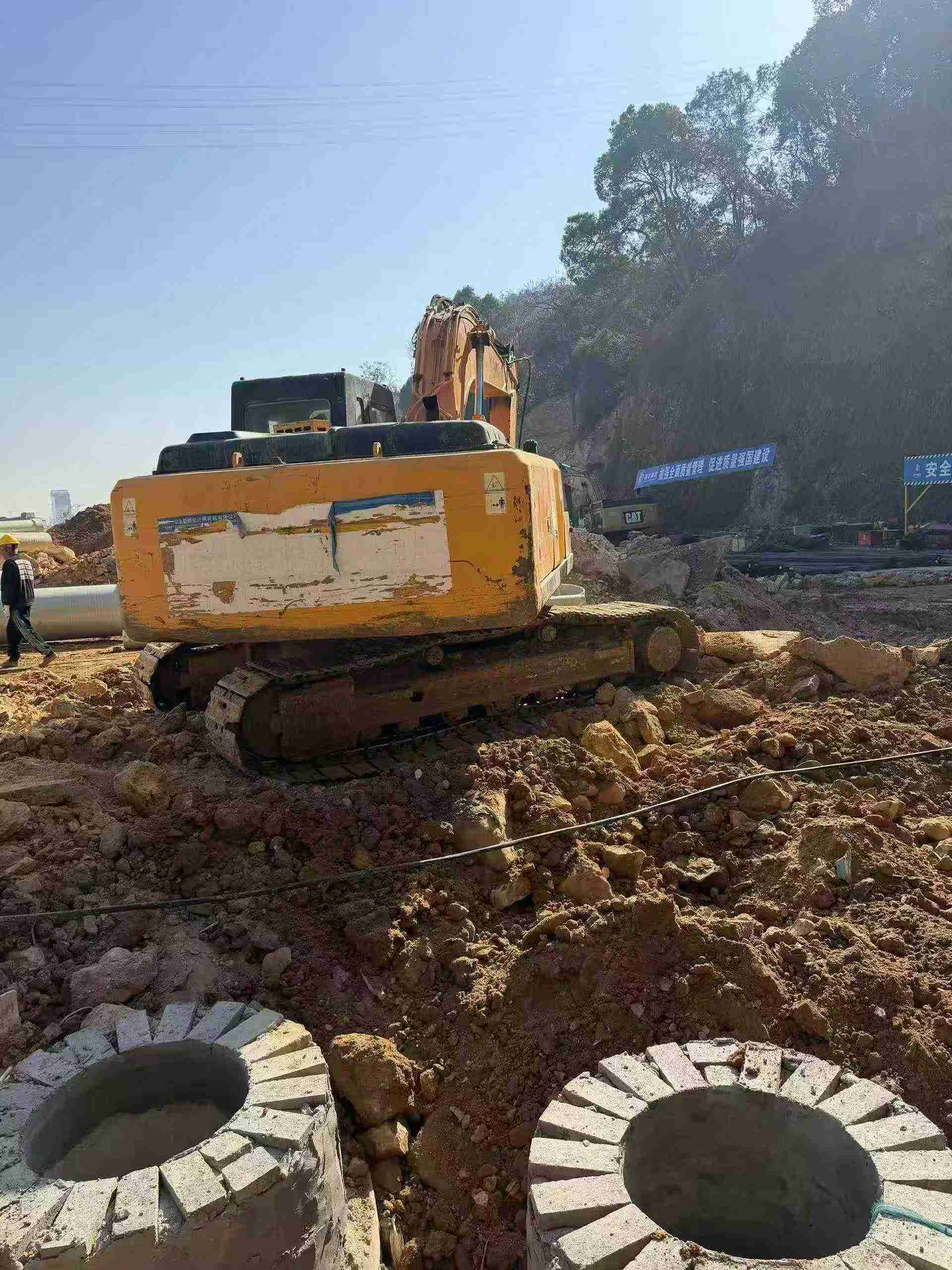

Used Hyundai R215-7 Excavator 2014 Model / 9

Product Description

【 Premium Recommendation 】 A second-hand Hyundai R215-7S excavator from 2014, priced at only 78,000 yuan! This excavator has a working time of approximately 6,000 hours. Its overall performance is stable and reliable, making it an ideal choice for your engineering operations. In terms of the power system, this aircraft is equipped with an efficient Cummins QSB6.7 engine, with a rated power of 129 kilowatts (approximately 173 horsepower), ensuring strong power output and smooth operation. It can maintain efficient operation even under harsh working conditions and meet the construction requirements in various complex environments. The hydraulic system adopts an advanced combination of variable piston pumps and high-quality hydraulic motors, providing precise and rapid action responses. It can handle operations such as excavation, loading, and crushing with ease. Its excellent maneuverability not only enhances work efficiency but also significantly reduces the labor intensity of the operator. In addition, the modern R215-7S excavator also has the following major highlights: - Sturdy and durable structure, low maintenance cost; The operation is simple and comfortable, equipped with an air-conditioned cab, suitable for long-term work. It

SpecificationsValue
No.976894
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.976894

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2014

Location:

Zhejiang China
