2016 Hyundai R215-7

1/6

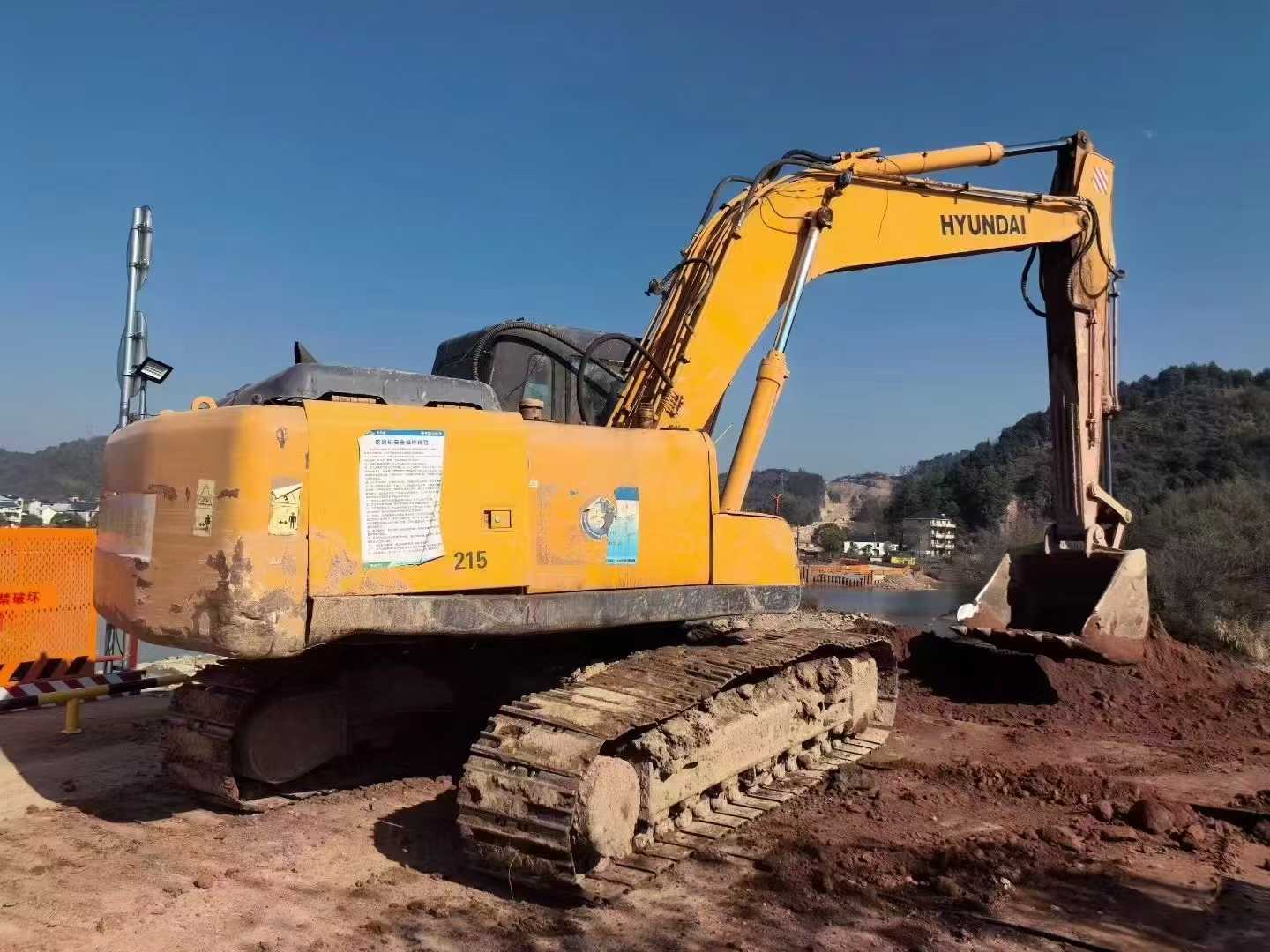

Used Hyundai R215-7 Excavator 2016 Model / 1

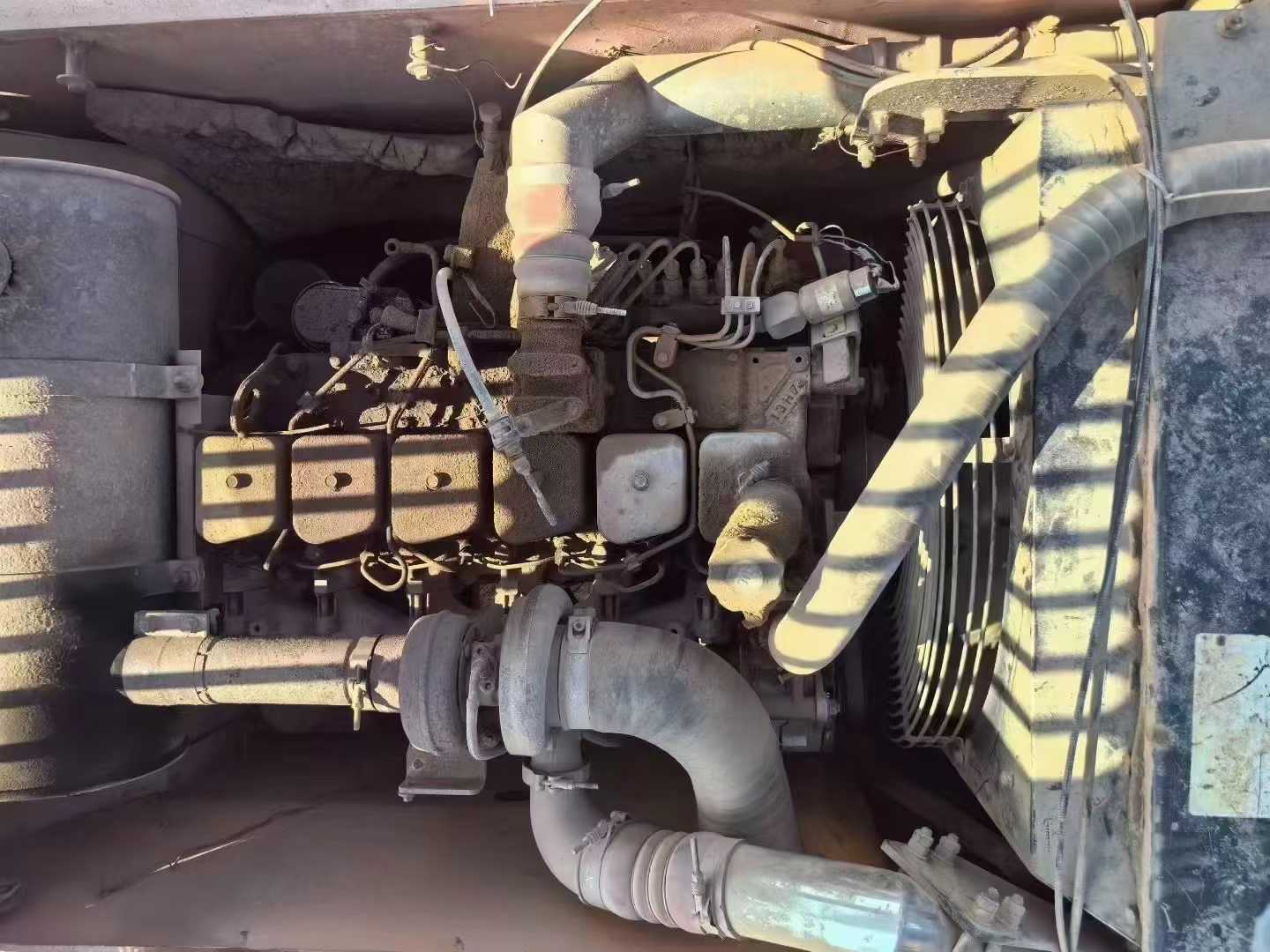

Used Hyundai R215-7 Excavator 2016 Model / 2
Used Hyundai R215-7 Excavator 2016 Model / 3

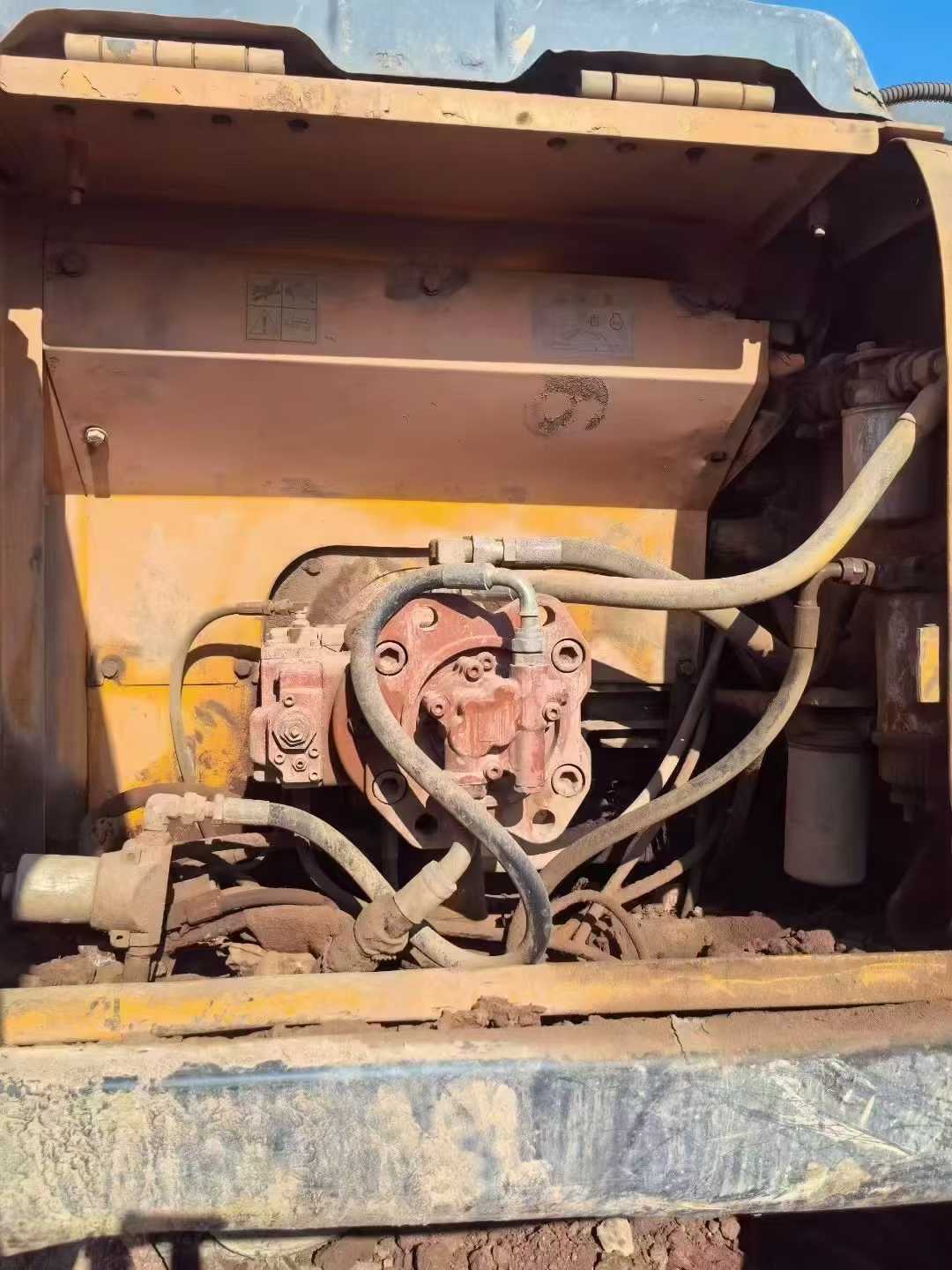

Used Hyundai R215-7 Excavator 2016 Model / 4
Used Hyundai R215-7 Excavator 2016 Model / 5
Used Hyundai R215-7 Excavator 2016 Model / 6

Product Description

There is currently a second-hand modern 215-7 excavator with a total working time of only over 40,000 hours, which indicates that the equipment has received good maintenance and care during its use. This excavator is equipped with an efficient engine system. Although the specific model is not clearly marked, based on the common configuration of this series of excavators, it is expected to be equipped with a high-performance diesel engine from Cummins or an equivalent brand, with a power of approximately 130 to 150 kilowatts, ensuring strong power output and a smooth operating experience. In terms of the hydraulic system, the Hyundai 215-7 adopts advanced negative flow control technology, combined with a large-displacement main pump and a high-efficiency hydraulic motor. This not only enhances operational efficiency but also effectively reduces fuel consumption. In addition, this machine also features excellent digging power and stability, enabling it to handle complex and ever-changing working environments with ease. As a medium-sized excavator, the Hyundai 215-7 stands out among many similar products with its outstanding performance, reliable structural design and relatively low maintenance cost. Whether it is earthwork or mining, i

SpecificationsValue
No.977225
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.977225

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2016

Location:

Zhejiang China
