2016 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2016 Model / 1

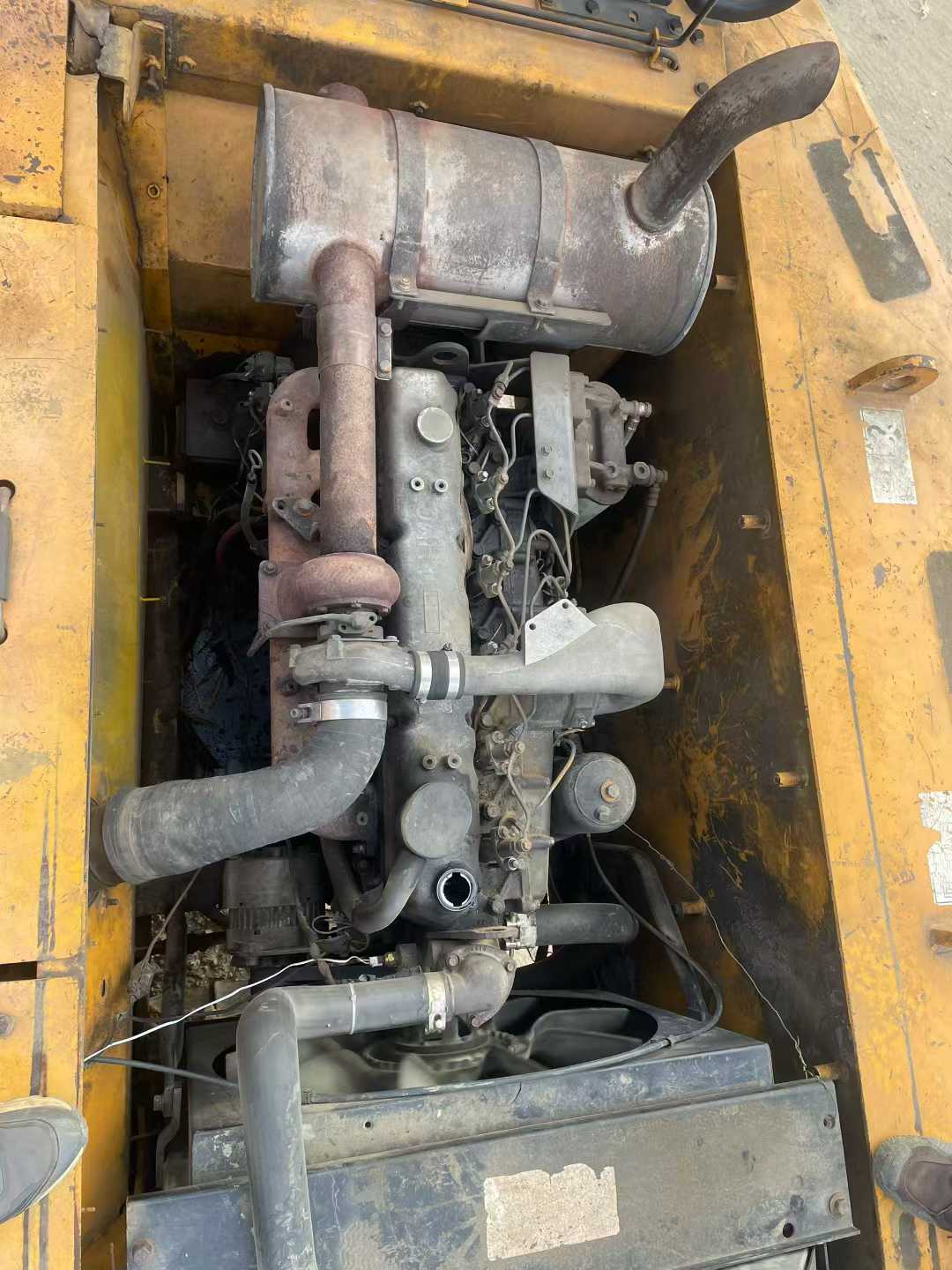

Used Hyundai R215-7 Excavator 2016 Model / 2
Used Hyundai R215-7 Excavator 2016 Model / 3

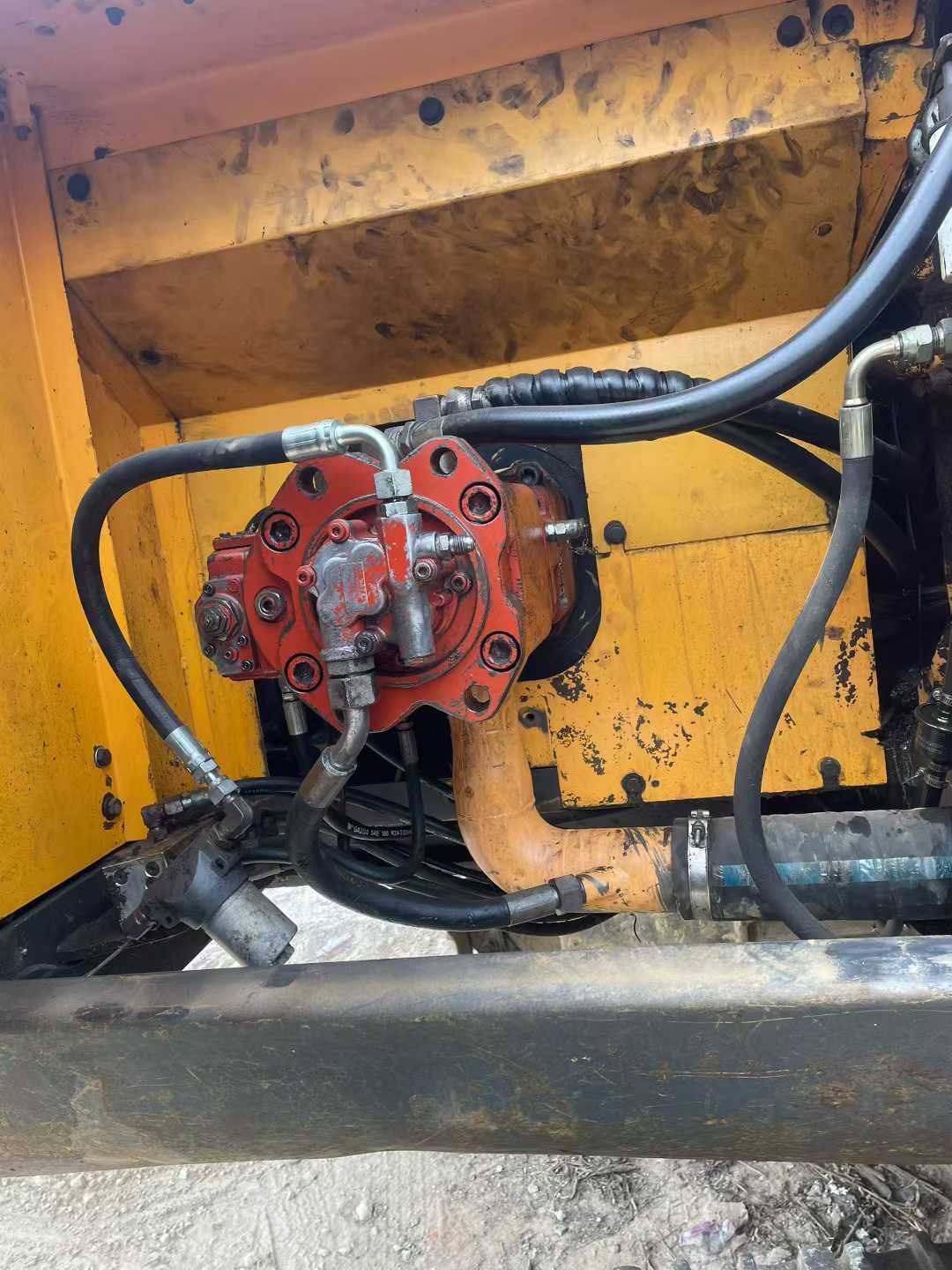

Used Hyundai R215-7 Excavator 2016 Model / 4

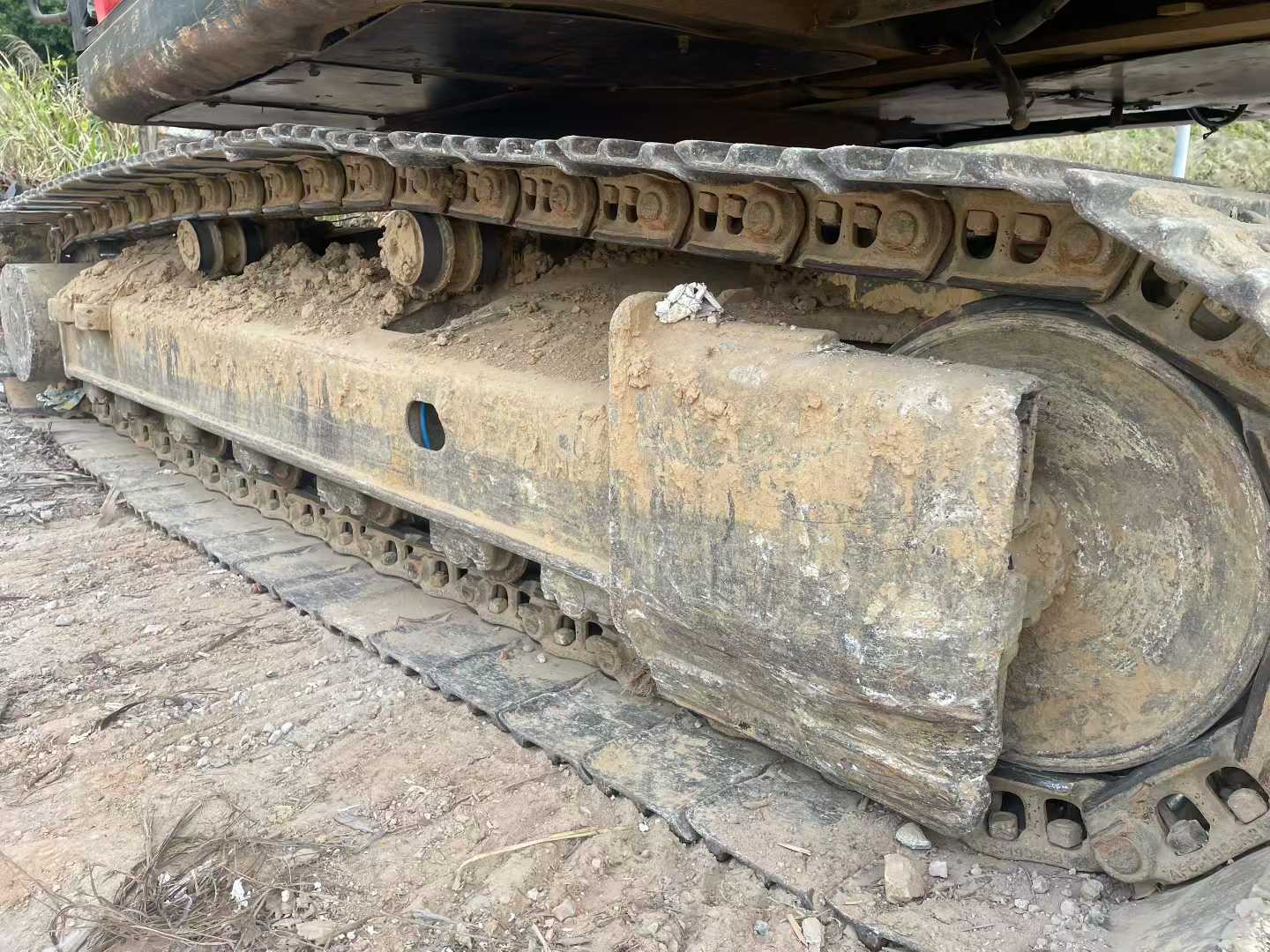

Used Hyundai R215-7 Excavator 2016 Model / 5

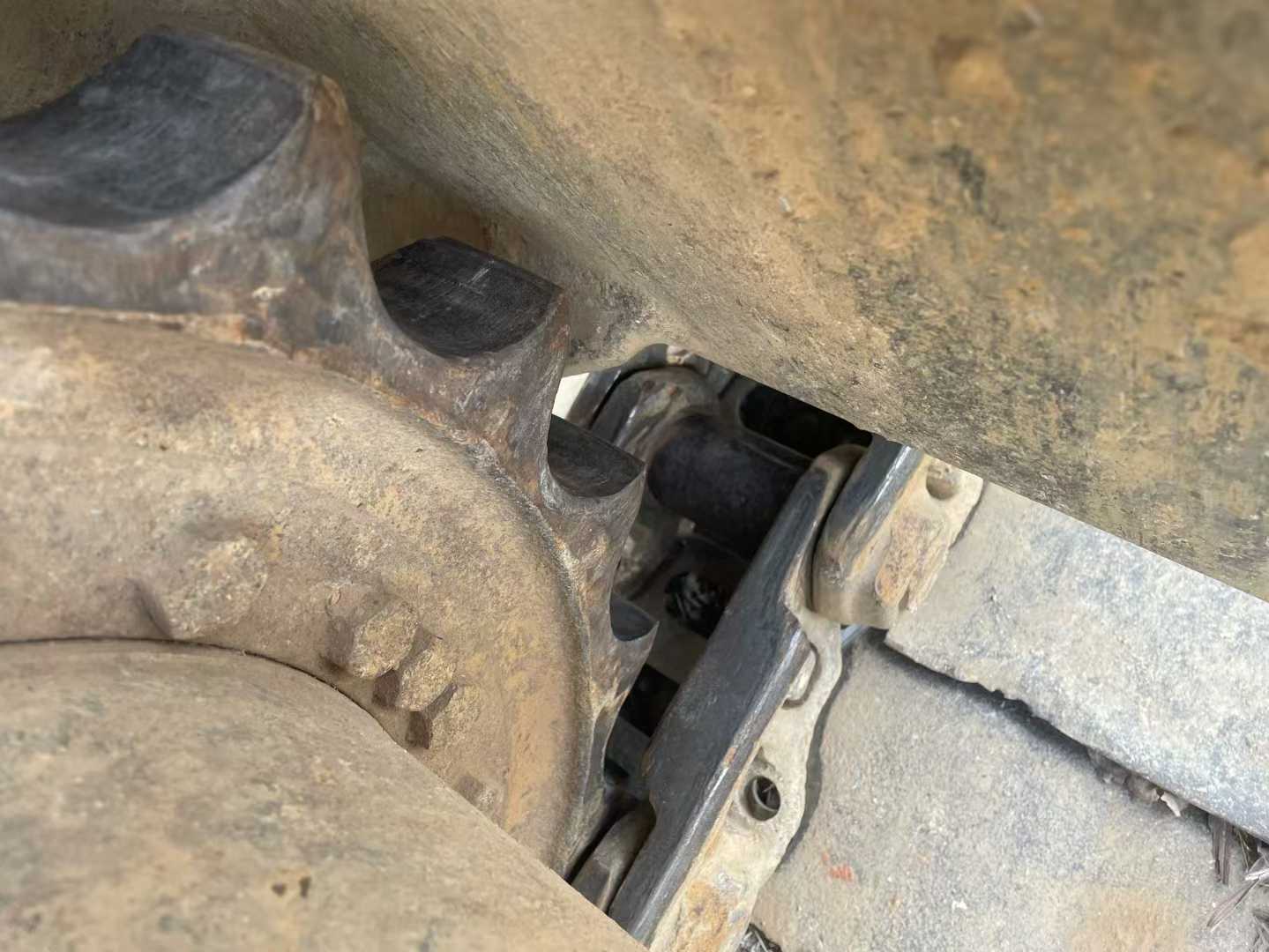

Used Hyundai R215-7 Excavator 2016 Model / 6
Used Hyundai R215-7 Excavator 2016 Model / 7
Used Hyundai R215-7 Excavator 2016 Model / 8

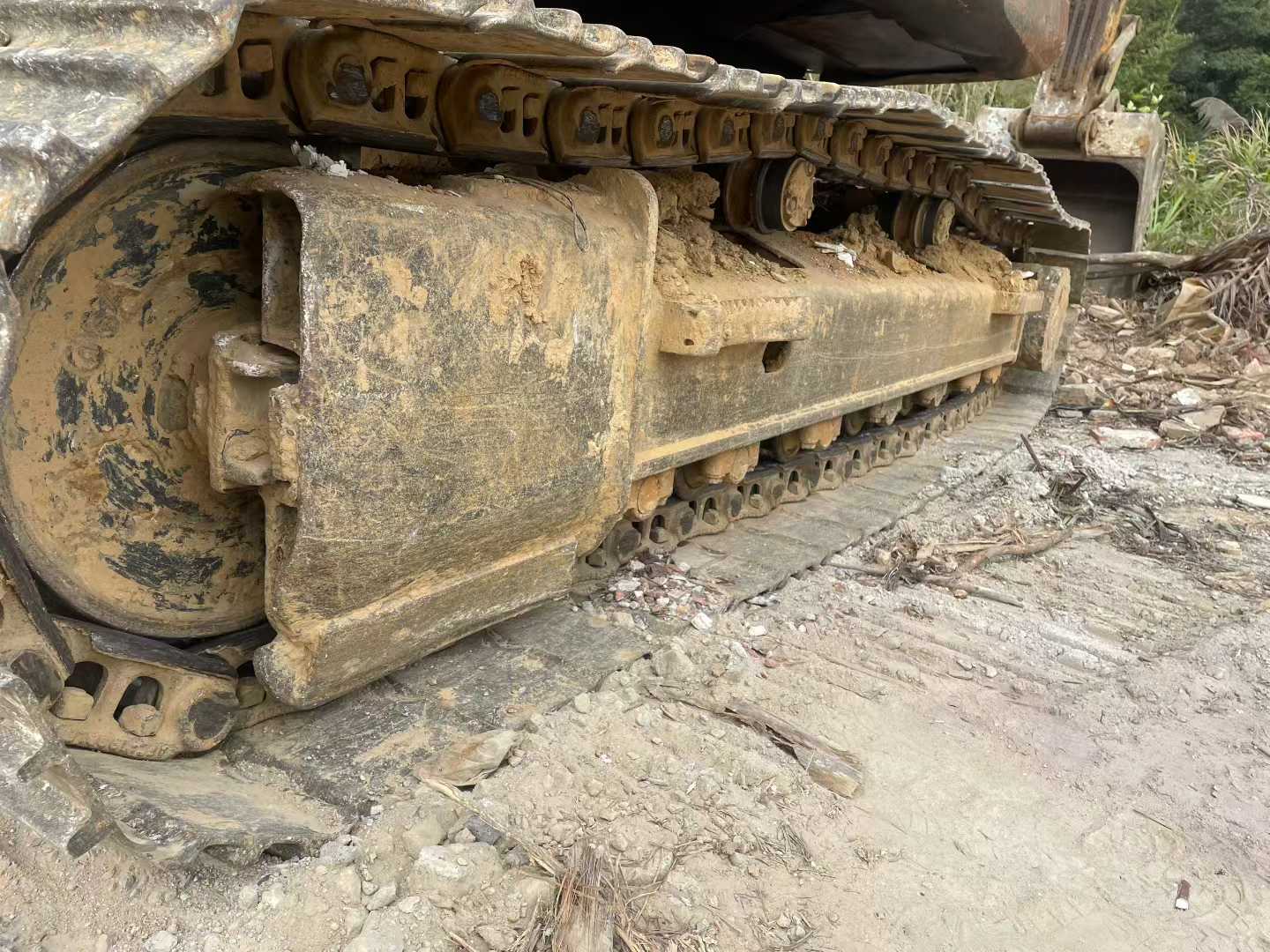

Used Hyundai R215-7 Excavator 2016 Model / 9

Product Description

The modern 215-7 second-hand excavator has a cumulative working time of only over 50,000 hours and is in good overall condition. It is an ideal choice for your engineering projects. This device is equipped with an efficient and reliable engine system (the model may be Cummins or a well-known brand of the same level), with strong and stable output power, ensuring sufficient power support under various working conditions. In terms of the hydraulic system, it is equipped with a high-performance variable piston pump and hydraulic motor combination, which makes the operation more flexible and precise, while ensuring durability and reliability under long-term operation. The main advantage of this excavator lies in its outstanding working efficiency and economy. The compact design not only facilitates transportation and relocation but also enables it to easily handle complex terrain challenges in confined Spaces. In addition, the robust and durable structural design, combined with the advanced filtration system, effectively extends the maintenance cycle and reduces operating costs. We also provide detailed pictures and video materials for your reference, allowing you to have a more intuitive understanding of the status of this machine. In c

SpecificationsValue
No.977998
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.977998

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2016

Location:

Guangdong China
