2018 Hyundai R215VS

1/9
Used Hyundai R215VS Excavator 2018 Model / 1

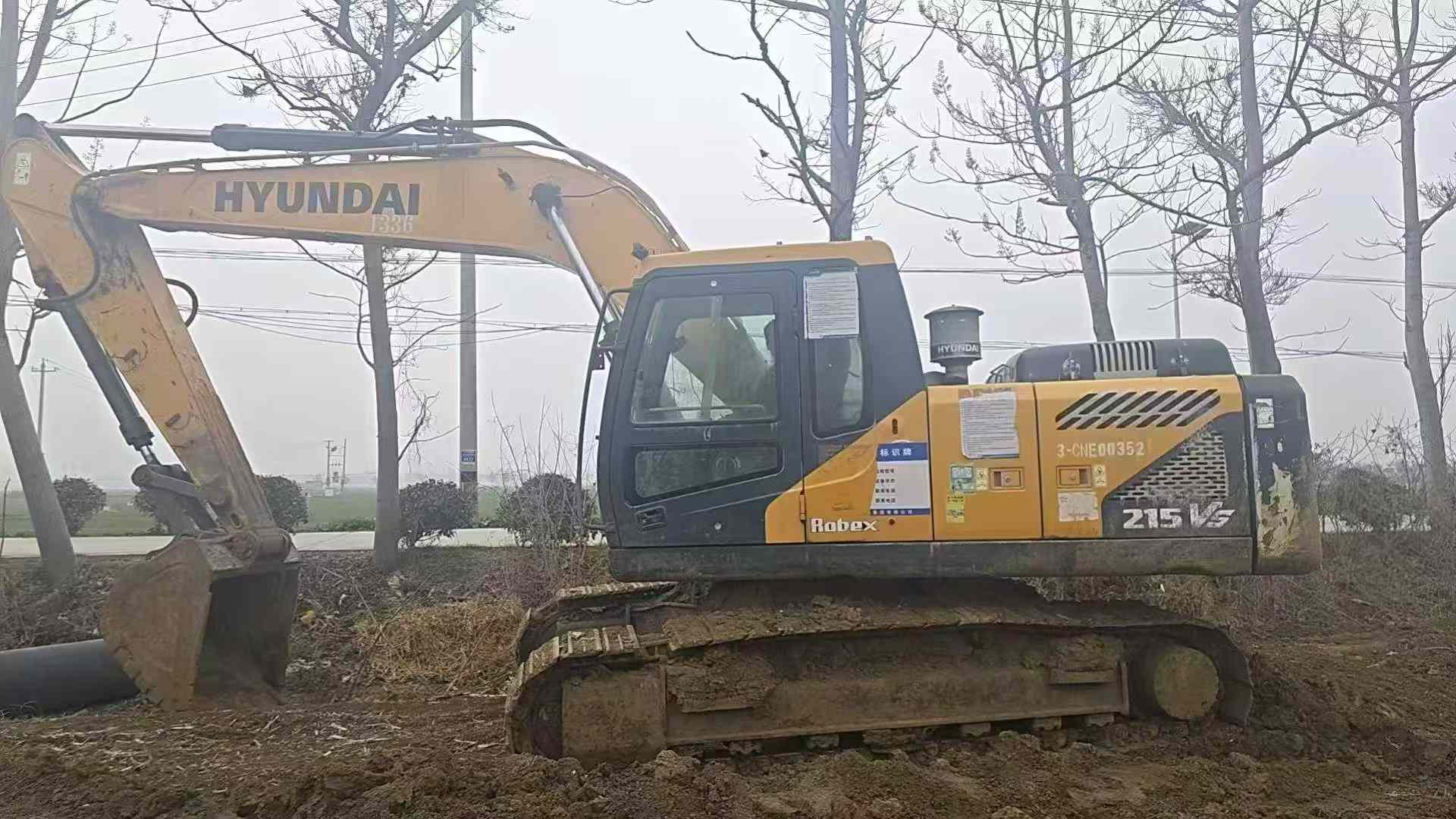

Used Hyundai R215VS Excavator 2018 Model / 2

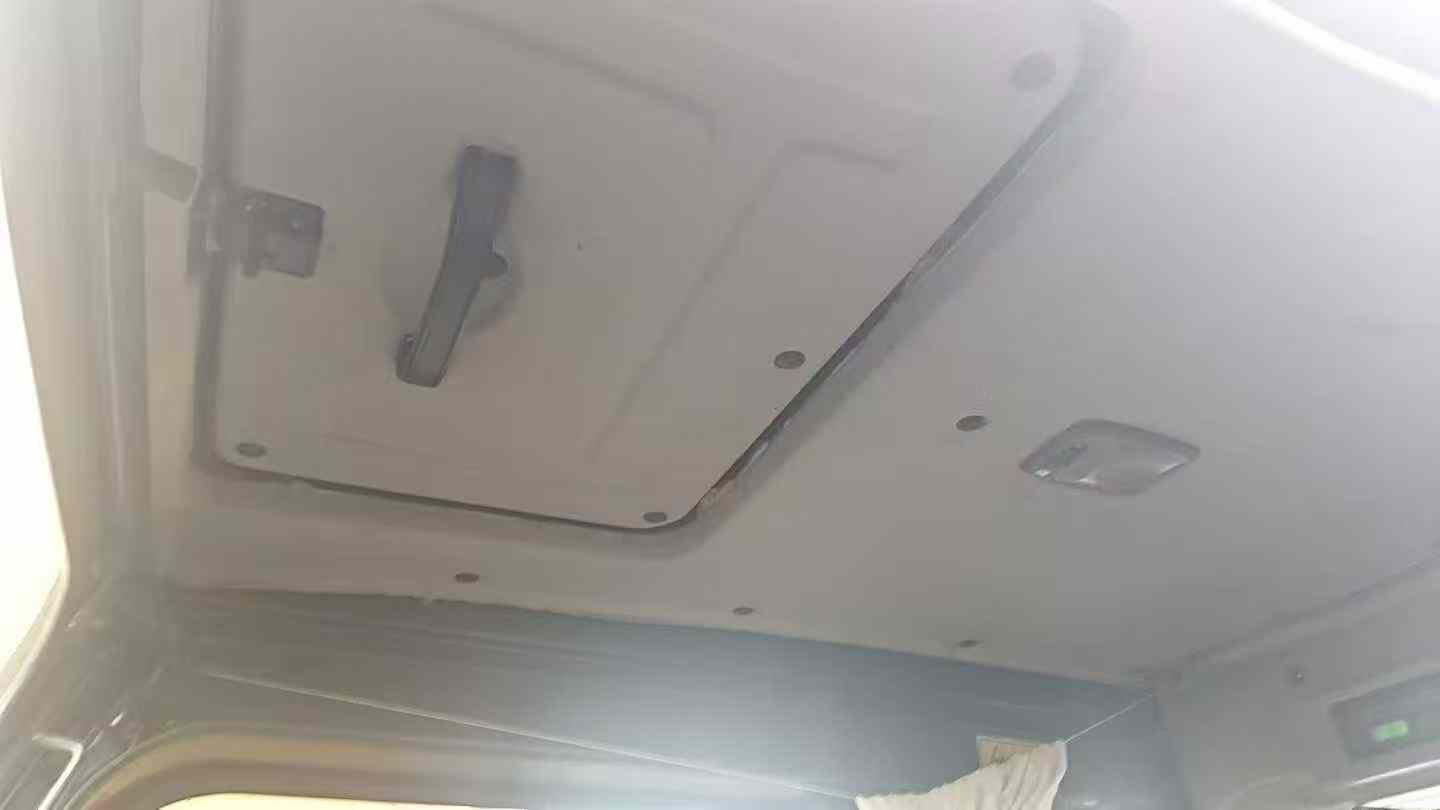

Used Hyundai R215VS Excavator 2018 Model / 3

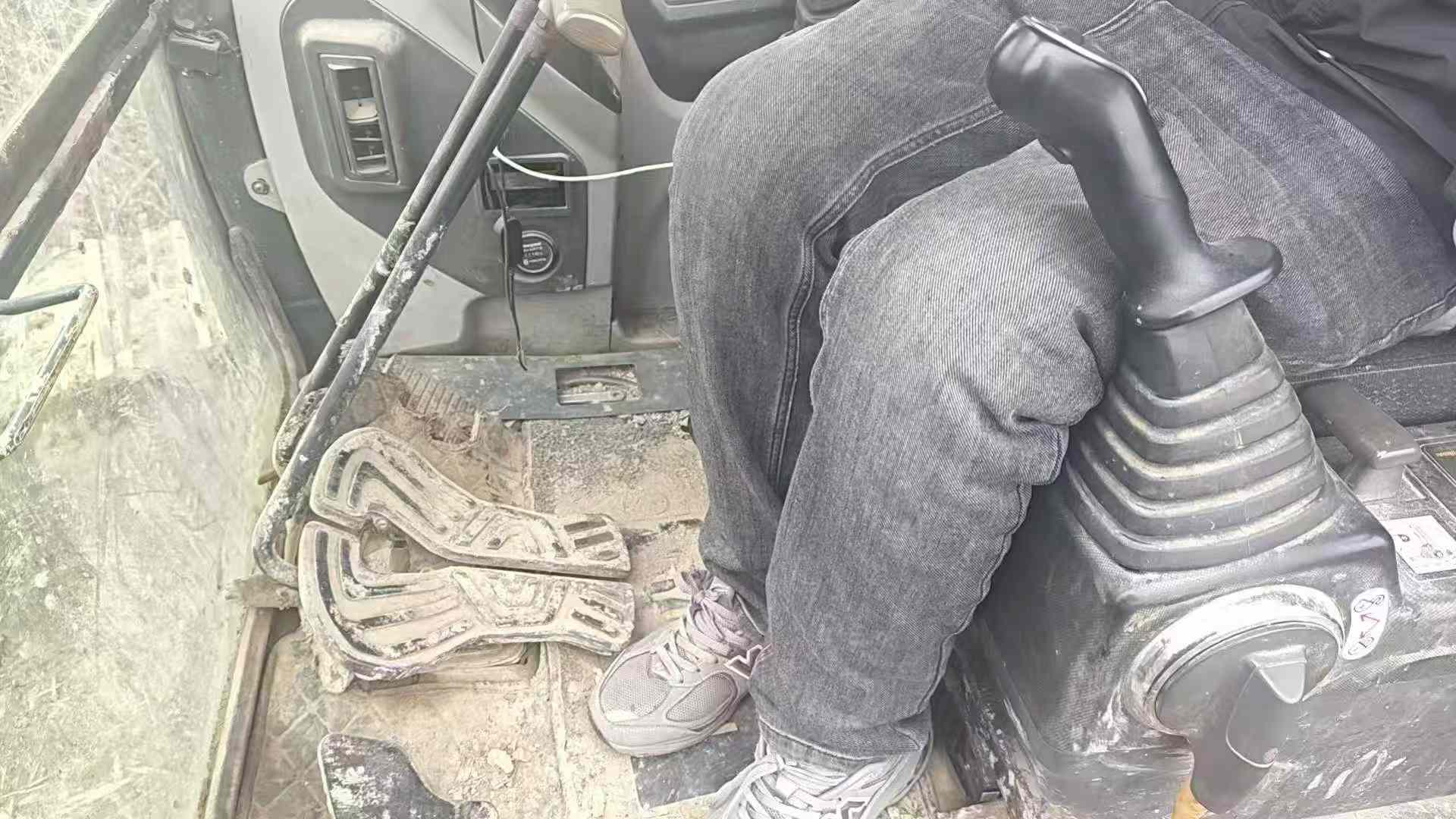

Used Hyundai R215VS Excavator 2018 Model / 4
Used Hyundai R215VS Excavator 2018 Model / 5

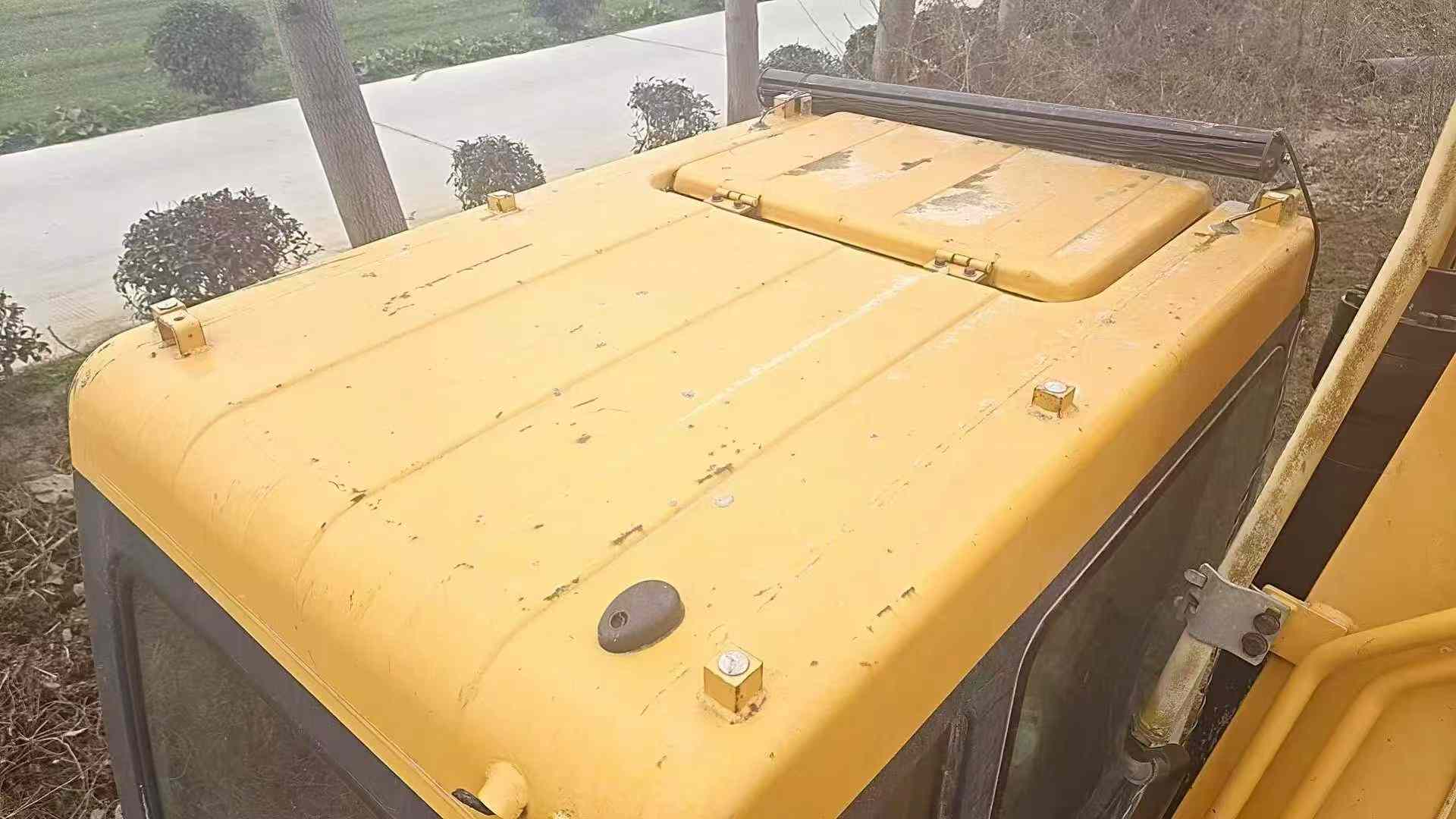

Used Hyundai R215VS Excavator 2018 Model / 6

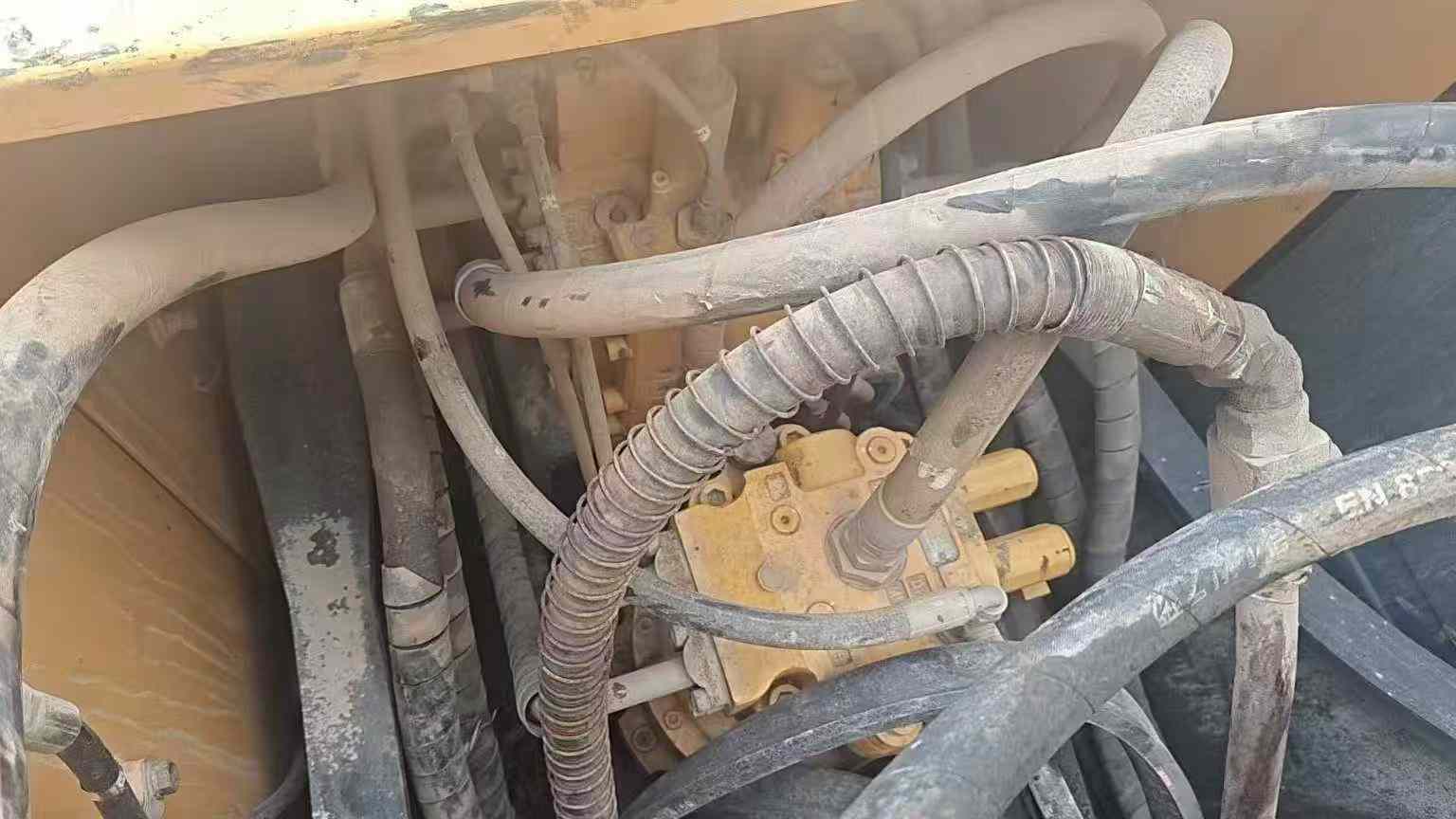

Used Hyundai R215VS Excavator 2018 Model / 7

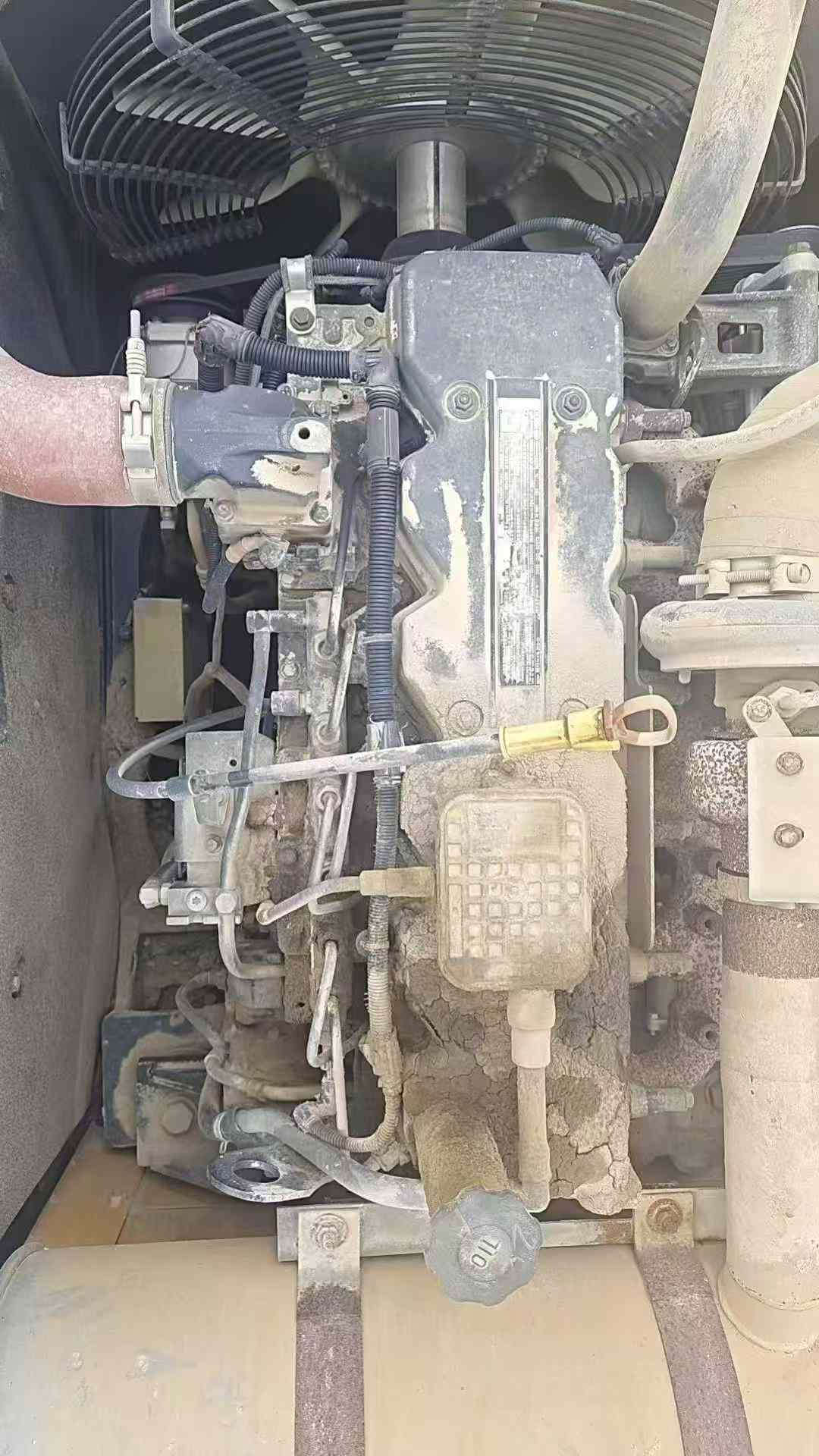

Used Hyundai R215VS Excavator 2018 Model / 8

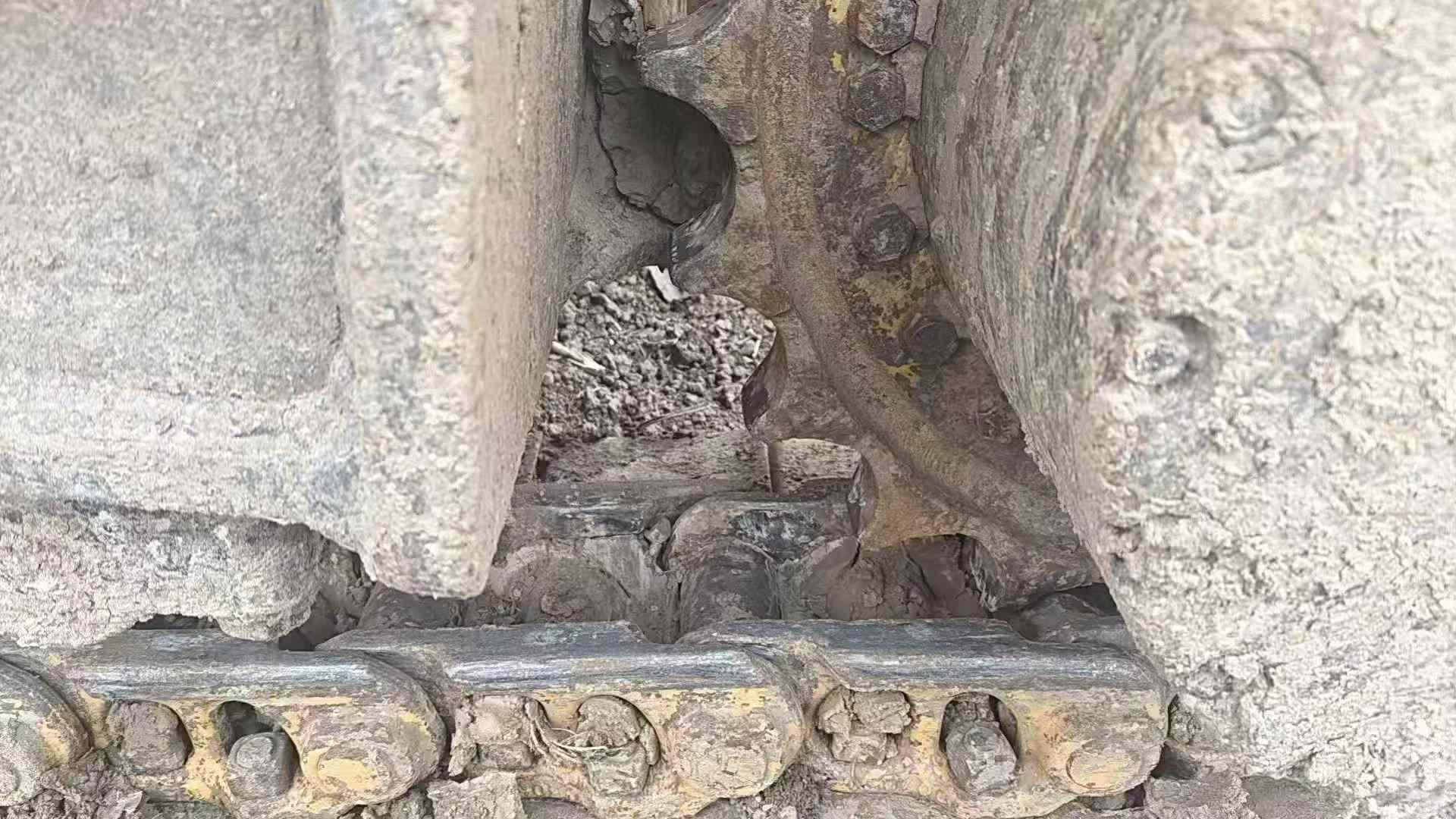

Used Hyundai R215VS Excavator 2018 Model / 9

Product Description

【 Premium Recommendation 】2018 Hyundai R215VS second-hand excavator. This equipment is a well-maintained powerful tool for earthwork operations. Since its commissioning, it has been operating stably for approximately 6,000 hours. During this period, it has mainly undertaken earthwork excavation tasks for urban infrastructure construction, road building, and real estate development projects, demonstrating extremely high work efficiency and reliability. This machine is equipped with a high-performance Cummins engine as its power source, with a maximum output power of up to 130kW (approximately 174 horsepower). It not only provides strong power support but also performs well in fuel economy, effectively reducing operating costs. Meanwhile, its advanced electronic control injection technology ensures low emission standards and meets environmental protection requirements. In terms of the hydraulic system, the R215VS is equipped with the latest generation of negative flow control system. By precisely controlling the oil distribution between the pump and the motor, it achieves rapid response and smooth operation. In addition, the system also features an energy-saving mode, which further reduces fuel consumption while ensuring operational ef

SpecificationsValue
No.972444
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.972444

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2018

Location:

Zhejiang China
