2016 Hyundai R215VS

1/7

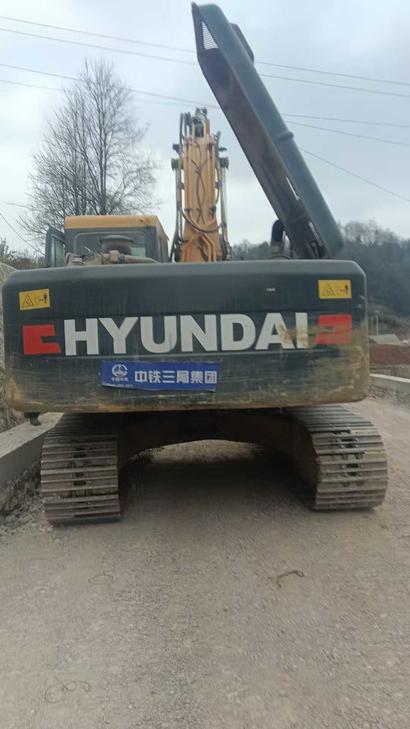

Used Hyundai R215VS Excavator 2016 Model / 1
Used Hyundai R215VS Excavator 2016 Model / 2
Used Hyundai R215VS Excavator 2016 Model / 3
Used Hyundai R215VS Excavator 2016 Model / 4
Used Hyundai R215VS Excavator 2016 Model / 5
Used Hyundai R215VS Excavator 2016 Model / 6
Used Hyundai R215VS Excavator 2016 Model / 7

Product Description

There is currently a second-hand 2018 model Hyundai R215VS excavator in excellent condition, with a working time of only 3,000 hours, ensuring the high efficiency, stability and long service life of the equipment. This excavator is equipped with a well-tested Cummins QSB6.7 engine, with a rated power of 129 kilowatts (approximately 173 horsepower), providing strong power support for various working environments. Its advanced hydraulic system is equipped with variable piston pumps and high-performance hydraulic motors, enabling rapid response and smooth operation, and maintaining excellent working efficiency even under complex working conditions. In addition, this R215VS is equipped with a spacious and comfortable cab, an integrated air conditioning system, and an easy-to-use control panel, which greatly enhances the driver's operating experience. The robust and durable design, combined with a meticulously maintained historical record, makes this excavator one of the indispensable ideal choices in construction sites, mining and other fields. For buyers seeking a combination of high cost performance and reliable performance, it is undoubtedly a very worthy choice to consider.

SpecificationsValue
No.976757
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.976757

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2016

Location:

Yunnan China
