HOME>>Brands>>Hyundai R215VS

2018 Hyundai R215VS

1/6

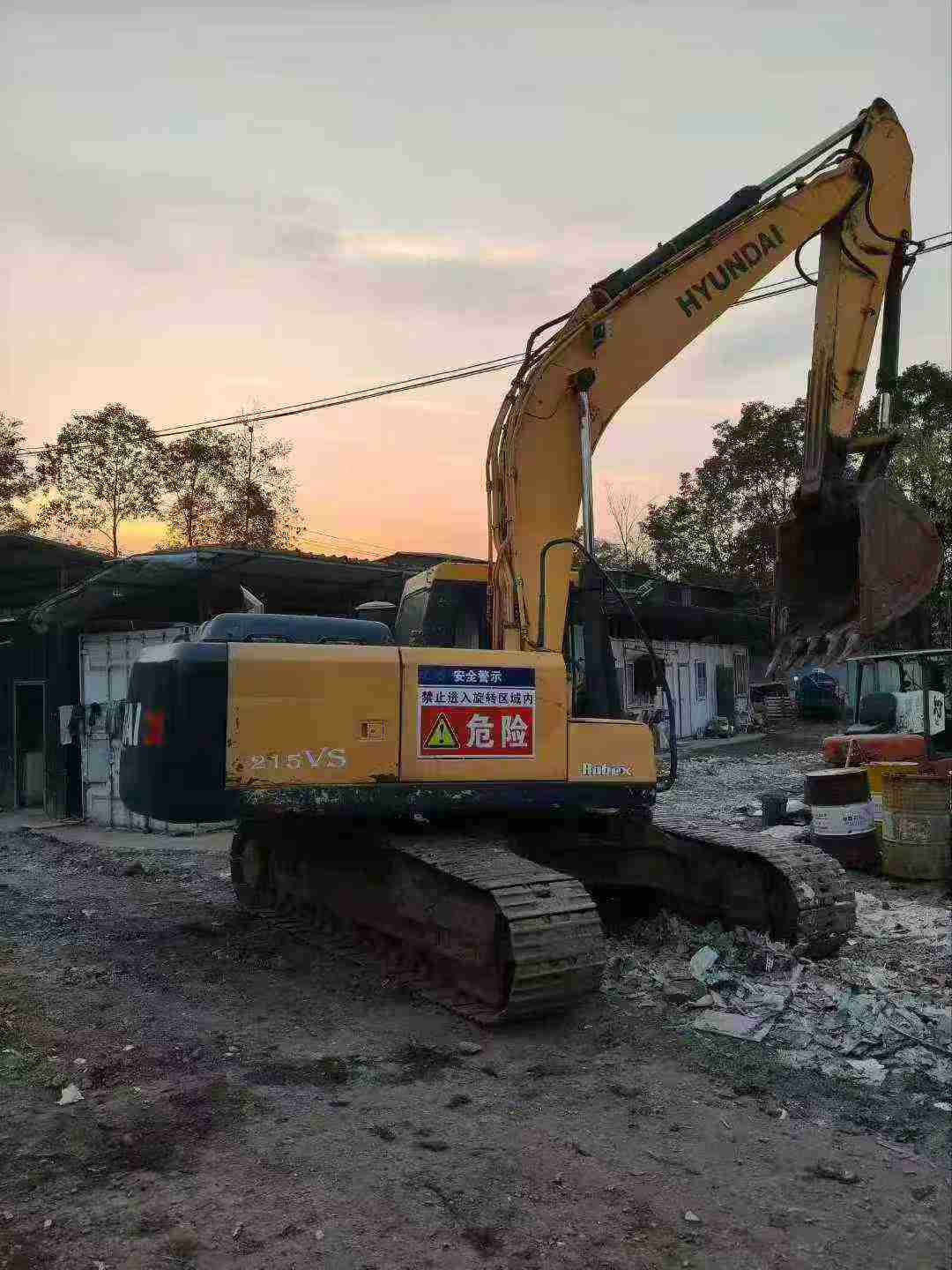

Used Hyundai R215VS Excavator 2018 Model / 1

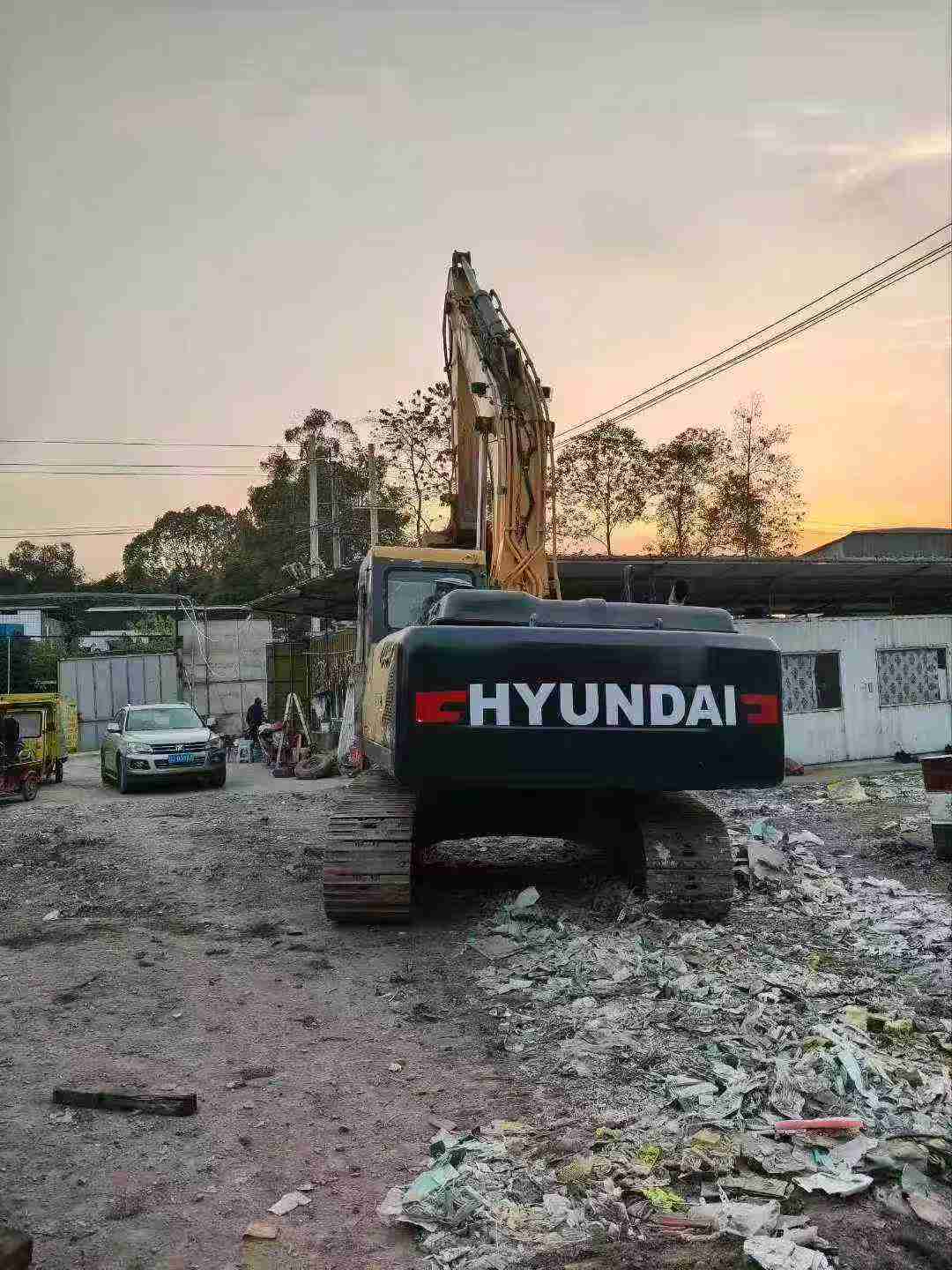

Used Hyundai R215VS Excavator 2018 Model / 2

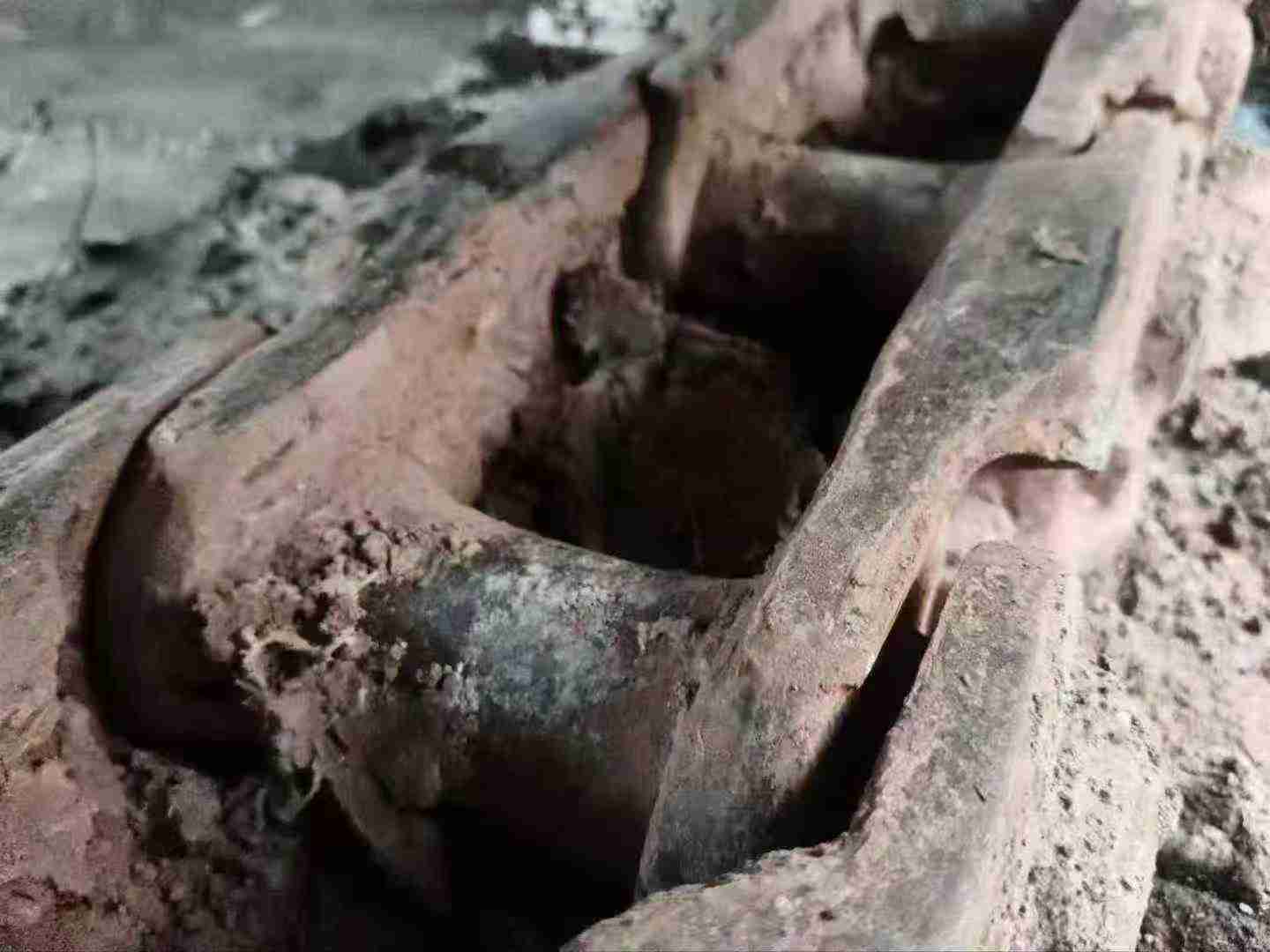

Used Hyundai R215VS Excavator 2018 Model / 3

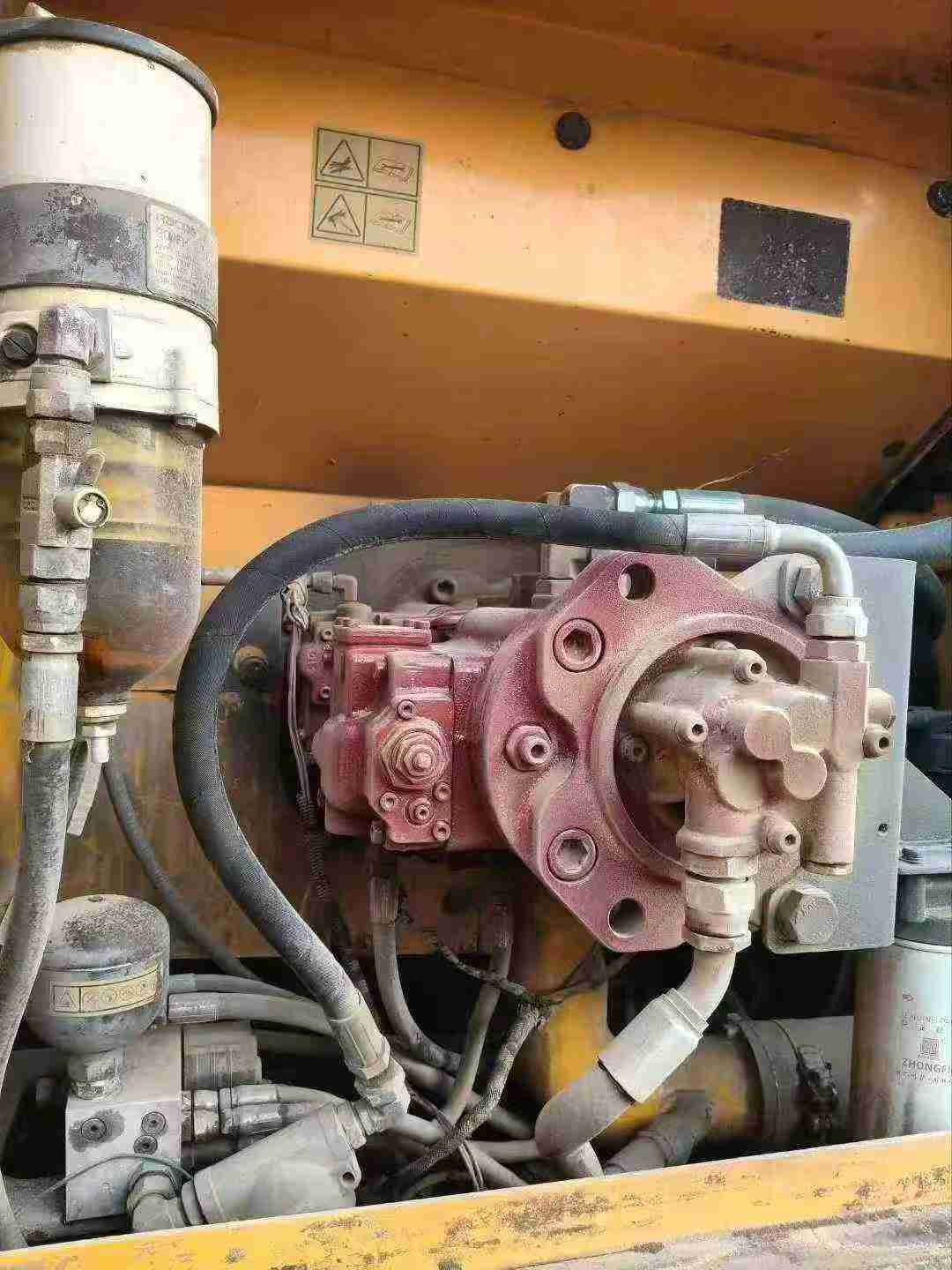

Used Hyundai R215VS Excavator 2018 Model / 4

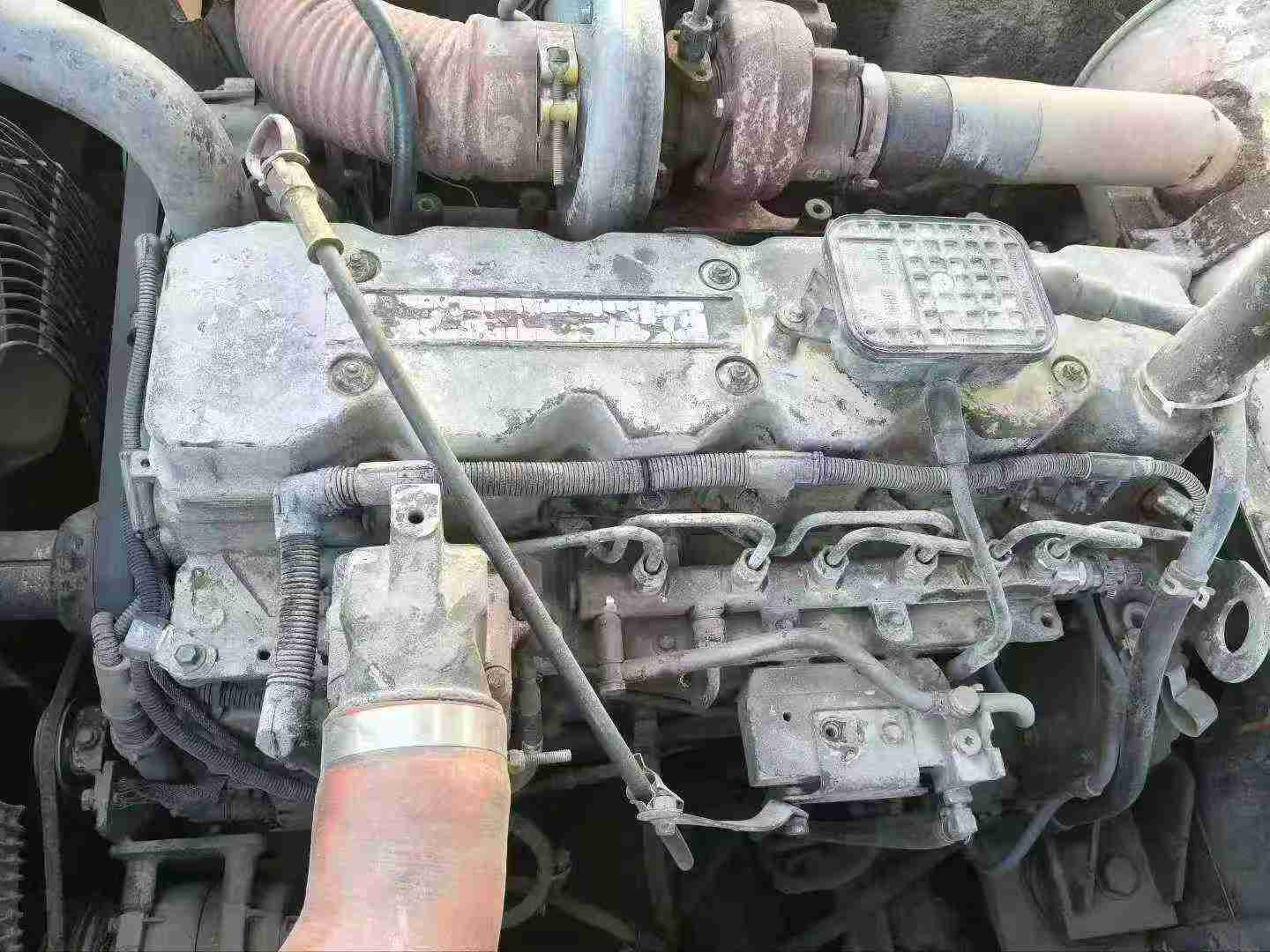

Used Hyundai R215VS Excavator 2018 Model / 5
Used Hyundai R215VS Excavator 2018 Model / 6

Product Description

【 Premium Recommendation 】 The second-hand Hyundai R215VS excavator from 2018 is now priced at only 158,000 yuan. This excavator has a stable working record of approximately 4,000 hours (estimated), and its outstanding performance and durability have been fully verified. In terms of the power system, this equipment is equipped with a Cummins QSB6.7 engine, with a maximum power output of up to 129 kilowatts, ensuring efficient and stable operation performance. This engine is renowned for its outstanding fuel economy and low emission characteristics, effectively reducing operating costs while providing strong power. The hydraulic system adopts advanced negative flow control technology, equipped with high-quality variable piston pumps and high-performance hydraulic motors. This not only ensures rapid response and smooth operation, but also greatly enhances work efficiency and accuracy. In addition, the main control valve through optimized design has further enhanced the flexibility and controllability of the entire machine, enabling it to handle complex working conditions such as excavation, loading, and crushing with ease. As a medium-sized excavator with extremely high cost performance, the Hyundai R215VS also performs well in terms

SpecificationsValue
No.977318
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.977318

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2018

Location:

Sichuan China
