2016 Hyundai R215VS

1/7

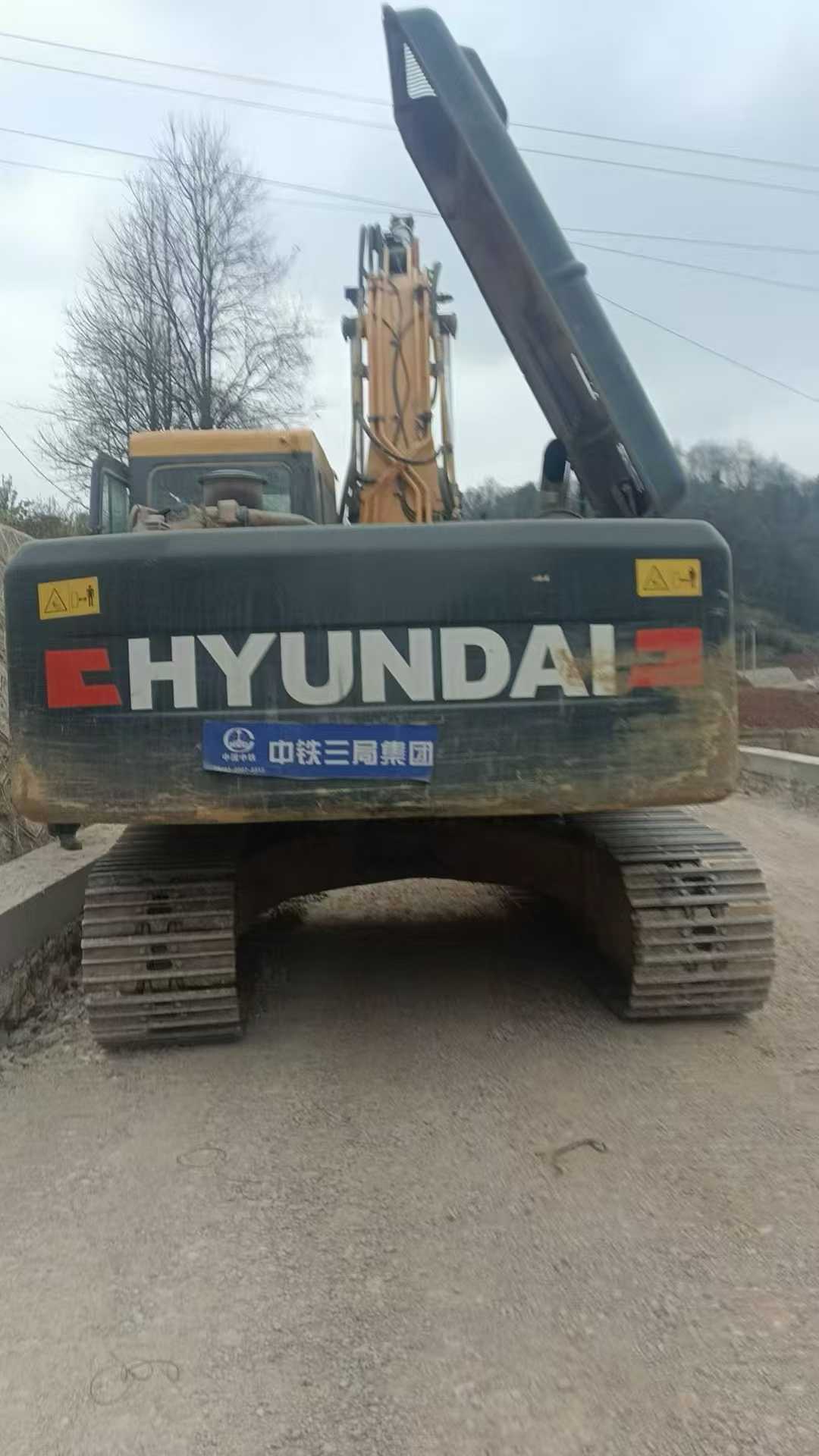

Used Hyundai R215VS Excavator 2016 Model / 1

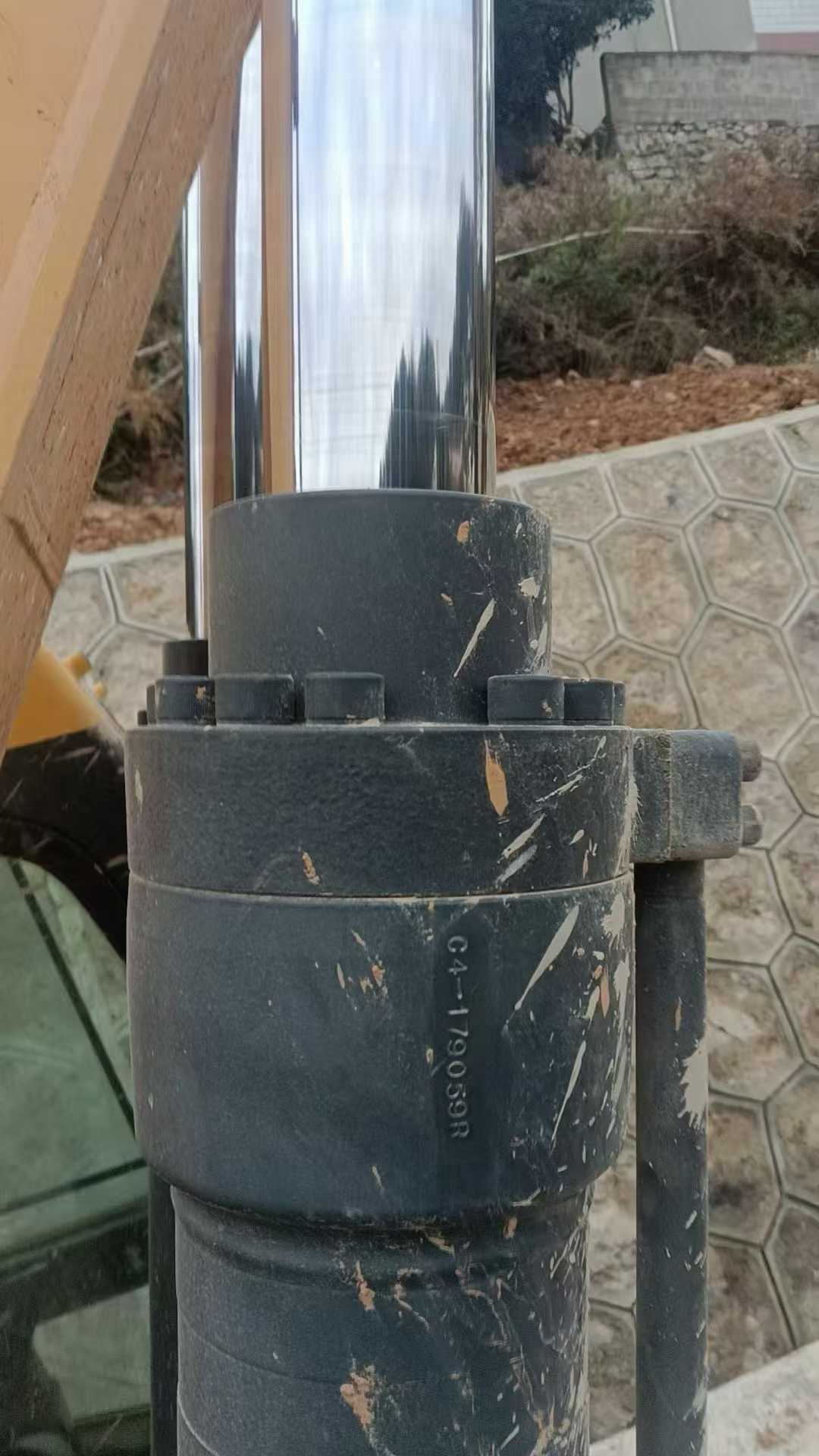

Used Hyundai R215VS Excavator 2016 Model / 2

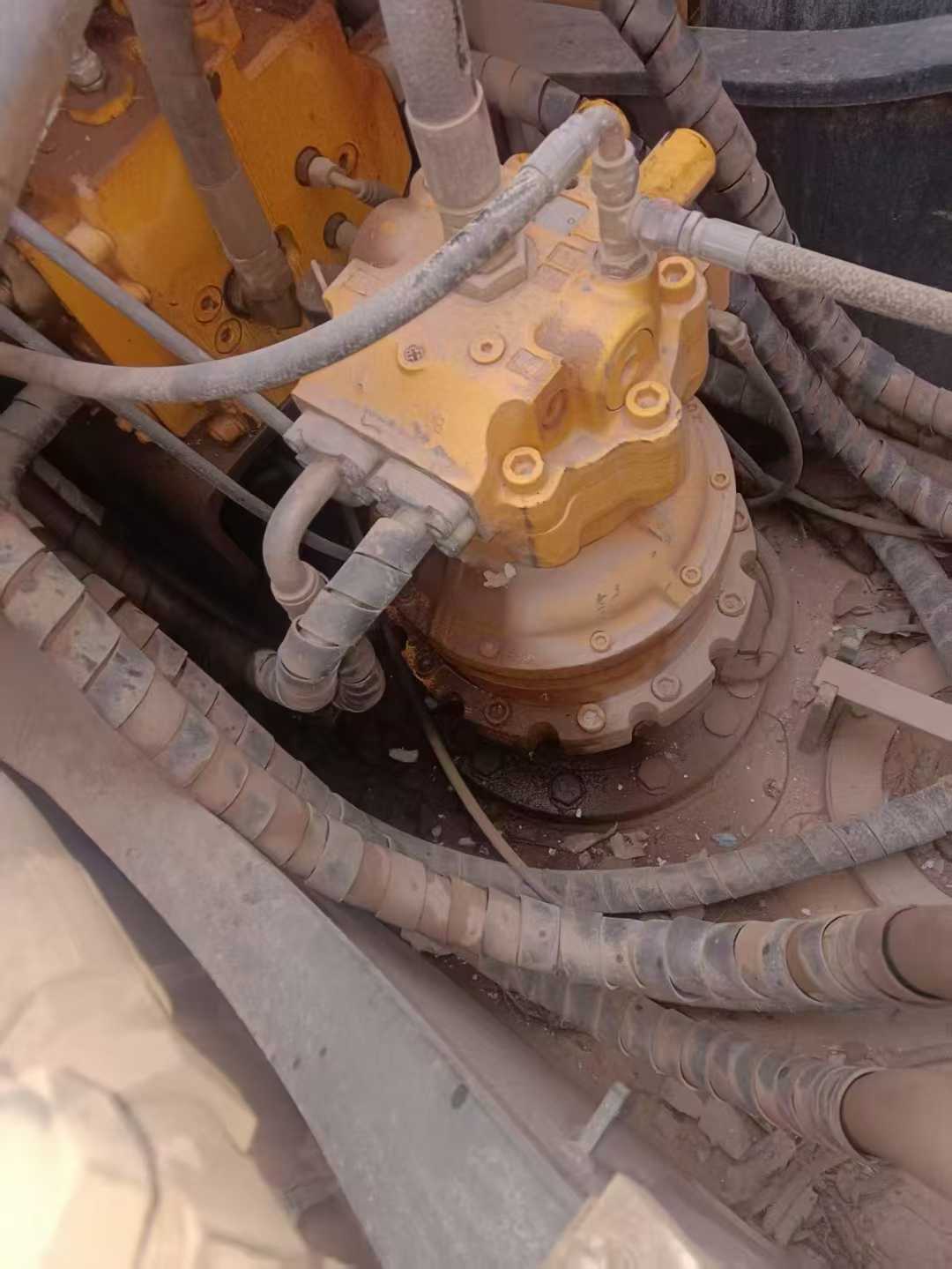

Used Hyundai R215VS Excavator 2016 Model / 3

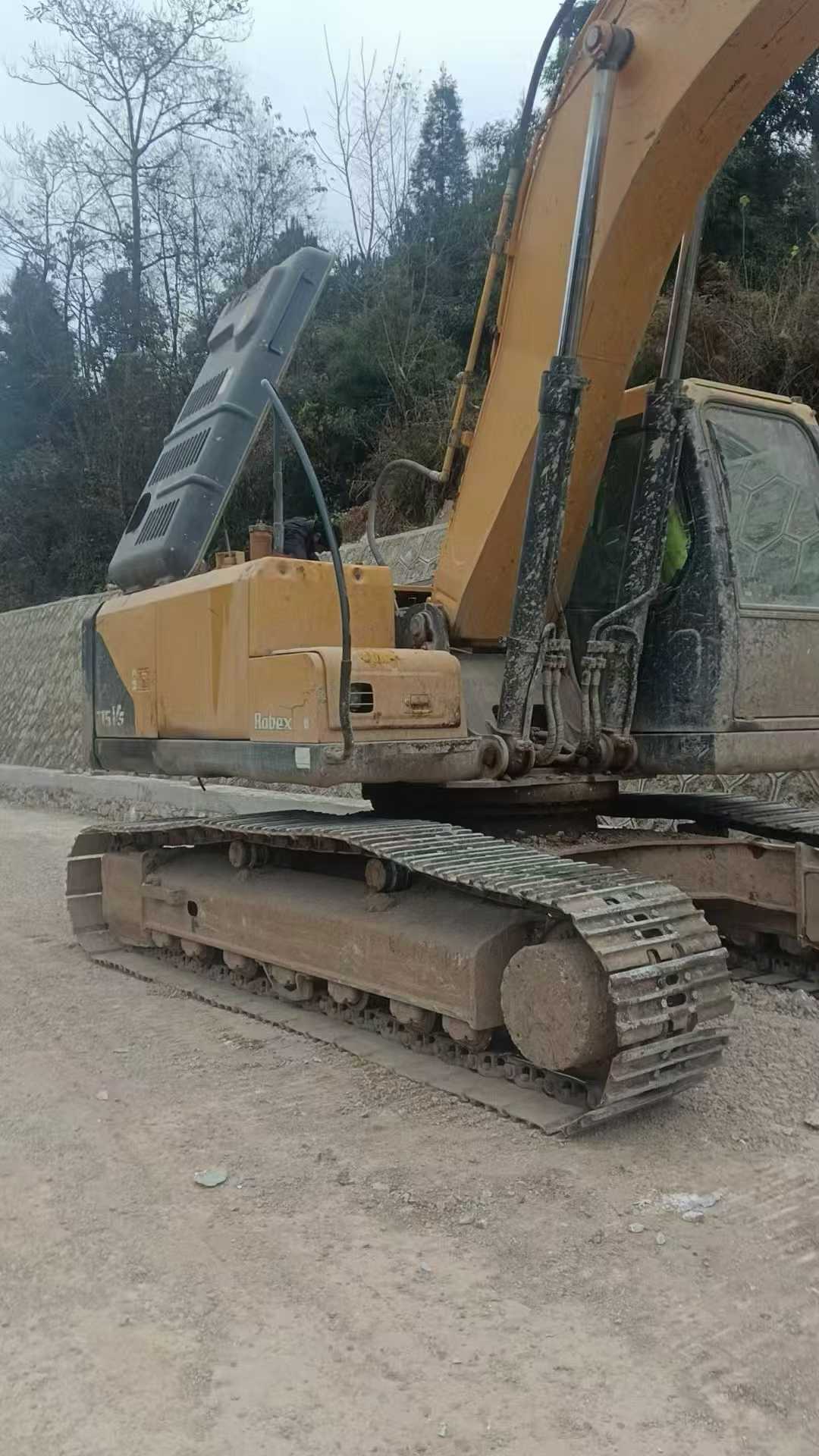

Used Hyundai R215VS Excavator 2016 Model / 4

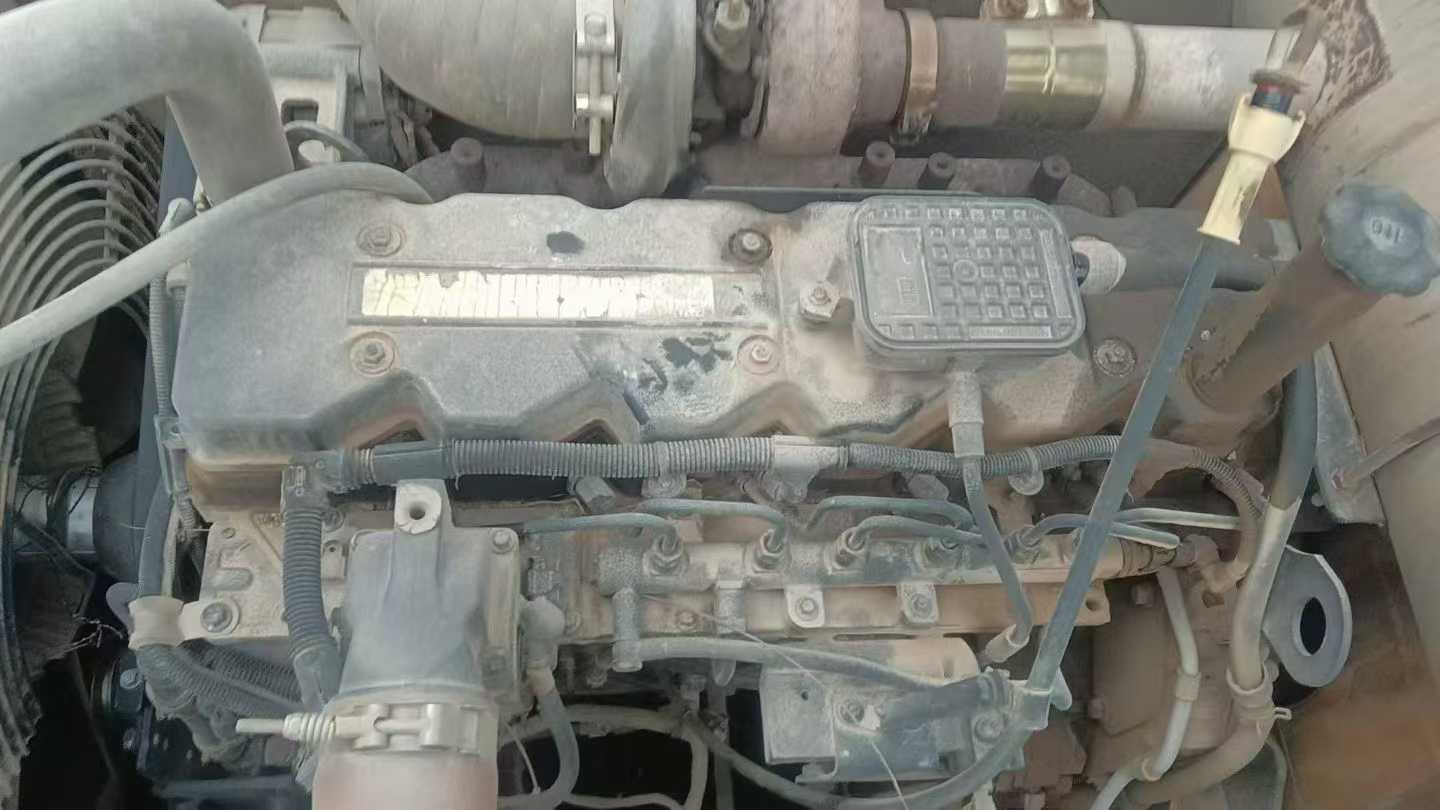

Used Hyundai R215VS Excavator 2016 Model / 5

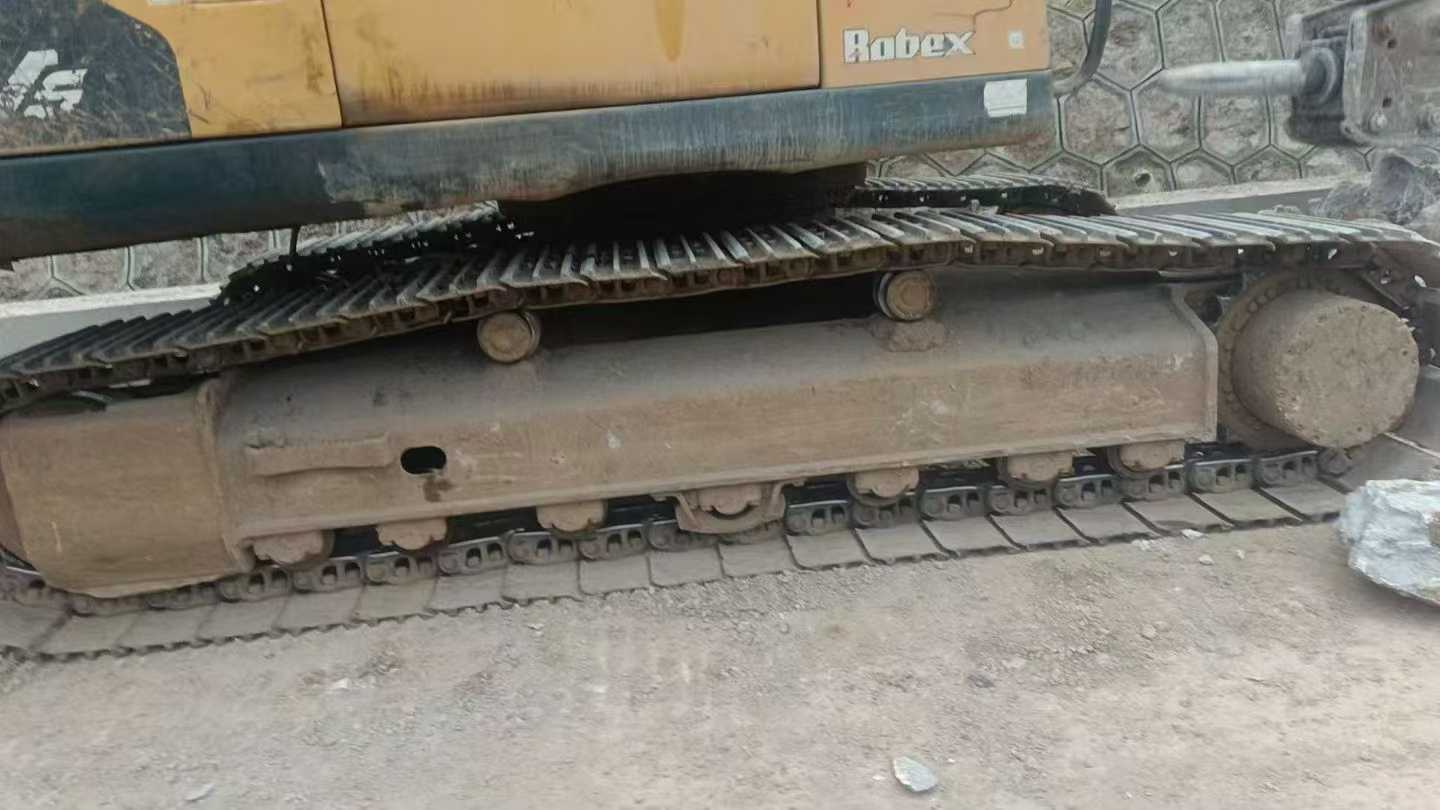

Used Hyundai R215VS Excavator 2016 Model / 6

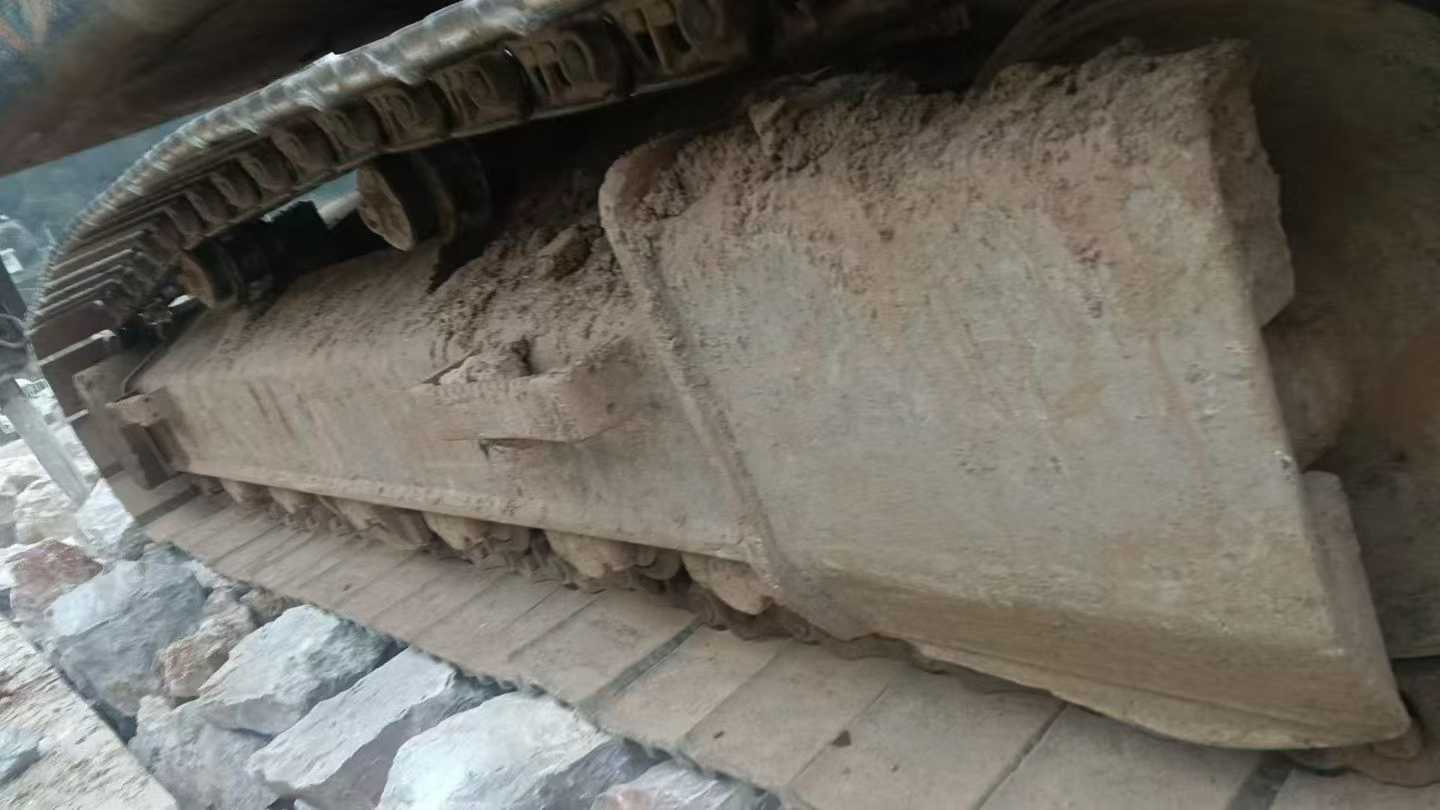

Used Hyundai R215VS Excavator 2016 Model / 7

Product Description

There is currently a second-hand 2018 model Hyundai R215VS excavator in excellent condition with high cost performance. The cumulative working time of this device is approximately 3,000 hours (possibly), making it highly suitable for users who require high performance and have a limited budget. In terms of the power system, it is equipped with an efficient turbocharged diesel engine, model Cummins 6BTAA, with a maximum output power of up to 129 kilowatts, ensuring strong and stable operation performance. The hydraulic system is a major highlight of this excavator. It is equipped with a combination of high-quality variable piston pumps and low-speed high-torque motors, which not only ensures rapid response and smooth operation, but also significantly improves work efficiency and fuel economy. This modern R215VS excavator is renowned for its outstanding durability and reliability, maintaining excellent performance in all kinds of harsh working conditions. Its robust structural design combined with advanced manufacturing techniques effectively extends the service life of the entire machine. In addition, the spacious and comfortable cab provides a good field of vision and operating environment, making long-term work more relaxed and enjoy

SpecificationsValue
No.979130
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125 / 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)63 / 1500
Number of cylinders (PCS)6
Displacement (L)6.7
Working form6-cylinder, 4-stroke, water-cooled turbocharged engine
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.6 / 3.7
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)350
Rotary Hydraulic Circuit (Mpa)250
Main pump typeTwo variable plunger pump
Working Hydraulic Circuit (Mpa)300
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)1 - ø 120 x ø 80 x 1120
Bucket rod cylinders - Number × diameter × stroke (mm)1 - ø 140 x ø 95 x 1570
Boom cylinders - Number × diameter × stroke (mm)2 - ø 125 x ø 85 x 1320
Pilot pump typeGear pump, interactive sensing fuel saving pump system
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3770
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Maximum excavation radius of stop surface (mm)9760
see more

Overview

No.979130

Brand Name:

Hyundai

Model Number:

R215VS

Year:

2016

Location:

Yunnan China
