| Specifications | Value |
|---|---|
| No. | 963331 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

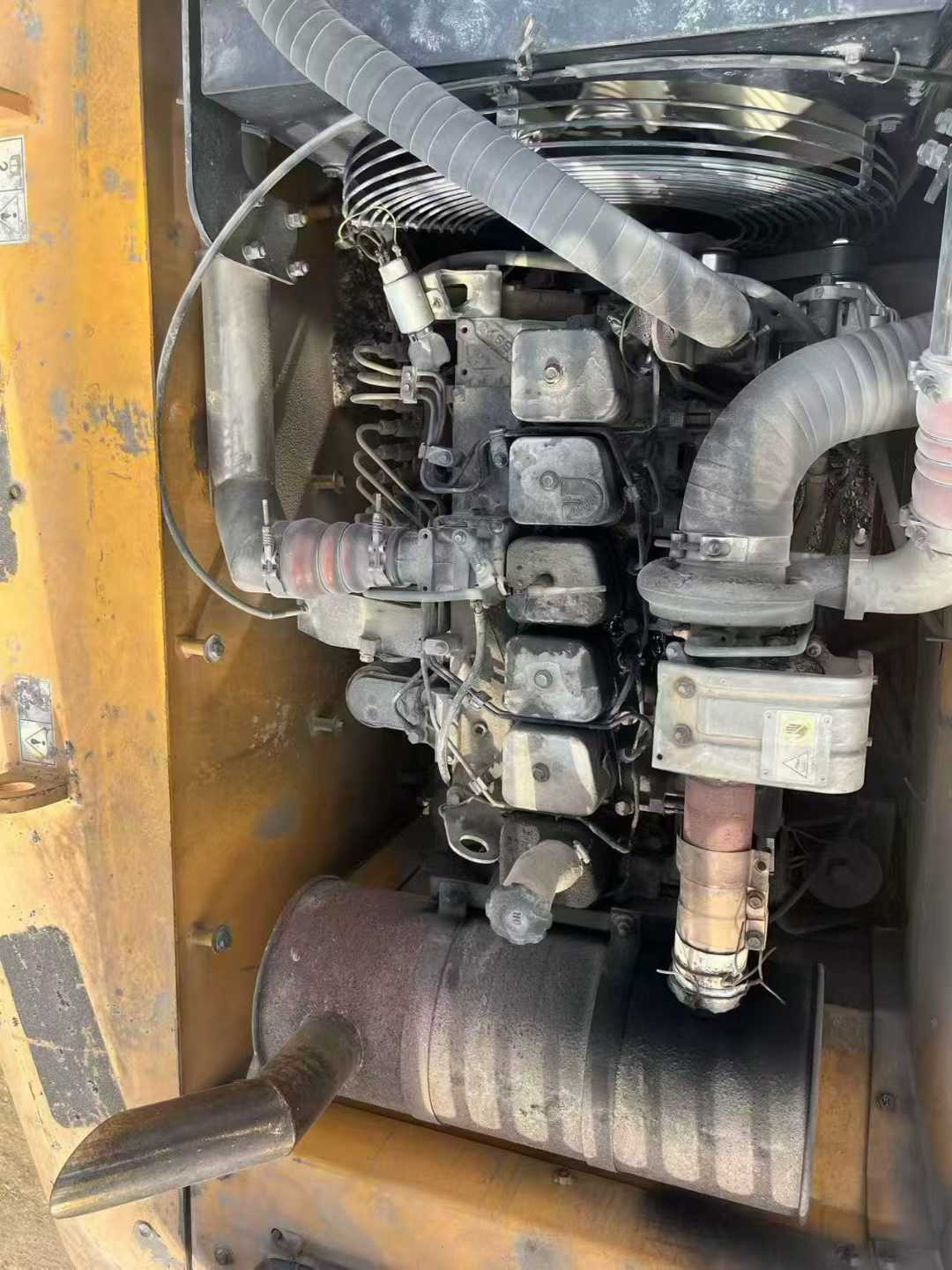

| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |

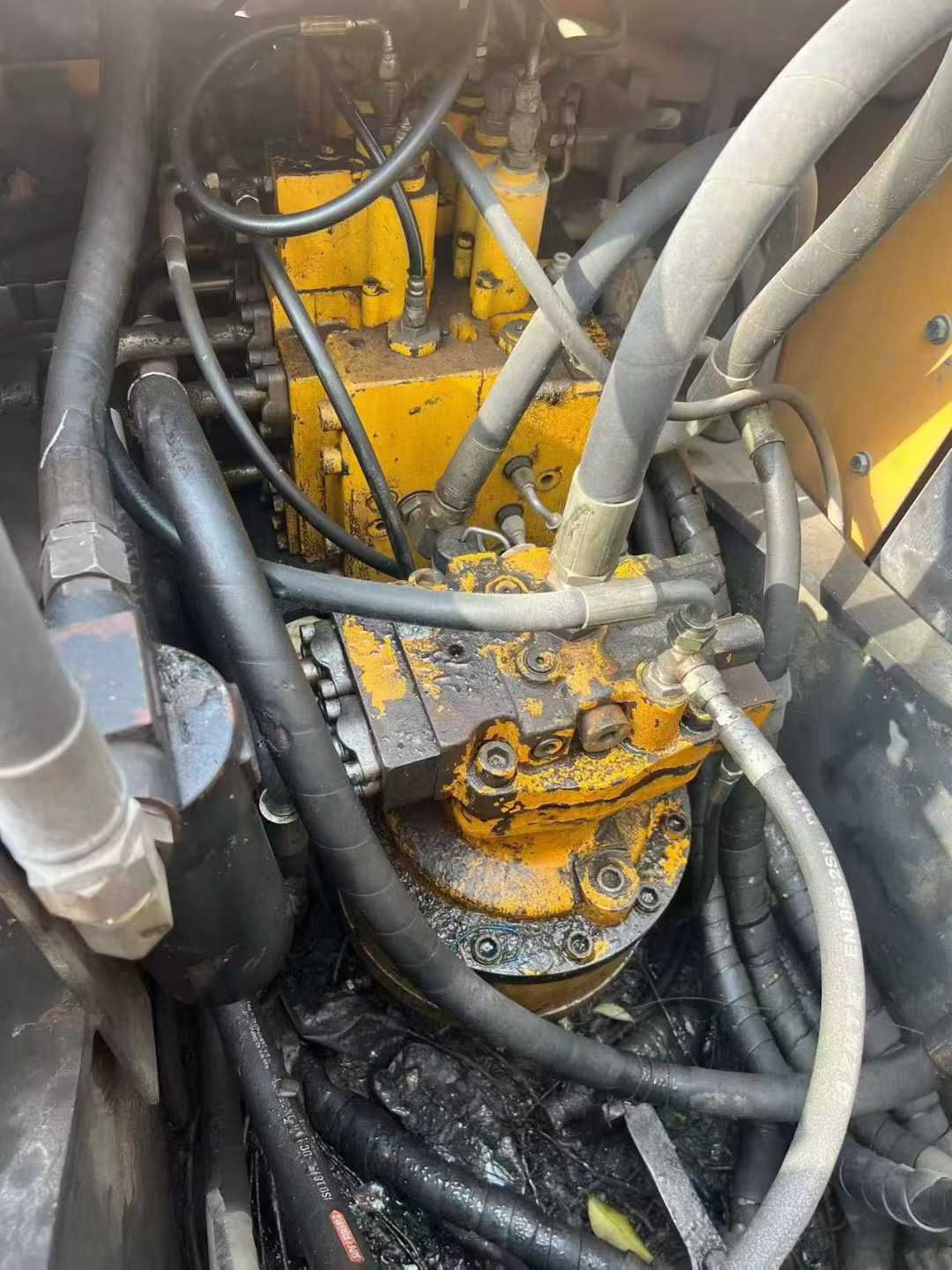

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |

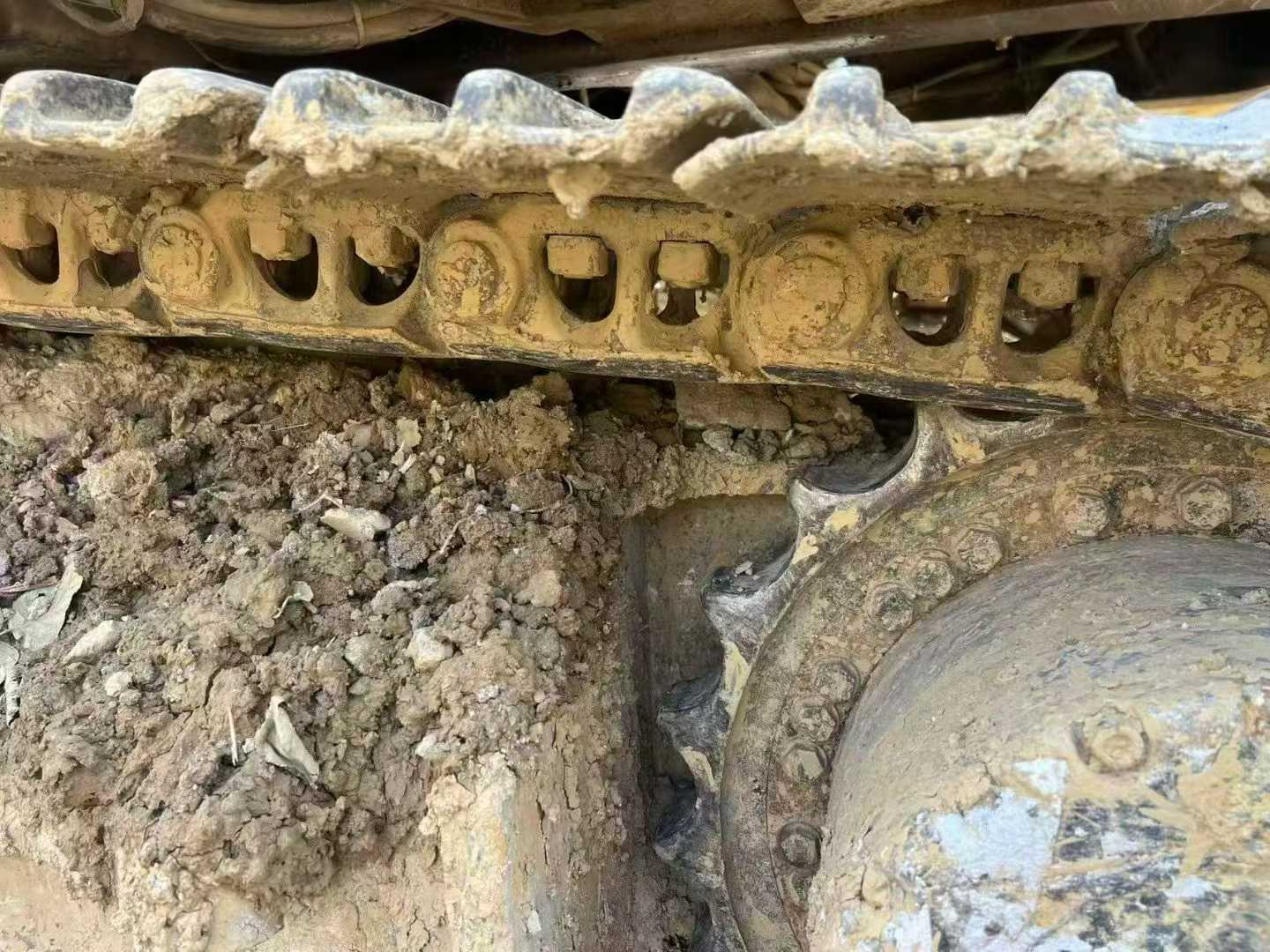

| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
Description
【 Premium Recommendation 】2014 Hyundai R215LC-9 second-hand excavator, a cost-effective choice! This 2014 Hyundai R215LC-9 excavator has a working time of only 6,500 hours and is in the best condition for use. It not only features a powerful power system but also is equipped with an efficient hydraulic system, ensuring outstanding performance under various complex working conditions. "Power System: This machine is equipped with a high-performance Cummins engine, with a maximum power output of up to 130kW (approximately 174 horsepower), featuring excellent fuel economy and reliability. It can maintain stable operation even in harsh environments, meeting your demand for efficient work. "Hydraulic system: Adopting advanced load-sensing hydraulic technology makes the operation more precise and smooth. Whether it is excavation, loading or crushing operations, they can all be handled with ease. Meanwhile, its energy-saving mode can automatically adjust the output power according to the actual working load, further reducing fuel consumption costs. Other advantages - ** High durability ** : The entire machine has a sturdy structure, and key components are all made of high-quality materials to ensure stability and durability over long-term
