| Specifications | Value |
|---|---|
| No. | 969981 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
Description

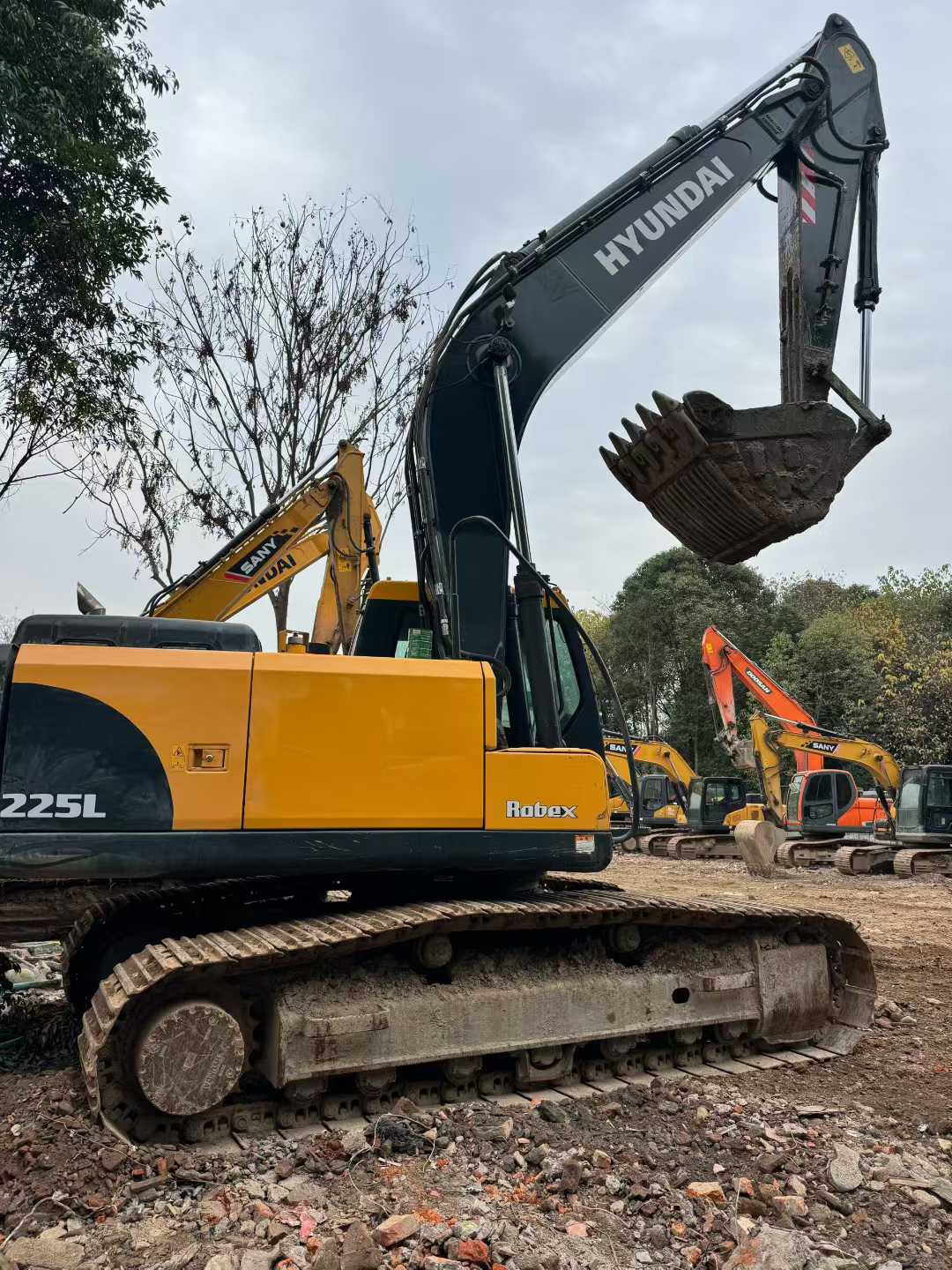

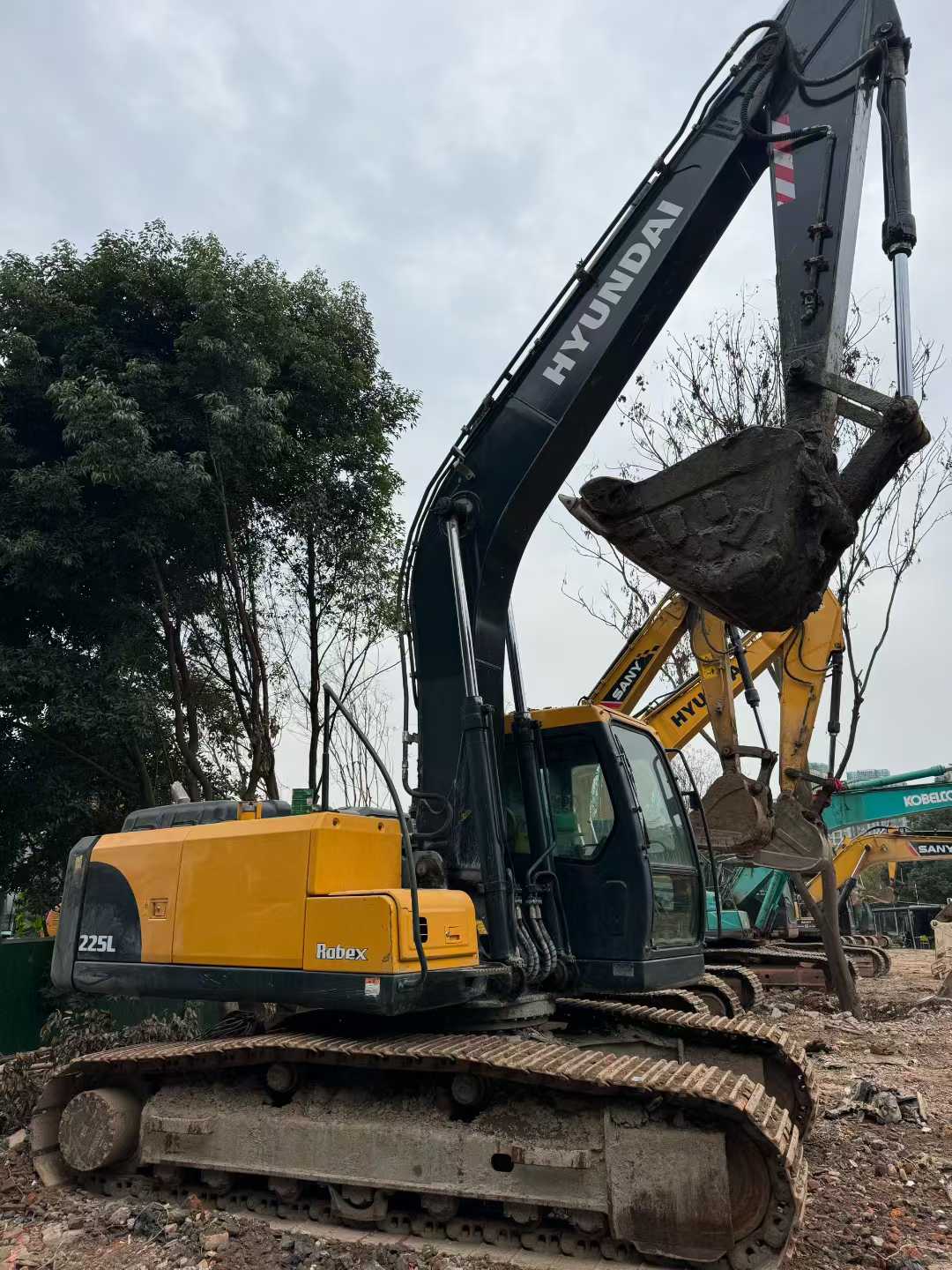

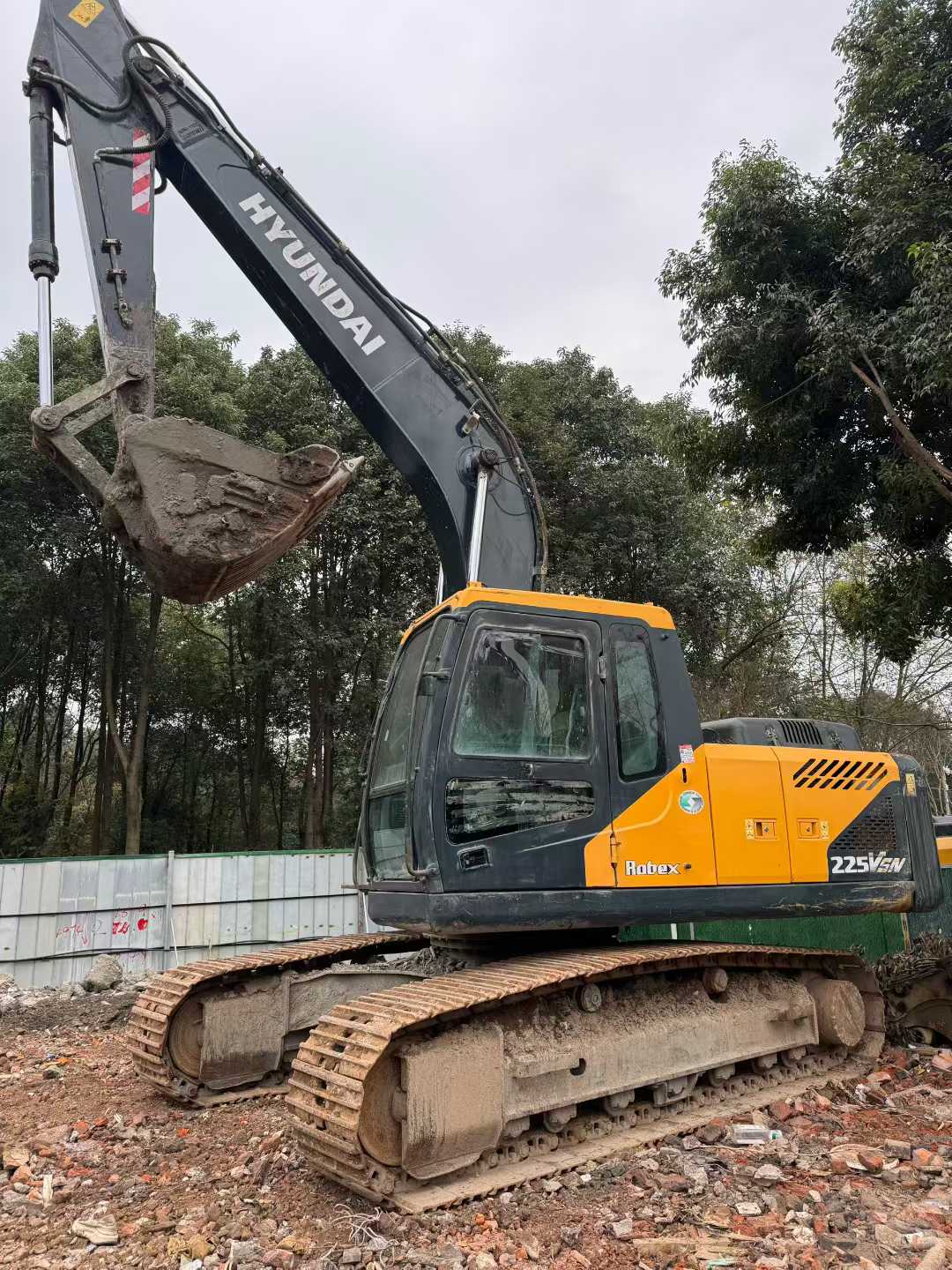

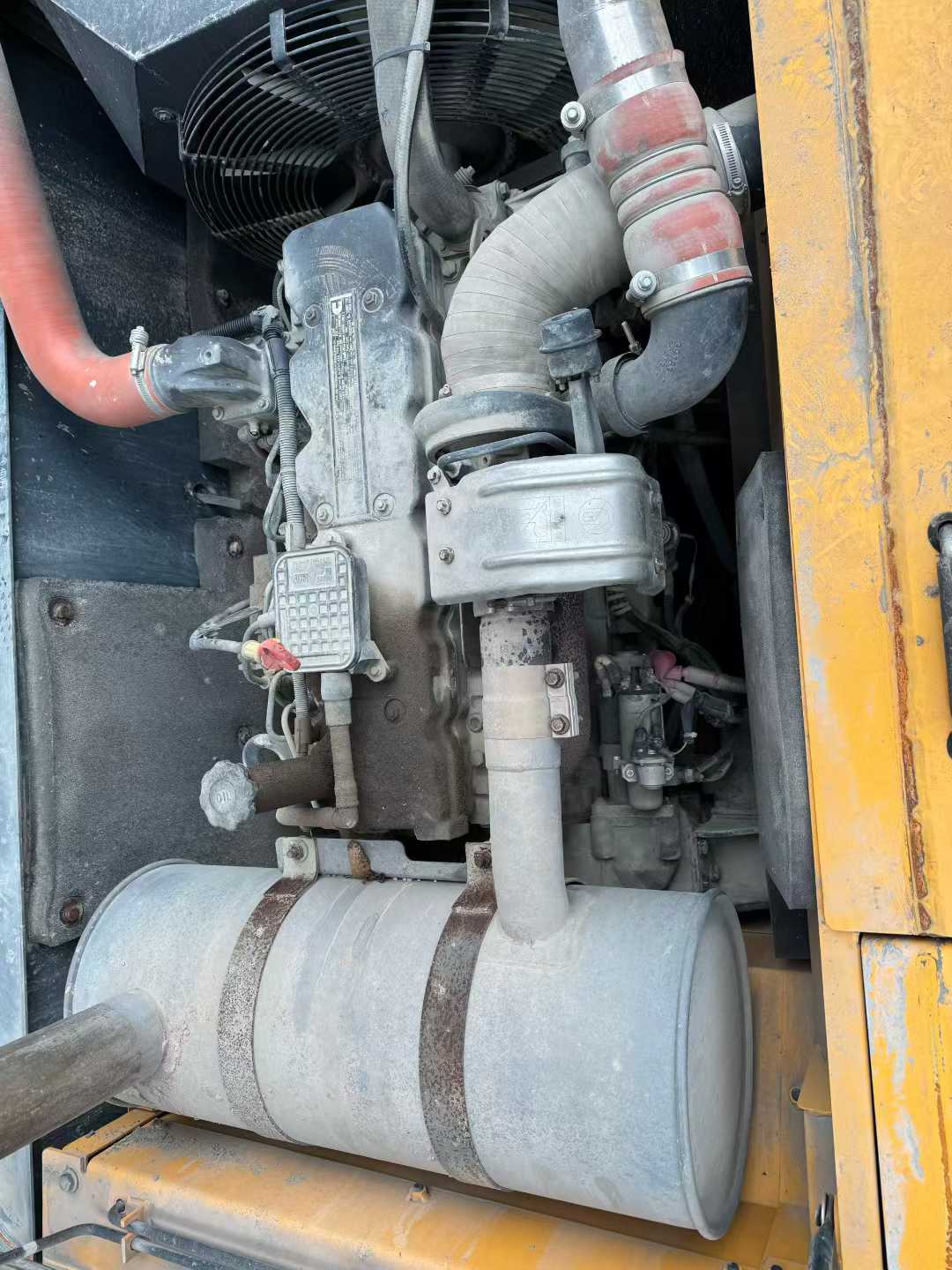

【 Premium Recommendation 】 The second-hand Hyundai R215LC-9S excavator purchased in 2021 features outstanding performance and reliable quality, making it an ideal choice for your engineering operations. This excavator has only been in operation for 3,000 hours since its purchase, which is far shorter than the average usage time of equipment of the same model, ensuring its good mechanical condition and longer service life. The overall appearance of the machine is clean and tidy, with no obvious signs of damage. The internal structure is intact and well-maintained. In terms of the power system, this excavator is equipped with a Cummins QSB6.7-C240 engine, with a maximum power of up to 160kW (approximately 215 horsepower). It not only has strong power but also excellent fuel economy, capable of meeting the efficient operation requirements under various complex working conditions. In addition, the advanced electronic control fuel injection technology makes the emissions more environmentally friendly and meets the requirements of the National III standard. The hydraulic system adopts a design scheme that combines variable plunger pumps with load-sensitive control, featuring a fast response speed, flexible and precise operation. It can eas
