HOME>>Find Excavators>>Hyundai R215VSN

2018 Hyundai R215VSN

1/5

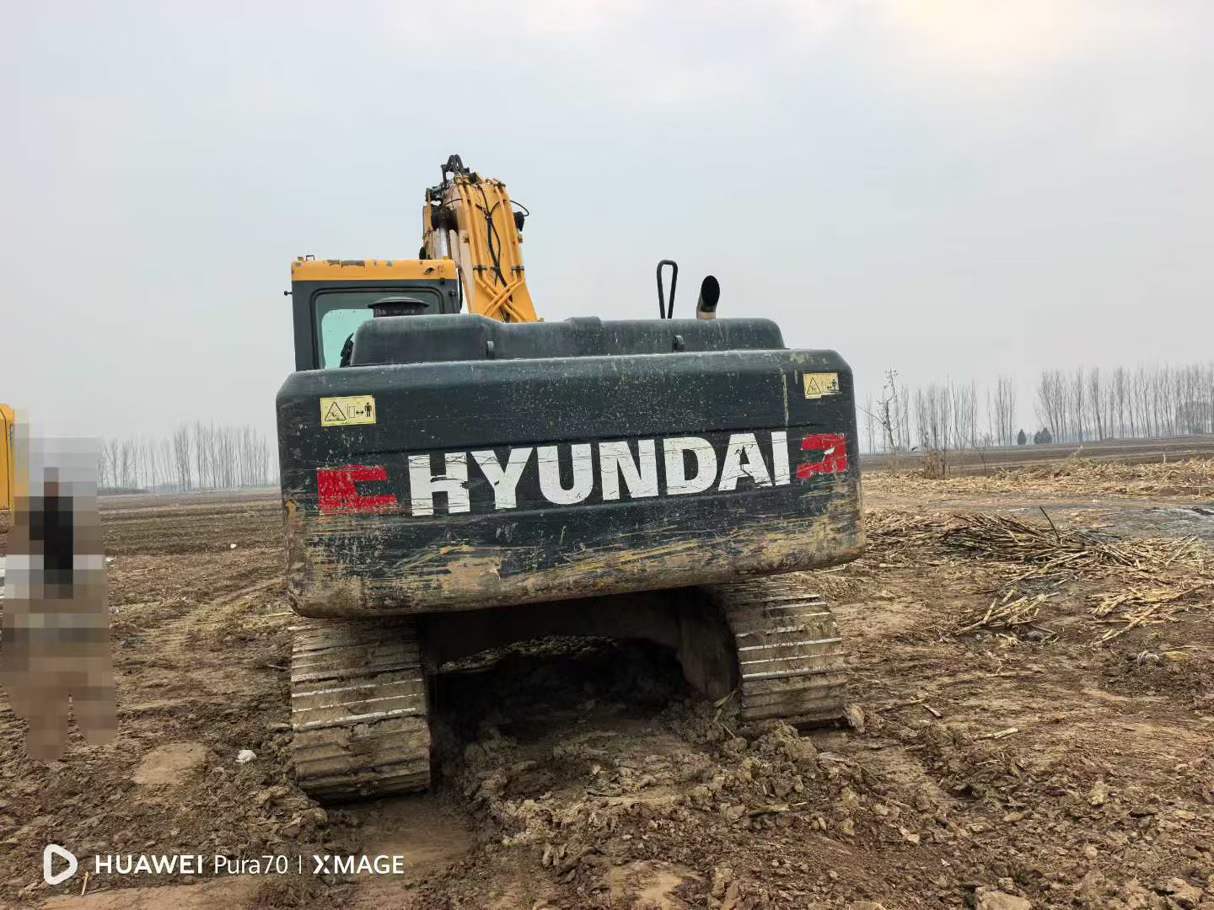

Used Hyundai R215VSN Excavator 2018 Model / 1

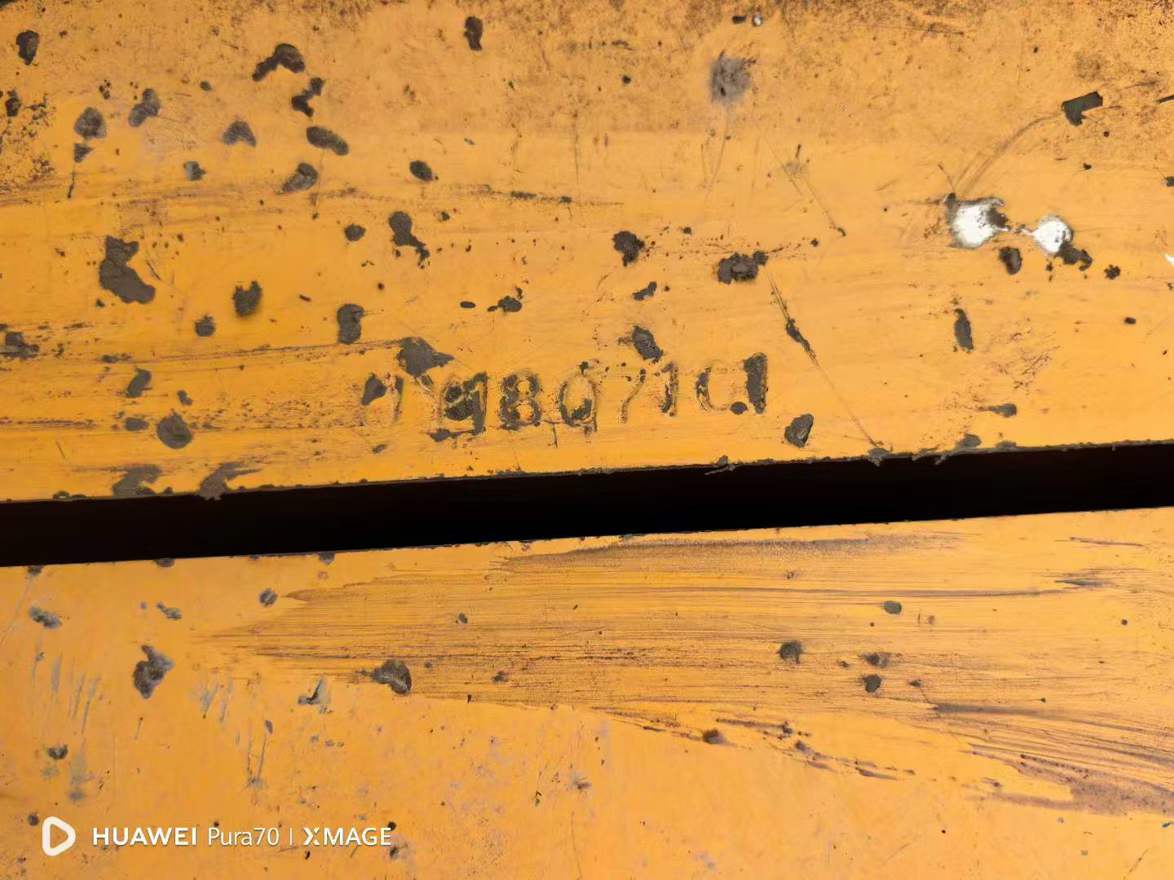

Used Hyundai R215VSN Excavator 2018 Model / 2

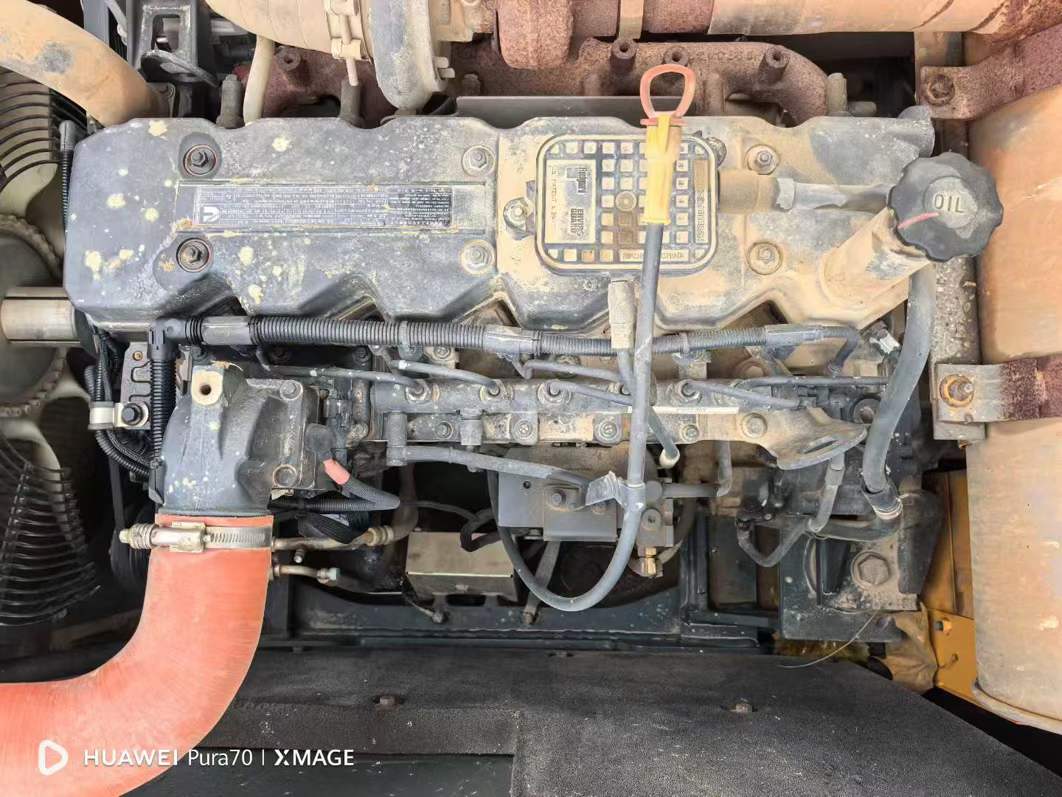

Used Hyundai R215VSN Excavator 2018 Model / 3
Used Hyundai R215VSN Excavator 2018 Model / 4

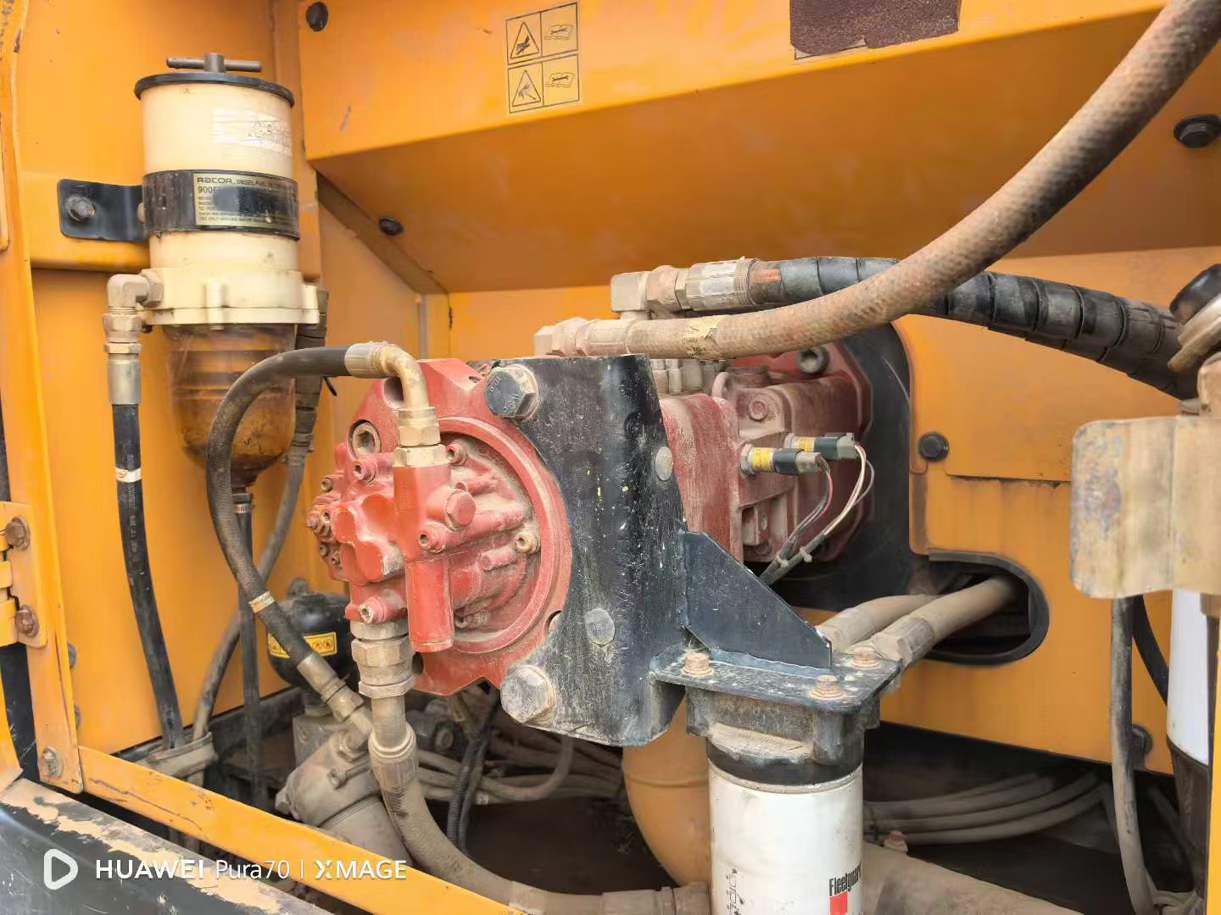

Used Hyundai R215VSN Excavator 2018 Model / 5

Product Description

This 2018 Hyundai R215LC-9S excavator is a local vehicle with outstanding performance and reliable quality. Since its commissioning, this machine has accumulated a working time of 3,500 hours. With proper maintenance, its overall condition is very good. In terms of the power system, it is equipped with an efficient Cummins QSB6.7 diesel engine, which is renowned for its powerful output and smooth operation, providing stable and reliable performance under various working conditions. In addition, its advanced fuel injection technology and exhaust gas recirculation system not only enhance fuel efficiency but also significantly reduce emissions, meeting the latest environmental protection standards. In terms of the hydraulic system, this Hyundai R215 adopts advanced negative flow control technology, ensuring a perfect balance between rapid response and precise operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease, demonstrating outstanding work efficiency. At the same time, thanks to its sturdy and durable design concept, it can maintain a good working condition even when used for a long time in harsh environments, greatly extending the service life of the machine. As a local vehicle sourc

SpecificationsValue
No.972688
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.83
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*120*80*1120
Bucket rod cylinders - Number × diameter × stroke (mm)1*140*95*1570
Boom cylinders - Number × diameter × stroke (mm)2*125*85*1320
Pilot pump typeGear pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.972688

Brand Name:

Hyundai

Model Number:

R215VSN

Year:

2018

Location:

Shandong China

Are you interested in this machine?

Please contact us
