2018 Hyundai R215VSN

1/9
Used Hyundai R215VSN Excavator 2018 Model / 1

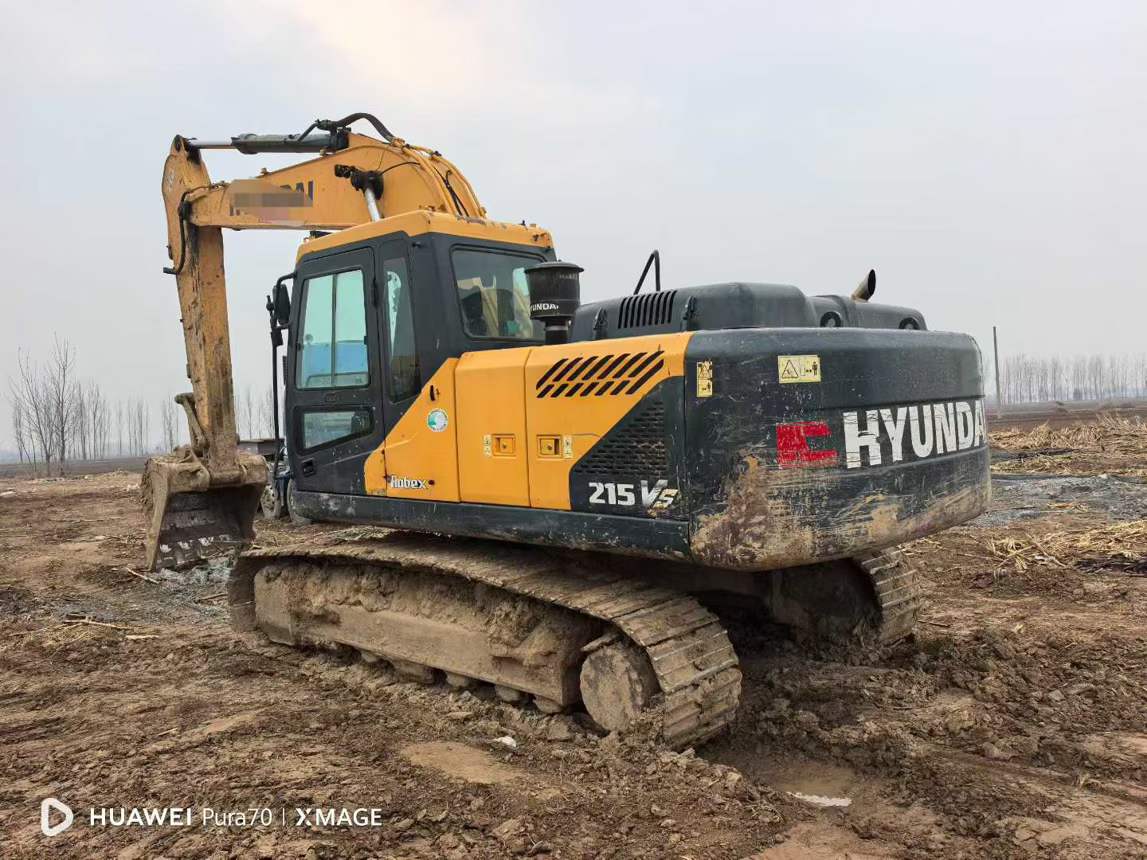

Used Hyundai R215VSN Excavator 2018 Model / 2
Used Hyundai R215VSN Excavator 2018 Model / 3

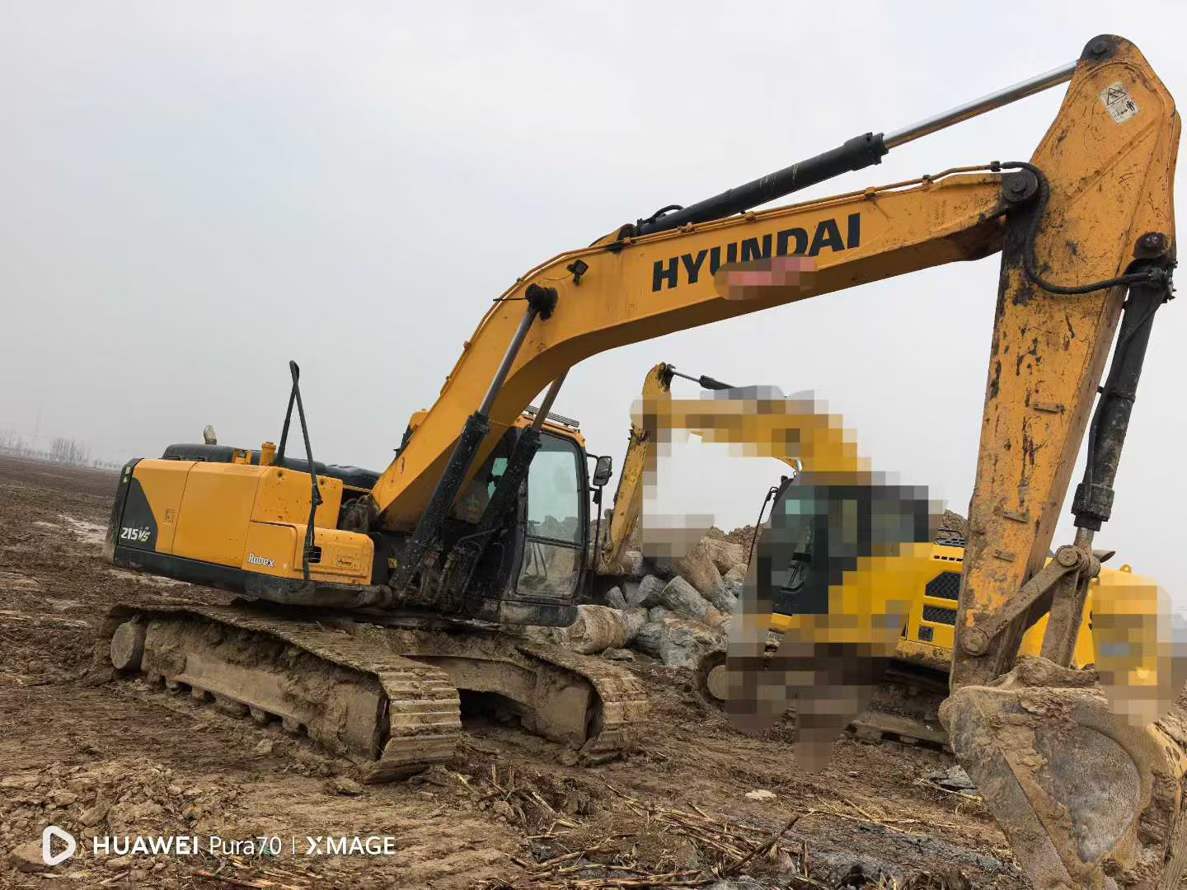

Used Hyundai R215VSN Excavator 2018 Model / 4
Used Hyundai R215VSN Excavator 2018 Model / 5

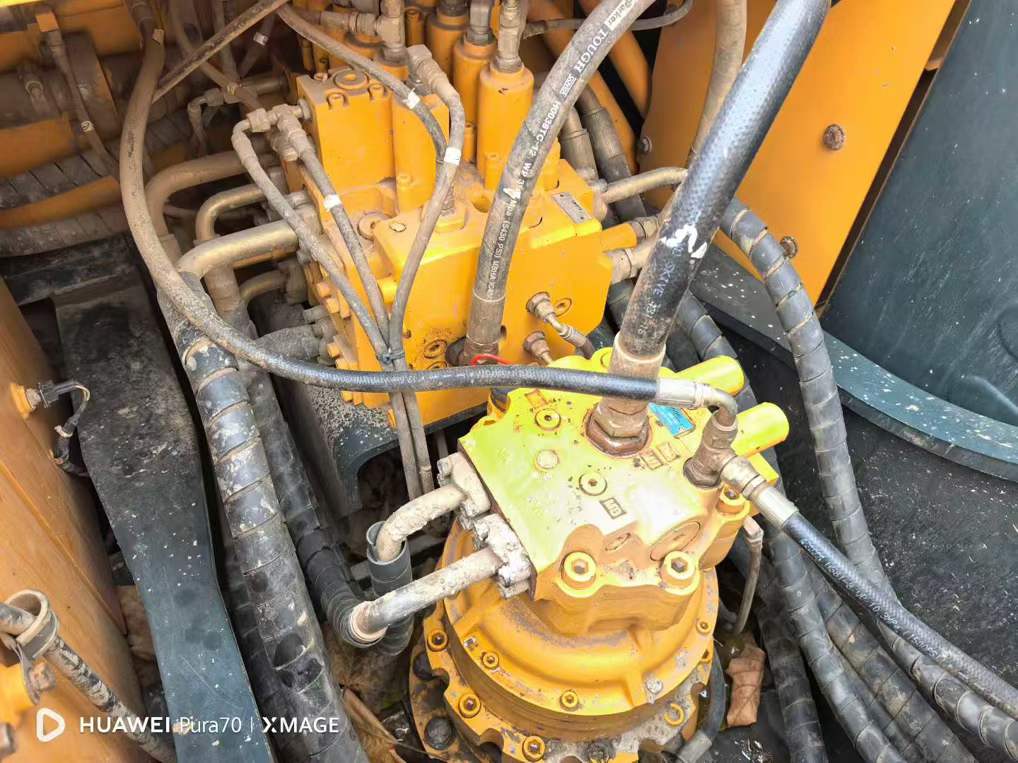

Used Hyundai R215VSN Excavator 2018 Model / 6

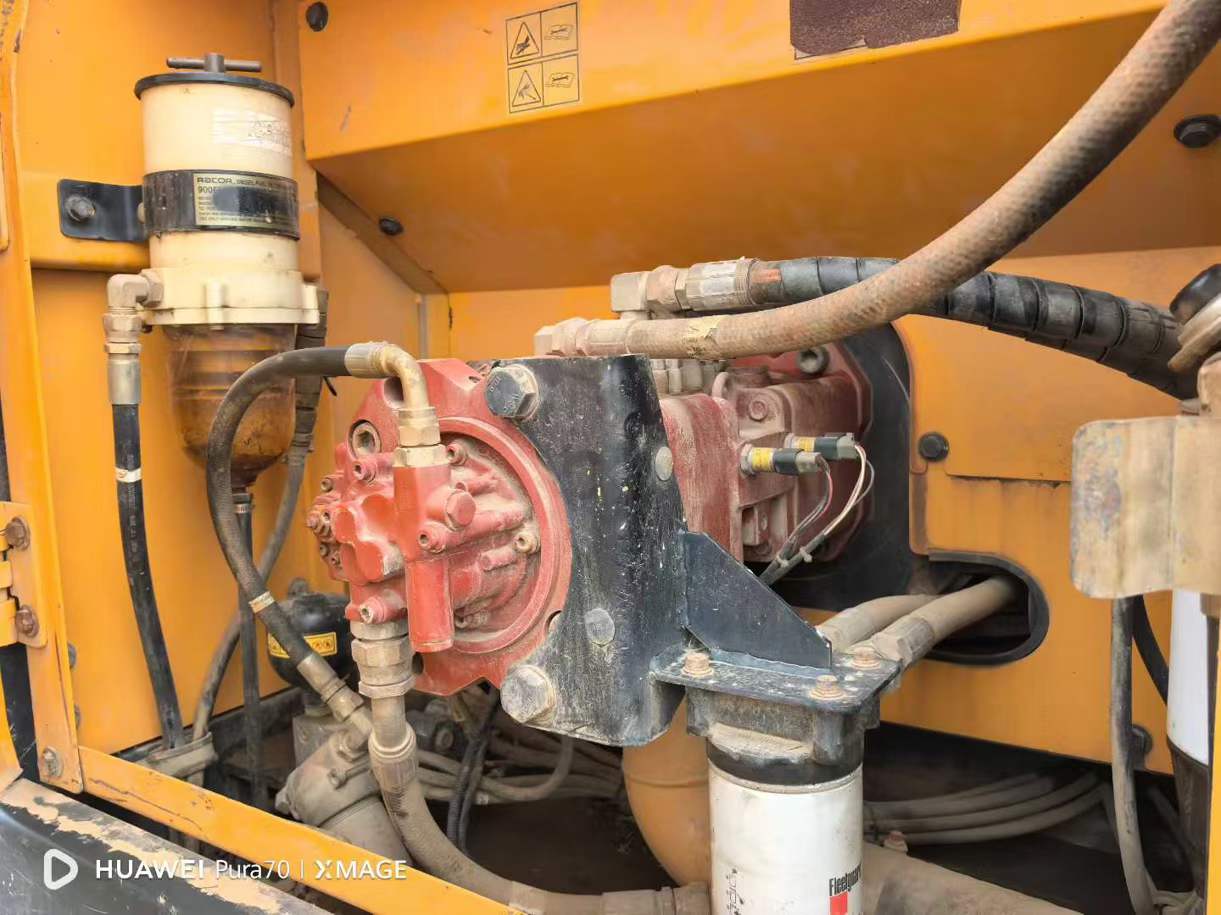

Used Hyundai R215VSN Excavator 2018 Model / 7

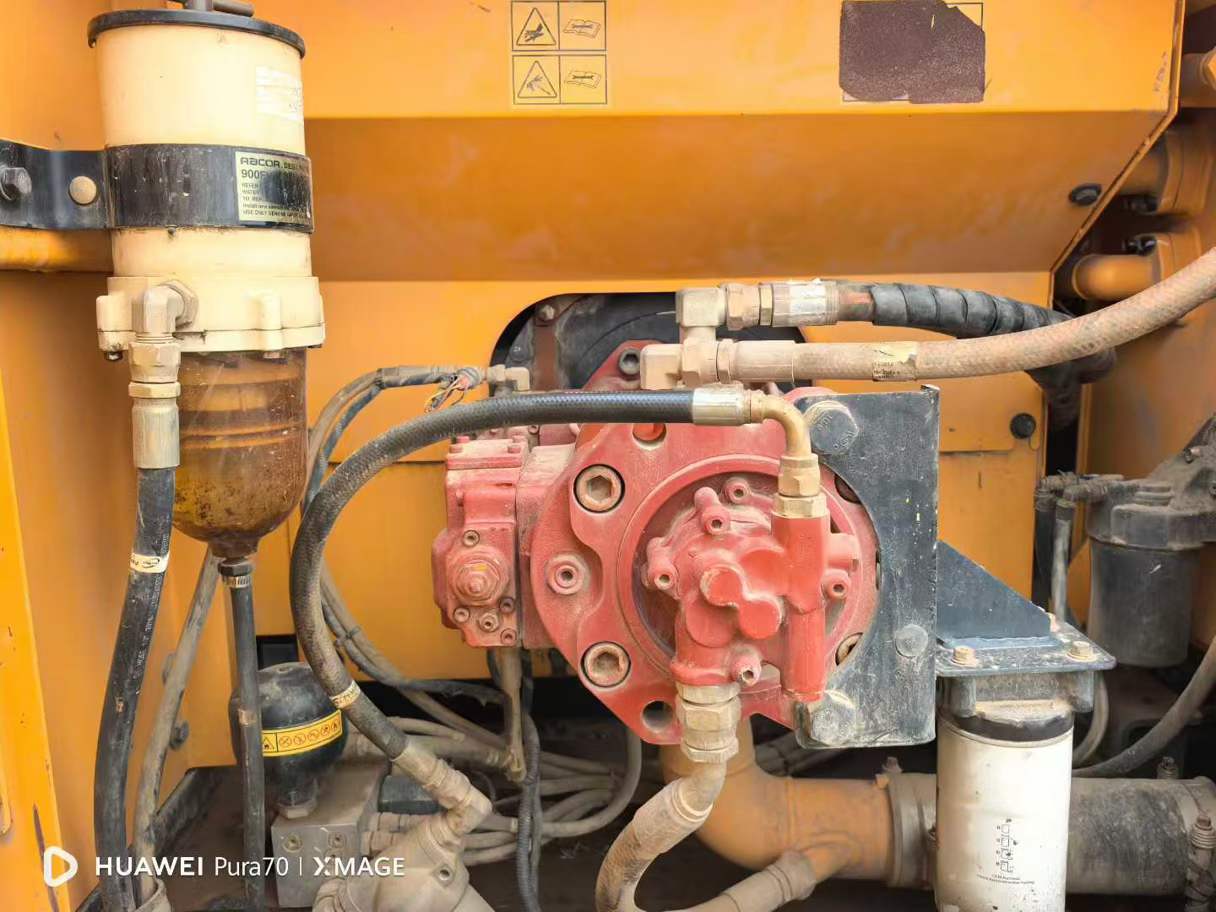

Used Hyundai R215VSN Excavator 2018 Model / 8

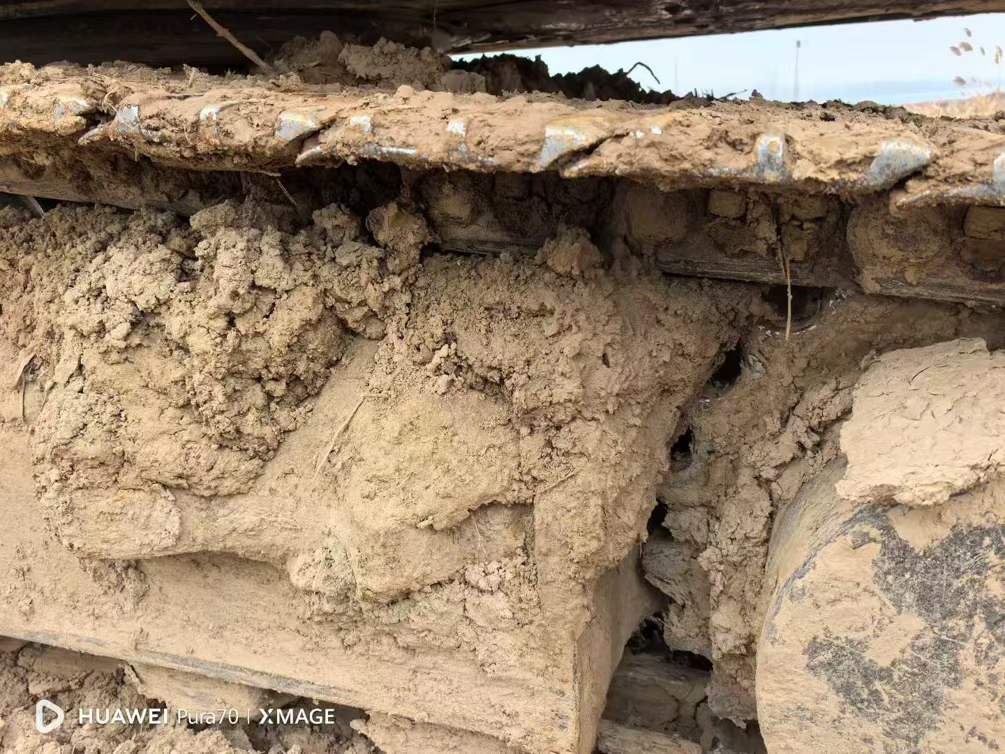

Used Hyundai R215VSN Excavator 2018 Model / 9

Product Description

This second-hand Hyundai R215 excavator from 2018 has been highly praised in the market for its outstanding performance and reliability. Up to now, the working time of this equipment is only 3,000 hours, maintaining a good mechanical condition and operational efficiency. It is equipped with a powerful Cummins QSB6.7 engine, with a power output of 140 kilowatts (approximately 190 horsepower), providing sufficient power support for operations under various complex working conditions. In terms of the hydraulic system, this excavator adopts an advanced variable piston pump and a high-quality hydraulic motor combination, ensuring smoothness and accuracy during operation. Meanwhile, its highly efficient cooling system can effectively prevent overheating problems and extend the service life of key components. In addition, the optimized design of the main control valve makes the machine more flexible and at ease when performing fine actions. As a medium-sized excavator, the Hyundai R215 not only boasts outstanding working capabilities but also excels in durability and maintenance convenience. The spacious and comfortable cab, the intuitive and easy-to-understand operation panel, as well as comprehensive safety protection measures, together f

SpecificationsValue
No.973136
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.83
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*120*80*1120
Bucket rod cylinders - Number × diameter × stroke (mm)1*140*95*1570
Boom cylinders - Number × diameter × stroke (mm)2*125*85*1320
Pilot pump typeGear pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.973136

Brand Name:

Hyundai

Model Number:

R215VSN

Year:

2018

Location:

Shandong China
