2018 Hyundai R215VSN

1/6
Used Hyundai R215VSN Excavator 2018 Model / 1
Used Hyundai R215VSN Excavator 2018 Model / 2

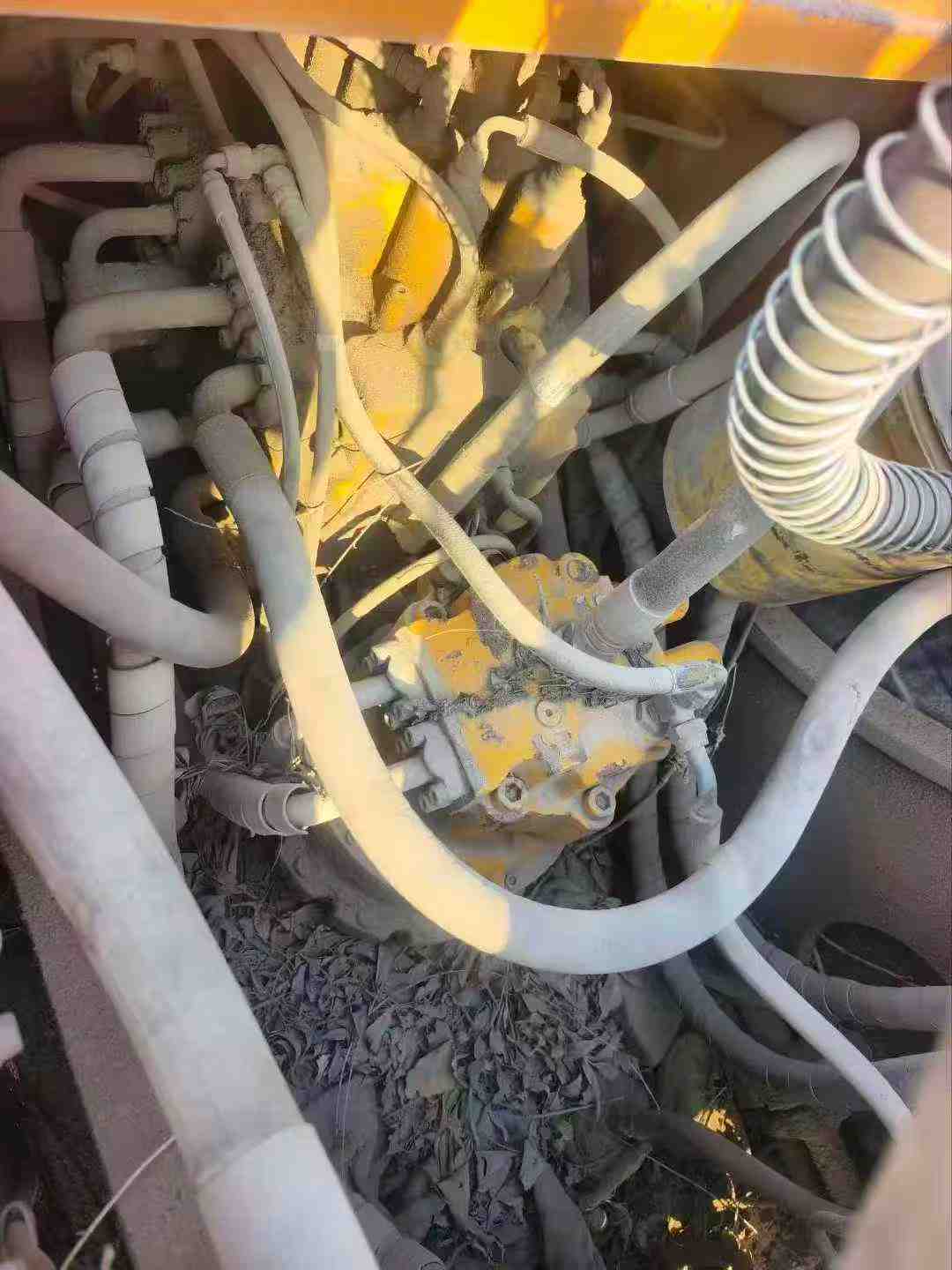

Used Hyundai R215VSN Excavator 2018 Model / 3

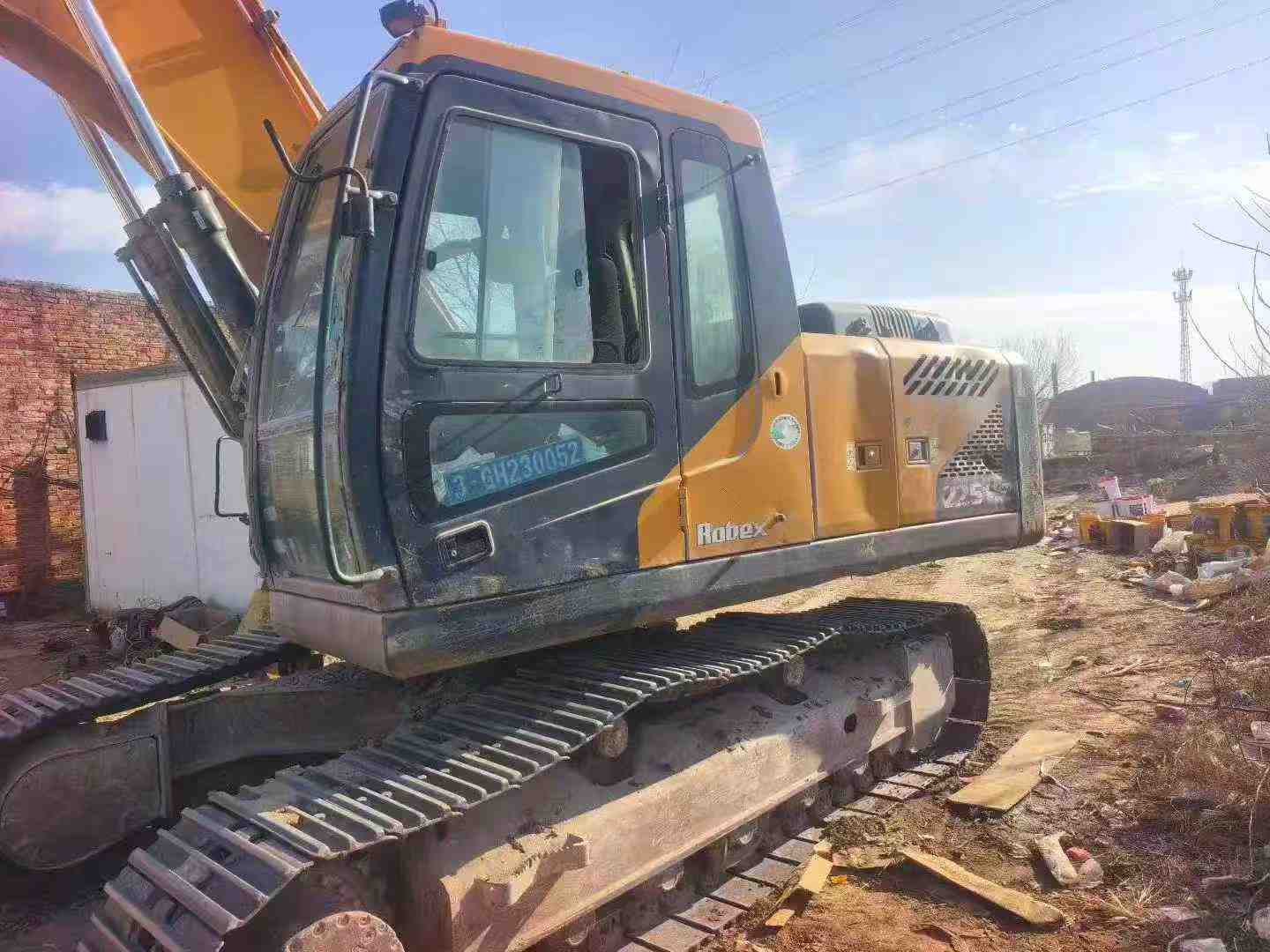

Used Hyundai R215VSN Excavator 2018 Model / 4

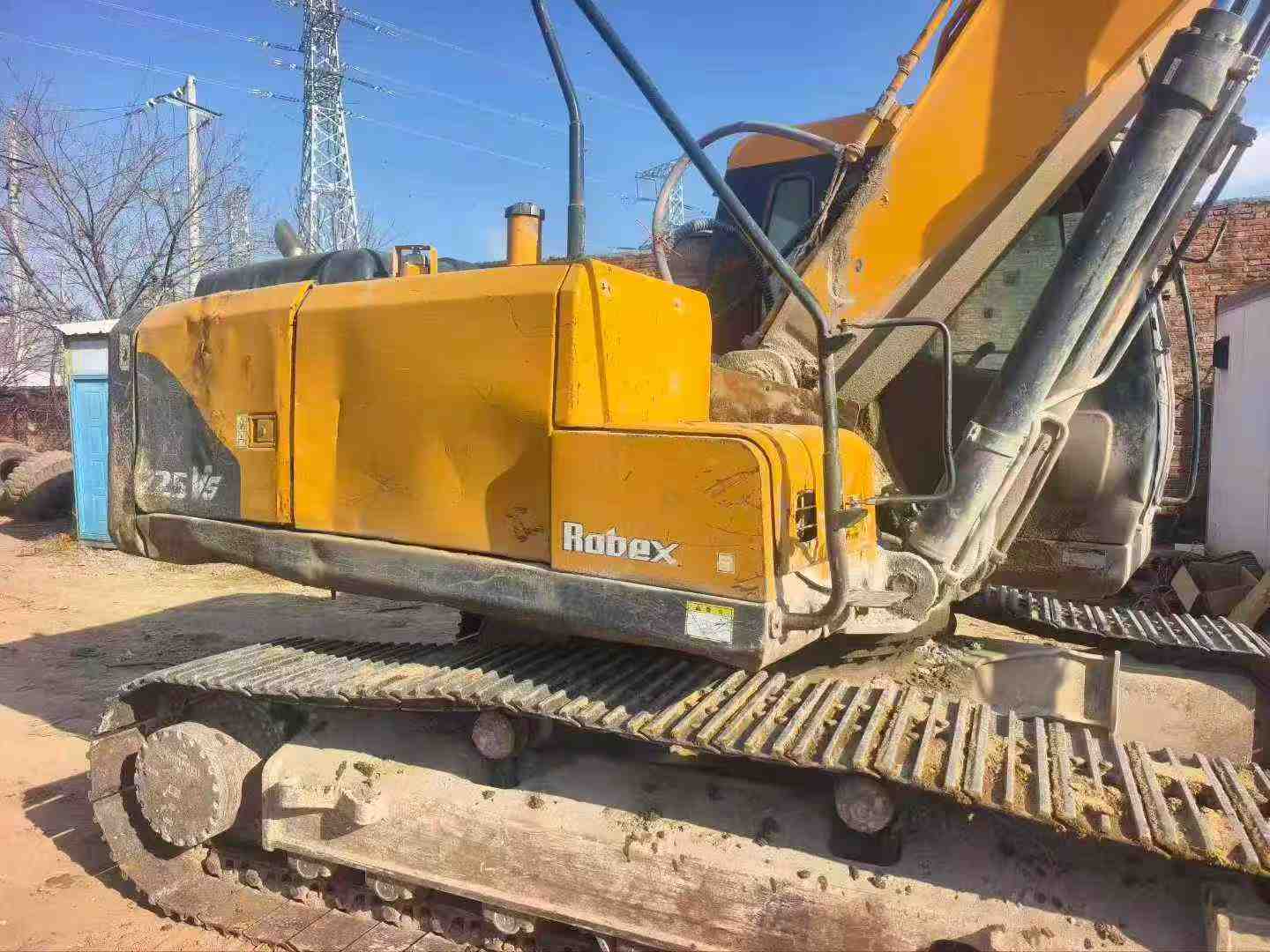

Used Hyundai R215VSN Excavator 2018 Model / 5

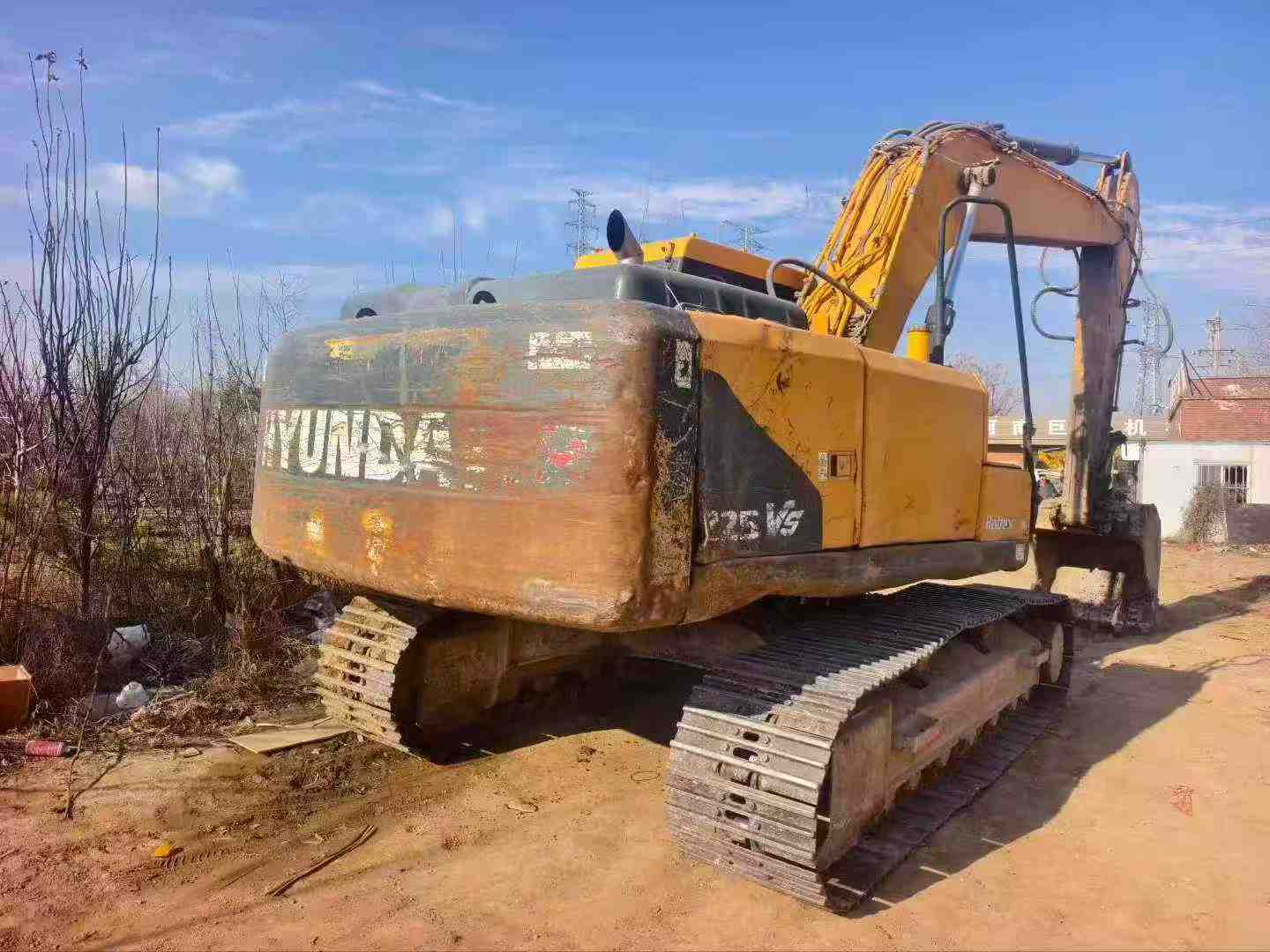

Used Hyundai R215VSN Excavator 2018 Model / 6

Product Description

This Hyundai R215LC-9 excavator from October 2018 has a moderate working time, with an estimated usage time of around 4,000 hours. It has outstanding overall performance and is an ideal choice for your engineering operations. This machine is equipped with a well-tested Cummins 6-cylinder turbocharged engine, with a maximum power output of 127kW at 2000rpm, ensuring strong power output and high working efficiency. The advanced hydraulic system is equipped with variable piston pumps and high-torque hydraulic motors, providing a stable and precise operation experience. It can handle tasks such as excavation, loading and crushing with ease. The chassis structure is sturdy and durable. After long-term practical application verification, it has been proven to have excellent load-bearing capacity and fatigue resistance. In addition, the cab design is humanized, with a wide field of vision and easy operation, which greatly enhances the driver's working comfort and safety. Overall, this second-hand Hyundai 215 excavator not only offers high cost performance but also features mature and reliable technology. It is highly suitable for enterprises and individual users who need high-performance equipment but have limited budgets. Contact us immedia

SpecificationsValue
No.977415
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.83
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*120*80*1120
Bucket rod cylinders - Number × diameter × stroke (mm)1*140*95*1570
Boom cylinders - Number × diameter × stroke (mm)2*125*85*1320
Pilot pump typeGear pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.977415

Brand Name:

Hyundai

Model Number:

R215VSN

Year:

2018

Location:

Zhejiang China
