2011 Hyundai R215VSN

1/9

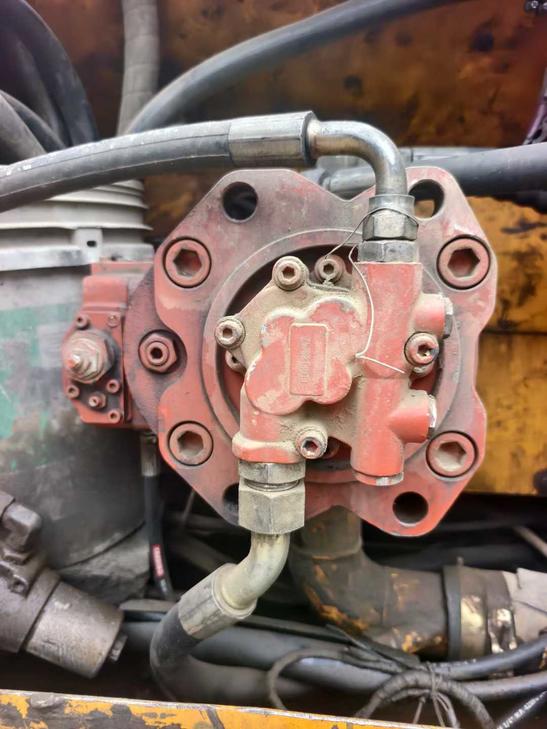

Used Hyundai R215VSN Excavator 2011 Model / 1
Used Hyundai R215VSN Excavator 2011 Model / 2
Used Hyundai R215VSN Excavator 2011 Model / 3
Used Hyundai R215VSN Excavator 2011 Model / 4
Used Hyundai R215VSN Excavator 2011 Model / 5
Used Hyundai R215VSN Excavator 2011 Model / 6
Used Hyundai R215VSN Excavator 2011 Model / 7
Used Hyundai R215VSN Excavator 2011 Model / 8
Used Hyundai R215VSN Excavator 2011 Model / 9

Product Description

This second-hand Hyundai R215 excavator from 2011 enjoys a good reputation in the market for its outstanding performance and reliable stability. The estimated operating hours of the equipment are 8,000 hours, ensuring its efficient operation capacity under various working conditions. In terms of the power system, this excavator is equipped with a Cummins QSB6.7 engine, with a maximum power output of 140kW (approximately 190 horsepower), featuring strong power output and smooth operation performance. This engine is renowned for its low fuel consumption, high efficiency and excellent durability, and can meet various construction needs. The hydraulic system is a major highlight of this excavator. It adopts an advanced Kawasaki hydraulic pump and motor combination, ensuring excellent operational sensitivity and efficient energy conversion. This configuration not only enhances the mining efficiency but also significantly reduces energy consumption, ensuring that the equipment remains highly efficient and stable during long-term operation. In addition, this modern R215 excavator also has the following main advantages: - ** Durable and robust ** : The vehicle body structure is made of high-strength steel, enabling it to operate stably for

SpecificationsValue
No.978514
Tonnage (tons)21
Working weight (kg)19900
Bucket capacity (m³)0.83
Boom length (mm)5650
Rod length (mm)2700
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCummins QSB7
Rated power (kw/rpm)125/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107*124
Maximum torque (N.m)67/1500
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)11.4
Climbing ability (%)70
Travel speed (km/h)5.9/3.8
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2*222
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1*120*80*1120
Bucket rod cylinders - Number × diameter × stroke (mm)1*140*95*1570
Boom cylinders - Number × diameter × stroke (mm)2*125*85*1320
Pilot pump typeGear pump
Fuel Tank (L)340
Hydraulic Tank (L)180
Engine Oil changes (L)24
Coolant (L)35
Hydraulic System (L)270
Total transport length (mm)9500
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1060
Minimum turning radius of front working device (mm)3470
Back end turning radius (mm)2830
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9720
Maximum digging depth (mm)6550
Maximum excavation height (mm)9640
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)5920
Maximum excavation radius of stop surface (mm)9550
see more

Overview

No.978514

Brand Name:

Hyundai

Model Number:

R215VSN

Year:

2011

Location:

Hubei China
