Product Description

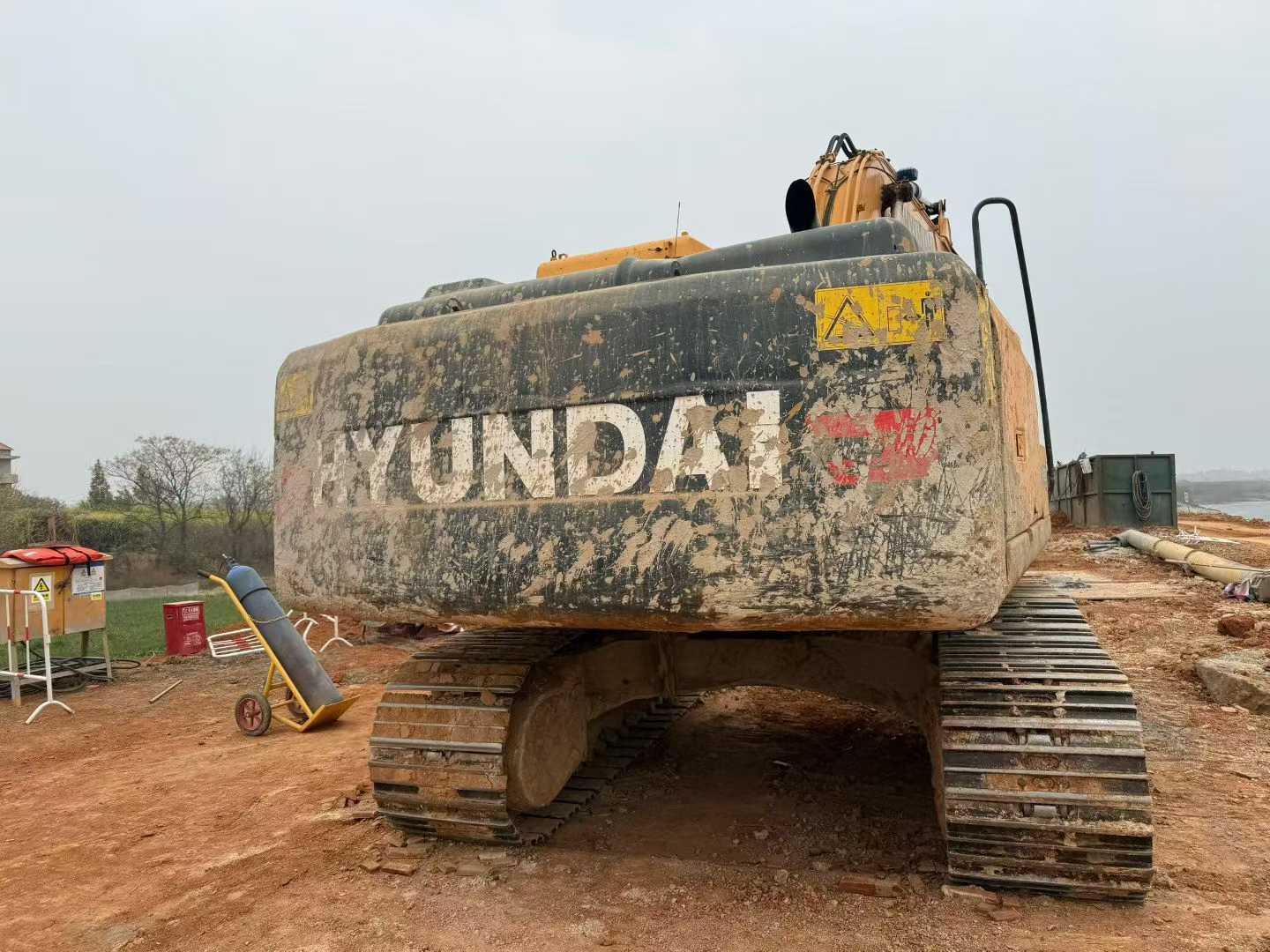

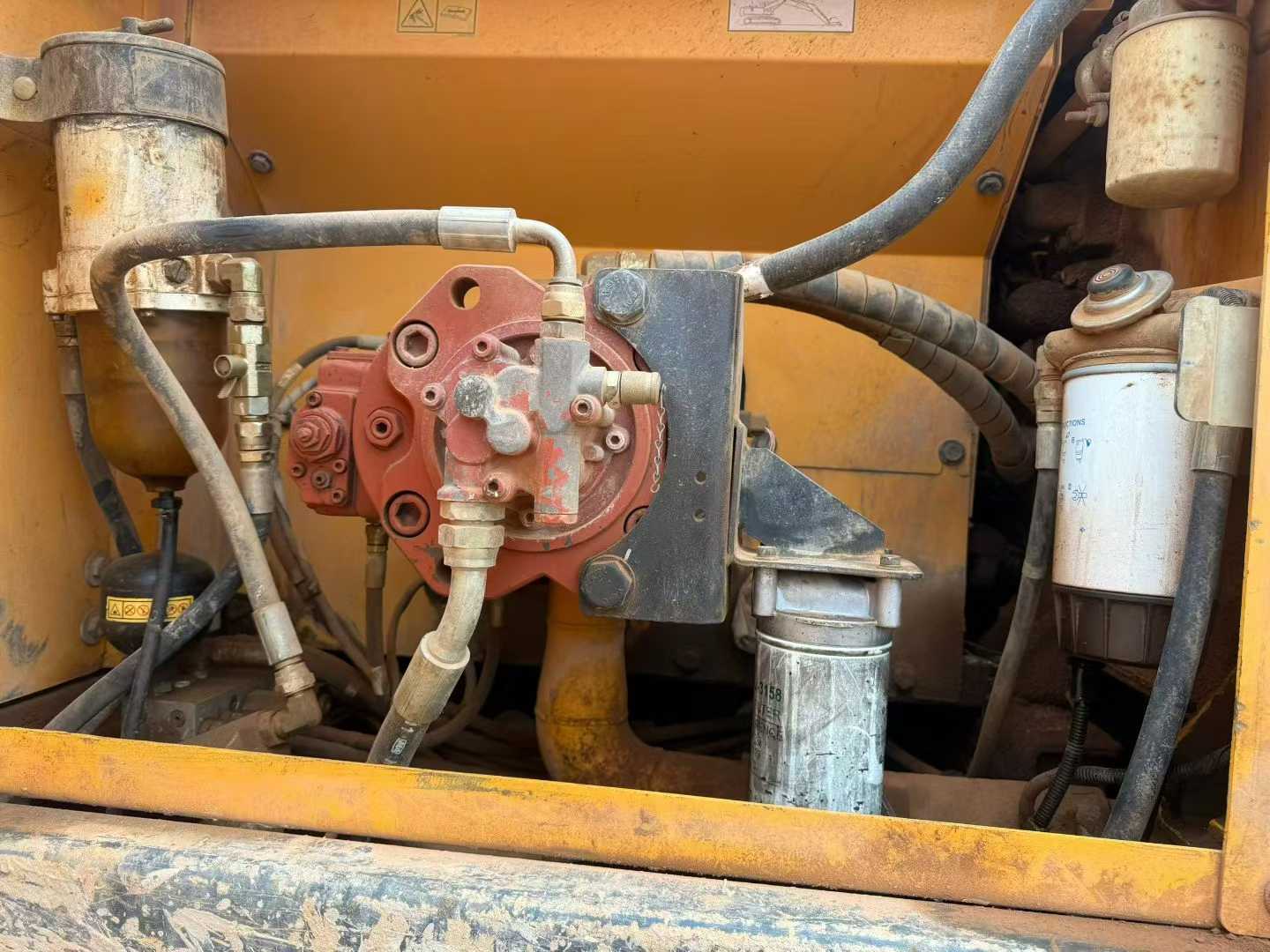

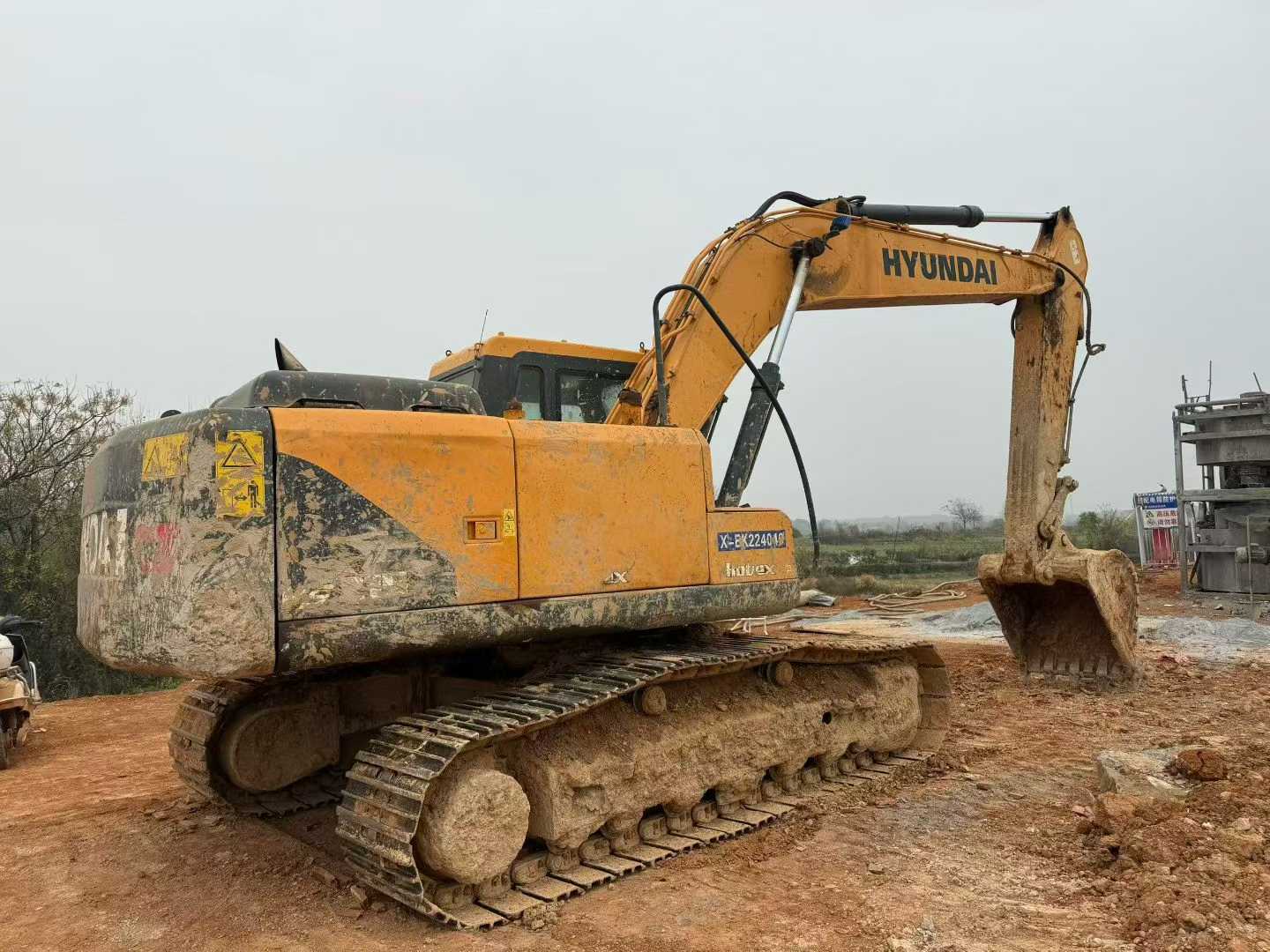

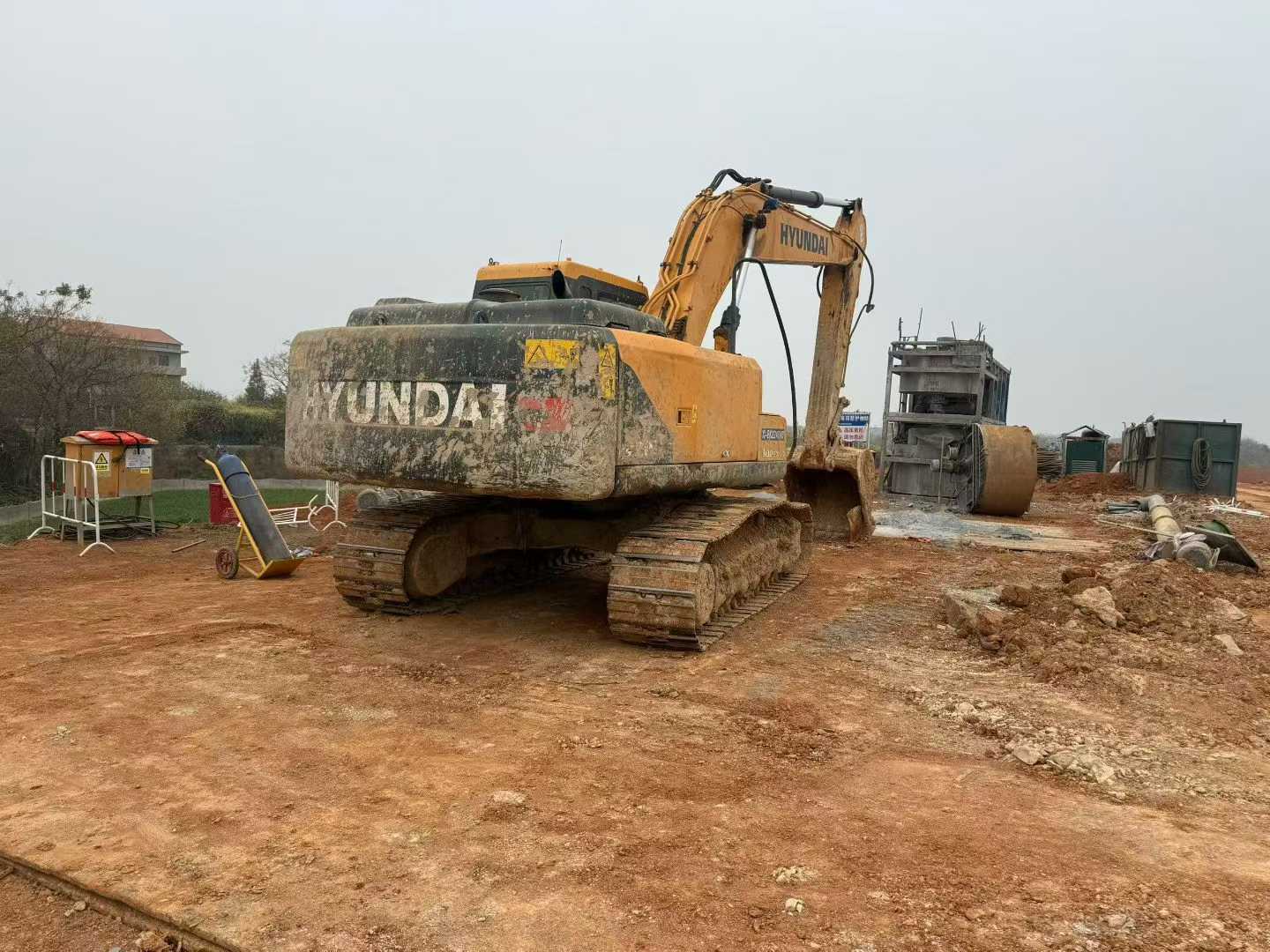

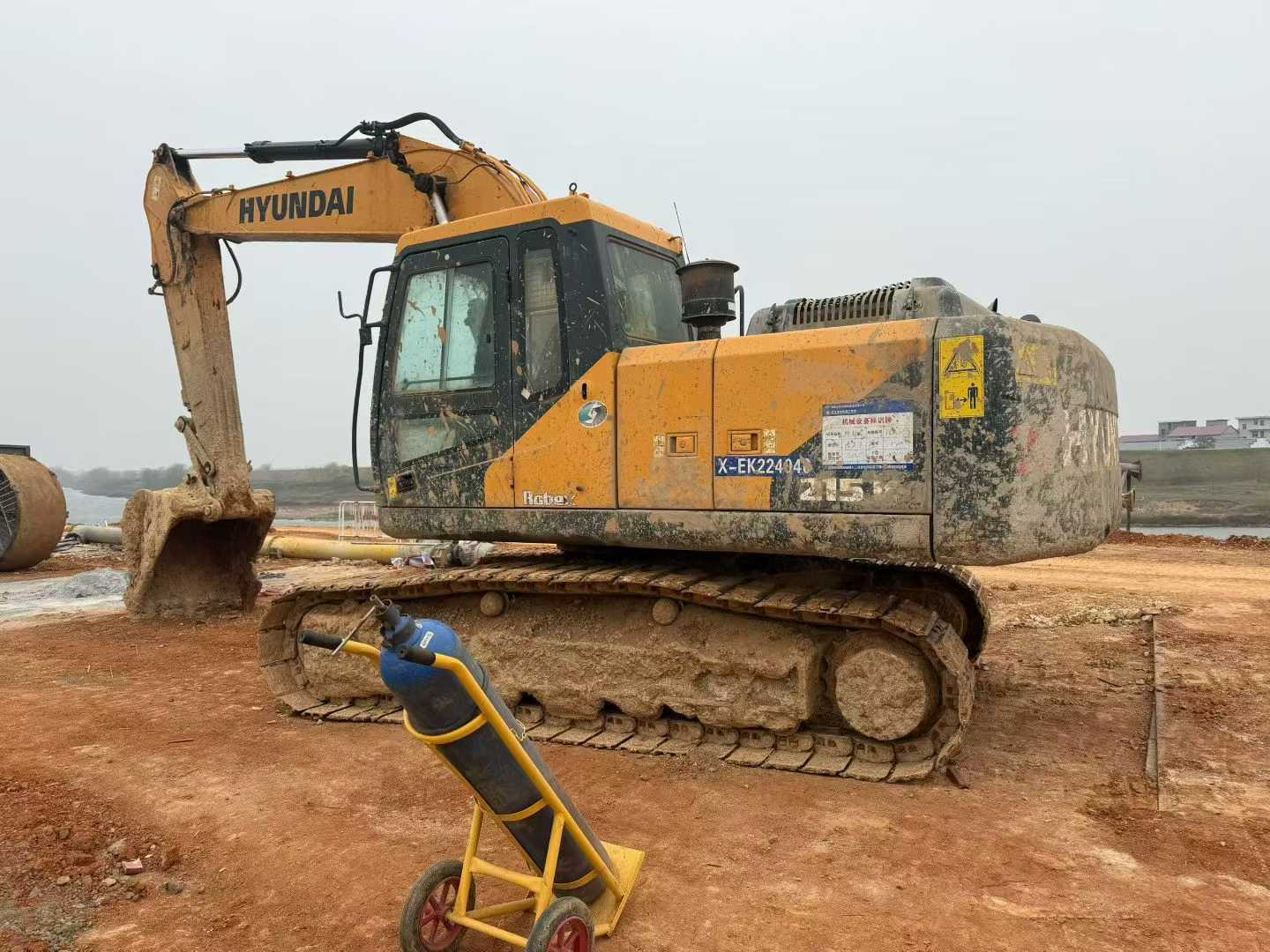

A second-hand Hyundai R215 VS excavator from the end of 2016 is for sale. This equipment has been used for only a few working hours, ensuring its good working condition and long service life. This excavator is equipped with a high-performance engine, model Cummins QSB6.7, which has a powerful output of 129 kilowatts (approximately 173 horsepower), capable of providing stable power output and meeting the operational requirements under various working conditions. In terms of the hydraulic system, this R215 VS is equipped with an advanced combination of hydraulic pumps and hydraulic motors, ensuring high energy conversion efficiency and excellent response speed, making the operation more precise and smooth. It may be equipped with a main pump flow regulation function, which can automatically adjust the oil distribution according to actual needs, thereby improving work efficiency and reducing energy consumption. As a product that is widely praised in the market, the Hyundai R215 V S has the following remarkable advantages: - Strong digging ability: Capable of easily completing digging tasks in hard soil. - Excellent stability: Through an optimally designed chassis structure, it can maintain stability even on uneven ground. - Comfortable
| Specifications | Value |
|---|---|
| No. | 978899 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 19900 |
| Bucket capacity (m³) | 0.83 |
| Boom length (mm) | 5650 |
| Rod length (mm) | 2700 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSB7 |
| Rated power (kw/rpm) | 125/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107*124 |
| Maximum torque (N.m) | 67/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.9/3.8 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2*222 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120*80*1120 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*140*95*1570 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125*85*1320 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 180 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 270 |
| Total transport length (mm) | 9500 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3470 |
| Back end turning radius (mm) | 2830 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9720 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 5920 |
| Maximum excavation radius of stop surface (mm) | 9550 |
