| Specifications | Value |
|---|---|
| No. | 964093 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22570 |
| Bucket capacity (m³) | 1.05 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2920 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

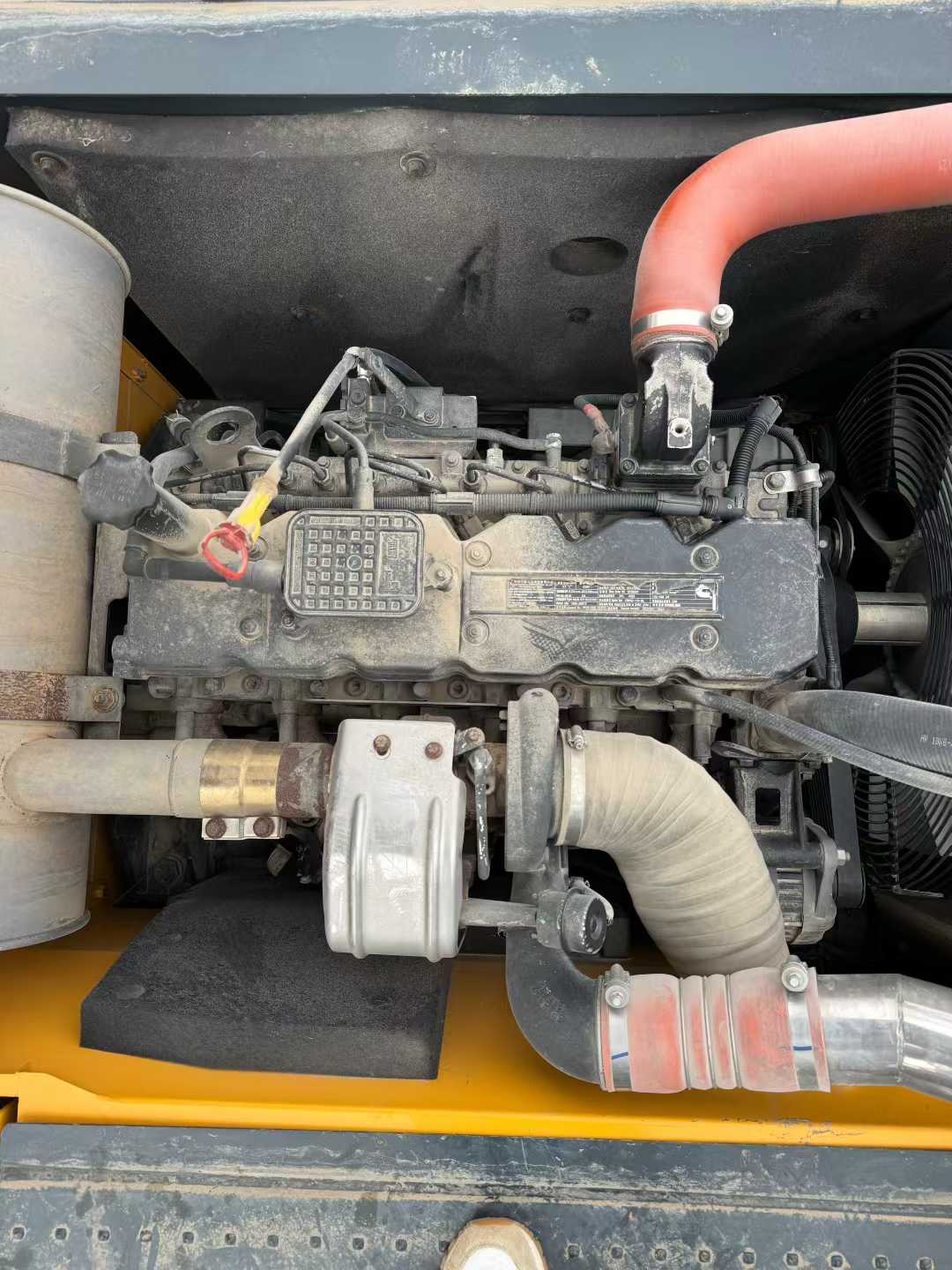

| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 113 / 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 63 / 1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | 6-cylinder, 4-stroke, water-cooled turbocharged engine |
| Climbing ability (%) | 35 ° (70%). |
| Travel speed (km/h) | 5.3/ 3.4 |

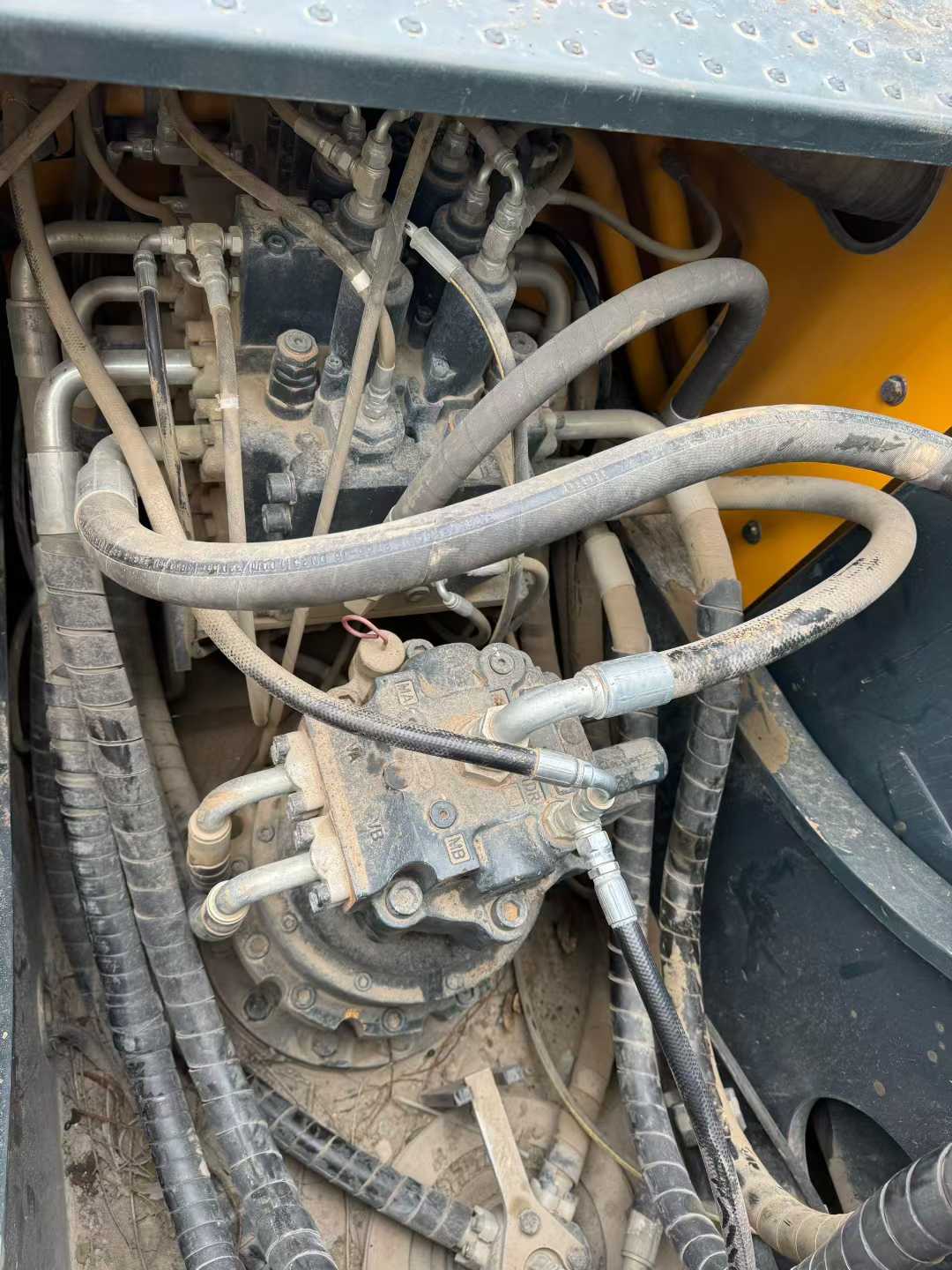

| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 222 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 4 |

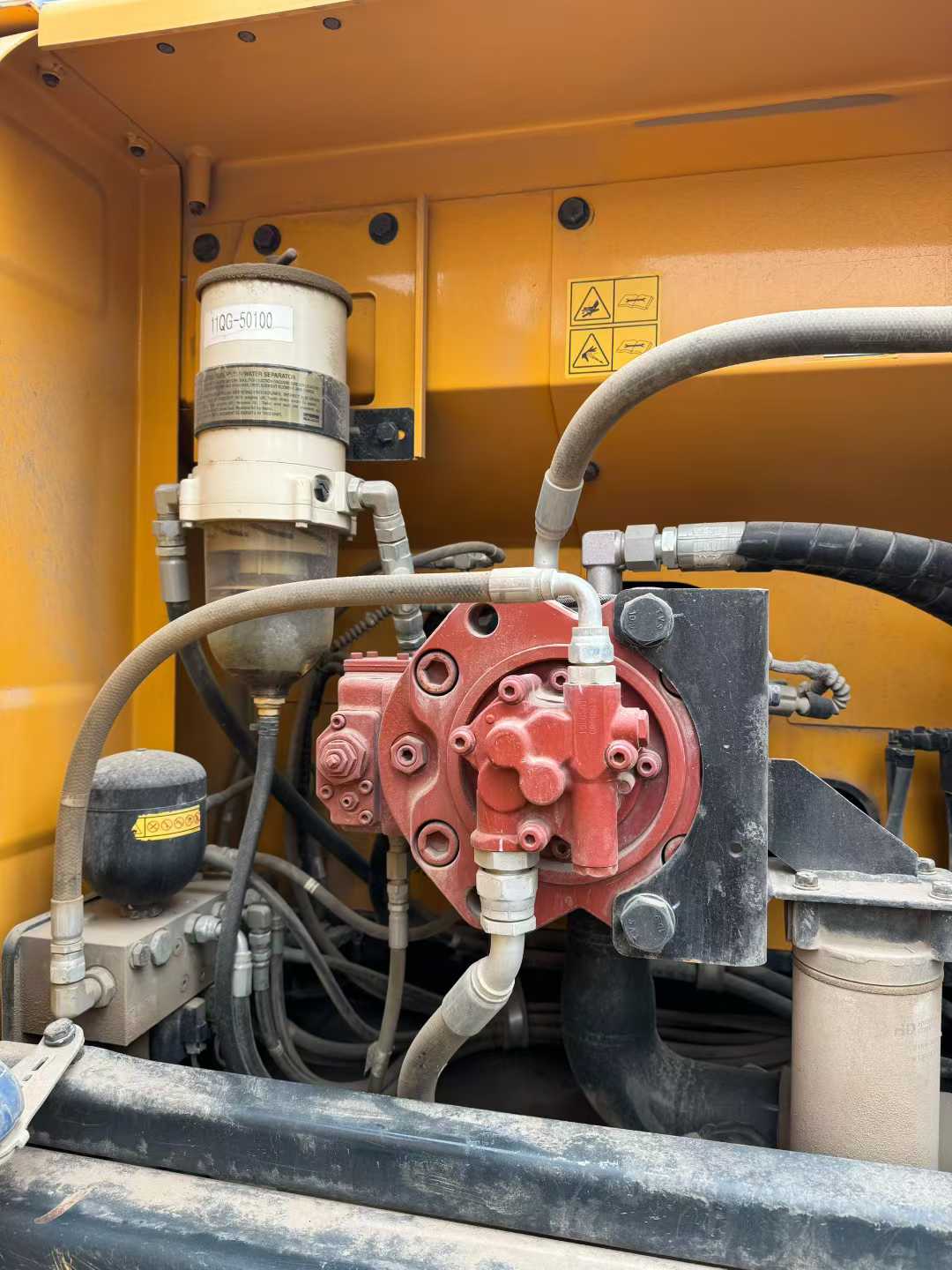

| Main pump type | Two variable plunger pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 85 x 1055 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 140 x ø 100 x 1510 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 120 x ø 85 x 1290 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 35 |
| Hydraulic System (L) | 275 |
| Theoretical fuel consumption (L/h) | 160 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 2920 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum turning radius of front working device (mm) | 3740 |
| Back end turning radius (mm) | 2840 |
| Onboard width (mm) | 2740 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9980 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6280 |
| Maximum excavation radius of stop surface (mm) | 2990 |
| Maximum effective digging depth (mm) | 6730 |
Description

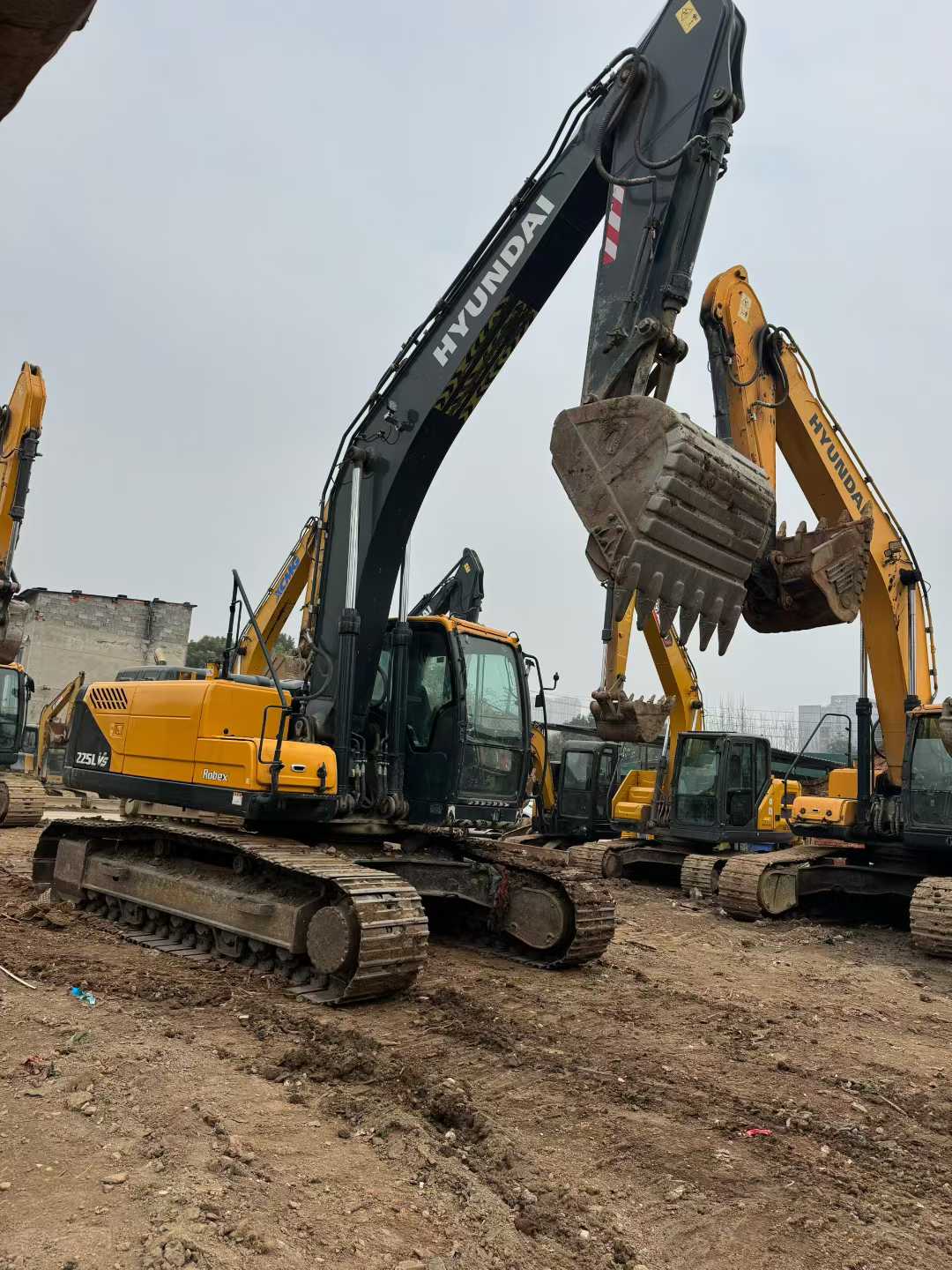

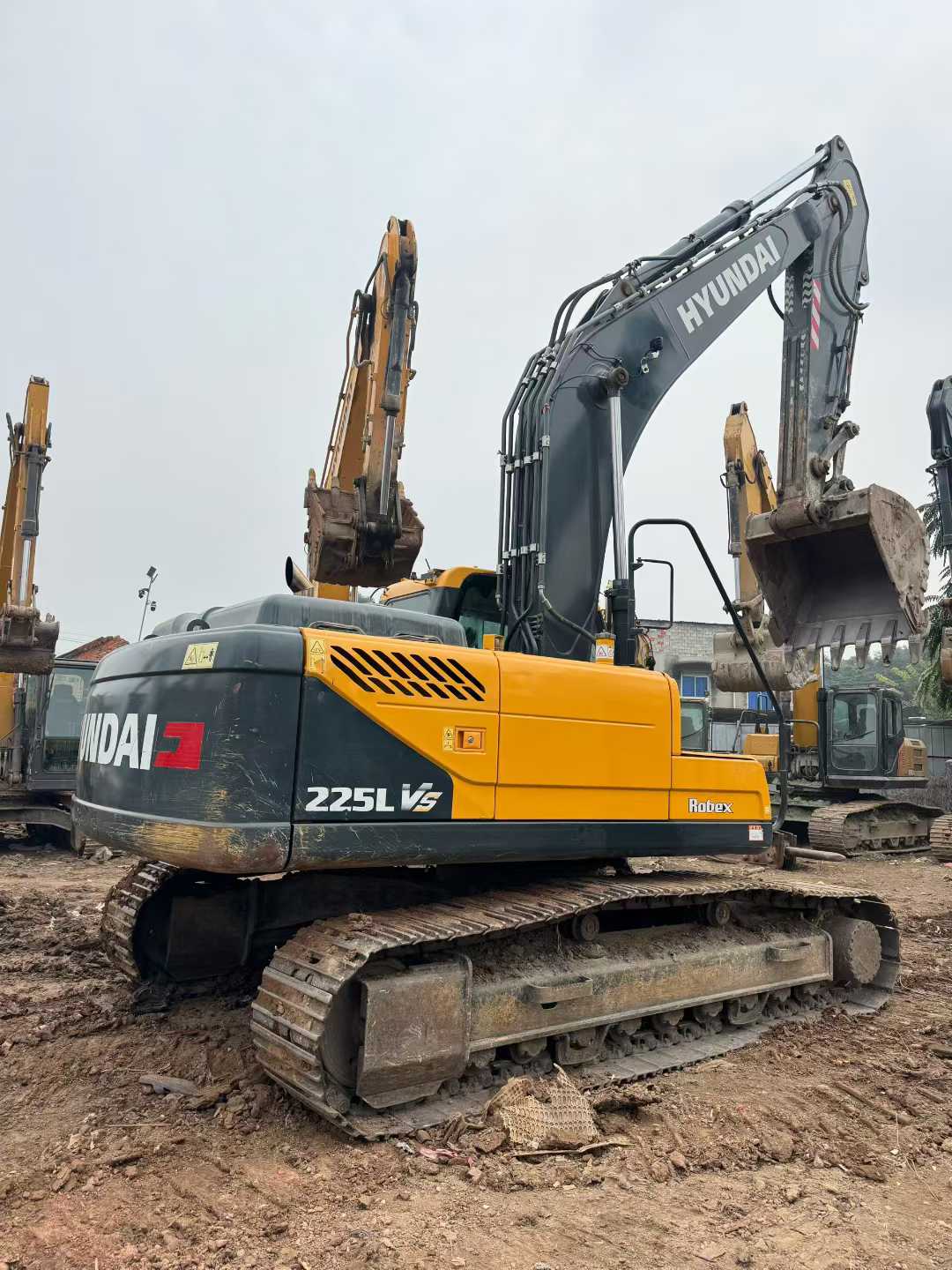

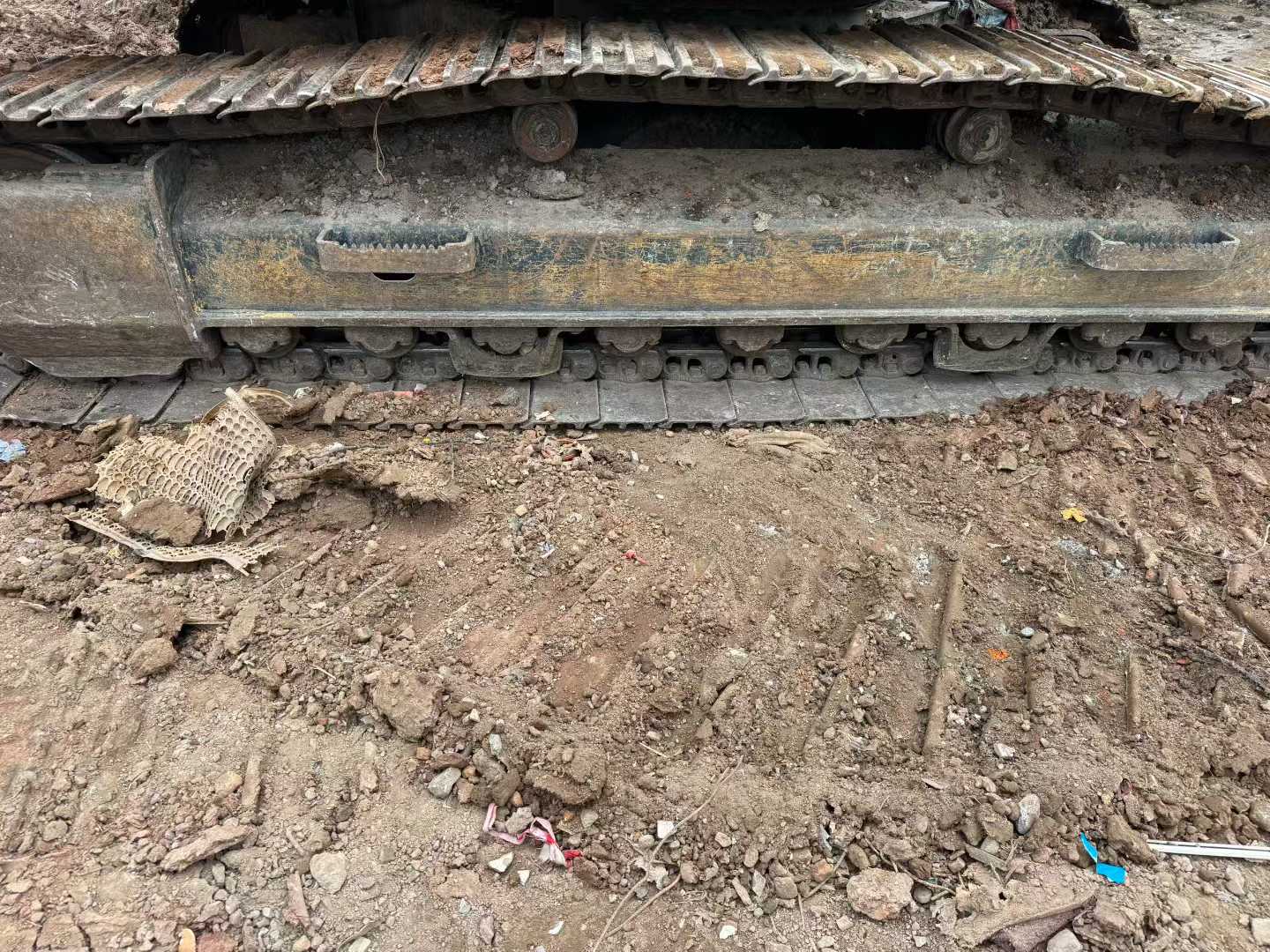

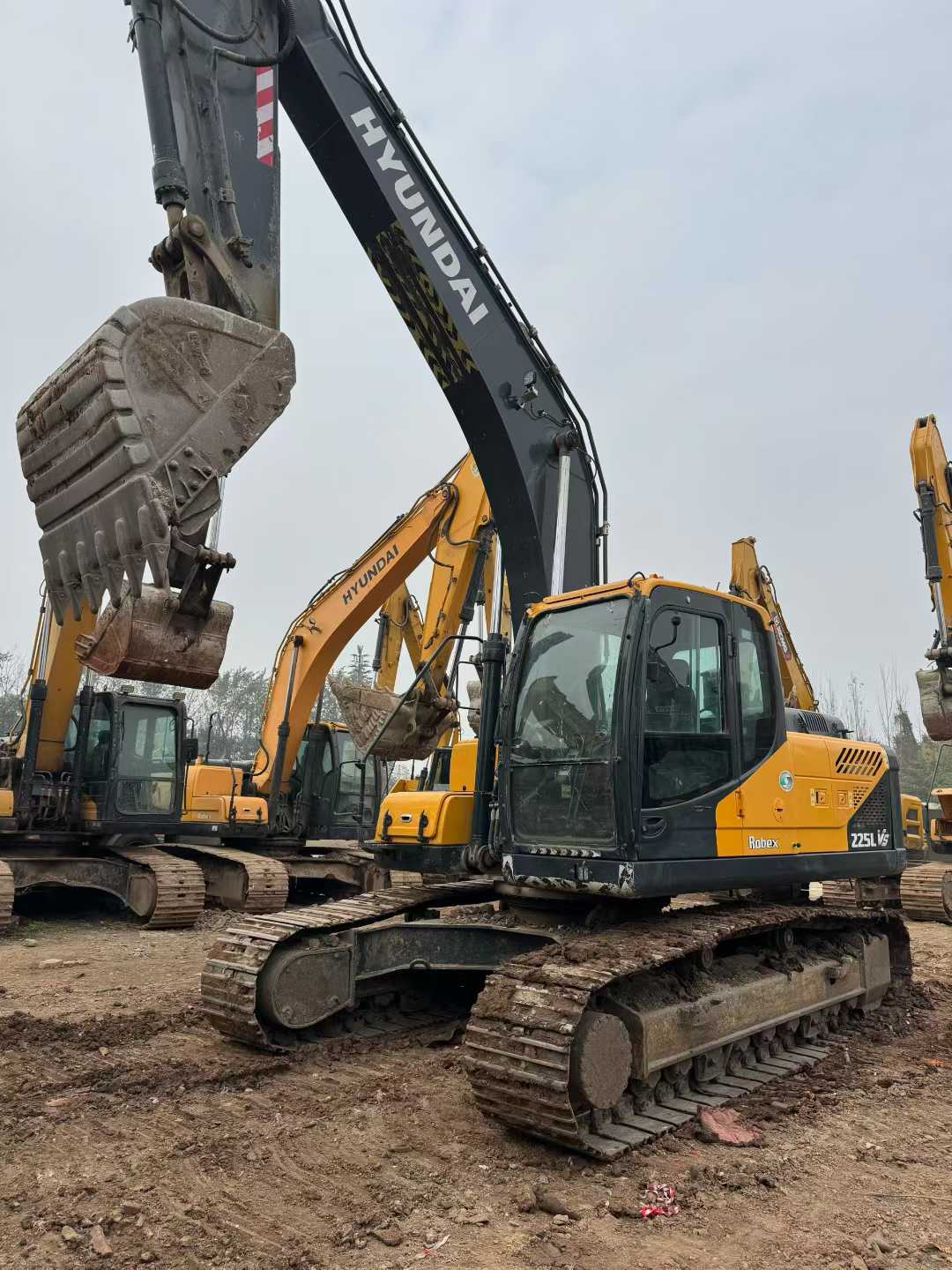

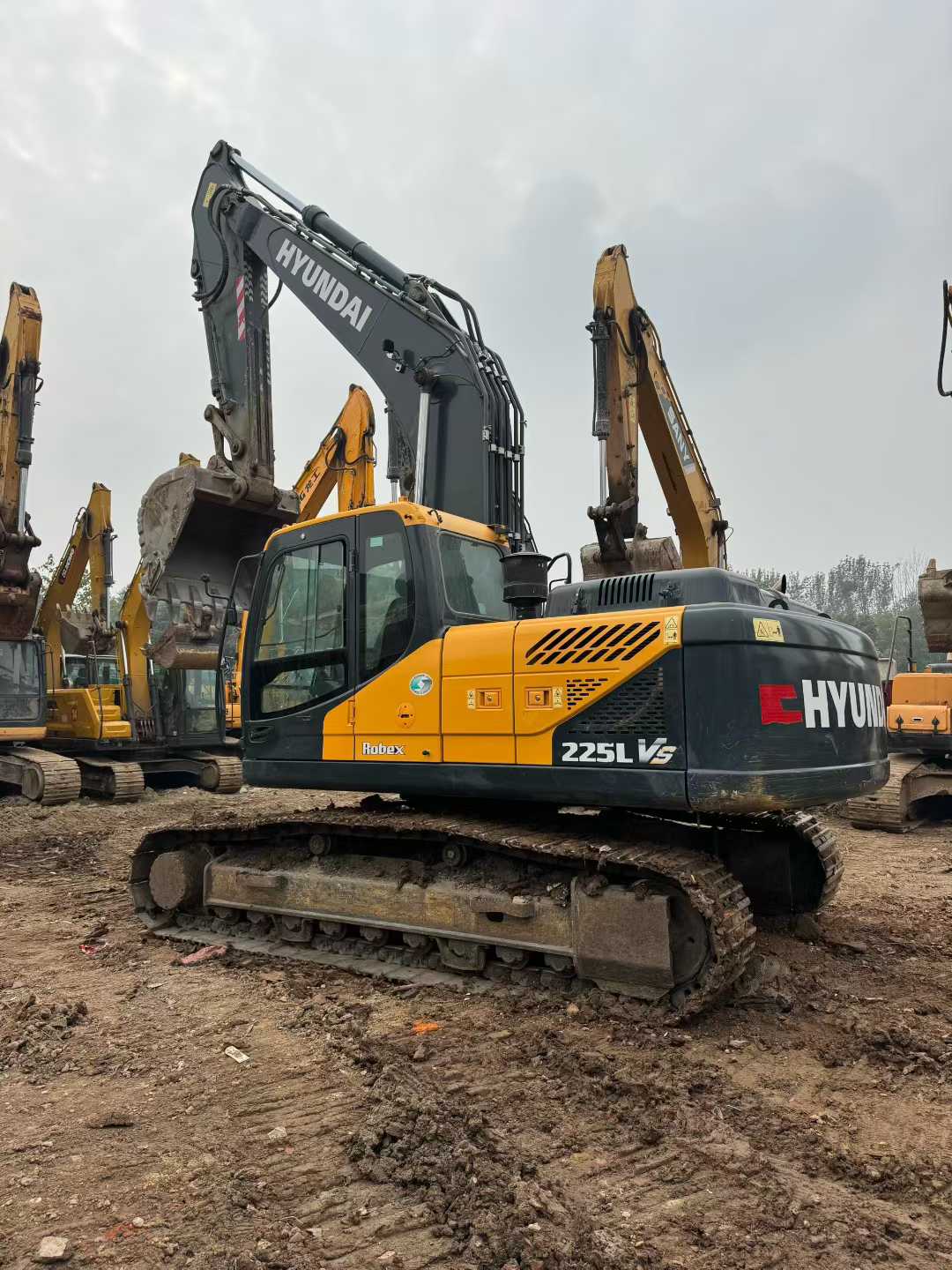

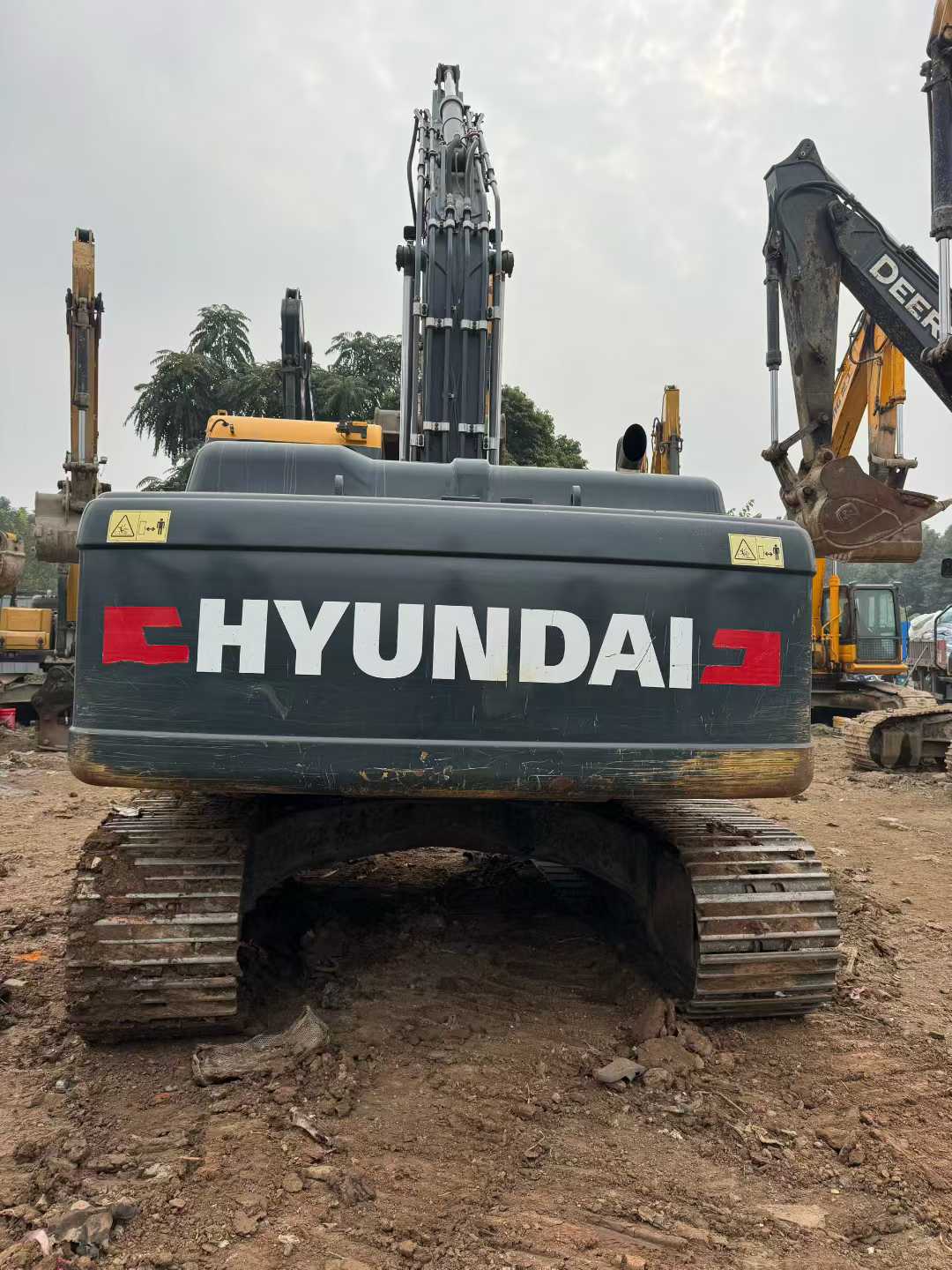

【 Premium Recommendation 】 The 2021 top-quality Hyundai R225VS excavator is a high-quality earthwork equipment that is extremely rare in the market. This machine has a working time of only 2,600 hours and is in the best usage condition, with stable and reliable performance. The entire vehicle is equipped with a modern original imported engine, which is powerful, fuel-efficient and capable of easily handling excavation tasks under various complex working conditions. The advanced hydraulic system ensures the smoothness and accuracy of operation, enabling it to handle both meticulous excavation and heavy-load operations with ease. It is particularly worth mentioning that this excavator adopts a "black arm" design - that is, the boom has been specially treated to present a deep black color. This not only looks elegant and generous, but more importantly, it increases the surface hardness of the material and extends its service life. The lower frame has remained in its original state from the factory, with the paint surface intact and almost no signs of wear and tear visible. This fully demonstrates its excellent maintenance condition and the previous owner's care for the machine. The entire vehicle is equipped with the original configurat
