| Specifications | Value |
|---|---|
| No. | 966204 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.38 |
| Boom length (mm) | 6250/5600 |
| Rod length (mm) | Heavy load 2500/ Lengthened 3570 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

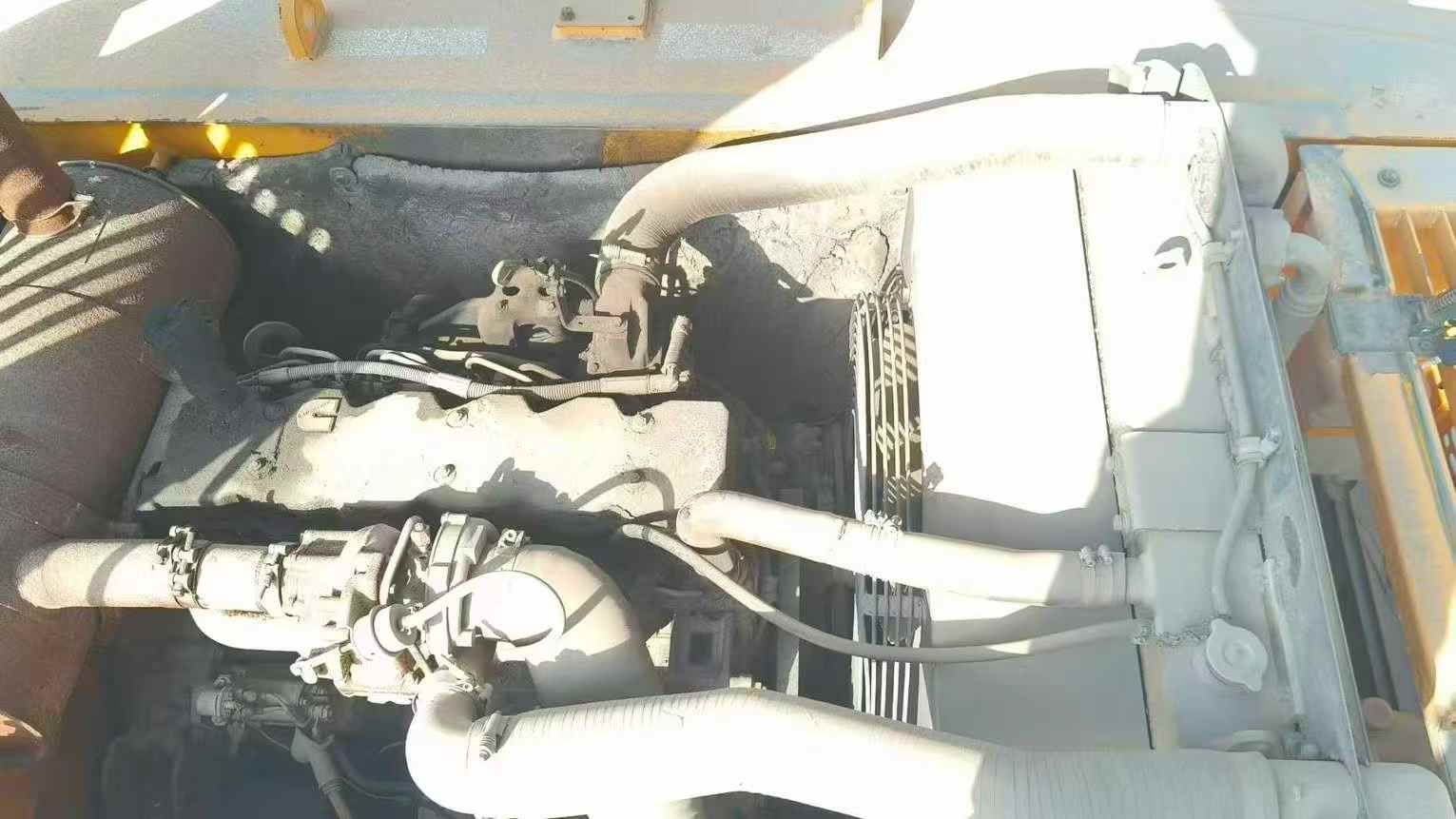

| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 198/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1218.4 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 57 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 192 |
| Rod digging force (kN) | 136 |
| Maximum tractive force (kN) | 27300 |
| Travel speed (km/h) | 5.2/3.1 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston motor |
| Type of walking hydraulic motor | Variable swash plate axial piston motor |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 135 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 140 x 1465 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3300 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4230 |
| Back end turning radius (mm) | 3345 |
| Onboard width (mm) | 2980 |

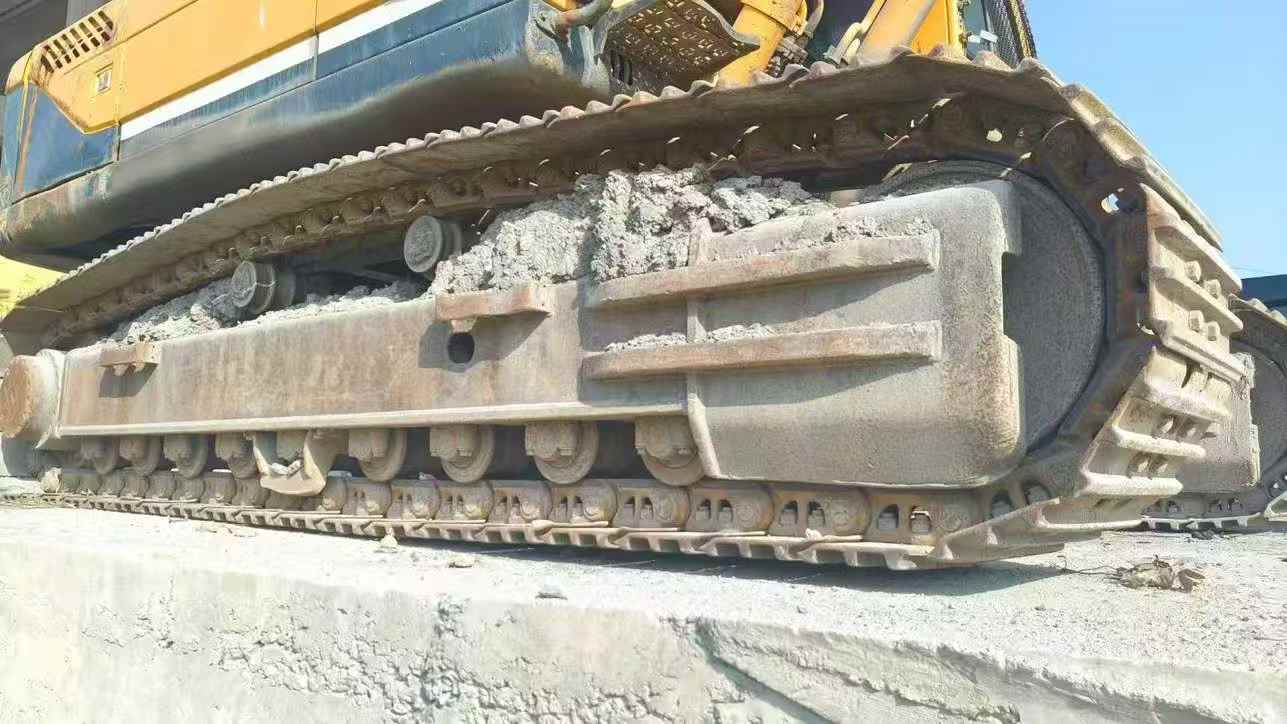

| Total track length (mm) | 4940 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 10820 |
| Maximum digging depth (mm) | 7500 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6410 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10620 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7300 |
Description

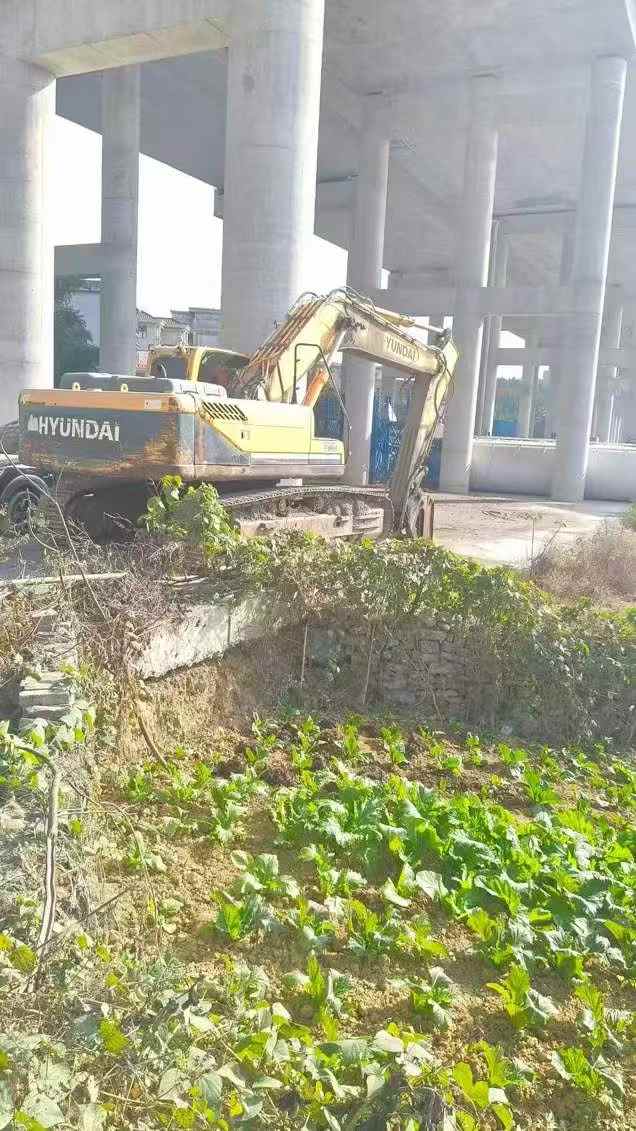

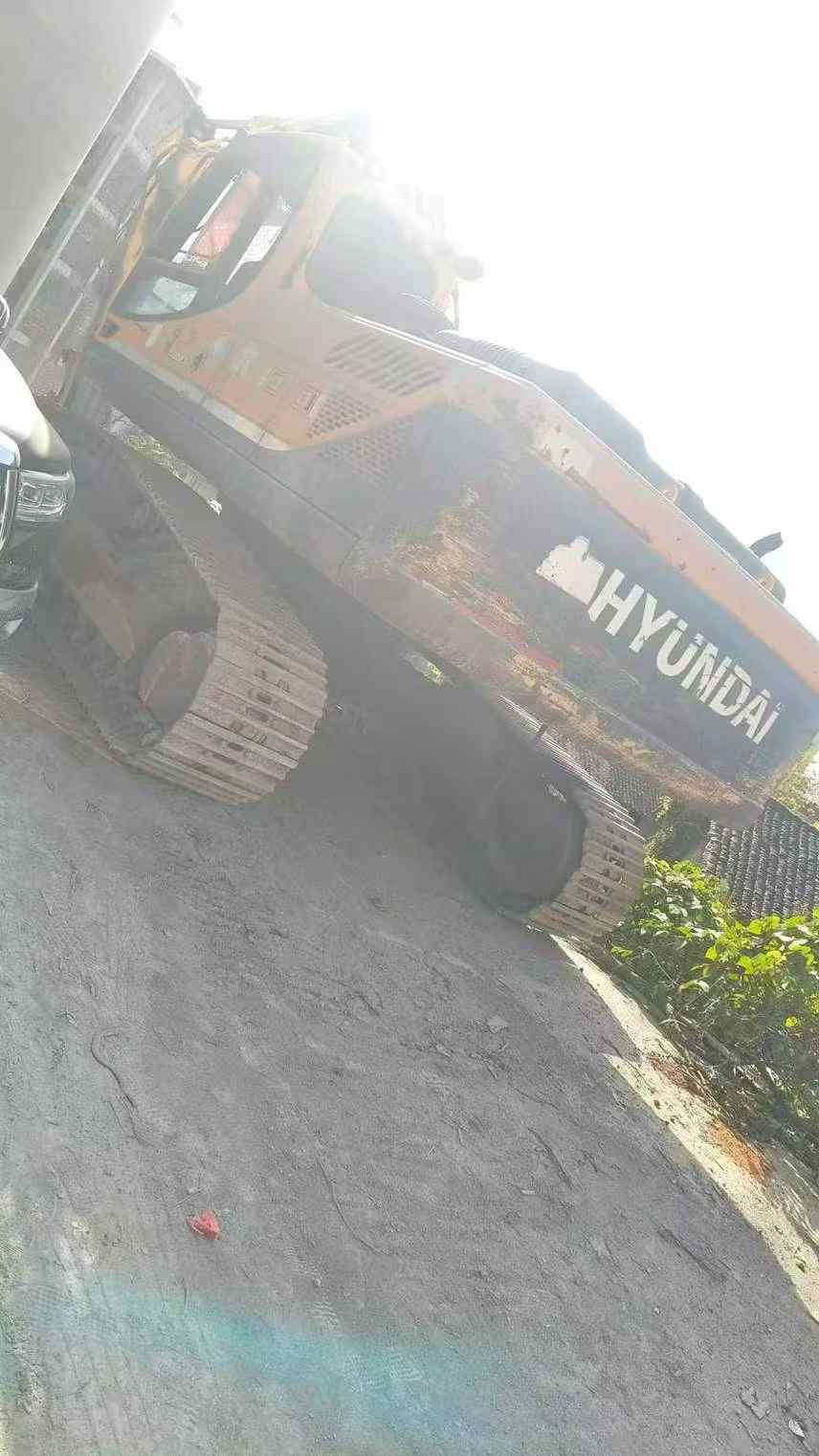

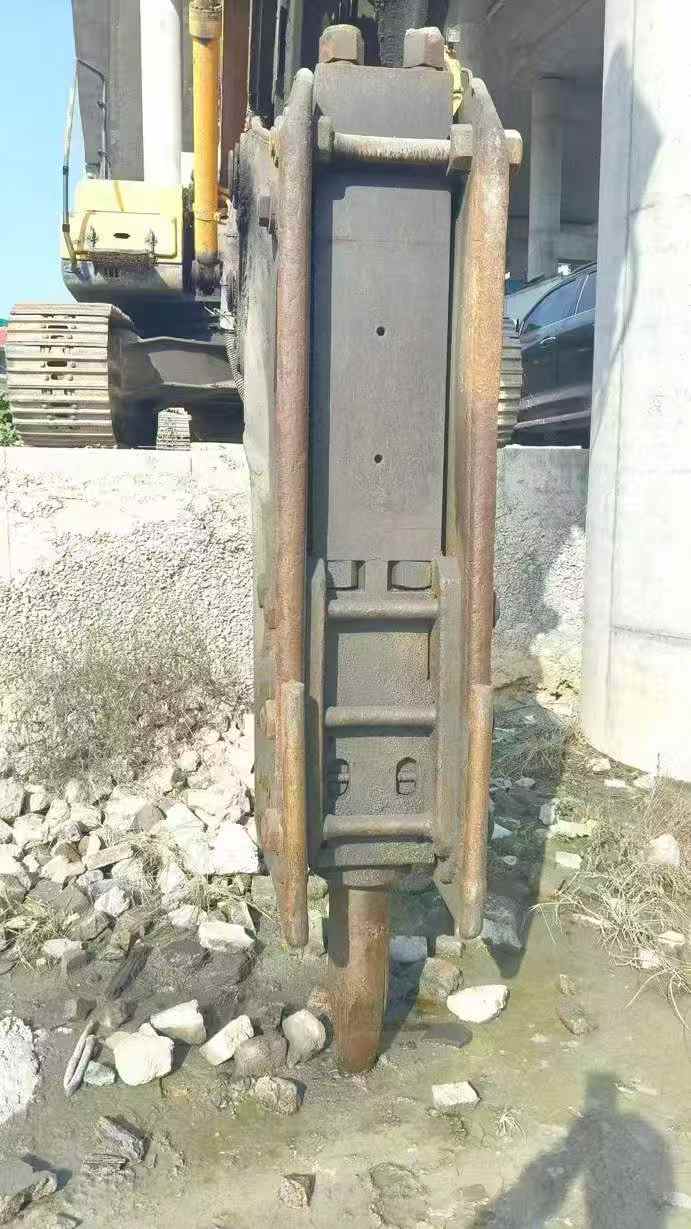

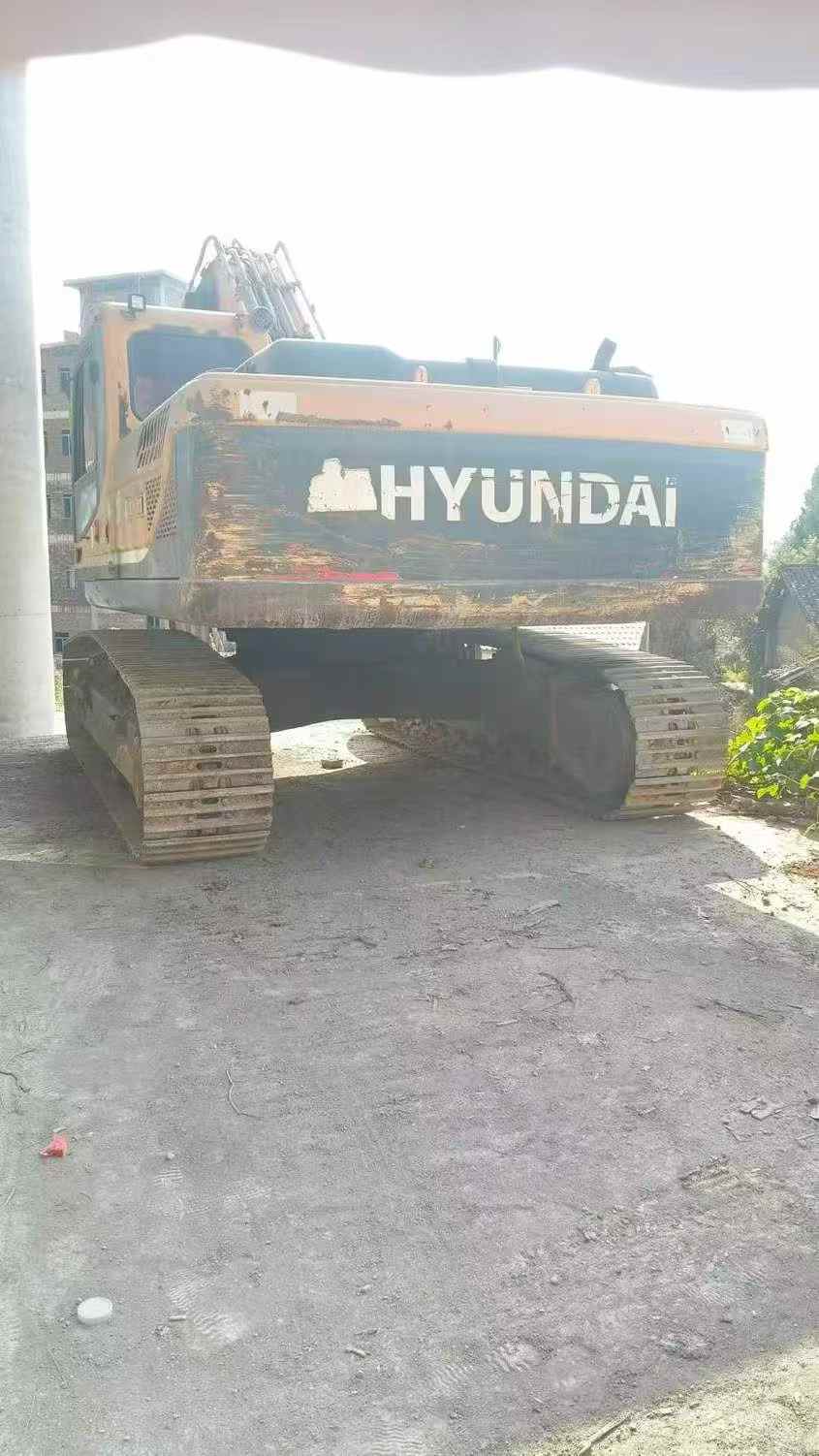

【 Premium Recommendation 】 Second-hand Hyundai 305-9 excavator with breaker but no bucket, priced at 128,000 yuan, first-hand supply, in stock! This Hyundai 305-9 excavator is a 2017 model, with a working time of only 1,600 hours. It is well maintained and in excellent condition. It is equipped with a well-tested Cummins 4-cylinder turbocharged engine, which is powerful, fuel-efficient and can maintain high efficiency even under harsh working conditions. Meanwhile, this model is equipped with an advanced hydraulic system, ensuring the flexibility and smoothness of operation. It can handle both excavation and crushing operations with ease. The most outstanding feature of this machine lies in its standard high-quality breaker, which is suitable for the demolition of various hard rocks and concrete structures, greatly improving the construction efficiency. In addition, since it is not equipped with a bucket, you can freely choose suitable accessories according to your actual needs for installation, which is more flexible and diverse. The overall appearance of the machine is neat and tidy, and the internal structure is intact. All key components have undergone professional testing and maintenance to ensure stable and reliable performanc
