| Specifications | Value |
|---|---|
| No. | 962474 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
Description

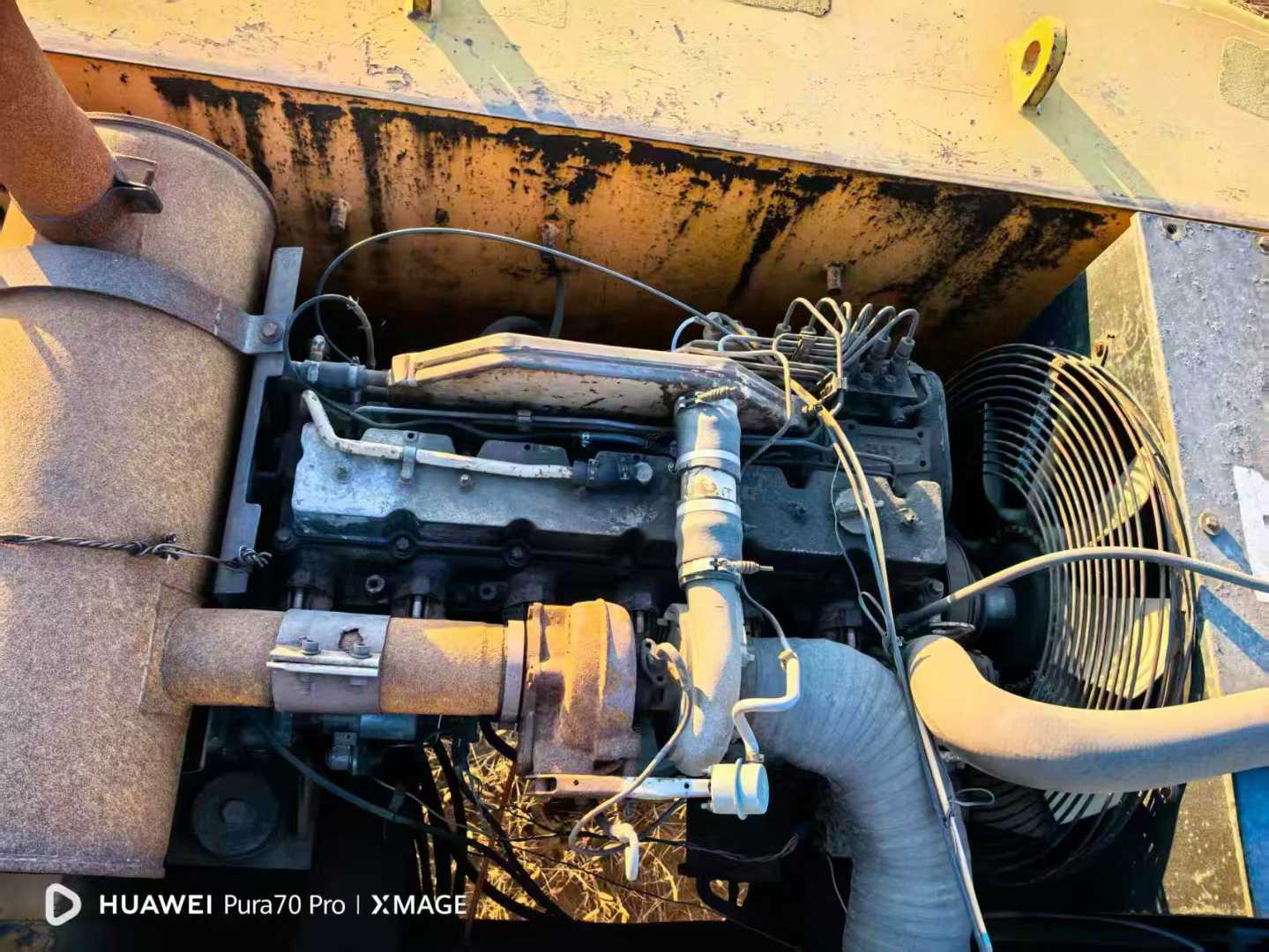

Detailed description of the Modern 305 second-hand excavator This second-hand Hyundai 305 excavator is a highly praised medium-sized excavator in the market. It has won the favor of many users with its outstanding performance, reliability and economy. Since its manufacture, this equipment has accumulated a working time of 2,800 hours and is in the best working condition. It is very suitable for enterprises and individual users who need efficient operation but also hope to control costs. In terms of power, it is equipped with a high-performance diesel engine, which not only provides strong power output but also has excellent fuel economy. Even under long-term high-intensity operation, it can maintain stable operation. More importantly, this engine has been meticulously tuned for low noise and minimal vibration, providing the operator with a more comfortable working environment. In terms of the hydraulic system, advanced load sensing technology is adopted, which can automatically adjust the flow and pressure according to actual needs. This not only ensures smooth and fluid operation but also significantly improves work efficiency. In addition, its unique cooling design effectively prevents the problem of excessively high oil temperatu
