Product Description

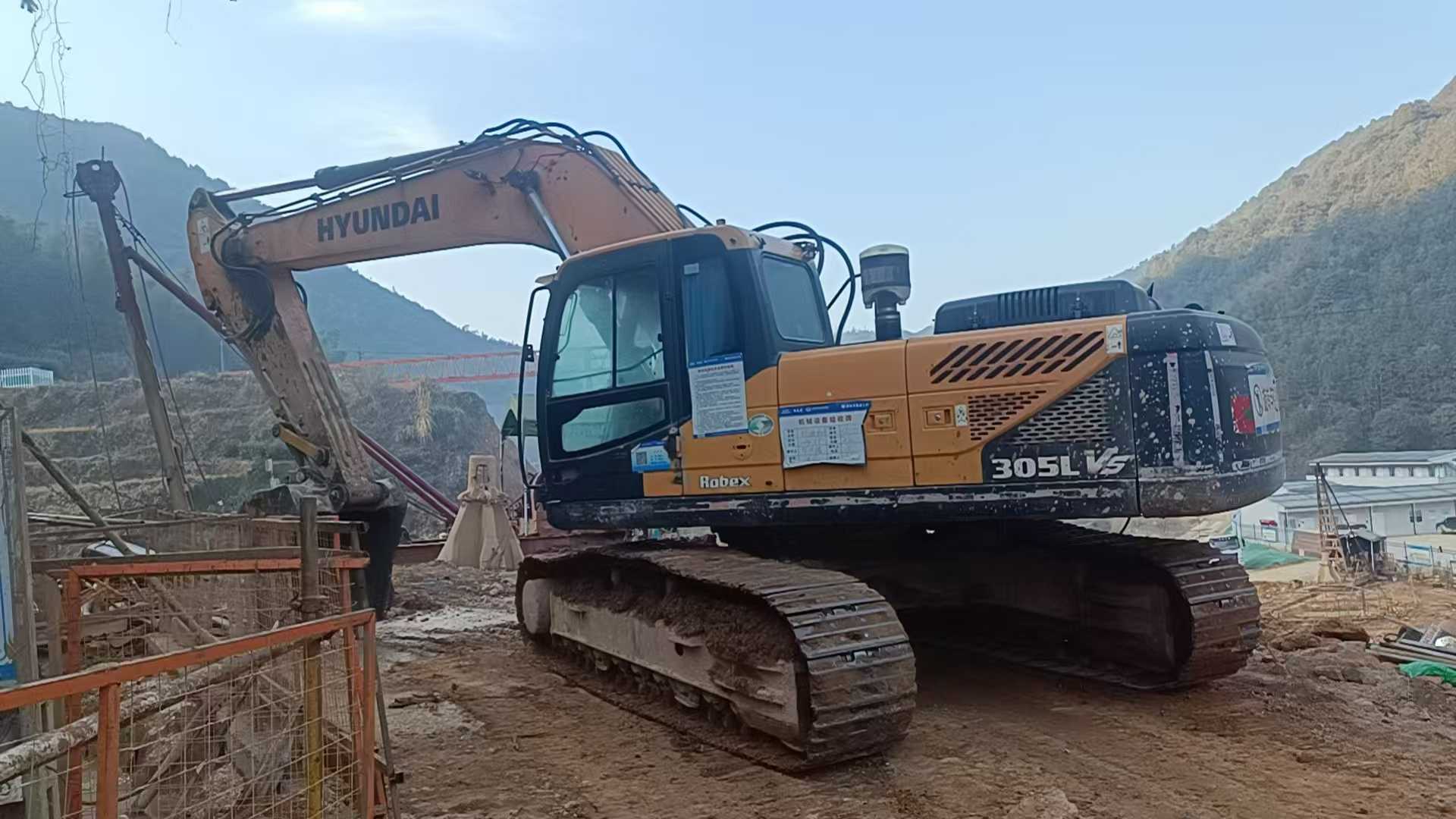

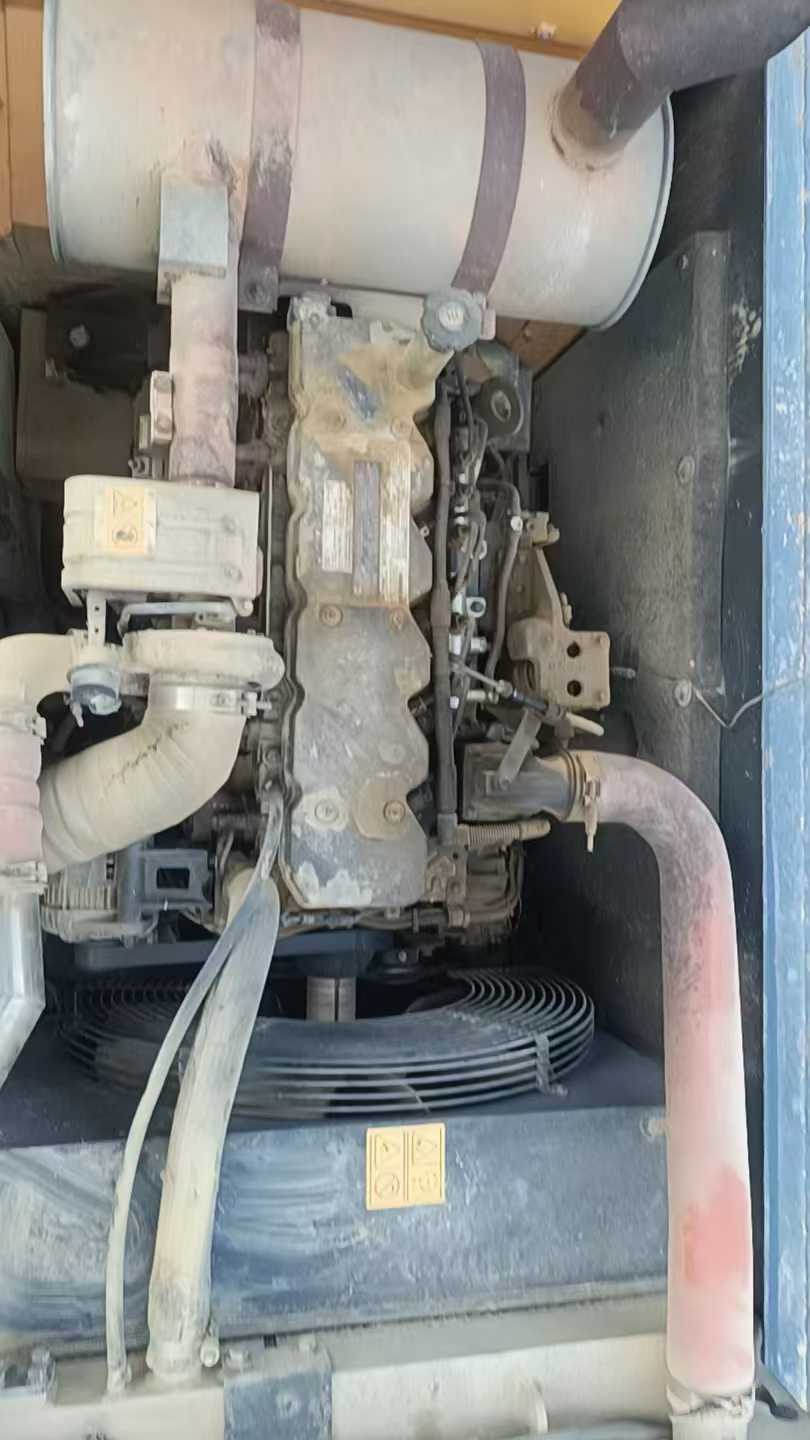

【 Hyundai R305VS Second-hand Excavator This Hyundai R305VS excavator rolled off the production line in November 2019 and has only been in operation for 2,600 hours so far, in excellent condition. This machine is equipped with a Cummins QSB6.7 engine, which is renowned for its powerful output and excellent fuel economy. With a maximum power output of 145kW at 2000rpm, it ensures stable and reliable power support under all working conditions. Its efficient hydraulic system, which adopts advanced negative flow control technology and is designed with a large-capacity oil tank, not only enhances work efficiency but also significantly reduces energy consumption and extends the service life of the equipment. It is particularly worth mentioning that the vehicle is equipped with a high-quality breaker hammer, which is undoubtedly a huge plus for users who need to perform high-intensity operations such as rock crushing and concrete demolition. Whether it is mining or urban renovation projects, they can all be handled with ease. In addition, we promise that this equipment can be inspected and tested on-site at any time, allowing you to purchase with confidence and use with ease! In conclusion, this is a second-hand excavator with extremely hig
| Specifications | Value |
|---|---|
| No. | 971975 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
