2020 Hyundai R305LVS

1/4
Used Hyundai R305LVS Excavator 2020 Model / 1
Used Hyundai R305LVS Excavator 2020 Model / 2
Used Hyundai R305LVS Excavator 2020 Model / 3
Used Hyundai R305LVS Excavator 2020 Model / 4

Product Description

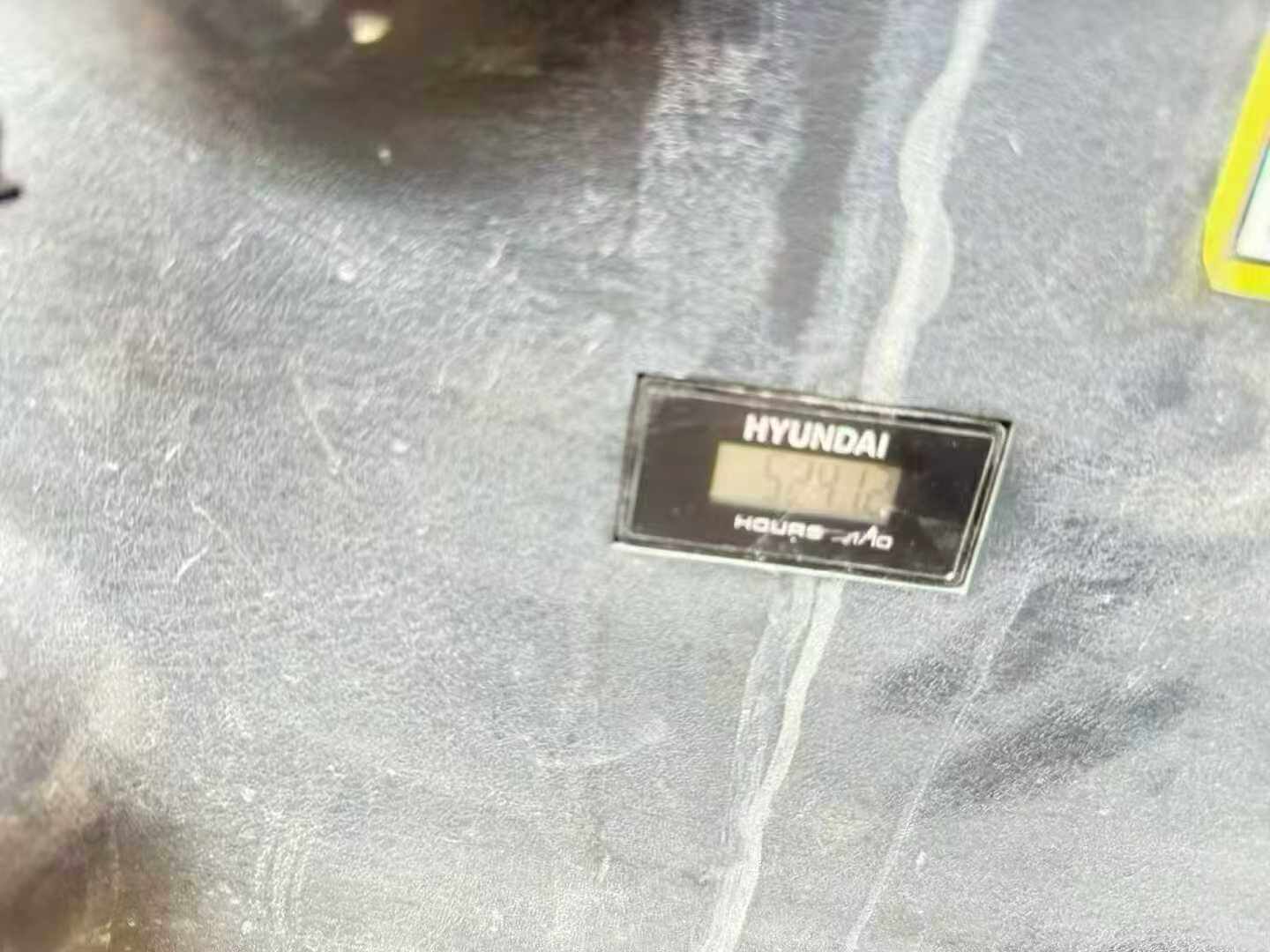

This modern R305 excavator produced in 2000 is a rare masterpiece on the market. The actual working time is only over 5,000 hours, which is far lower than the average usage time of similar equipment, ensuring its good mechanical condition and long service life. This machine is equipped with a highly efficient and reliable diesel engine, with the expected model being Cummins 6BTAA, and a rated power of approximately 140 horsepower. It is powerful and fuel-efficient, capable of maintaining stable operational performance under various complex working conditions. In terms of the hydraulic system, this excavator is equipped with a high-quality combination of variable piston pumps and hydraulic motors, which can provide precise and rapid action responses. It can handle operations such as excavation, loading, and crushing with ease. In addition, advanced load sensing technology makes the operation of the entire machine more effortless and greatly improves work efficiency. As a well-established model that has been meticulously maintained and serviced, the R305 not only offers excellent value for money at a price of just over 200,000 RMB, but also excels in durability and reliability, making it an ideal choice for small and medium-sized engin

SpecificationsValue
No.975894
Tonnage (tons)30
Working weight (kg)30200
Bucket capacity (m³)1.44
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

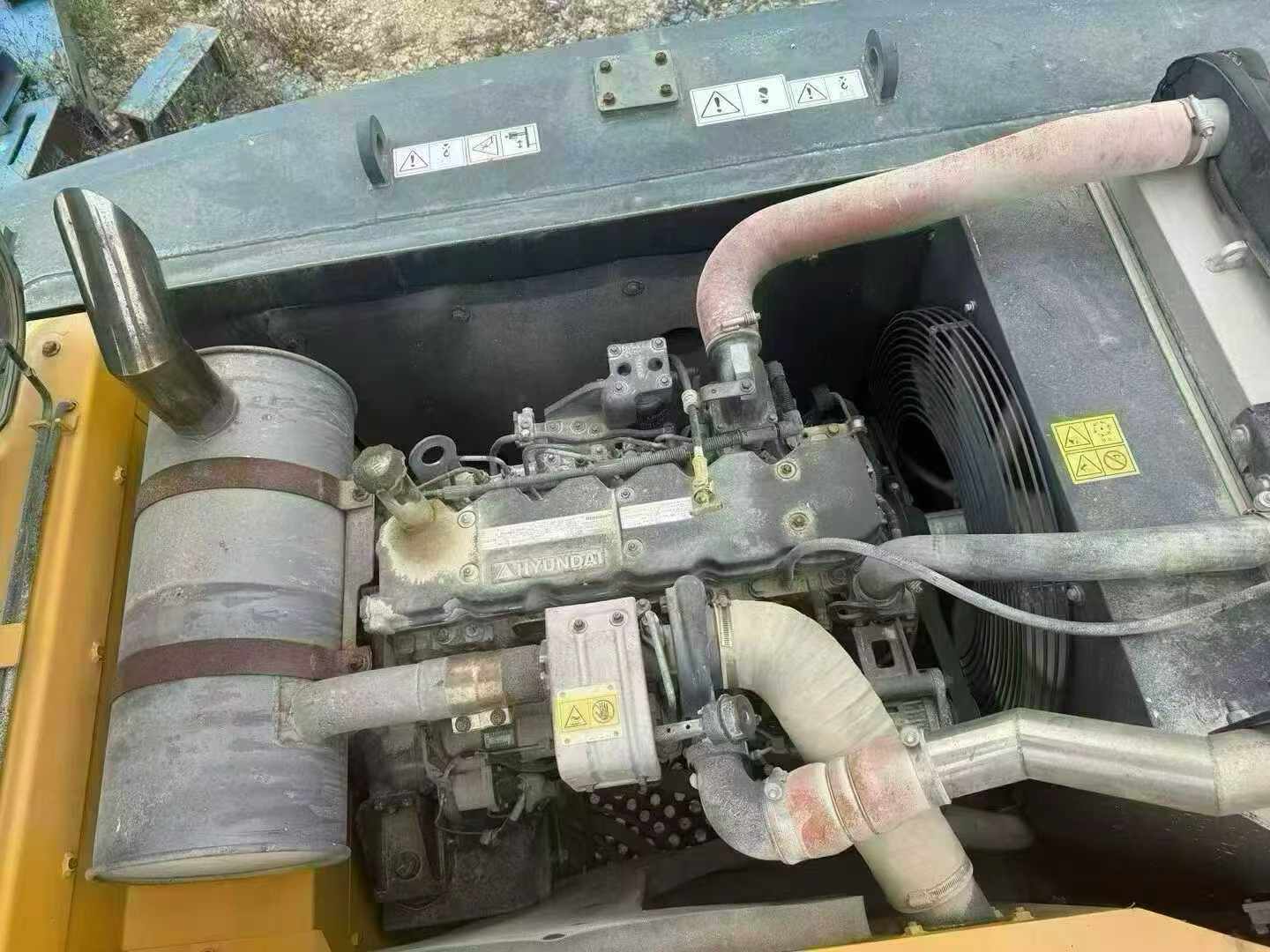

Engine typeHYUNDAI HE6.7
Rated power (kw/rpm)169/ 1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Number of cylinders (PCS)6
Displacement (L)6.7
Rotation speed (rpm)10.2
Climbing ability (%)70
Travel speed (km/h)5.6/3.2
Maximum flow of main pump (l/min)2 x 252

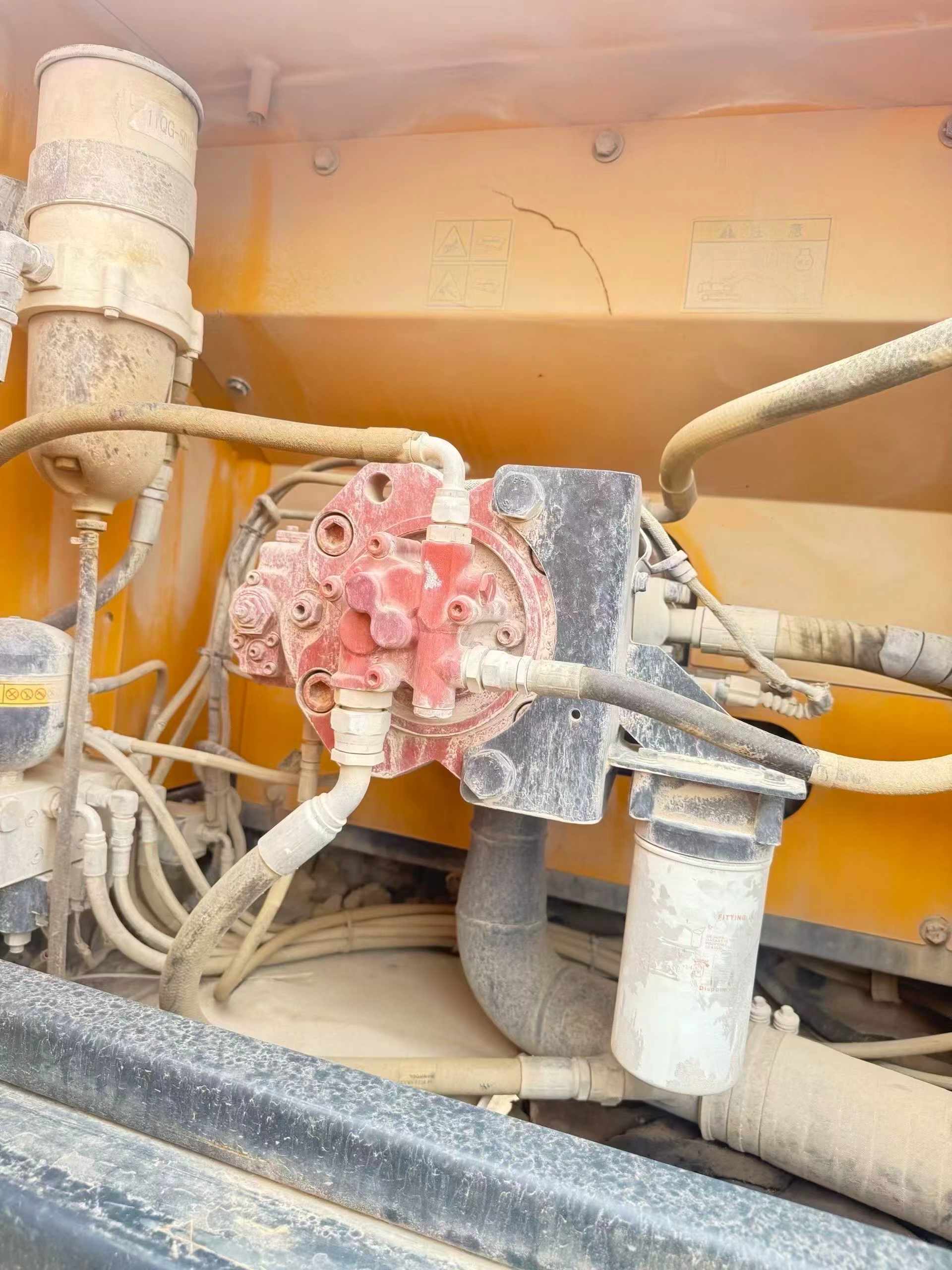

Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1185
Bucket rod cylinders - Number × diameter × stroke (mm)1-150 x 110 x 1765
Boom cylinders - Number × diameter × stroke (mm)2-140 x 100 x 1465
Fuel Tank (L)560
Hydraulic Tank (L)190
Engine Oil changes (L)24
Coolant (L)50
Hydraulic System (L)330
Total transport length (mm)10453
Total transport width (mm)3200
Total transport height (mm)3350
Full cab height (mm)3010
Counterweight ground clearance (mm)1190
Minimum turning radius of front working device (mm)4300
Back end turning radius (mm)3196
Onboard width (mm)2980
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)48
Maximum digging radius (mm)10590
Maximum digging depth (mm)7180
Maximum excavation height (mm)10030
Maximum unloading height (mm)7000
Maximum vertical digging depth (mm)6120
Maximum excavation radius of stop surface (mm)10400
see more

Overview

No.975894

Brand Name:

Hyundai

Model Number:

R305LVS

Year:

2020

Location:

Fujian China
