| Specifications | Value |
|---|---|
| No. | 968256 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32200 |
| Bucket capacity (m³) | 1.44 |
| Boom length (mm) | Heavy duty 6450 |
| Rod length (mm) | Overloading 2500/ Lengthening 4050 |
| Country of origin | Jiangsu (Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins C8.3-C |
| Rated power (kw/rpm) | 196/1900 |
| Cooling mode | water-cooling |
| Maximum torque (N.m/rpm) | 1218.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.3 |
| Working form | Six-cylinder, four-stroke, turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 63 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 212 |
| Rod digging force (kN) | 147 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 38 |
| Rotary hydraulic motor type | Quantitative swash plate axial piston pump |
| Type of walking hydraulic motor | Variable swash plate axial piston pump |
| Maximum flow of main pump (l/min) | 2 x 270 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 30 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | 2× variable axial piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 160 x 1685 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1480 |
| Fuel Tank (L) | 500 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 55 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10980 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1200 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4470 |
| Back end turning radius (mm) | 3330 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4940 |
| Track gauge (mm) | 2680 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 4030 |
| Maximum digging radius (mm) | 11140 |
| Maximum digging depth (mm) | 7370 |
| Maximum excavation height (mm) | 10310 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 6360 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10940 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7210 |
Description

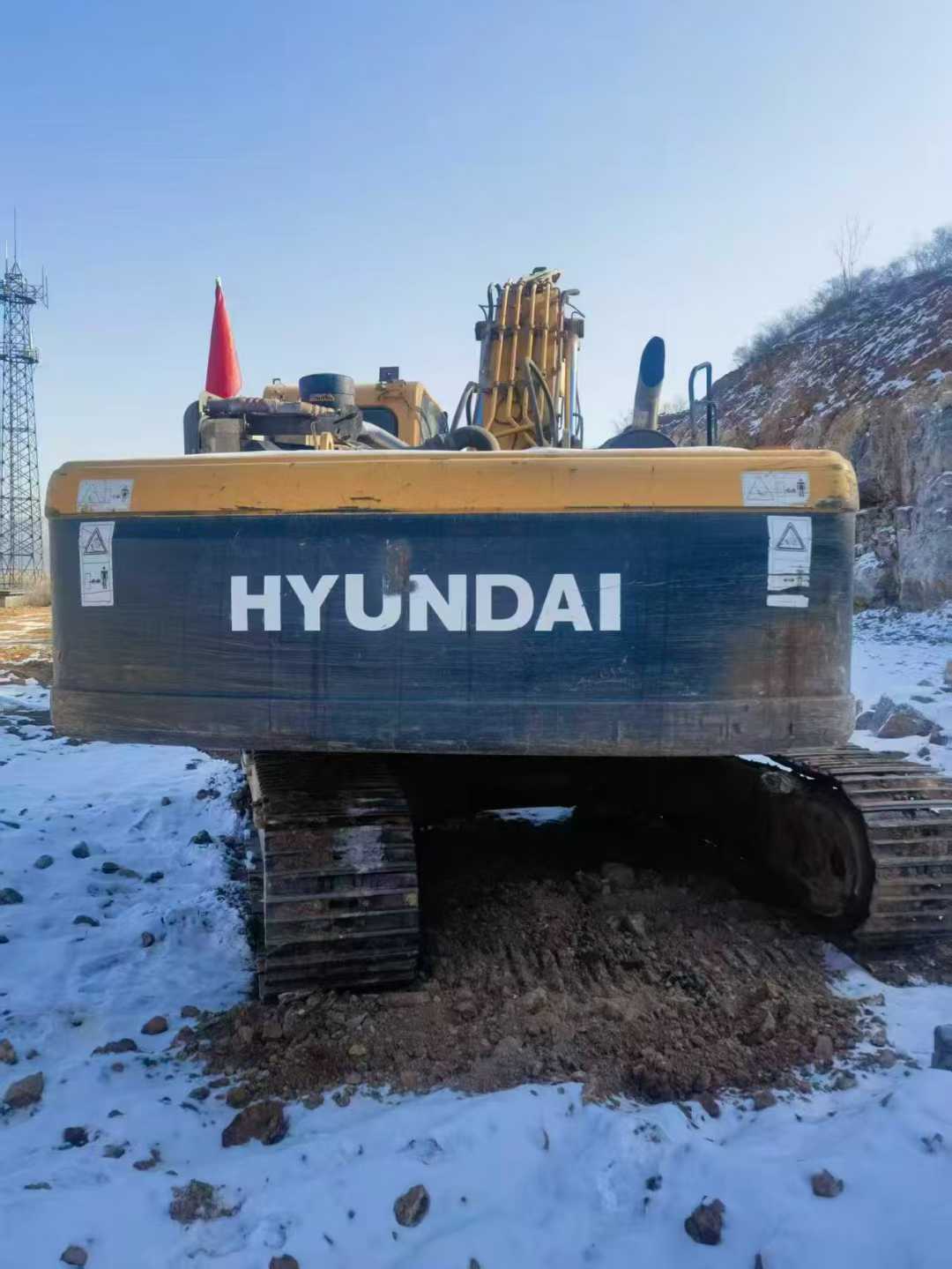

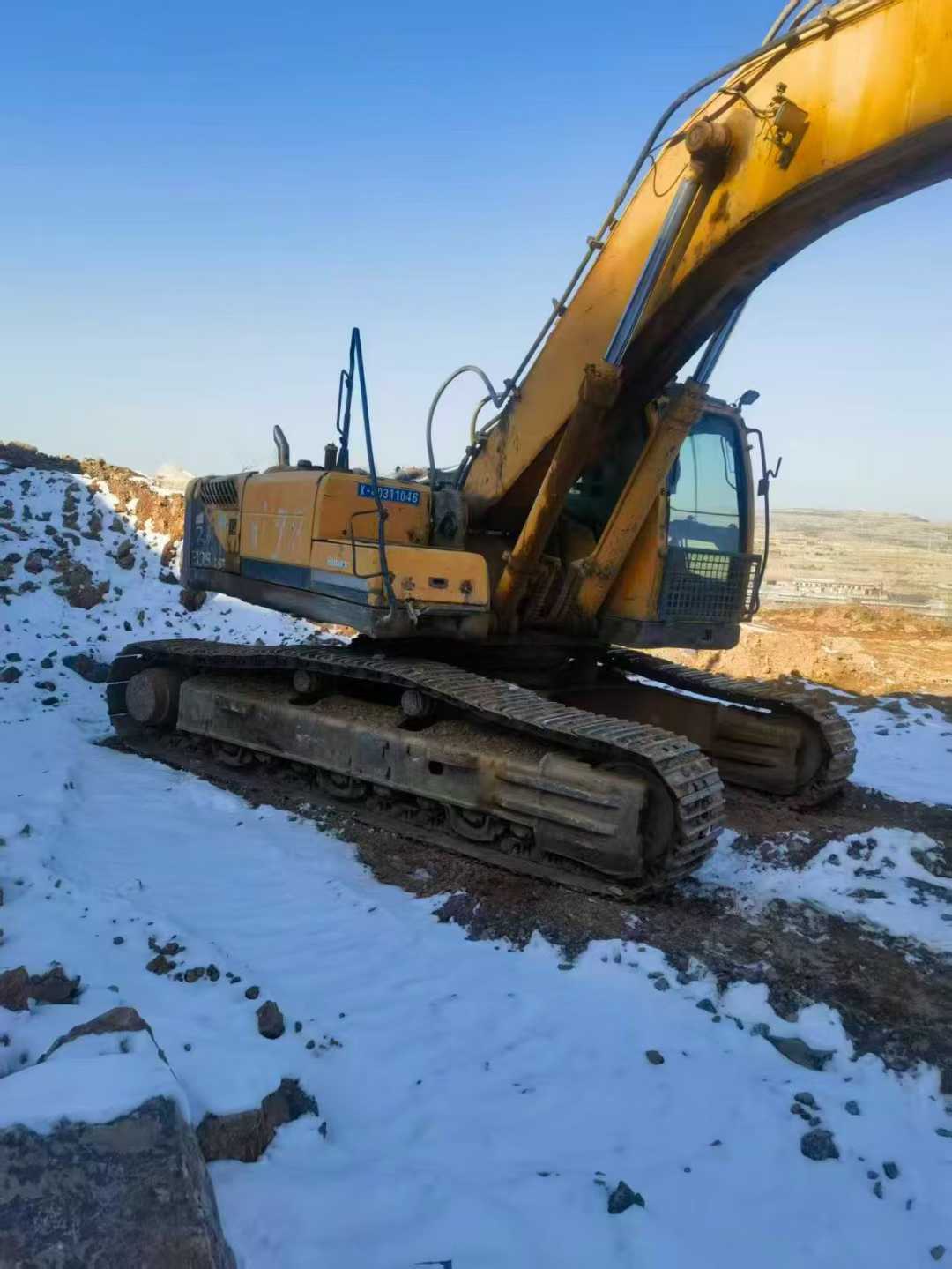

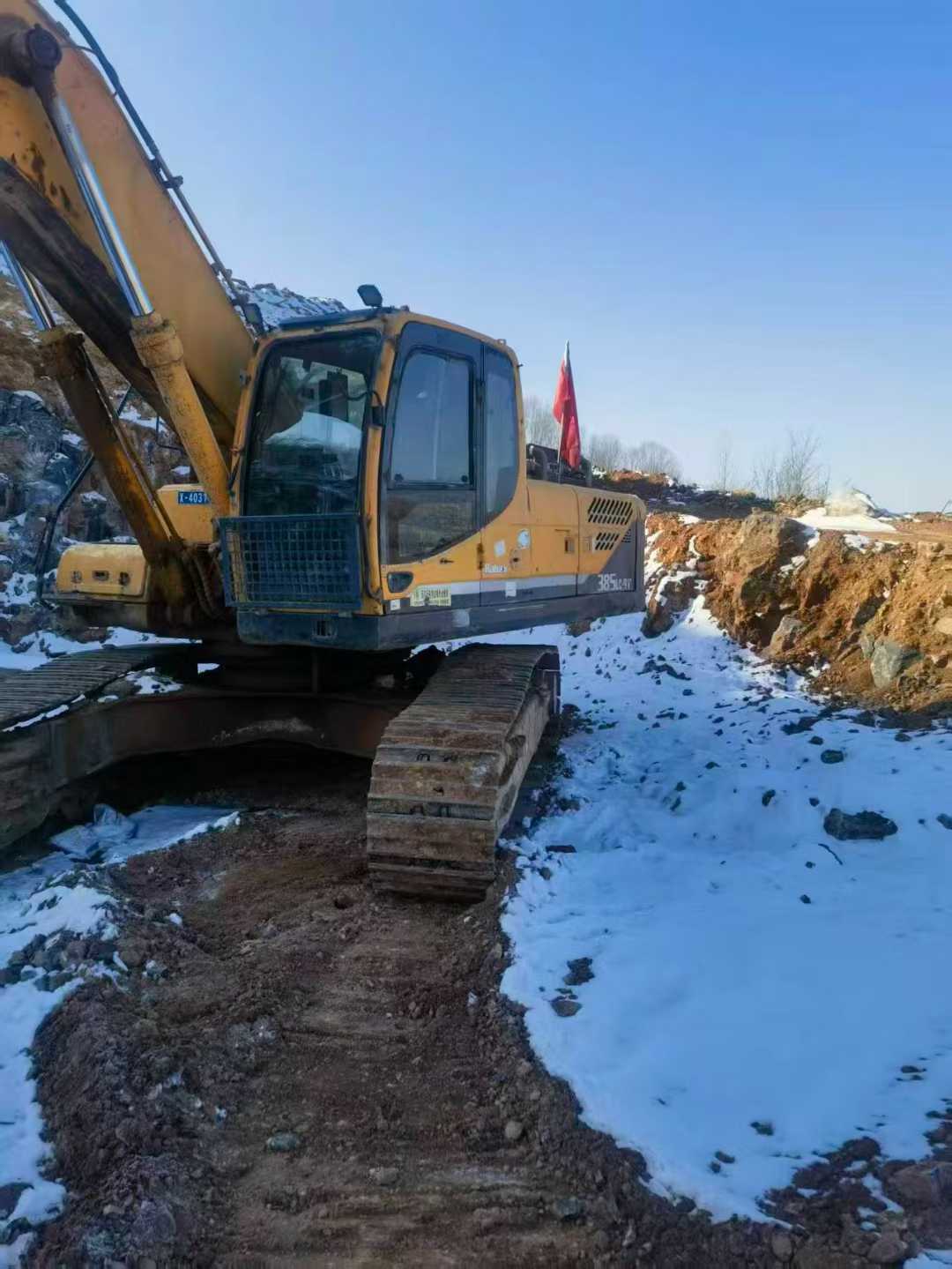

Detailed Introduction of the Modern 335-9T second-hand Excavator Dear customer, hello! It is a great honor to recommend to you this Hyundai 335-9T second-hand excavator with extremely high cost performance. This device is not only affordable but also has excellent performance, making it an ideal choice for your engineering work. The working hours of this excavator are 4,200 hours, which falls within the medium usage intensity range. With proper maintenance, it can still maintain a good working condition. It is equipped with an efficient and reliable Cummins 6-cylinder turbocharged engine, with a maximum output power of up to 202kW (approximately 272 horsepower), ensuring strong and stable power support under various complex working conditions. Meanwhile, it is also equipped with an advanced electronic fuel injection system, which effectively improves fuel economy and reduces operating costs. In terms of the hydraulic system, the Hyundai 335-9T adopts advanced load sensing technology, which can automatically adjust the oil supply according to the actual operation requirements, making the movement more smooth and precise and greatly improving work efficiency. In addition, this machine has particularly strengthened the protection measu
