Product Description

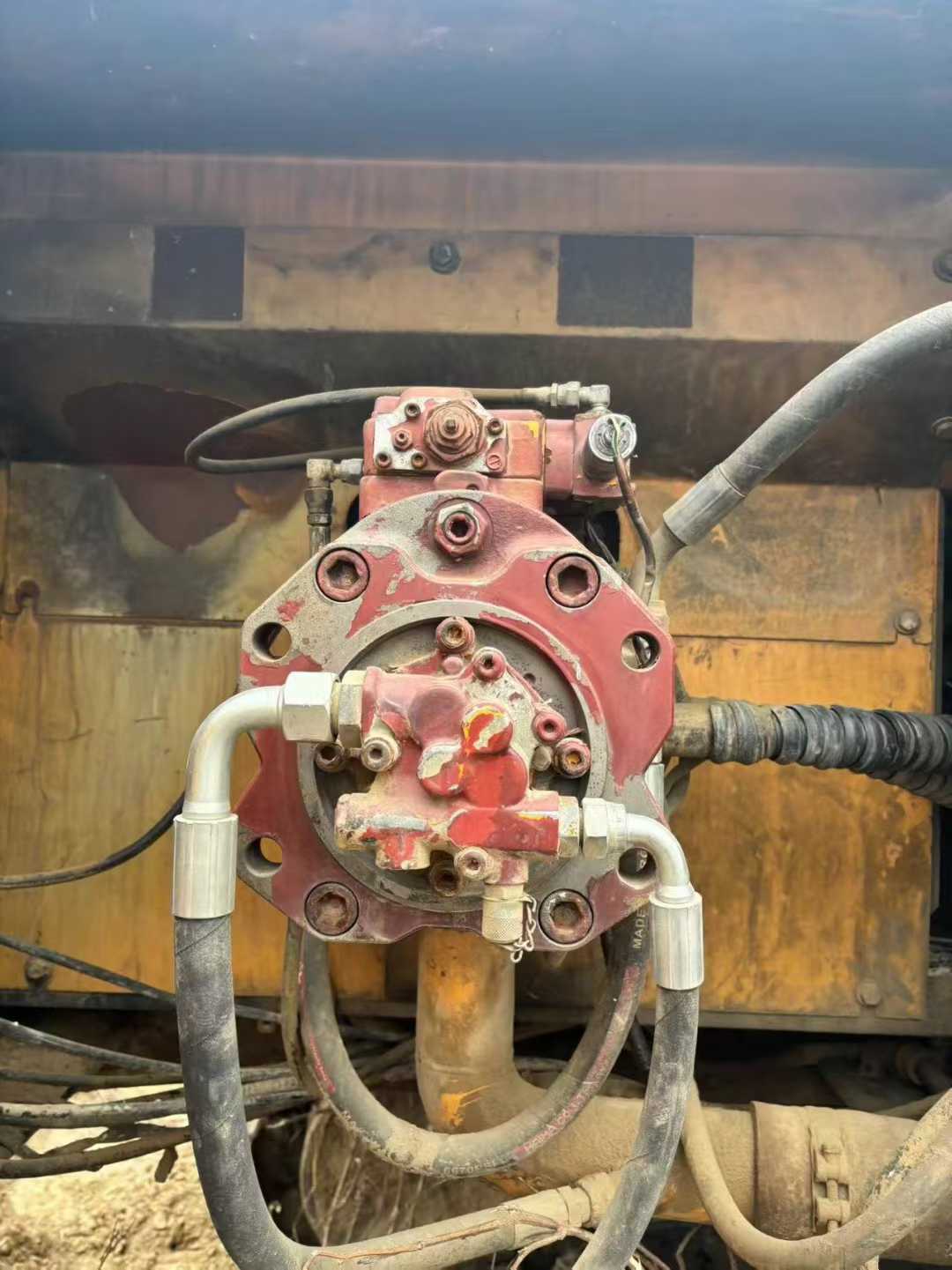

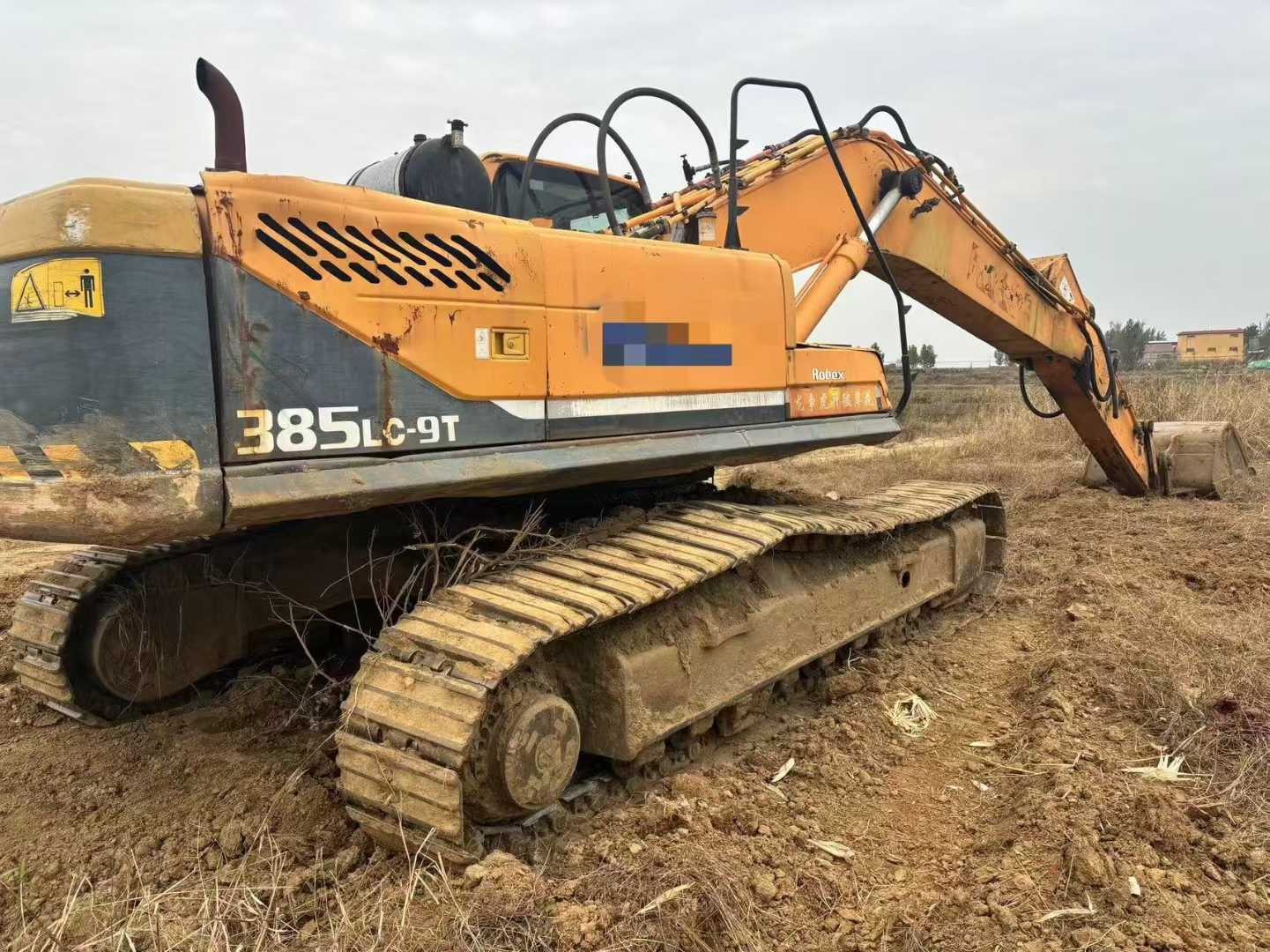

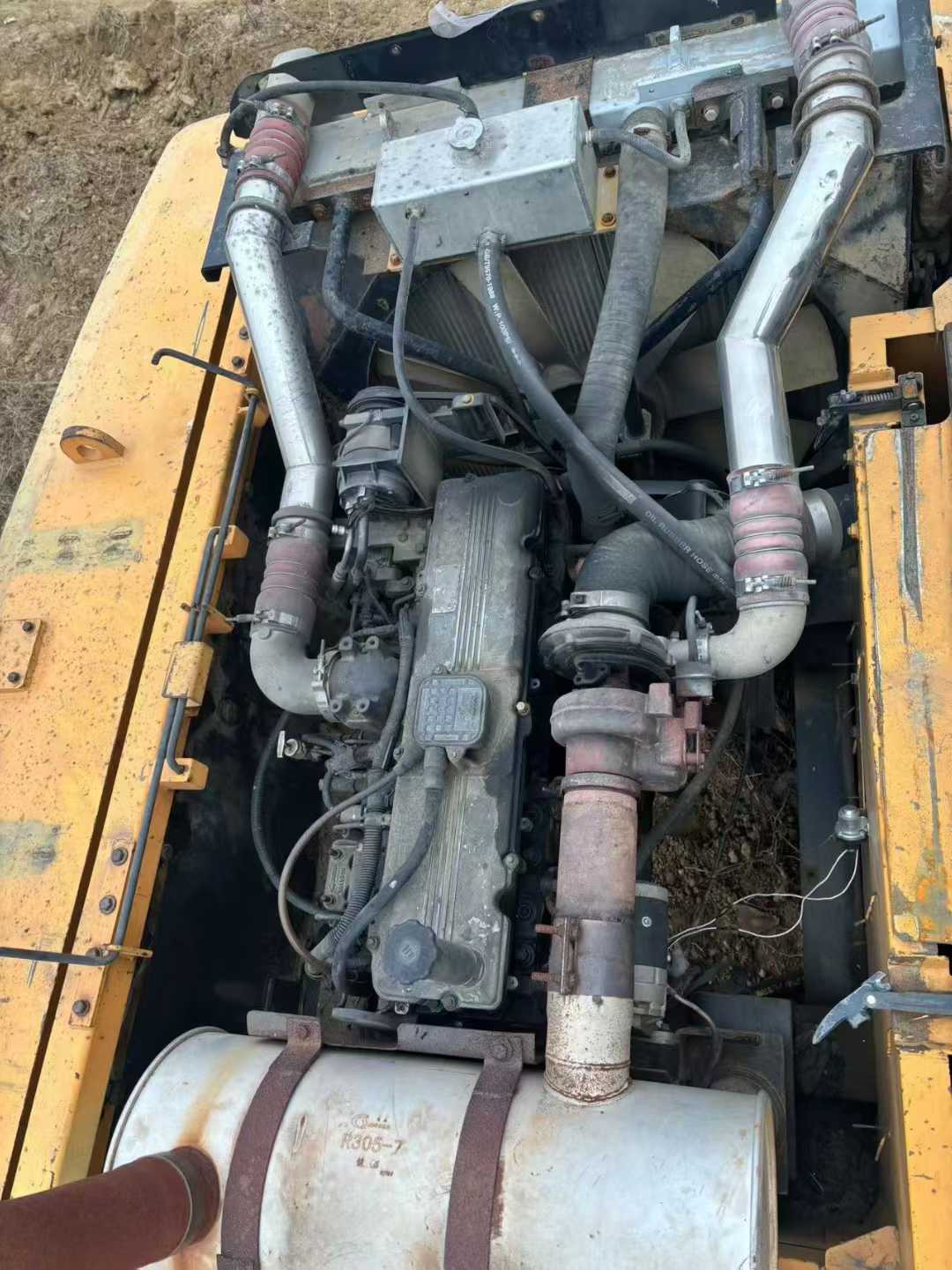

We currently have a modern 385 excavator produced in 2012. The detailed equipment drawings and video materials are complete. We are waiting for your in-depth study. This excavator has demonstrated outstanding performance and reliability in its past use, with an estimated cumulative working time of 6,000 hours. It is highly suitable for engineering demands that require efficient and stable operations. In terms of the power system, this excavator is equipped with a high-performance Cummins QSM11 engine with a rated power of 270kW (approximately 362 horsepower), ensuring a perfect balance between strong power output and fuel economy. Whether it is dealing with high-intensity working environments such as hard soil excavation or stone crushing, it can handle them with ease. The hydraulic system adopts a variable plunger pump combined with an efficient hydraulic motor design, ensuring smooth operation and rapid response of the entire machine. The advanced closed center load sensitive control system makes operation more precise and sensitive, and also significantly improves work efficiency. In addition, this modern 385 excavator also has the following significant advantages: The cab is spacious and comfortable, with a wide field of vision.
| Specifications | Value |
|---|---|
| No. | 974110 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38,900 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE8.9 |
| Rated power (kw/rpm) | 221/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*145 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.0 / 3.2 |
| Maximum flow of main pump (l/min) | 2*315 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*150*105*1295 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*170*120*1760 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*160*110*1500 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 210 |
| Engine Oil changes (L) | 31.7 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 415 |
| Total transport length (mm) | 10830 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3680 |
| Counterweight ground clearance (mm) | 1290 |
| Minimum turning radius of front working device (mm) | 4220 |
| Back end turning radius (mm) | 3415 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10520 |
| Maximum digging depth (mm) | 6750 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 4480 |
| Maximum excavation radius of stop surface (mm) | 10290 |
| Maximum effective digging depth (mm) | 6580 |
