| Specifications | Value |
|---|---|
| No. | 963009 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
Description

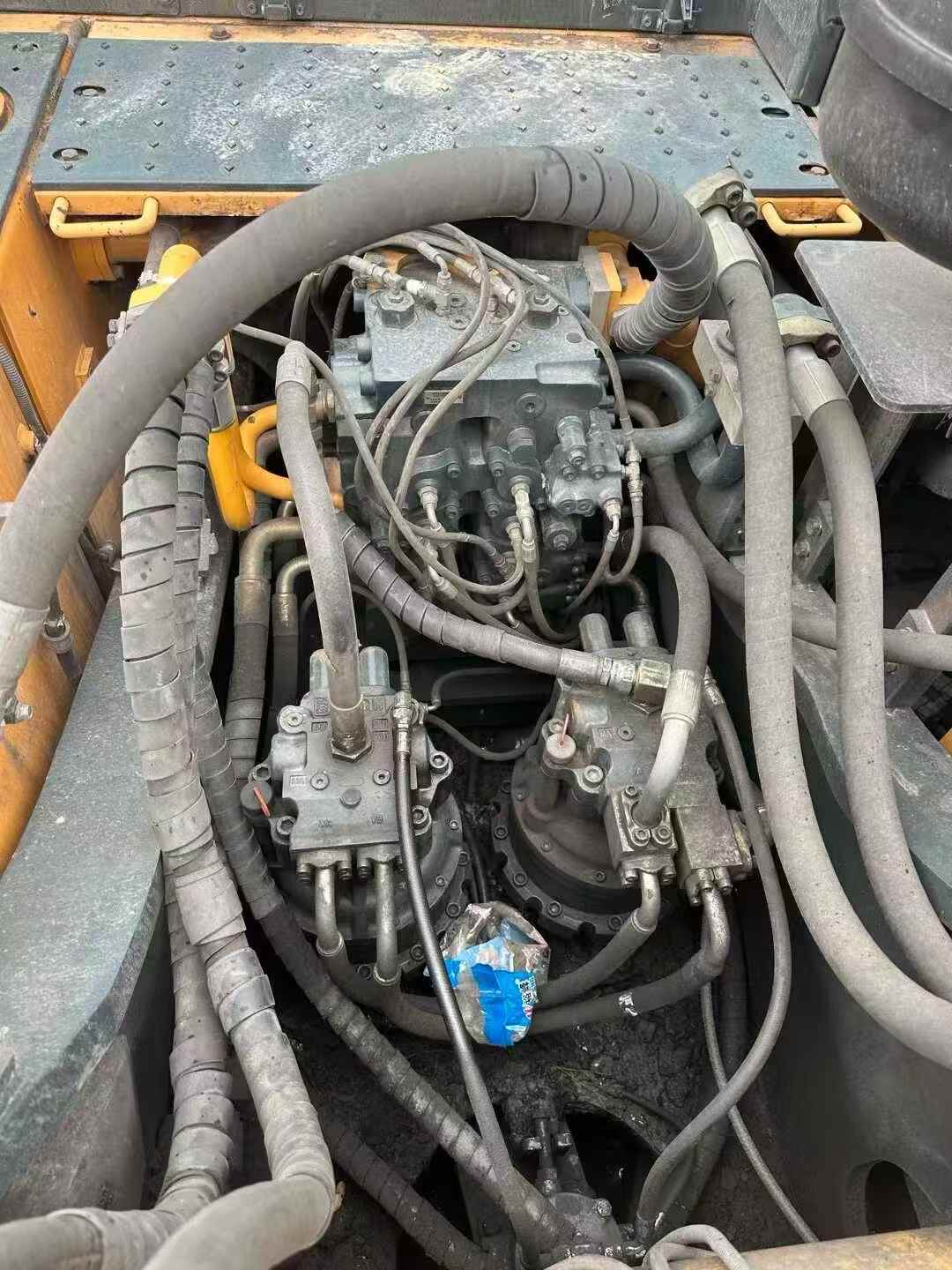

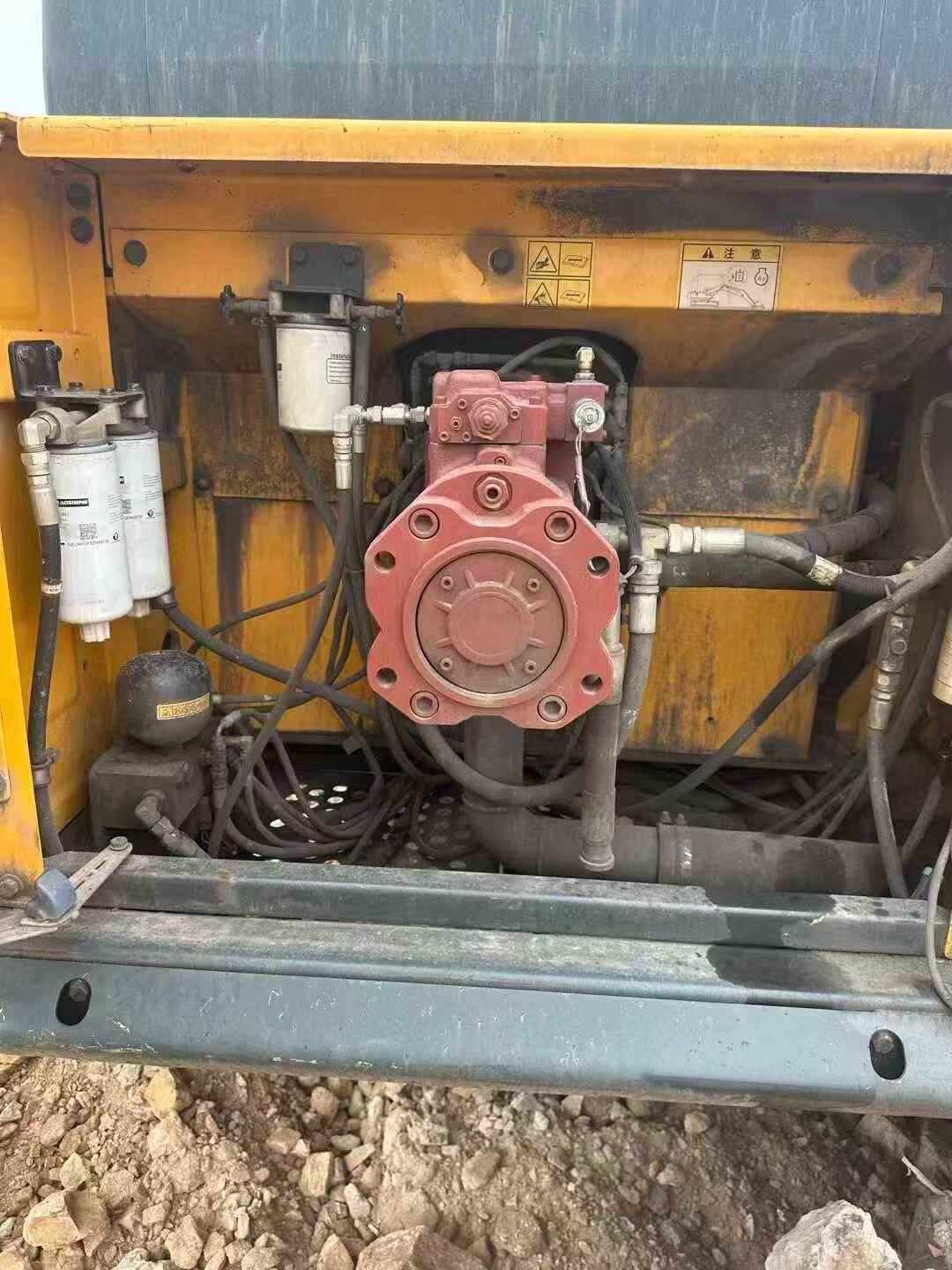

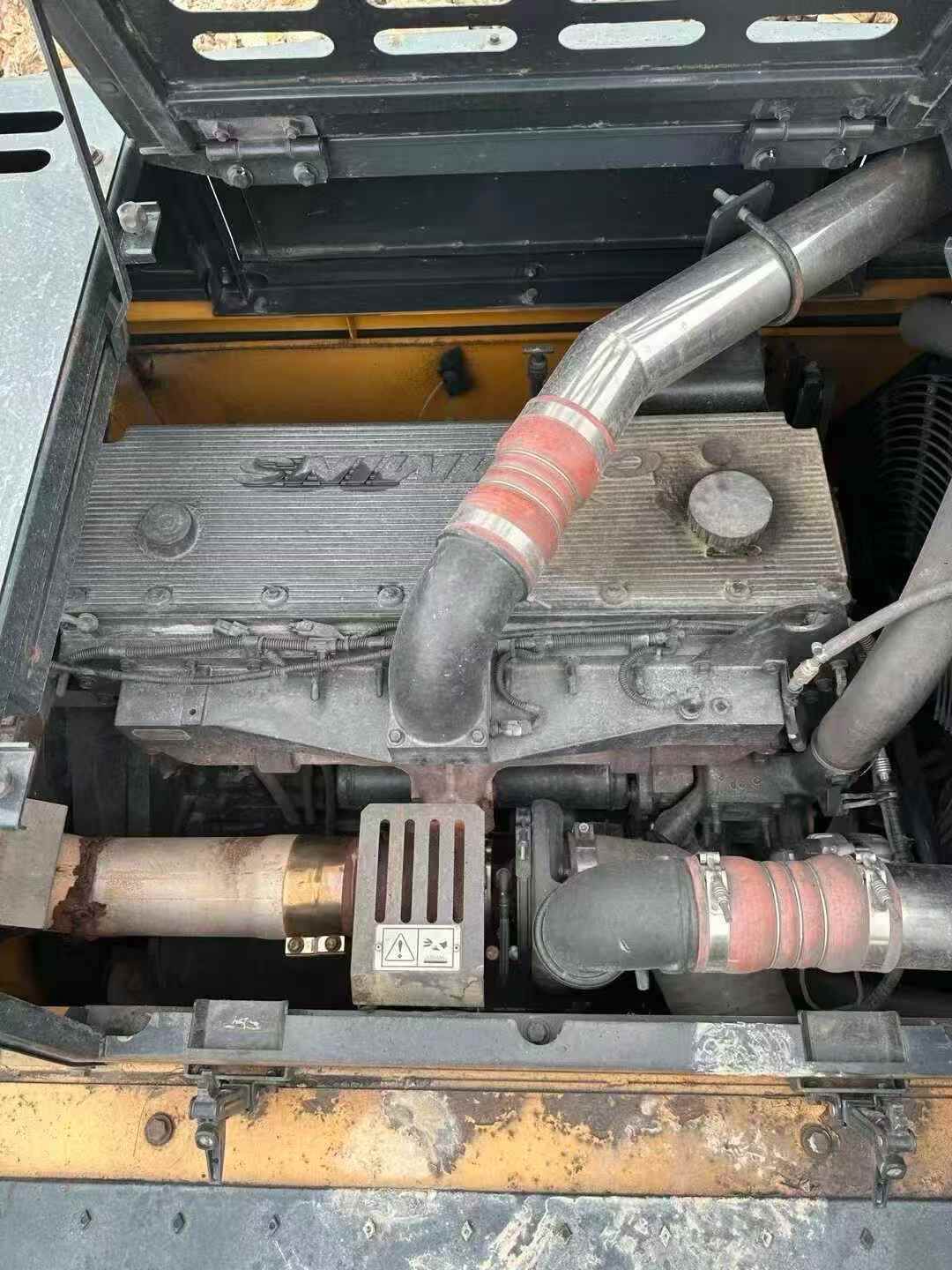

【 Premium Recommendation 】2019 Hyundai 485VS Excavator, equipped with a breaker, outstanding performance, affordable price! This second-hand Hyundai 485VS excavator is a model from 2019. Since its purchase, it has only been in operation for 3,000 hours. It is well maintained and in excellent condition. This machine is equipped with a high-performance Cummins 6-cylinder turbocharged engine, with a maximum power output of 375 horsepower. It is powerful, stable and reliable, and can handle both plain and high-altitude operations with ease. Meanwhile, this excavator adopts advanced electronically controlled high-pressure common rail fuel injection technology, which not only enhances fuel efficiency but also significantly reduces emission pollution, meeting the latest environmental protection standards. In terms of the hydraulic system, the Hyundai 485VS is equipped with main pumps and valve groups from Bosch Rexroth of Germany, ensuring smooth operation and response speed of the entire machine. In addition, it also features a powerful digging force and a fast rotation speed, which can meet the construction requirements under various complex working conditions. It is worth mentioning that this machine is equipped with high-quality crushin
