| Specifications | Value |
|---|---|
| No. | 966051 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
Description

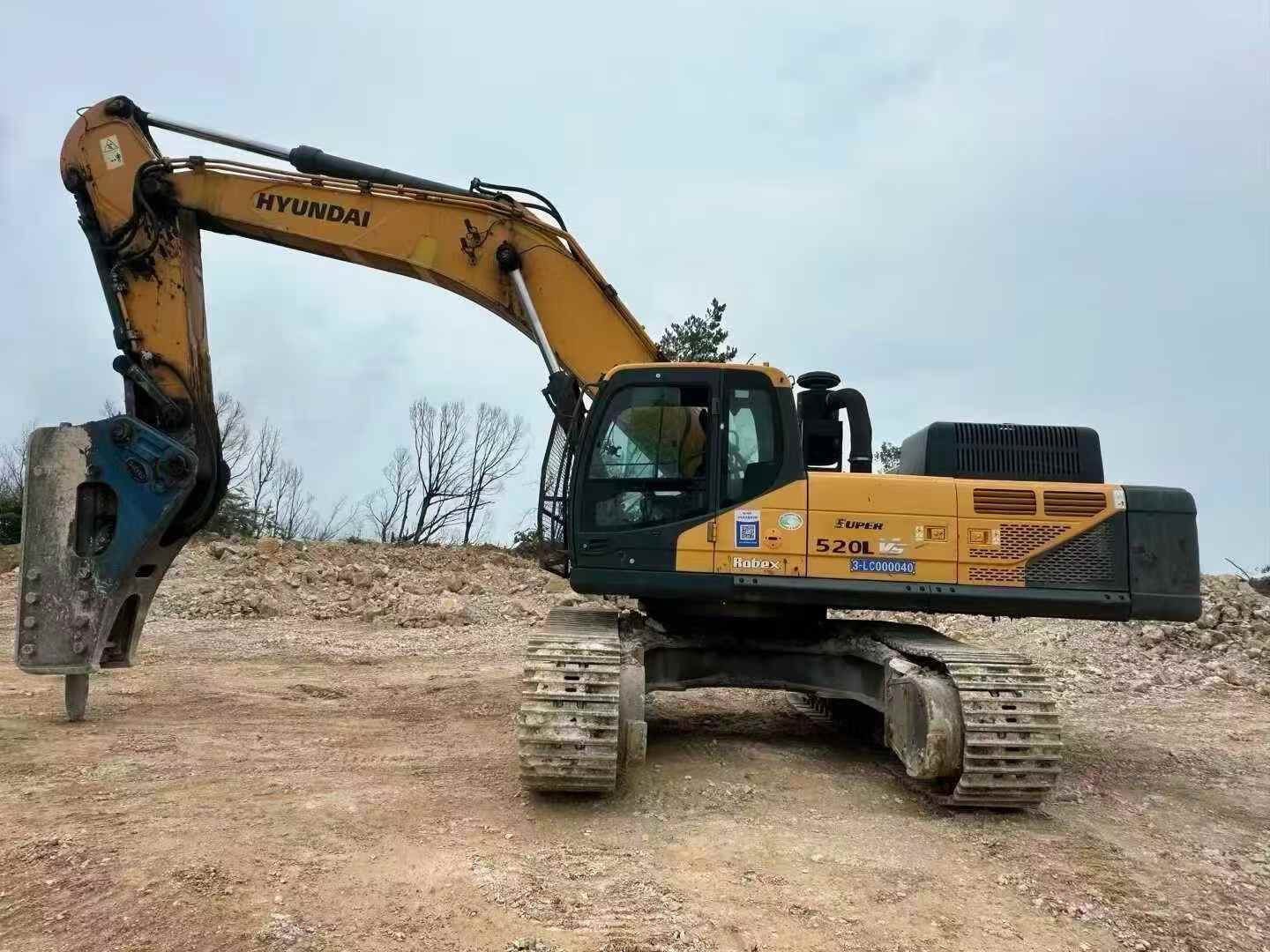

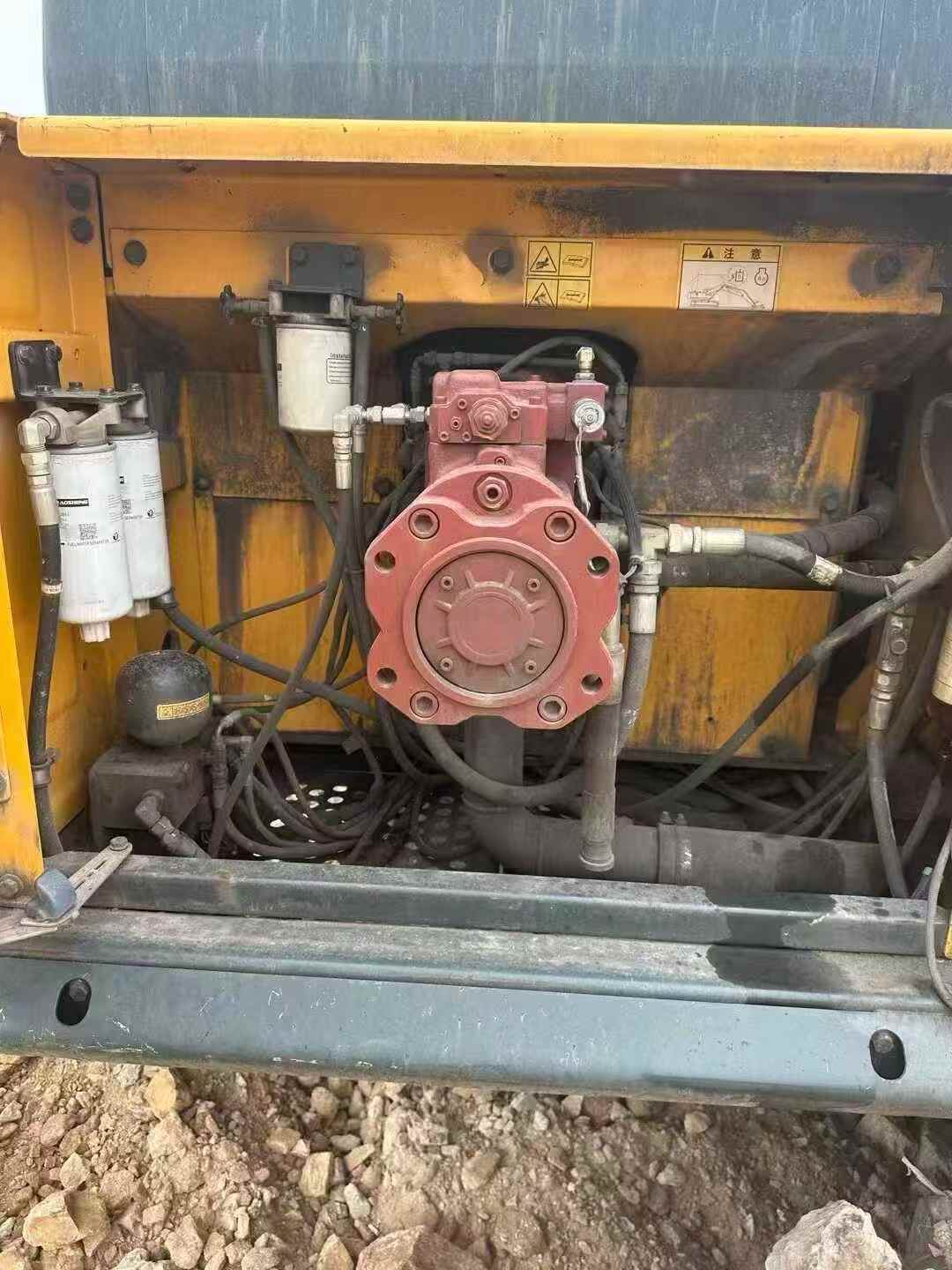

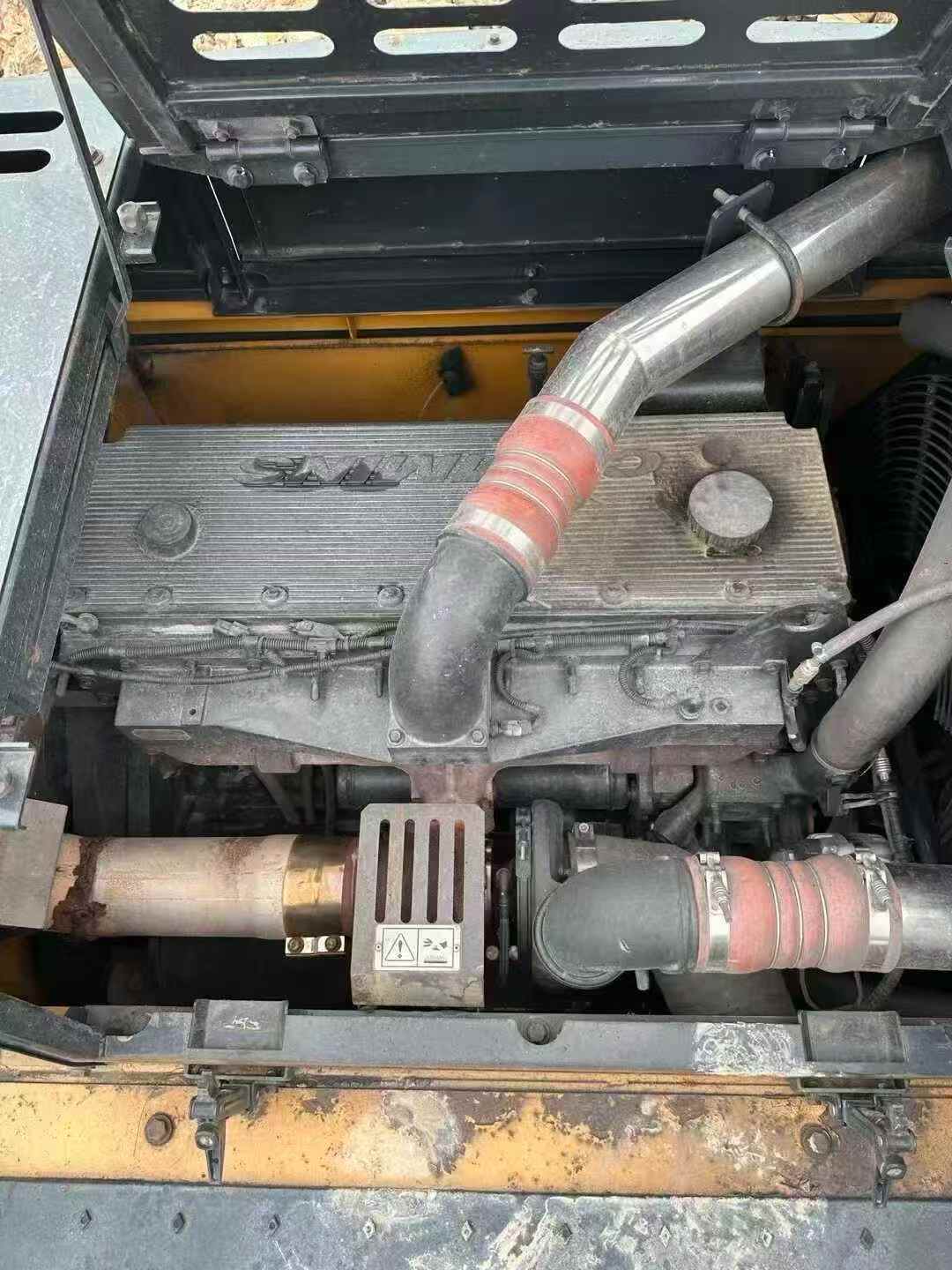

【 Premium Recommendation 】2019 Hyundai 485VS Excavator, equipped with hammer and bucket, multi-functional in one machine, outstanding performance! This second-hand Hyundai 485VS excavator was manufactured in 2019 and has only been in operation for 3,000 hours so far, remaining in its best working condition. It is equipped with a powerful Cummins QSL9-C325 engine, with a rated power of 257kW at 1800rpm. It is powerful, stable and reliable, and can easily handle various complex working conditions. This model adopts an advanced hydraulic system. The main pump is a dual-pump, dual-loop constant power adjustable variable piston pump, with a maximum flow rate of 464 liters per minute. This ensures that the equipment has excellent response speed and control accuracy in operations such as excavation and crushing. In addition, its unique hydraulic cooling system design effectively reduces the oil temperature and extends the service life. This excavator is equipped with original imported breakers and buckets. It is not only suitable for basic construction fields such as earthwork excavation and rock crushing, but also capable of handling various application scenarios including municipal engineering and mining. The whole machine has a compact s
