| Specifications | Value |
|---|---|
| No. | 968330 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48400 |
| Bucket capacity (m³) | 2.2 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 266/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 147.1 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 4.7/2.9 |
| Rotary hydraulic motor type | Axial plunger motor with automatic control |
| Maximum flow of main pump (l/min) | 2*370 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 - ø 160 x ø 110 x 1370 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 - ø 190 x ø 130 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 - ø 170 x ø 115 x 1570 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 260 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11650 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3870 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1295 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3750 |
| Onboard width (mm) | 2980 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 11040 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10440 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10820 |
Description

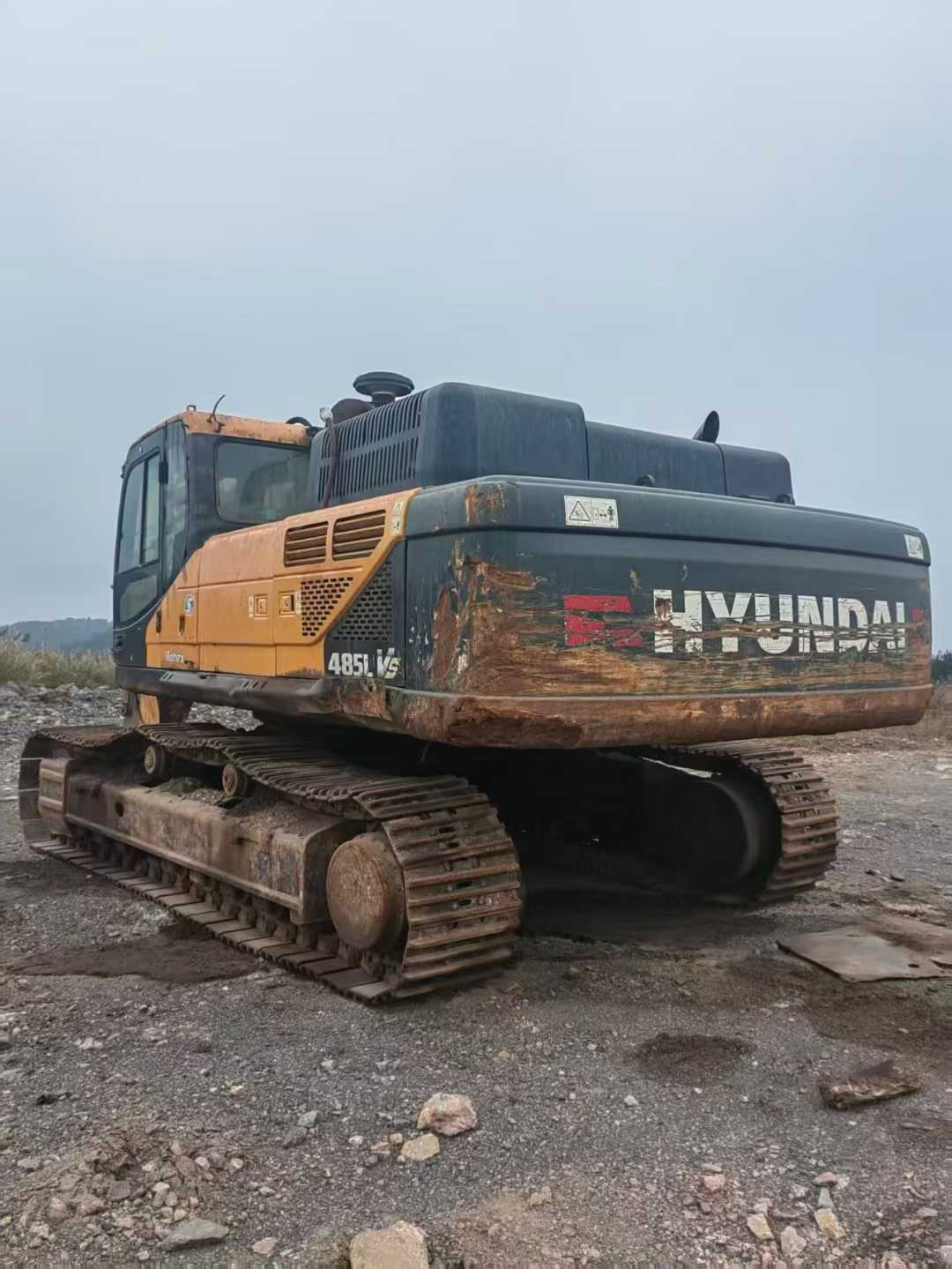

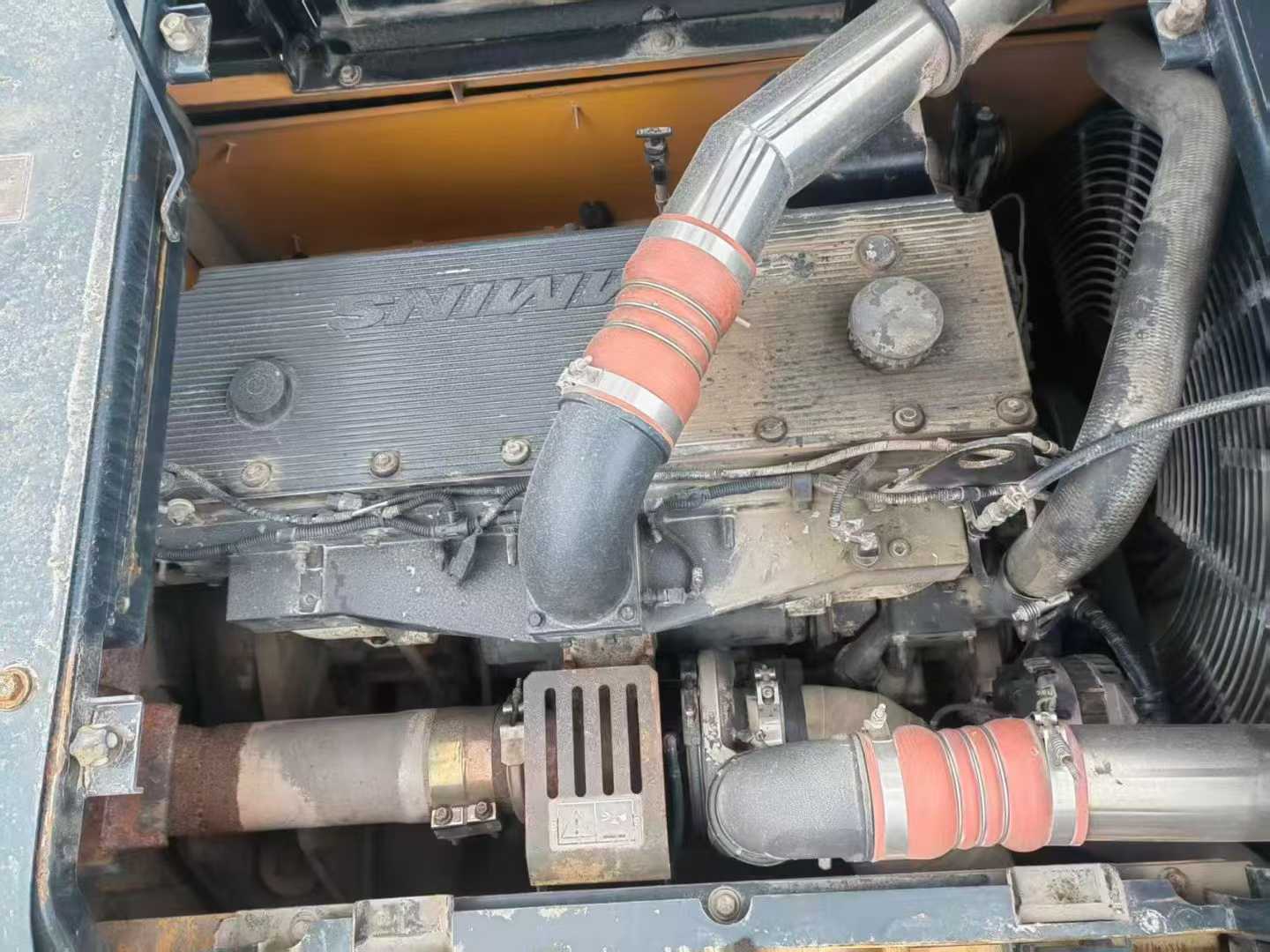

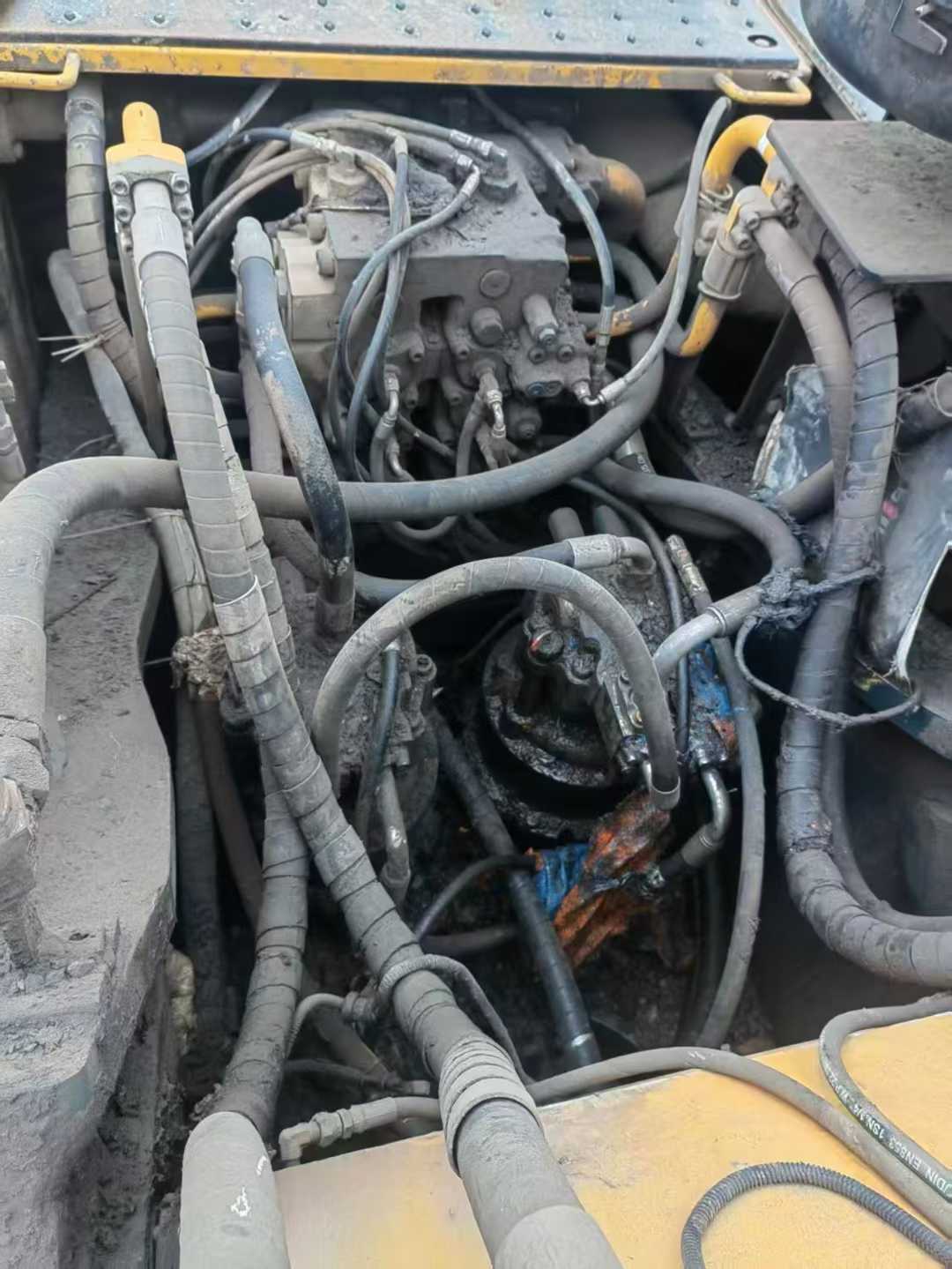

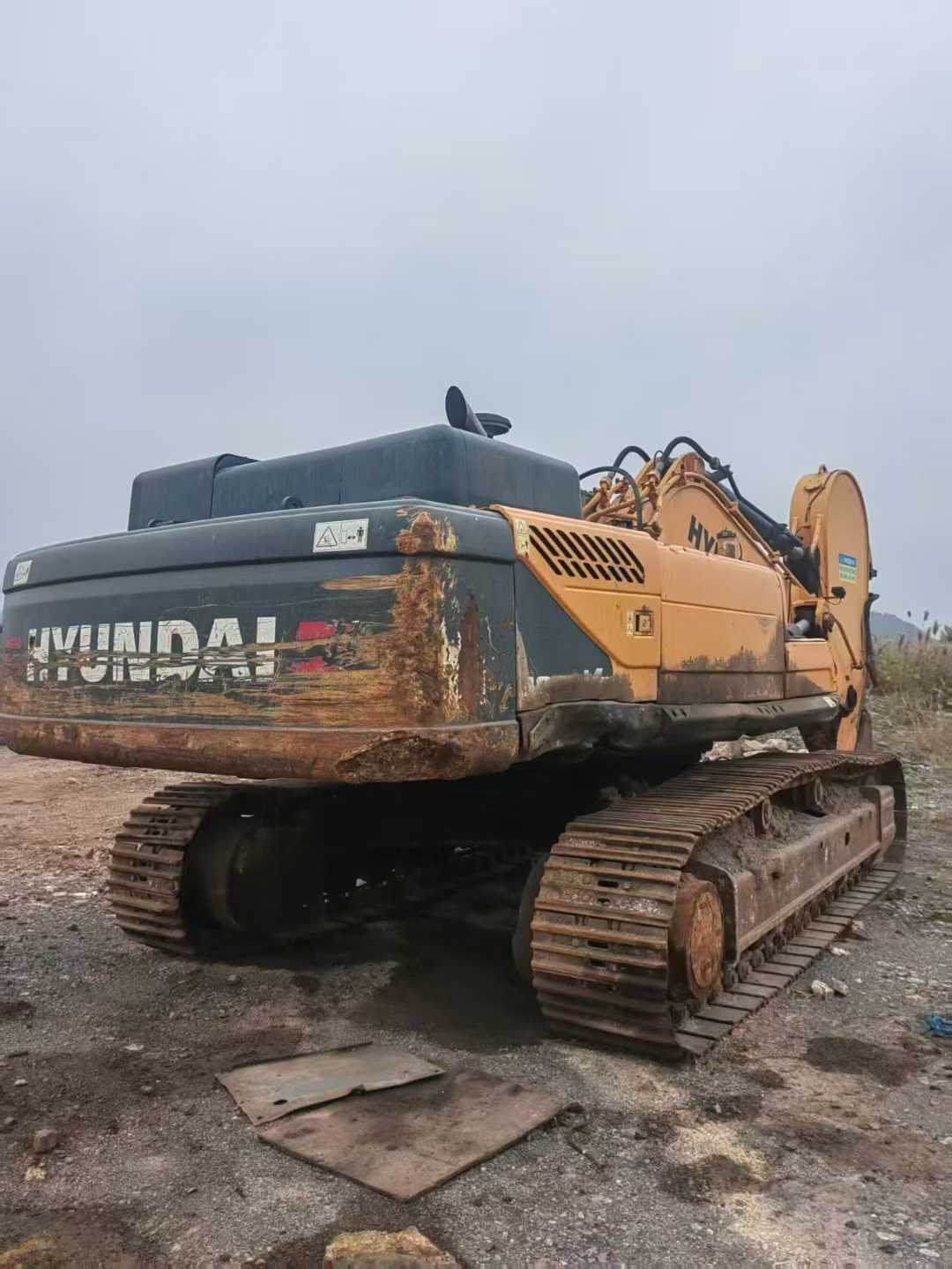

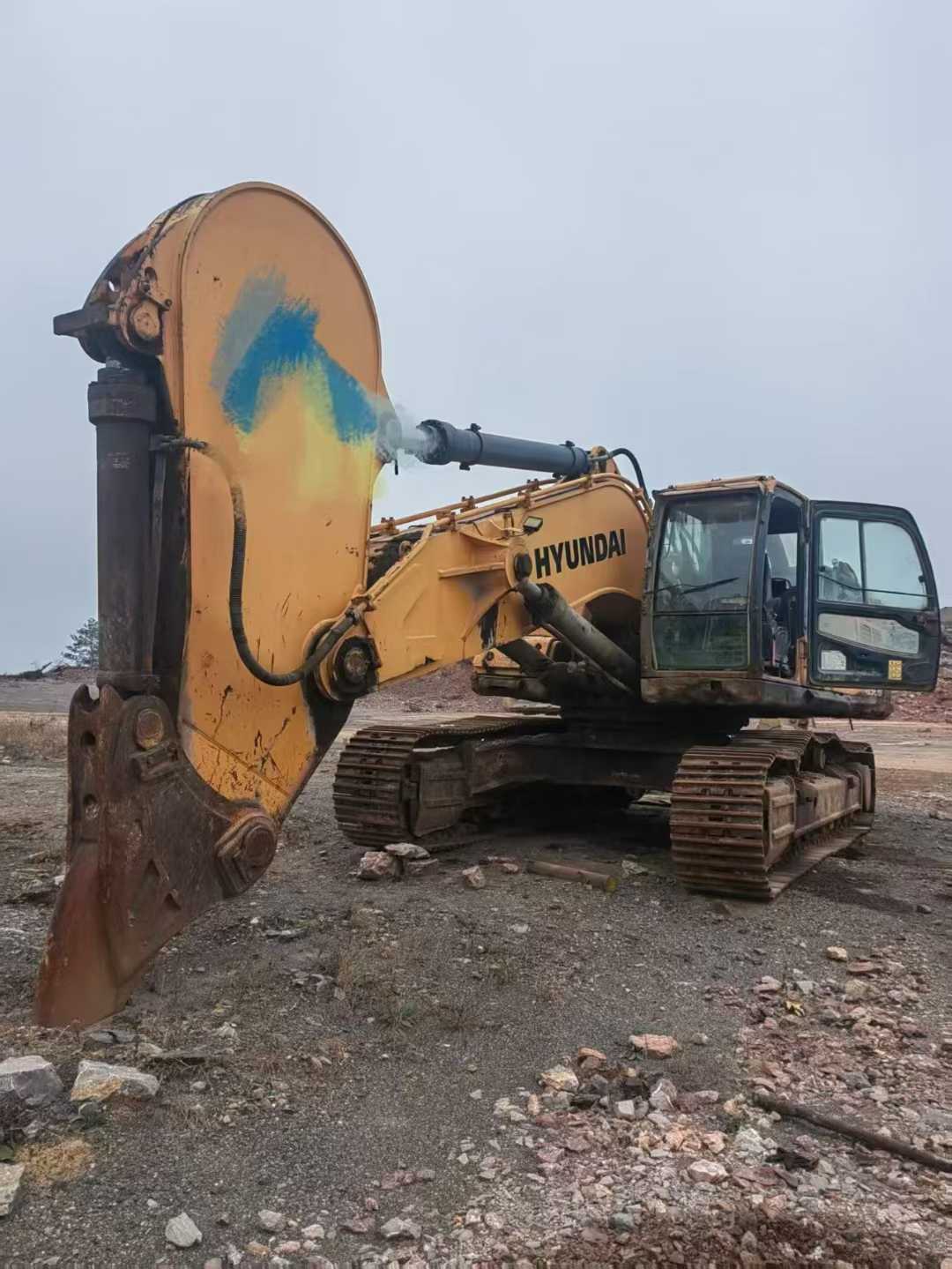

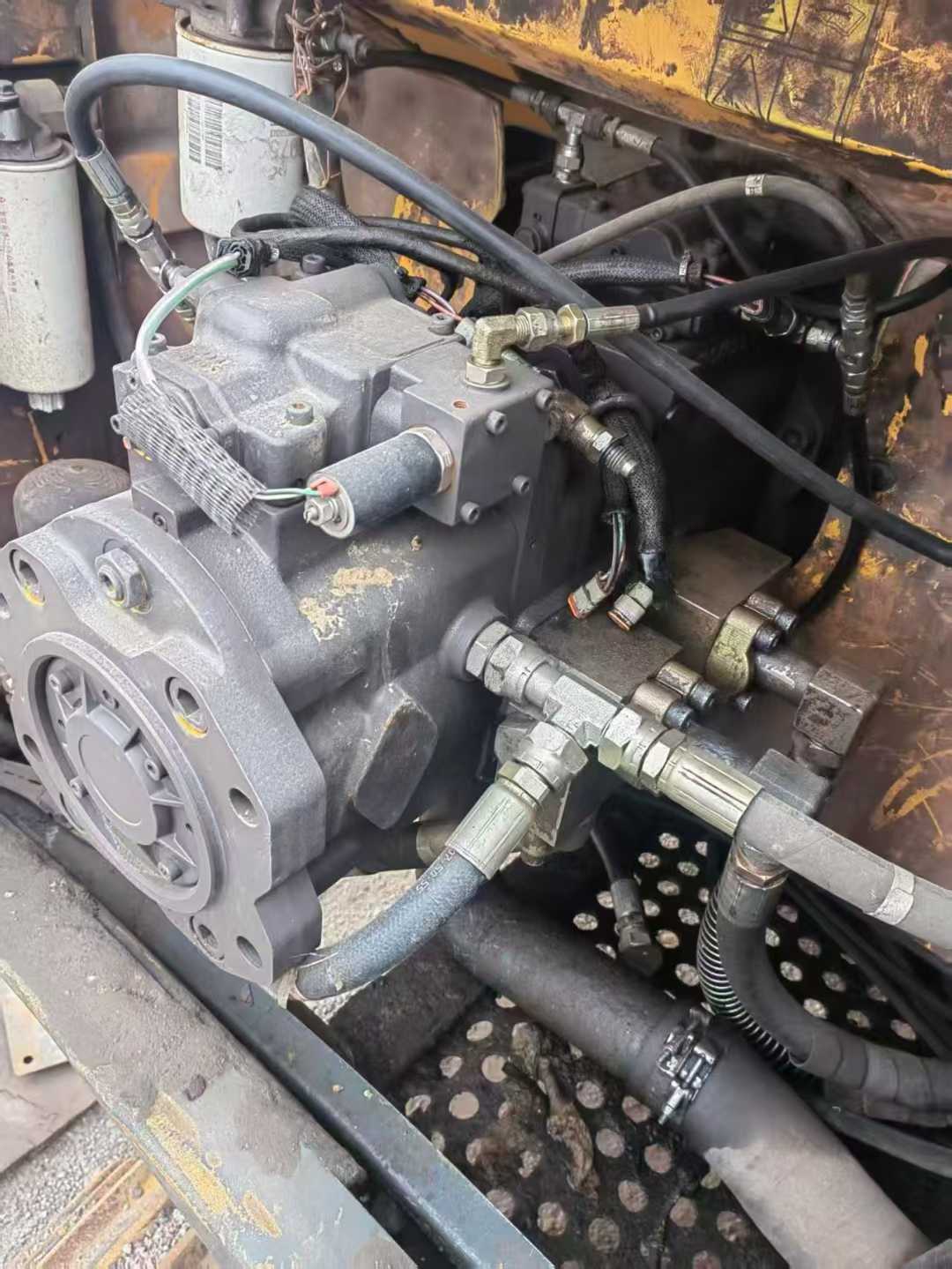

【 Premium Recommendation 】2018 Hyundai R485LC-9A excavator, with outstanding performance and inspection-free quality, is now priced at only 218,000 yuan! Since this second-hand excavator was put into use in 2018, its total working time has only been 3,500 hours, which is far lower than the average service life of similar equipment. Therefore, its mechanical condition is good and there is almost no wear and tear. In terms of the power system, the Cummins QSB6.7-C240 engine is adopted. This engine is renowned for its powerful output and excellent fuel economy, with a maximum power output of 240 horsepower. It ensures operational efficiency while also reducing operating costs. The hydraulic system is a closed center load sensing system provided by Kawasaki Corporation of Japan, featuring high precision and low noise. It can achieve precise control and smooth operation, and is particularly suitable for fine excavation tasks under complex working conditions. In addition, this model is also equipped with an advanced electronic control system that can automatically adjust the engine speed to match the pump flow rate, further enhancing work efficiency and extending the machine's lifespan. The vehicle body structure is sturdy and durable. It
