2021 Hyundai R75VS

1/5

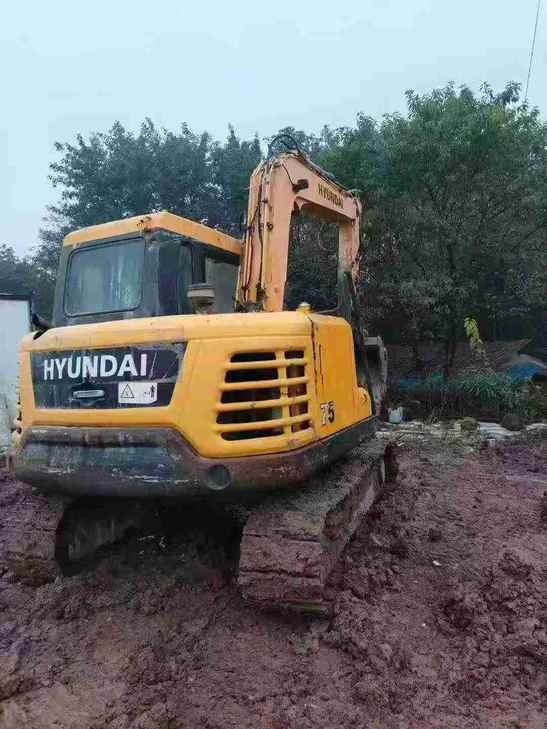

Used Hyundai R75VS Excavator 2021 Model / 1
Used Hyundai R75VS Excavator 2021 Model / 2
Used Hyundai R75VS Excavator 2021 Model / 3
Used Hyundai R75VS Excavator 2021 Model / 4
Used Hyundai R75VS Excavator 2021 Model / 5

Product Description

There is currently a second-hand Hyundai 75VS excavator produced in 2021 in stock. It has been in use for only over 80,000 hours and is in excellent performance and condition. This device is equipped with an efficient and reliable engine system, which is expected to provide strong power output for Cummins or equivalent brands, ensuring stable operation under various complex working conditions. Its rated power is approximately 50 kilowatts, which can easily meet the demands of earthwork excavation, loading and other operations. In terms of the hydraulic system, this Hyundai 75VS is equipped with an advanced variable piston pump and a high-quality hydraulic motor combination, ensuring smooth operation and operational accuracy. Meanwhile, the carefully maintained hydraulic oil circuit reduces internal wear, extends service life, and makes the entire machine work more efficiently and consume less energy. As a medium-sized excavator, it not only features a compact and flexible design for easy operation in narrow Spaces, but also has excellent climbing ability and good passability, making it suitable for construction tasks in various terrain conditions. In addition, the spacious and comfortable cab design, combined with a user-friendly con

SpecificationsValue
No.978763
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.32
Boom length (mm)3700
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-z
Rated power (kw/rpm)44.4 / 2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)98 x 110
Maximum torque (N.m)24.5/1575
Number of cylinders (PCS)4
Displacement (L)3.319
Working form4 cylinder 4 stroke water cooled direct injection engine
Rotation speed (rpm)12.2
Climbing ability (%)58
Travel speed (km/h)4.7 / 2.9
Rotary hydraulic motor typeAxial piston motor with automatic braking
Type of walking hydraulic motorTwo-speed axial plunger motor with brake valve and parking brake
Maximum flow of main pump (l/min)2 x 75.6 (2 x 20)
Main pump typeTwo variable plunger pump
Bucket cylinders - Number × diameter × stroke (mm)90 * 55 * 665
Bucket rod cylinders - Number × diameter × stroke (mm)95 * 60 * 860
Boom cylinders - Number × diameter × stroke (mm)115 * 70 * 980
Fuel Tank (L)140
Hydraulic Tank (L)75
Engine Oil changes (L)12
Coolant (L)11
Hydraulic System (L)130
Total transport length (mm)6080
Total transport width (mm)2260
Total transport height (mm)2690
Full cab height (mm)2650
Counterweight ground clearance (mm)755
Minimum turning radius of front working device (mm)1750
Back end turning radius (mm)1750
Onboard width (mm)2250
Track plate width (mm)450/600
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)38
Maximum digging radius (mm)6330
Maximum digging depth (mm)4150
Maximum excavation height (mm)7260
Maximum unloading height (mm)5170
Maximum vertical digging depth (mm)3200
Bulldozer lift or depth (mm)400/280
Dodging plate width × height (mm)2200*460
Maximum excavation radius of stop surface (mm)6190
Maximum effective digging depth (mm)3810
see more

Overview

No.978763

Brand Name:

Hyundai

Model Number:

R75VS

Year:

2021

Location:

Sichuan China
