Product Description

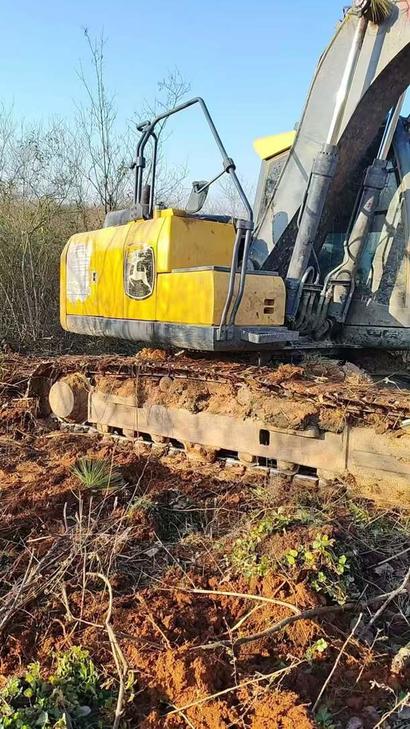

Skip the factory lead times with this ready-to-deploy 2016 JohnDeere E140LC excavator, currently available in 安徽阜阳. Operating at 14 tons with 84kW of rated power, this machine delivers immediate productivity for your construction or earthmoving operations.
Built for demanding applications, the E140LC features a 0.6m³ bucket capacity and impressive digging specifications: 8.35m maximum reach, 5.76m digging depth, and 101kN bucket digging force. With dual main pumps providing 126L/min flow each, hydraulic performance remains consistent under heavy loads.
- Compact transport dimensions: 7.63m length × 2.5m width × 2.74m height
- Fuel-efficient 4.5L engine with 240L fuel capacity for extended operation
- Robust undercarriage: 2.95m track ground contact, 42.2kPa ground pressure
- Fast deployment capability with 5.8km/h travel speed
Available now for immediate delivery to your job site. Eliminate project delays and maintain momentum with this proven JohnDeere reliability, strategically located in 安徽阜阳 for rapid mobilization across the region.
| Specifications | Value |
|---|---|
| No. | 981140 |
| Tonnage (tons) | 14 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| Country of origin | Tianjin |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 84/1800 |
| Maximum torque (N.m) | 498/1400 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 42.2 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 101 |
| Rod digging force (kN) | 70 |
| Maximum tractive force (kN) | 139 |
| Travel speed (km/h) | 5.8/3.1 |
| Turning torque (Nm) | 35.8 |
| Maximum flow of main pump (l/min) | 126x2 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27 |
| Main pump type | |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 18x1 |
| Fuel Tank (L) | 240 |
| Hydraulic Tank (L) | 125 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 18.2 |
| Hydraulic System (L) | 185 |
| Total transport length (mm) | 7632 |
| Total transport width (mm) | 2500 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2841 |
| Counterweight ground clearance (mm) | 888 |
| Minimum ground clearance (mm) | 434 |
| Minimum turning radius of front working device (mm) | 2626 |
| Back end turning radius (mm) | 2236 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 3671 |
| Track gauge (mm) | 2000 |
| Track plate width (mm) | |
| Track ground length (mm) | 2950 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 8351 |
| Maximum digging depth (mm) | 5764 |
| Maximum excavation height (mm) | 8568 |
| Maximum unloading height (mm) | 6030 |
| Maximum vertical digging depth (mm) | 5107 |
| Maximum excavation radius of stop surface (mm) | 8214 |
