| Specifications | Value |
|---|---|
| No. | 968326 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21100~23100 |
| Bucket capacity (m³) | 1.0 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117/2000 |
| Maximum torque (N.m) | 639/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.5 |
| Working form | |
| Ground specific pressure (Kpa) | 38-58.3 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 150 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 216 |
| Travel speed (km/h) | 3.2/5.5 |
| Turning torque (Nm) | 61 |
| Maximum flow of main pump (l/min) | 224 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.3 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20*1 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 14.7 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3299 |
| Full cab height (mm) | 3024 |
| Counterweight ground clearance (mm) | 1089 |
| Minimum ground clearance (mm) | 469 |
| Minimum turning radius of front working device (mm) | 3660 |
| Back end turning radius (mm) | 3042 |
| Total track length (mm) | 4072 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 10040 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6790 |
| Maximum vertical digging depth (mm) | 6090 |
| Maximum excavation radius of stop surface (mm) | 9820 |
Description

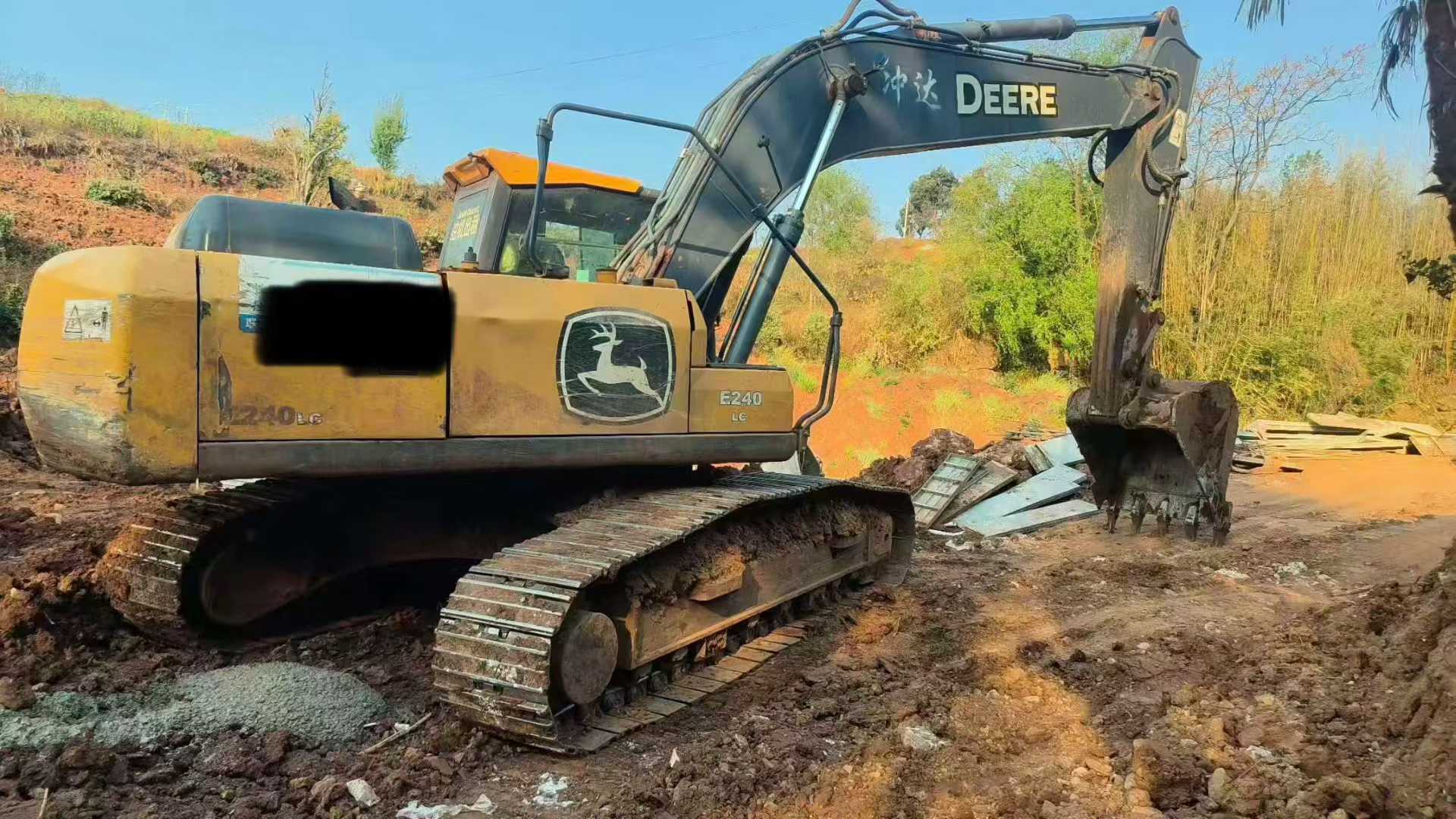

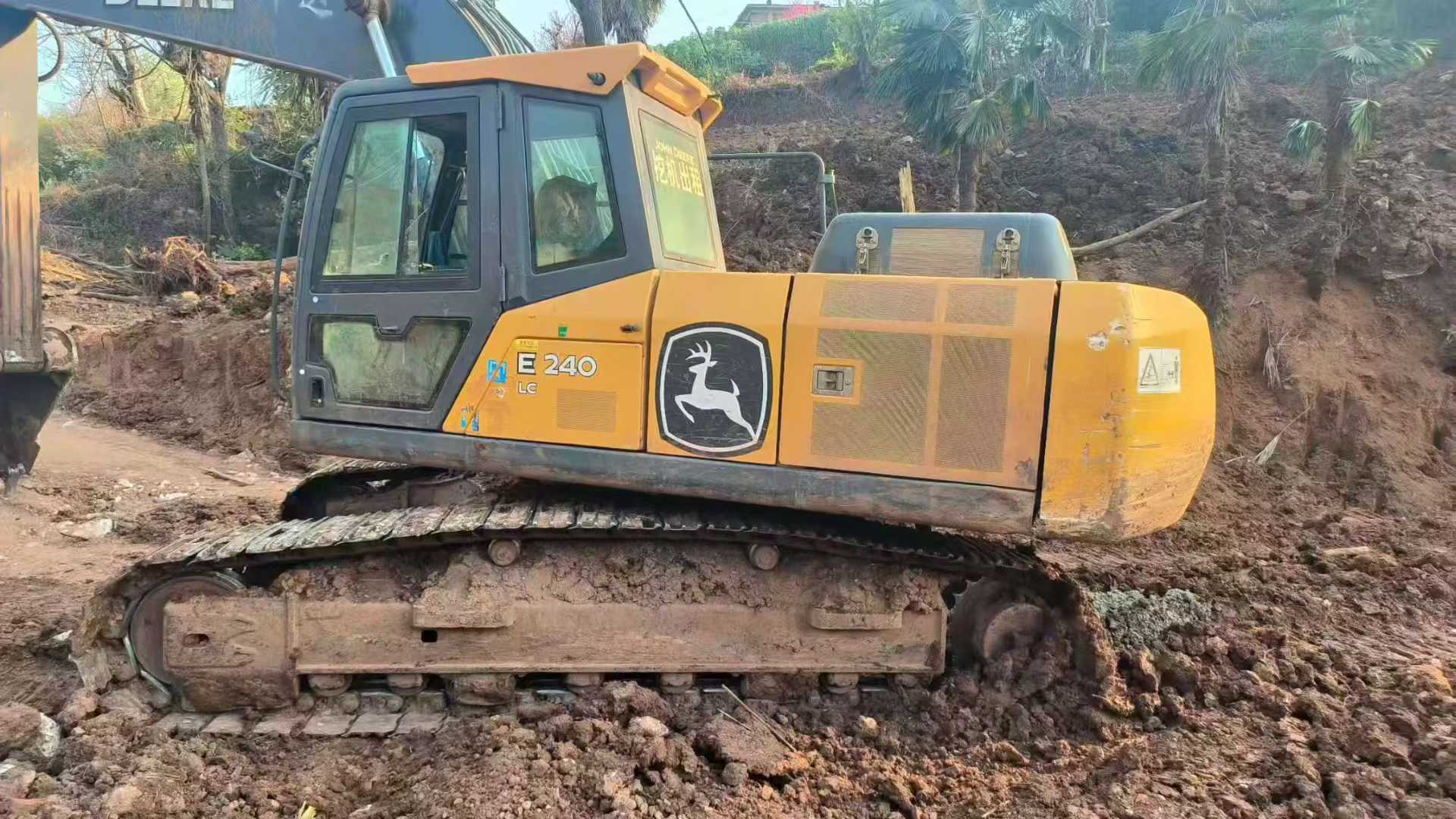

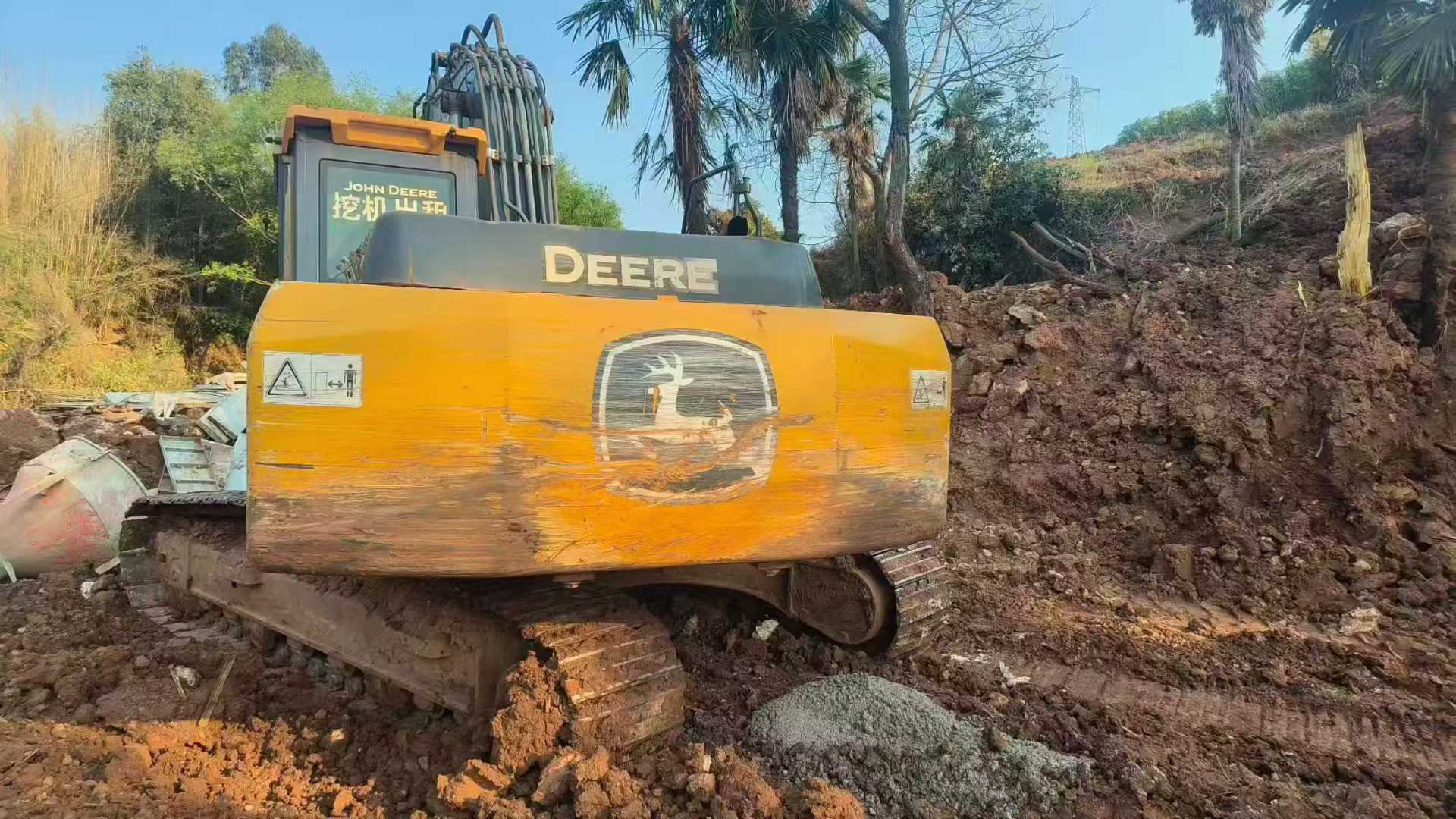

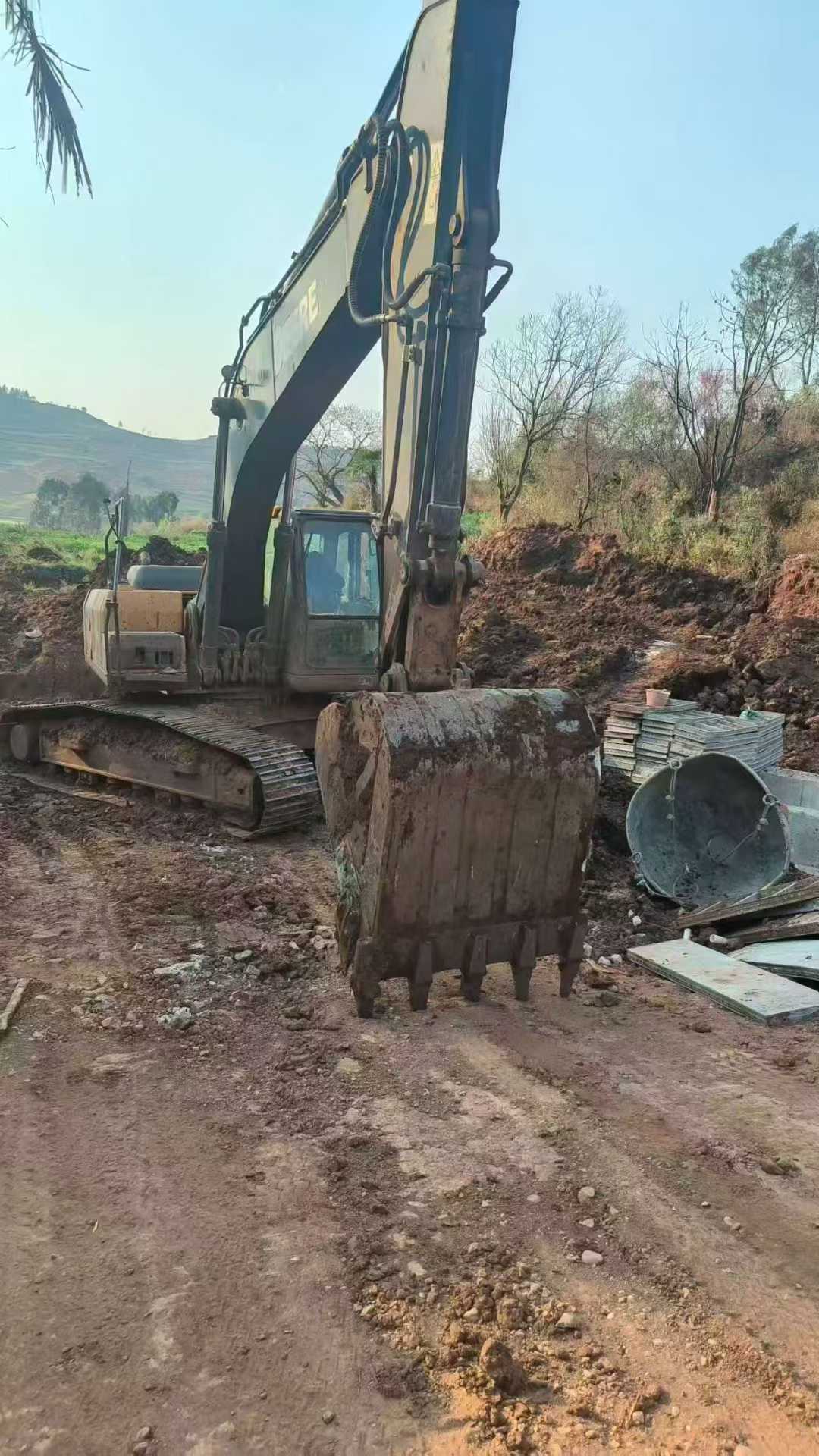

【 Premium Recommendation 】 Second-hand John Deere E210 excavator from 2016 This second-hand John Deere E210 excavator from 2016 is a rare and cost-effective choice in the market. It not only boasts outstanding performance but also has a very reasonable price, making it suitable for all kinds of engineering needs. This excavator has a cumulative working time of only 4,500 hours, which is far lower than the average usage time of similar equipment. This means that its core components are still in good condition and can provide buyers with long-term and reliable services. In terms of power, the John Deere E210 is equipped with an efficient and energy-saving engine, ensuring strong and stable output power under all operating conditions. It also features excellent fuel economy, effectively reducing operating costs. In addition, this machine is equipped with an advanced hydraulic system. Through optimized design, it has improved work efficiency and operational accuracy. Whether it is excavation, loading or crushing operations, it can handle them with ease. More importantly, this machine has undergone strict testing and maintenance to ensure that all key components such as pumps and motors are in the best working condition, allowing users to
