| Specifications | Value |
|---|---|
| No. | 963630 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
Description

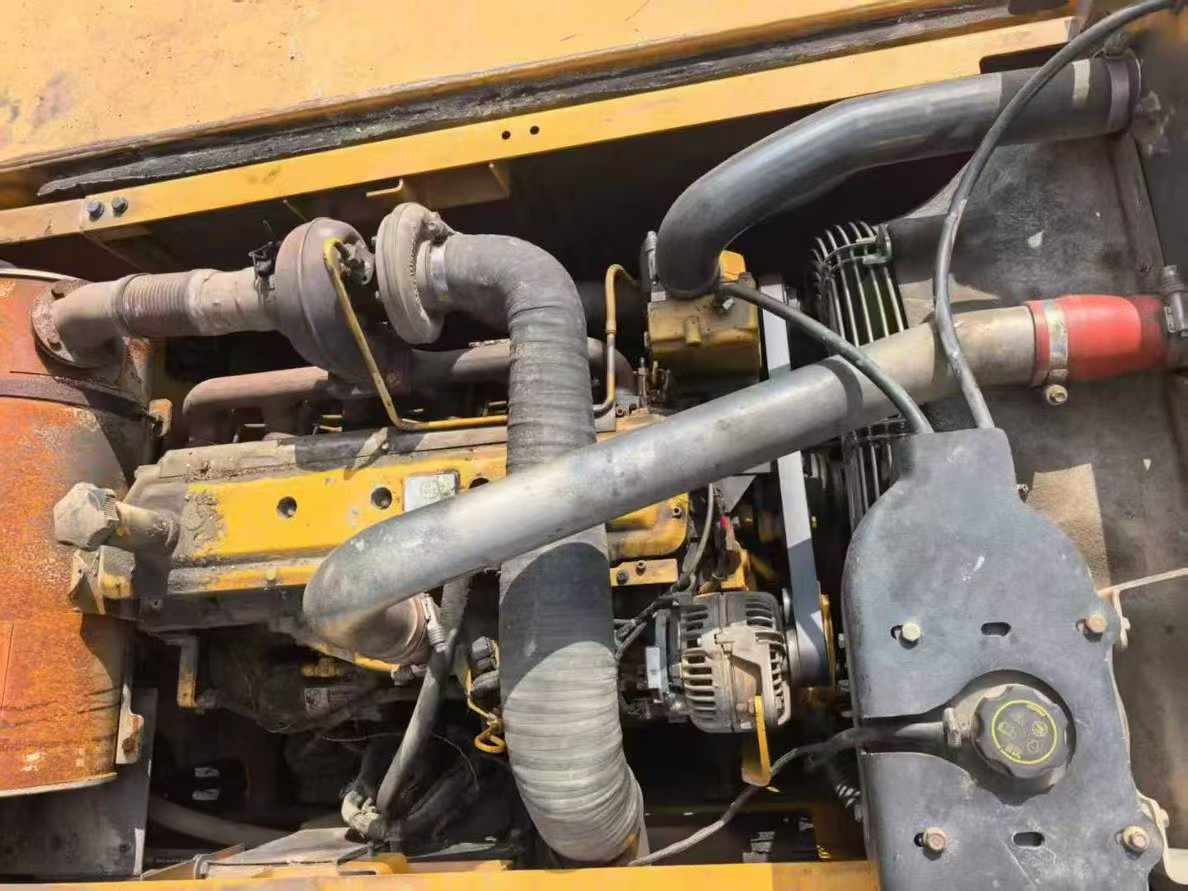

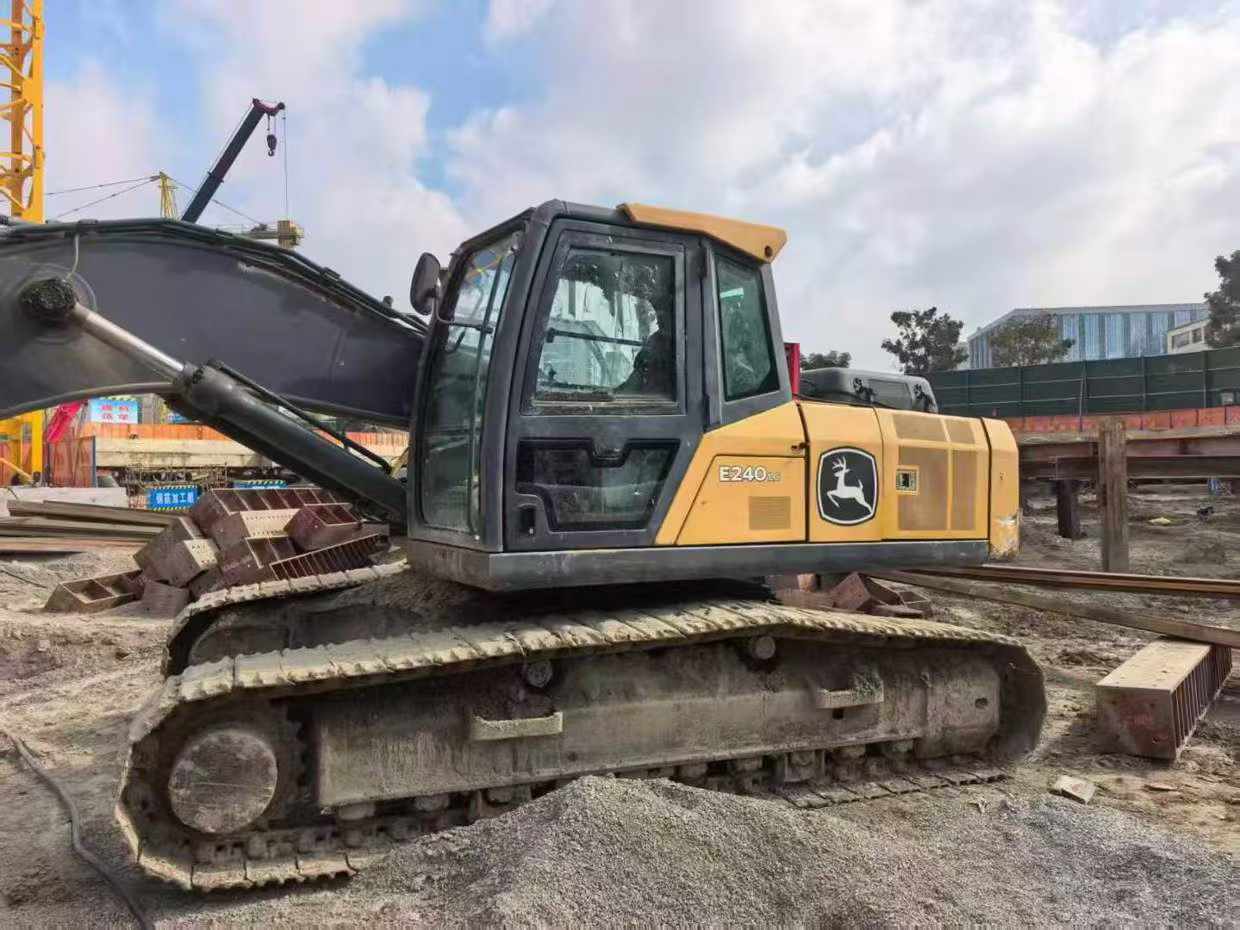

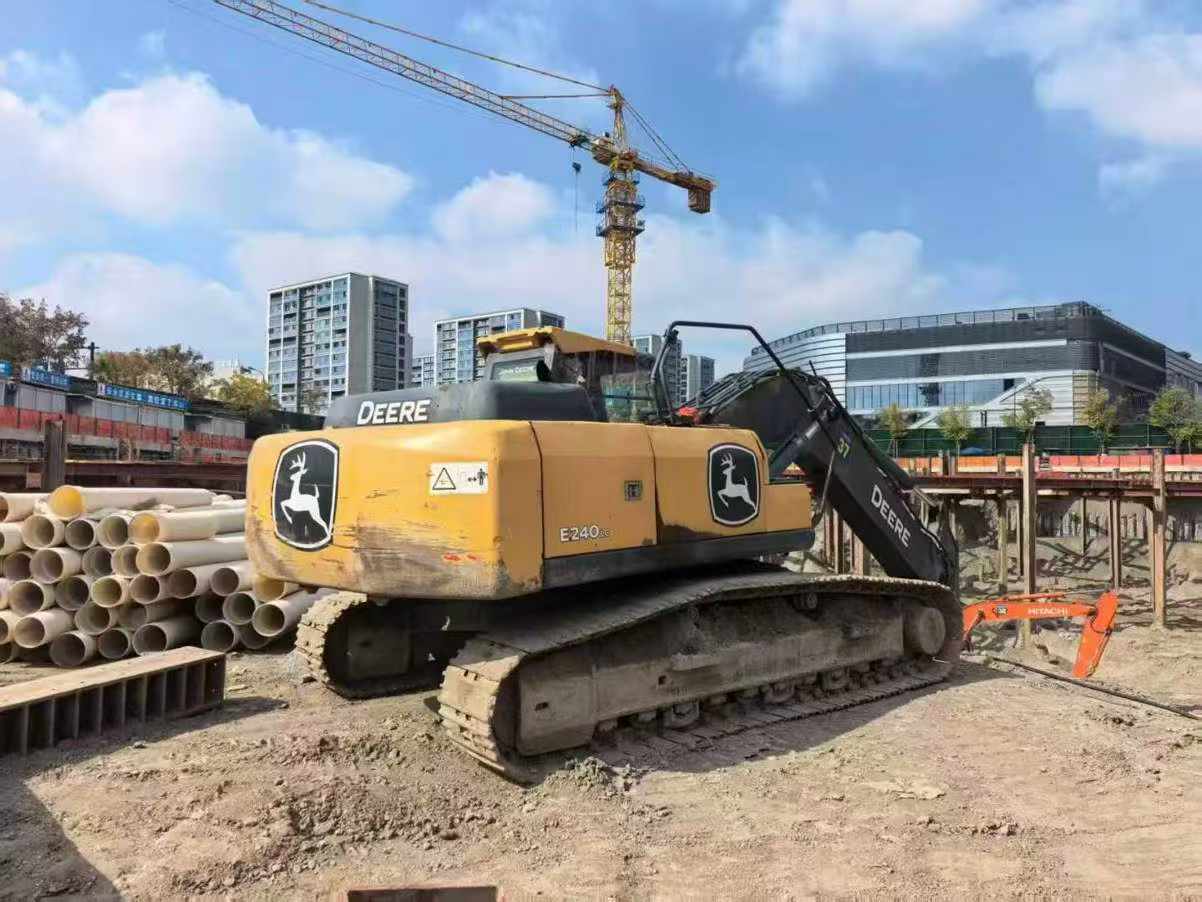

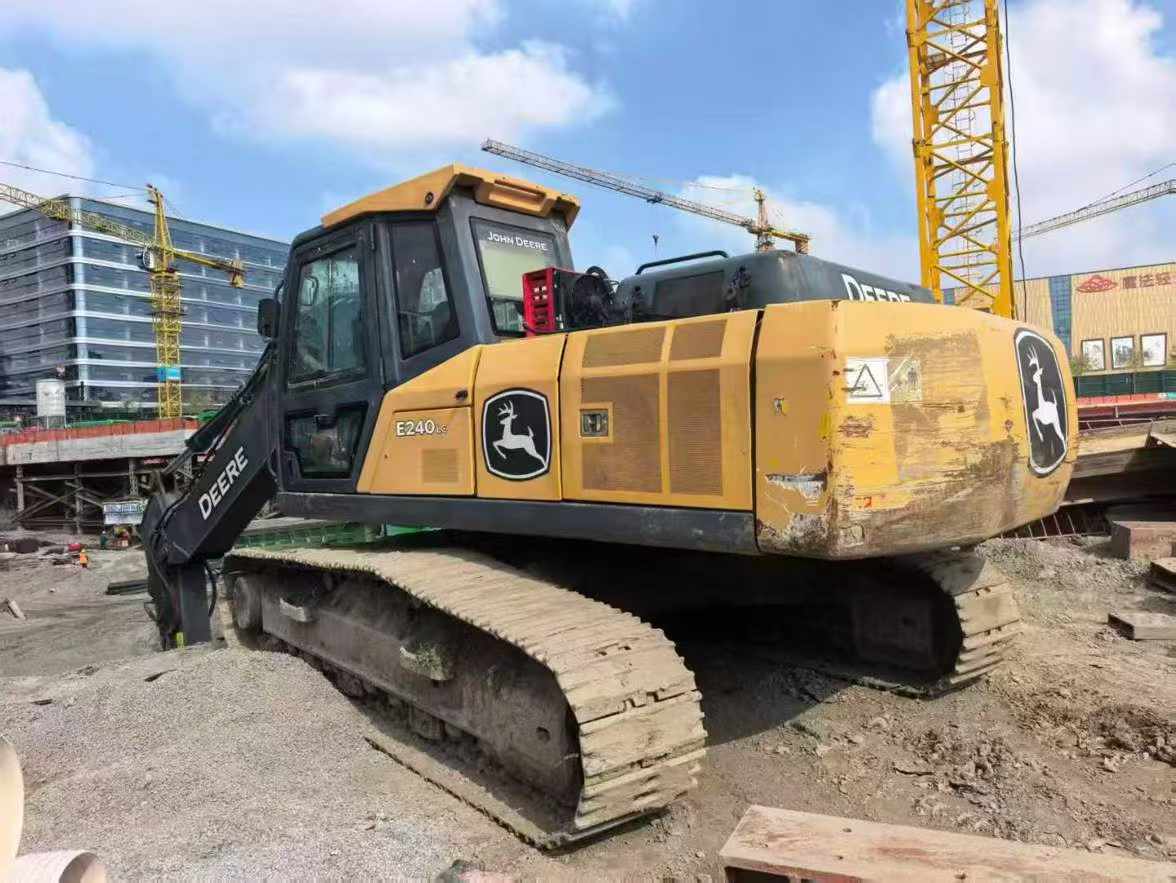

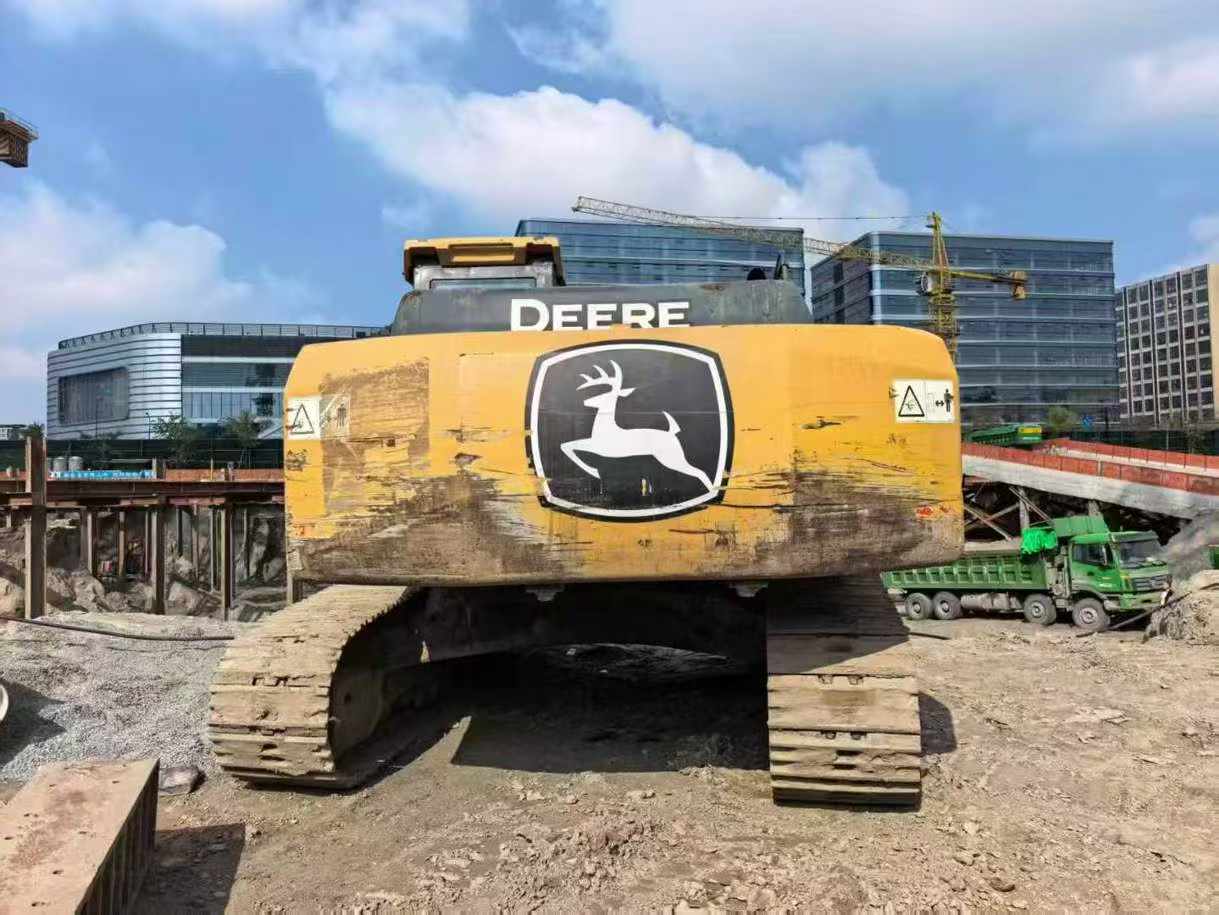

【 Premium Recommendation 】2021 John Deere 240 Second-hand excavator, in stock, only 83,000 yuan! This excavator has only worked for 1,500 hours since it left the factory and is almost in brand new condition. It adopts the highly efficient power system independently developed by John Deere, equipped with a powerful four-cylinder turbocharged engine with a maximum power output of 129 kilowatts. Not only is it powerful, but it also has excellent fuel economy, effectively reducing your operating costs. In terms of the hydraulic system, this model adopts advanced load-sensing hydraulic technology, ensuring smoothness and accuracy during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its unique intelligent control system can automatically adjust the throttle opening according to the actual working conditions, further enhancing work efficiency and fuel efficiency. This 240-model excavator is also equipped with a spacious and comfortable cab, offering a wide field of vision and easy operation. Even after long hours of work, you won't feel tired. More importantly, as a first-hand stock, we guarantee that the machine has no accident records and all maintenance and servicing are c
