| Specifications | Value |
|---|---|
| No. | 968172 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24200-25600 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 143/2000 |
| Maximum torque (N.m) | 927/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.8 |
| Working form | |
| Ground specific pressure (Kpa) | 53.1 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 134 |
| Maximum tractive force (kN) | 228 |
| Travel speed (km/h) | 3.4/5.7 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2 x 234 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 20 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 141 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 10180 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3346 |
| Full cab height (mm) | 3027 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 445 |
| Minimum turning radius of front working device (mm) | 4010 |
| Back end turning radius (mm) | 3100 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4262 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3834 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10370 |
| Maximum digging depth (mm) | 7160 |
| Maximum excavation height (mm) | 9810 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10140 |
Description

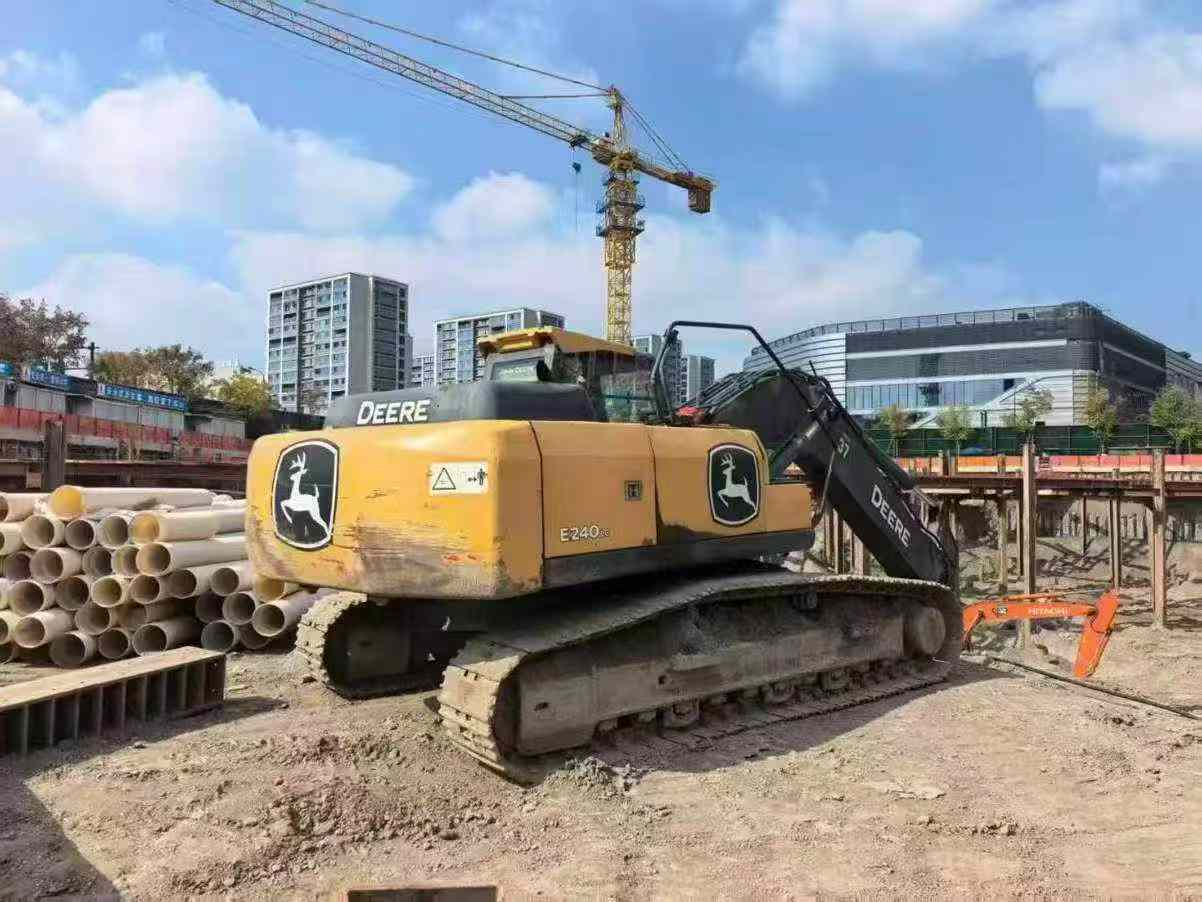

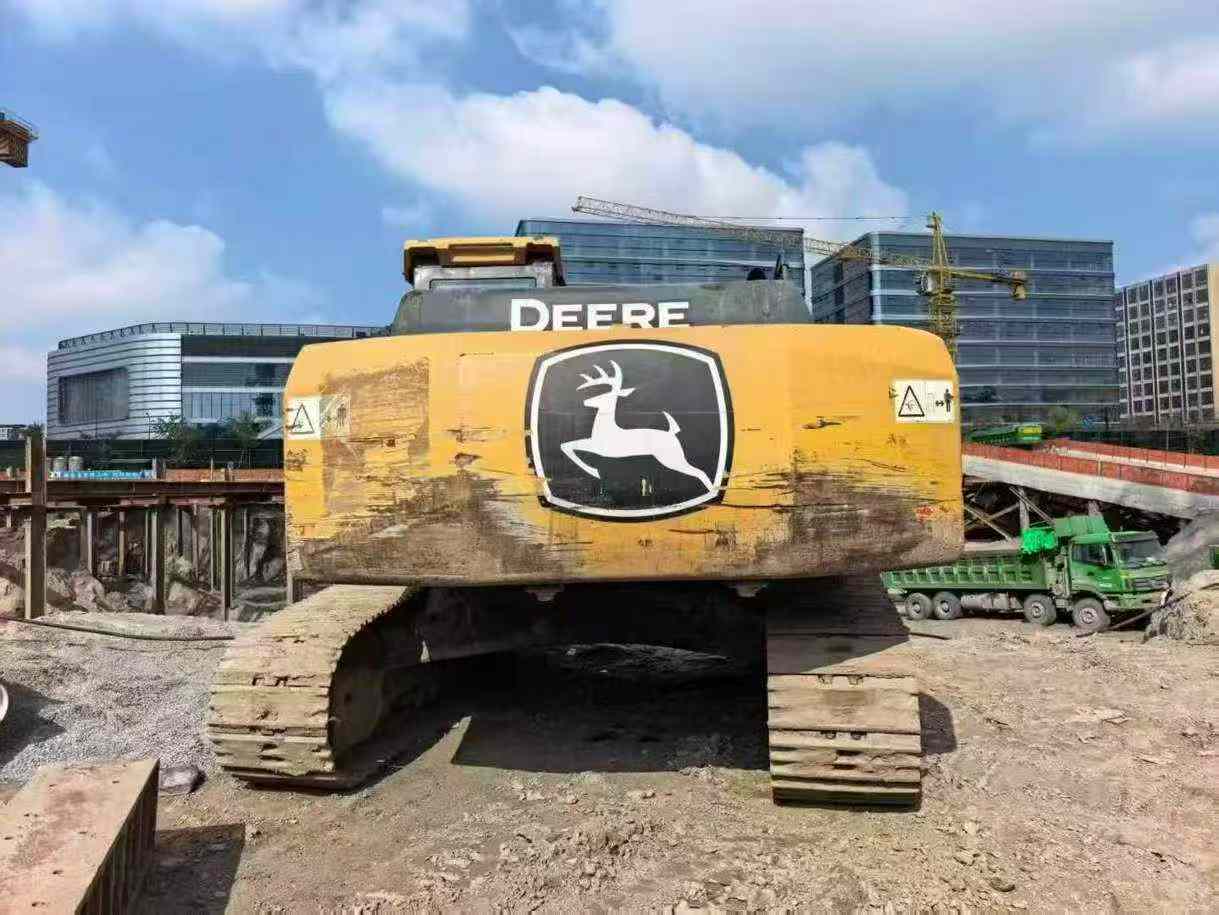

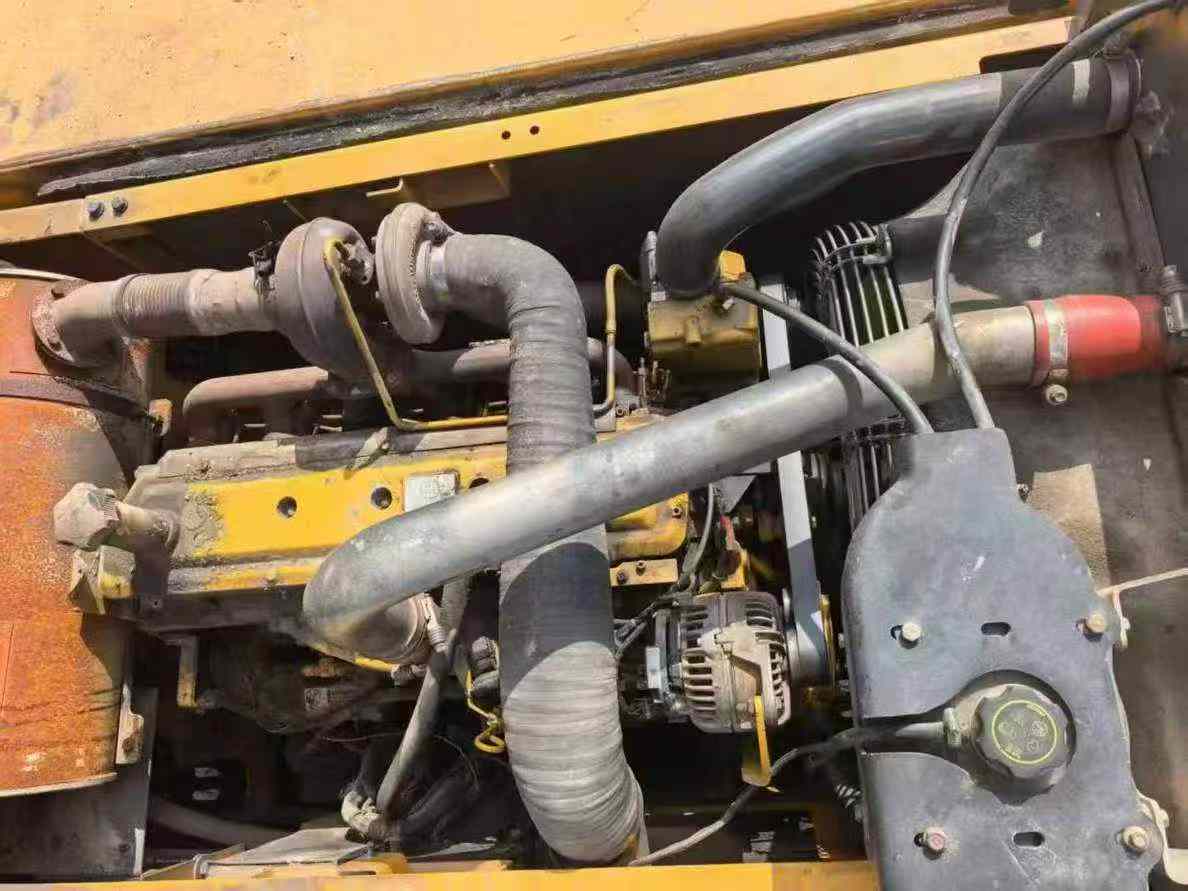

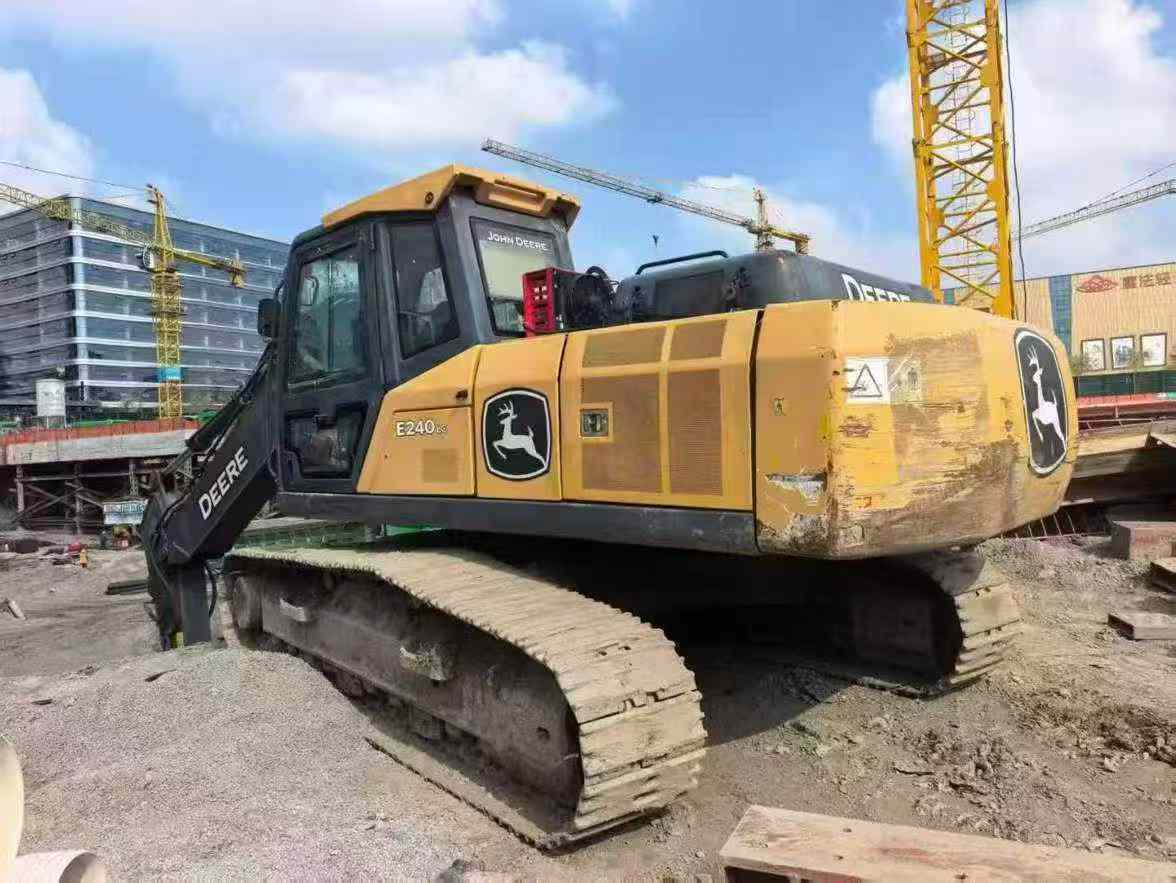

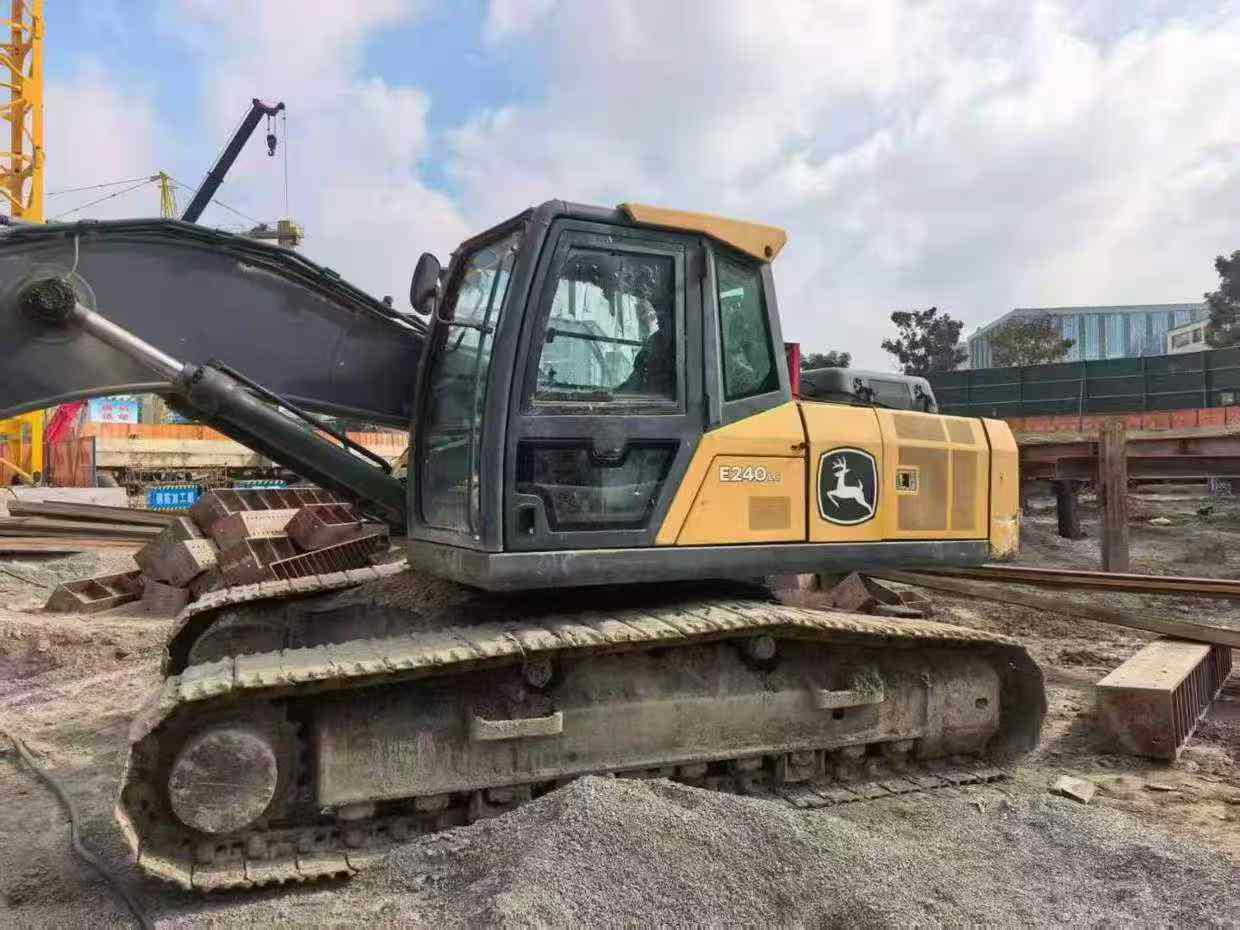

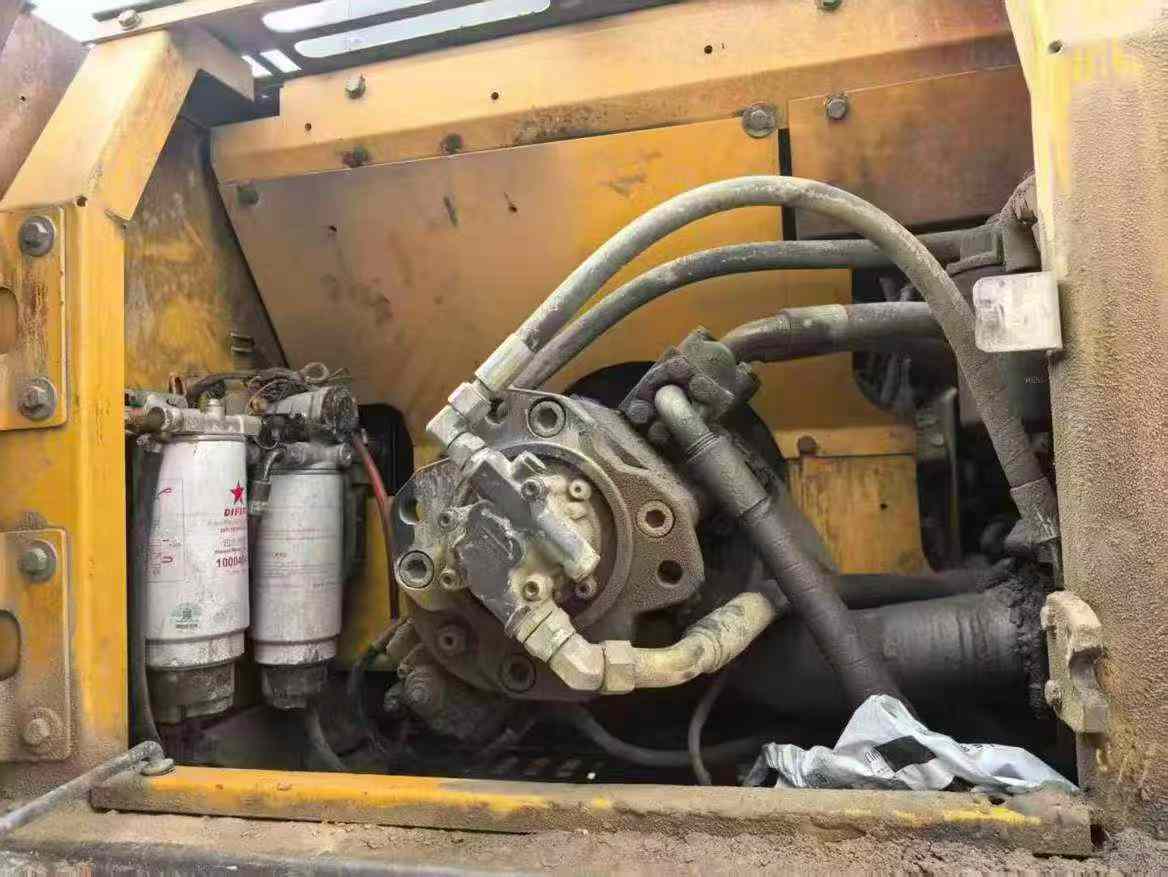

【 John Deere 240 Second-hand Excavator This second-hand John Deere 240 excavator can be taken over at a price of 80,000 yuan and is your ideal choice for earthwork and construction projects. The total working time of this machine is 3,500 hours, which is of medium usage intensity. The overall condition of the vehicle is good, with no major accident records. The appearance is clean and tidy, and the structural components are sturdy and durable. It has undergone comprehensive inspection and maintenance by a professional team, ensuring the reliability and safety of the equipment. In terms of power, the John Deere 240 is equipped with an efficient and energy-saving engine, with a maximum output power of up to 170 horsepower (approximately 125 kilowatts). It not only provides strong power support but also has excellent fuel economy, effectively reducing operating costs while ensuring work efficiency. In addition, the advanced electronic control system can automatically adjust the optimal operating state according to the actual working conditions, making the operation more convenient and smooth. The hydraulic system adopts the industry-leading variable pump technology and is equipped with precise electro-hydraulic proportional control val
