| Specifications | Value |
|---|---|
| No. | 968324 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 40900 - 41000 |
| Bucket capacity (m³) | 2.0-2.4 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200/2800 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 232 / 1900 |
| Maximum torque (N.m) | 1337 / 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.0 |
| Working form | |
| Ground specific pressure (Kpa) | 72.9 |
| Rotation speed (rpm) | 9.4 |
| Climbing ability (%) | |
| Bucket digging force (kN) | 243 |
| Rod digging force (kN) | 186-203 |
| Maximum tractive force (kN) | 336 |
| Travel speed (km/h) | 5.2 / 2.9 |
| Turning torque (Nm) | 118 |
| Maximum flow of main pump (l/min) | 2 x 304 |
| Traveling Hydraulic Circuit (Mpa) | 36.4 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 28.5 |
| Fuel Tank (L) | 600 |
| Hydraulic Tank (L) | 232 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 33 |
| Hydraulic System (L) | 466 |
| Total transport length (mm) | 11250 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3600 |
| Full cab height (mm) | 3440 |
| Counterweight ground clearance (mm) | 1550 |
| Minimum ground clearance (mm) | 770 |
| Minimum turning radius of front working device (mm) | 4370 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5210 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 11250/11040 |
| Maximum digging depth (mm) | 7400/7000 |
| Maximum excavation height (mm) | 10750/11010 |
| Maximum unloading height (mm) | 7391/7520 |
| Maximum vertical digging depth (mm) | 6210/6200 |
| Maximum excavation radius of stop surface (mm) | 10920/10720 |
Description

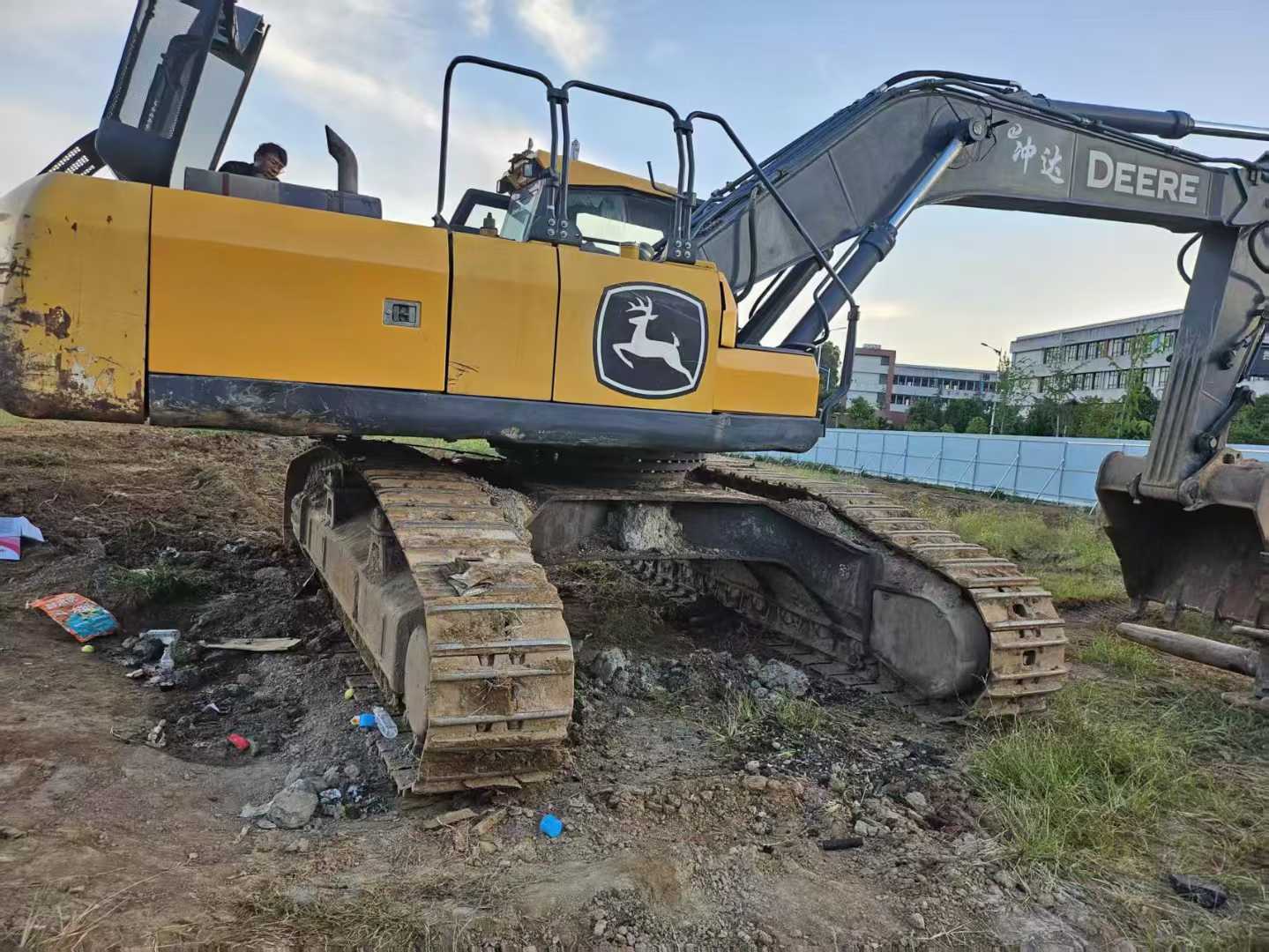

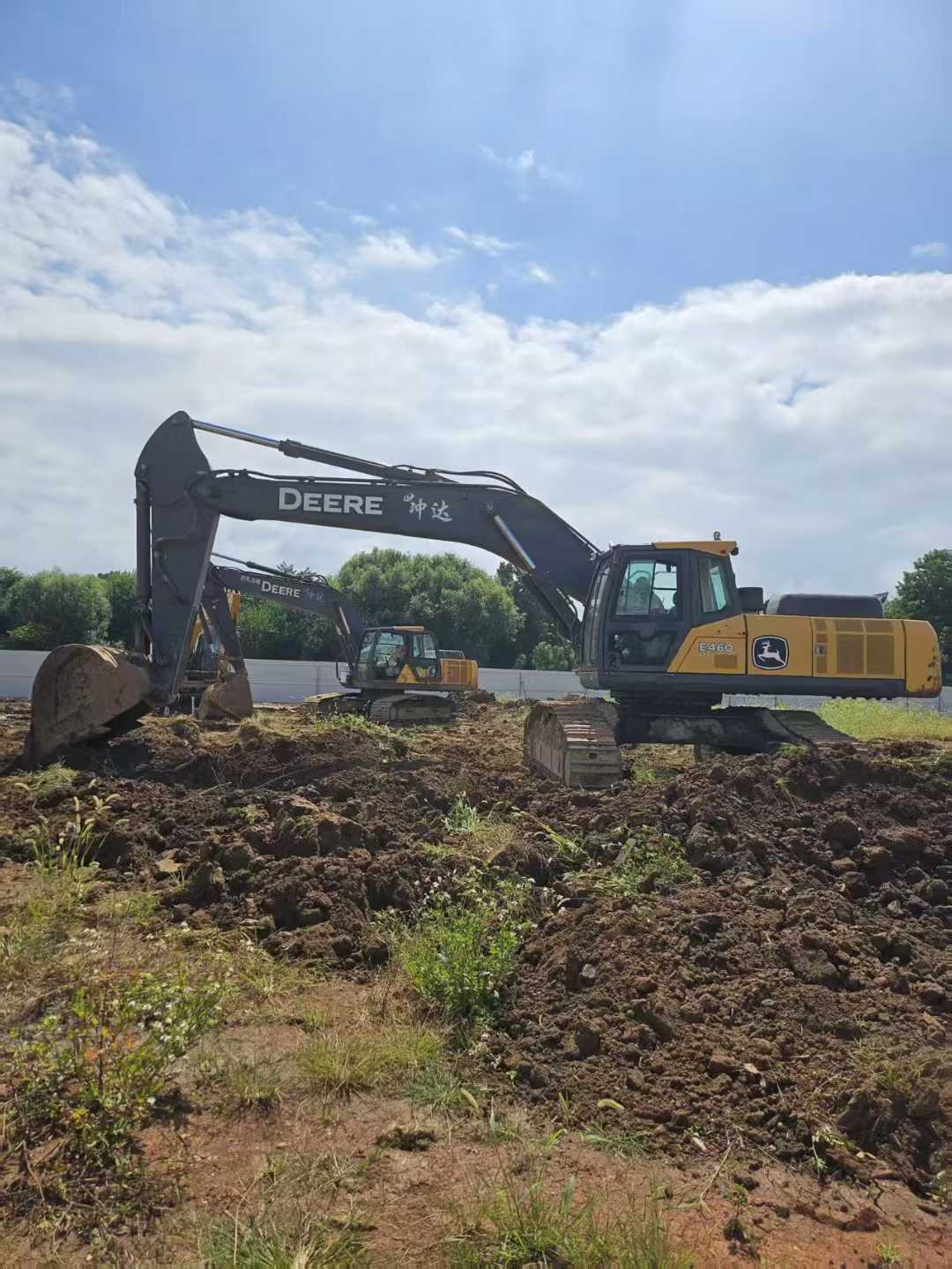

【 Premium Recommendation 】2018 John Deere 400 Second-hand excavator, available for on-site viewing at any time, Reasonable price! This John Deere 400 excavator from 2018 is a very popular medium-sized excavator in the market. It features outstanding performance and excellent durability, making it highly suitable for the usage requirements of various engineering projects. The working time of this equipment is only 3,500 hours. With proper maintenance, it is in good overall condition and shows almost no signs of wear and tear. In terms of the power system, this excavator is equipped with a high-performance engine independently developed by John Deere, which features strong power output and smooth operation performance. Whether facing hard rocks or soft soil, it can handle them with ease, ensuring operational efficiency while significantly reducing fuel consumption costs. In addition, its advanced fuel management system can effectively improve fuel economy and reduce operating costs. The hydraulic system is designed with the latest technology and features rapid response capability and high-precision control. It is more flexible and convenient to operate, and even beginners can quickly get the hang of it. More importantly, it can mainta
