| Specifications | Value |
|---|---|
| No. | 964067 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5870 |
| Rod length (mm) | 2960 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6D16-TE1 |
| Rated power (kw/rpm) | 125/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.545 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 156.9 (Standard mode) /174.6 (Extra mode) |
| Rod digging force (kN) | 112.8 (Standard mode) /125.5 (Extra mode) |
| Travel speed (km/h) | 2.7/3.9/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 249 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 25.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10080 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3120 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 3100 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10170 |
| Maximum effective digging depth (mm) | 6850 |
Description

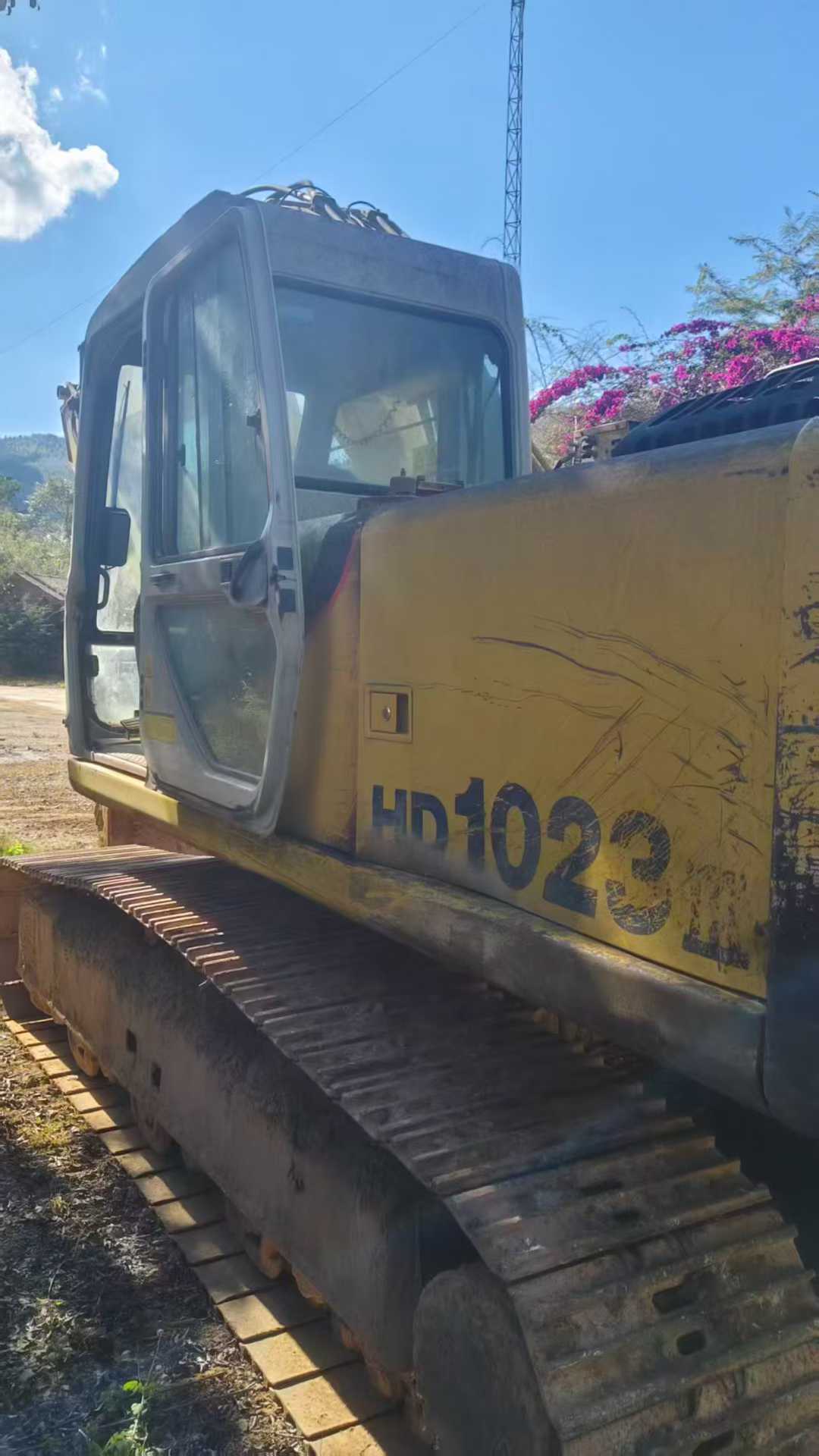

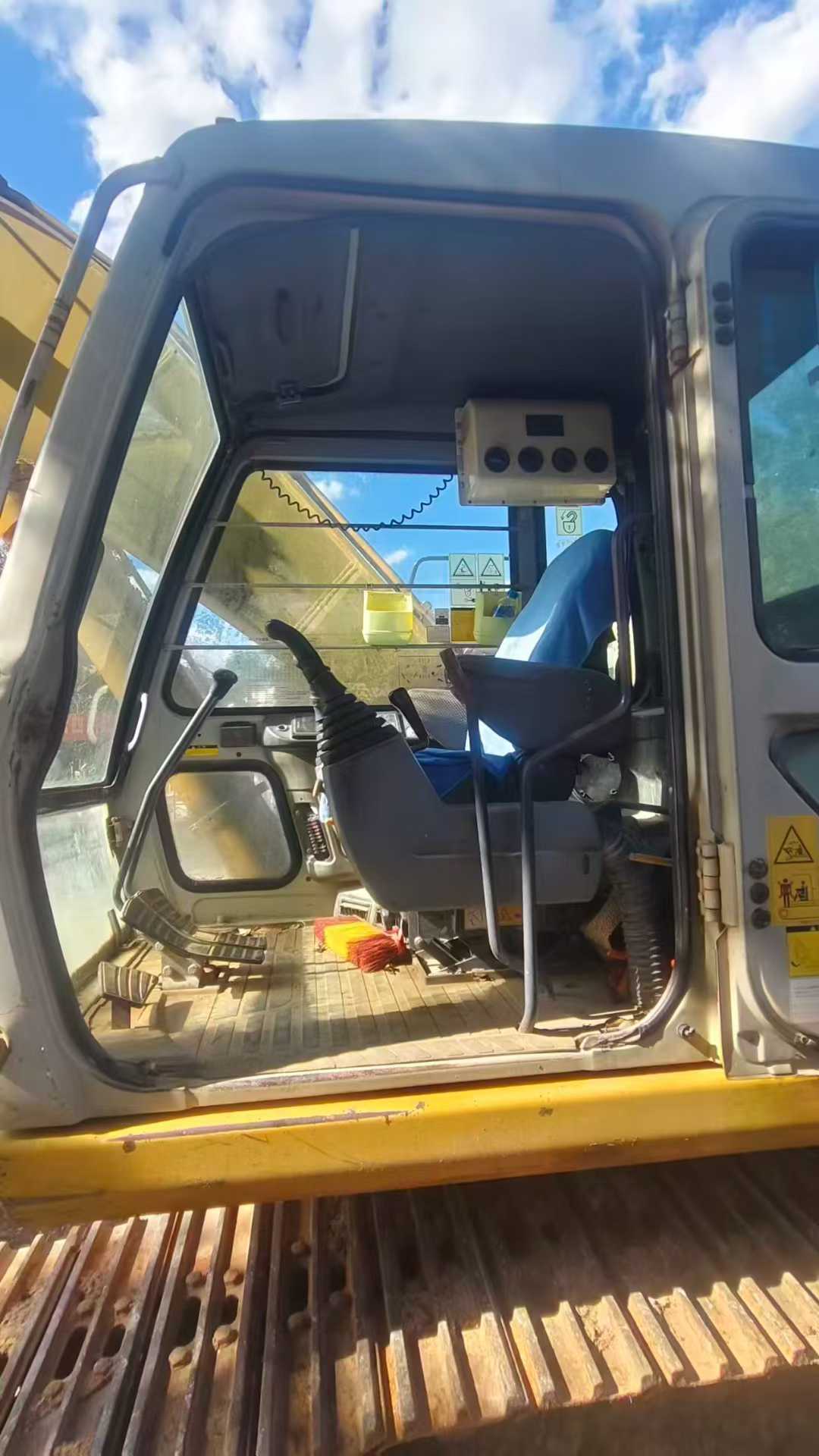

【 Kato 1023 second-hand excavator, on-site viewing available at any time This second-hand Kato 1023 excavator has only accumulated 4,500 hours of working time since it was put into use, which is far lower than the average service life of similar equipment. This means that it is still in the best working condition and has a relatively long service life. In terms of appearance, the body paint is in good condition with only slight wear and tear. The overall structure is stable without deformation. The cab is spacious and bright with a wide field of vision, providing a comfortable working environment for the operator. In terms of the power system, this machine is equipped with an efficient and reliable original imported engine, which not only has strong power but also excellent fuel economy, and can easily handle the heavy-load operation requirements under various complex working conditions. In addition, this model is equipped with advanced electronic control injection technology, ensuring that the engine can achieve the best performance under different load conditions, while reducing emission pollution and meeting environmental protection requirements. The hydraulic system is another highlight of this excavator. The combination of high
