Product Description

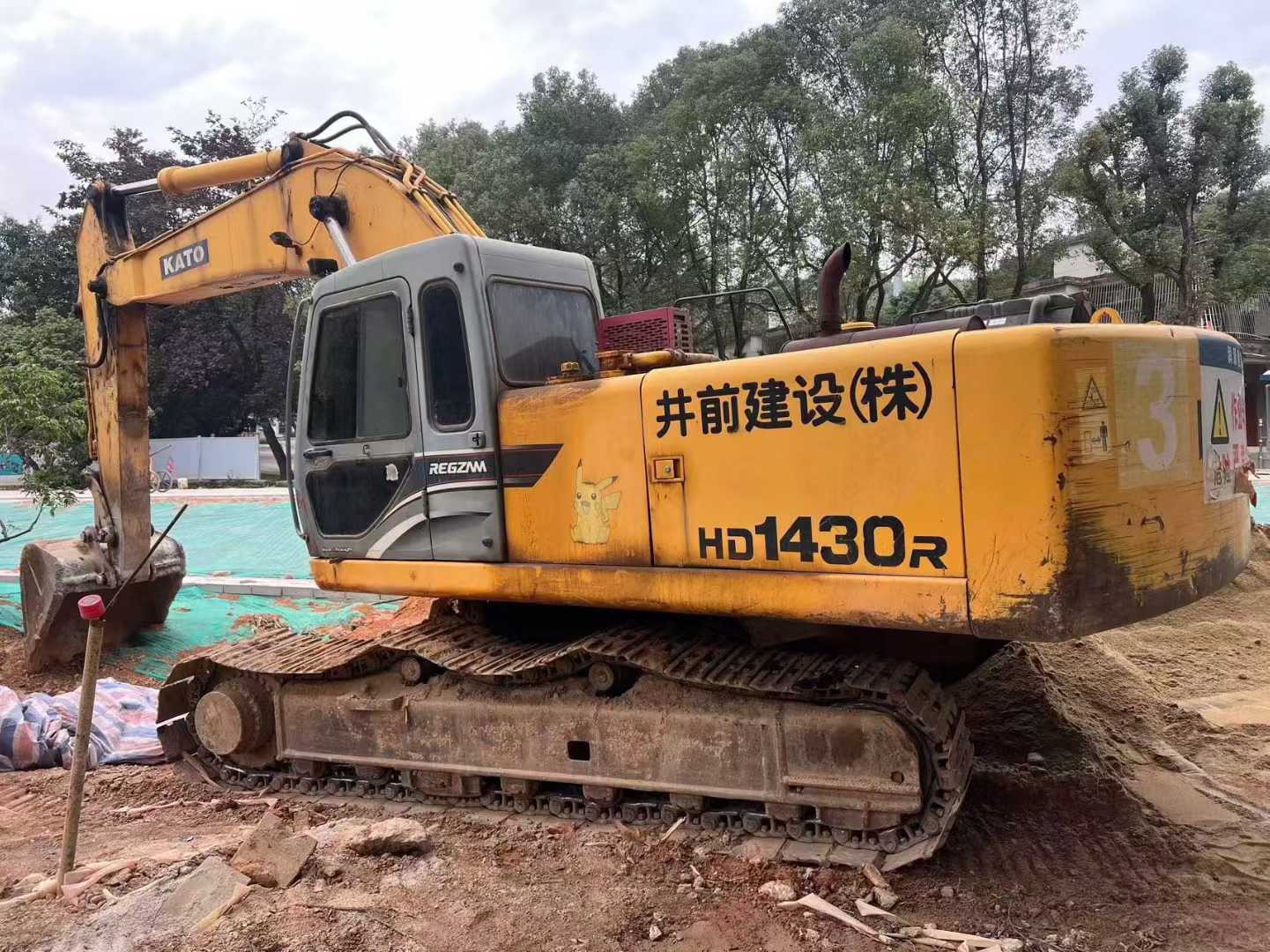

This second-hand Kato 1430R excavator is highly favored in the market for its outstanding performance and excellent durability. The equipment operates for only 5,000 hours, ensuring its good mechanical condition and long service life. In terms of the power system, this excavator is equipped with an efficient engine (expected model: Cummins 6BTAA), with a maximum power output of 120 horsepower. It not only provides strong power output but also has excellent fuel economy, reducing operating costs. The hydraulic system is a major highlight of this excavator. It is equipped with high-quality hydraulic pumps and hydraulic motors, ensuring stability and accuracy during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease and meet the demands of various complex working conditions. In addition, this model adopts advanced load sensing technology, which can automatically adjust the hydraulic flow according to the actual load, further improving work efficiency and reducing energy consumption. The design of the Kato 1430R excavator fully takes into account the user experience and maintenance convenience. The spacious and comfortable cab provides an excellent operating view, while the easy-to-maintain
| Specifications | Value |
|---|---|
| No. | 977148 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

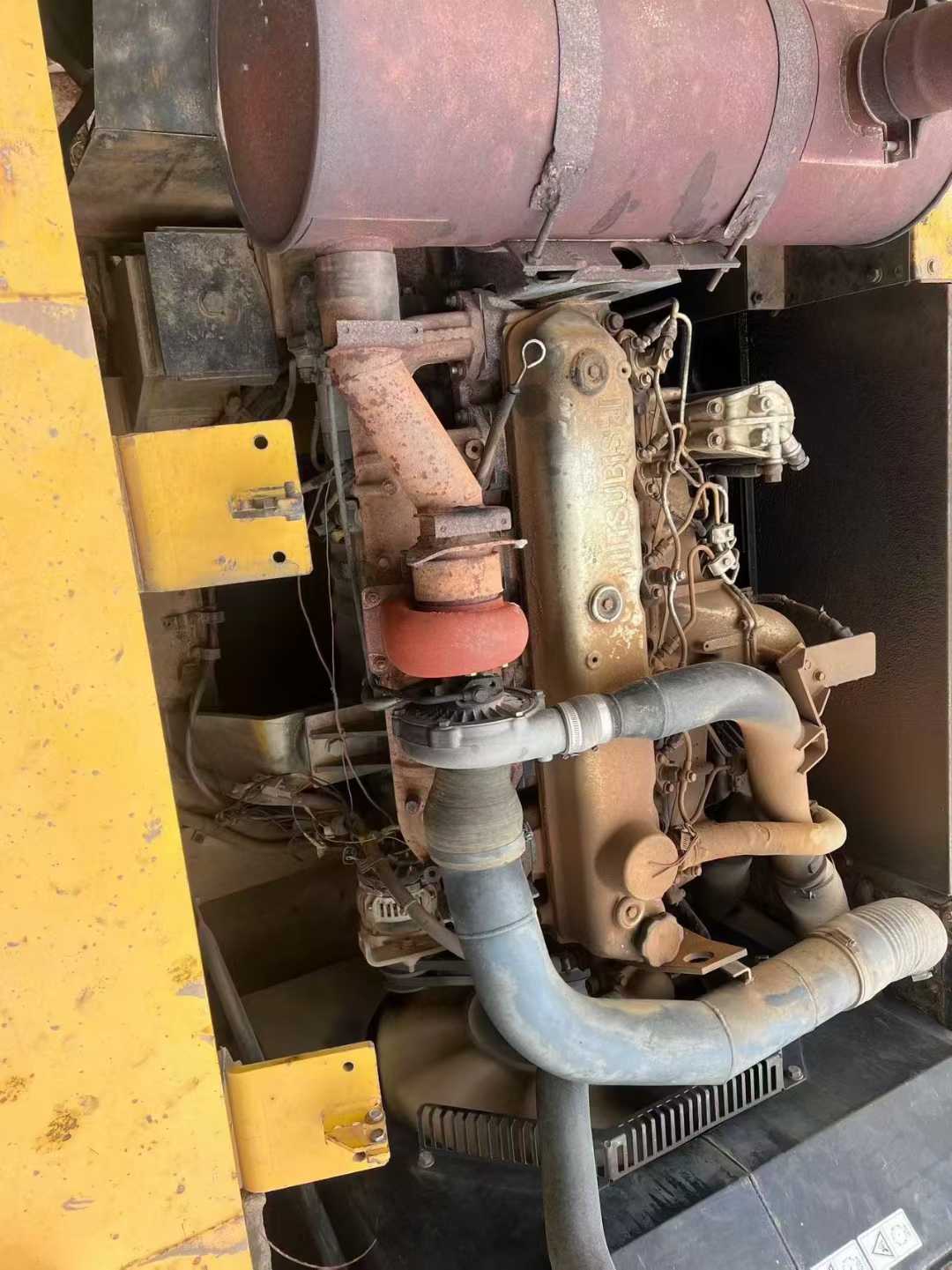

| Engine type | Mitsubishi 6D16-TLC1A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 225 (Standard mode) /236 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /167 (Power mode) |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 301 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 37 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3380 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11160 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7310 |
| Maximum vertical digging depth (mm) | 5920 |
