| Specifications | Value |
|---|---|
| No. | 962342 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31000 |
| Bucket capacity (m³) | 1.1-1.8 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6M60-TLE3A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 224 (Standard mode) /235 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /166 (Power mode) |
| Travel speed (km/h) | 3.9/5.7 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 307 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 404 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3370 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7450 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7280 |
| Maximum vertical digging depth (mm) | 5950 |
Description

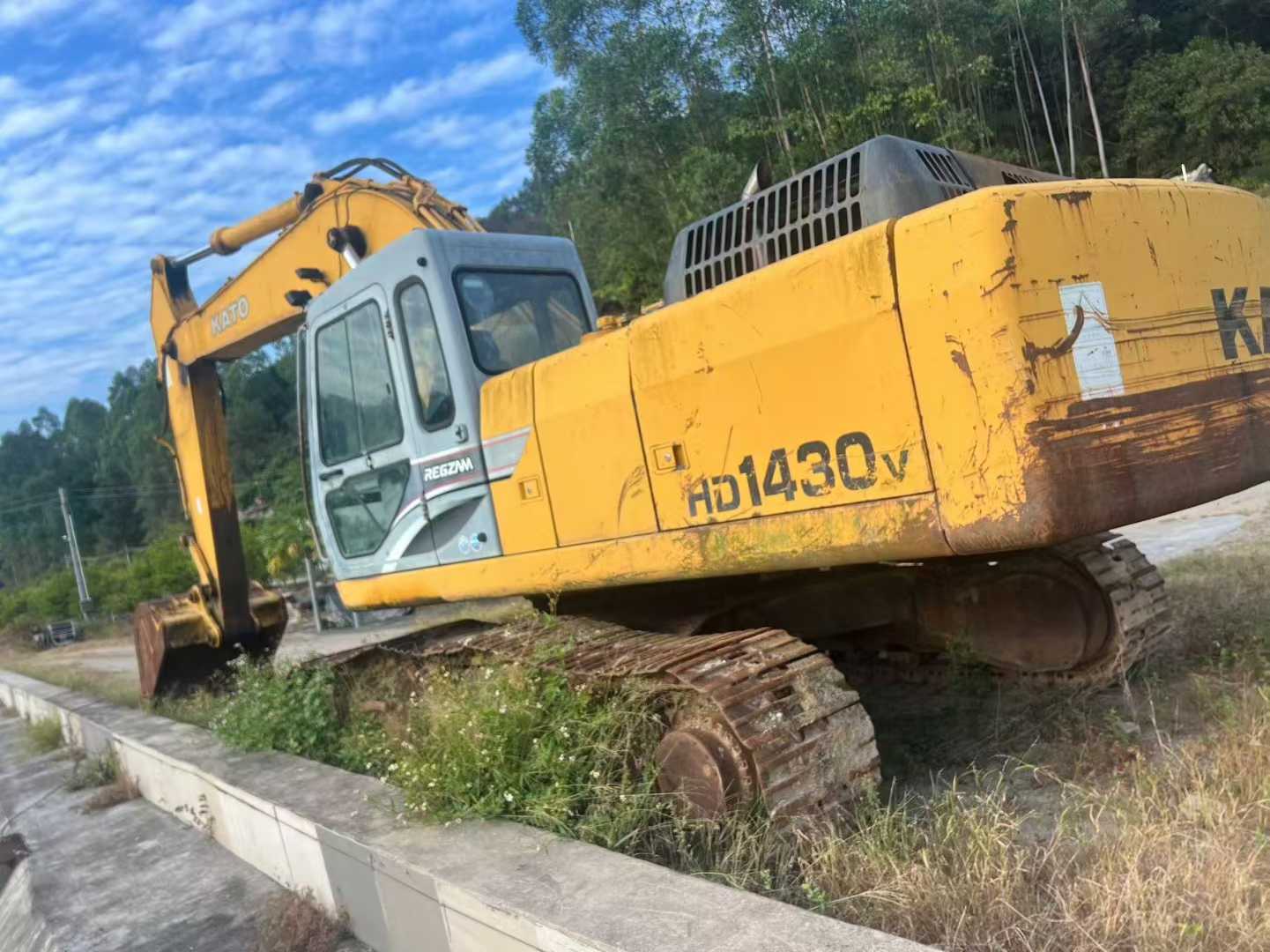

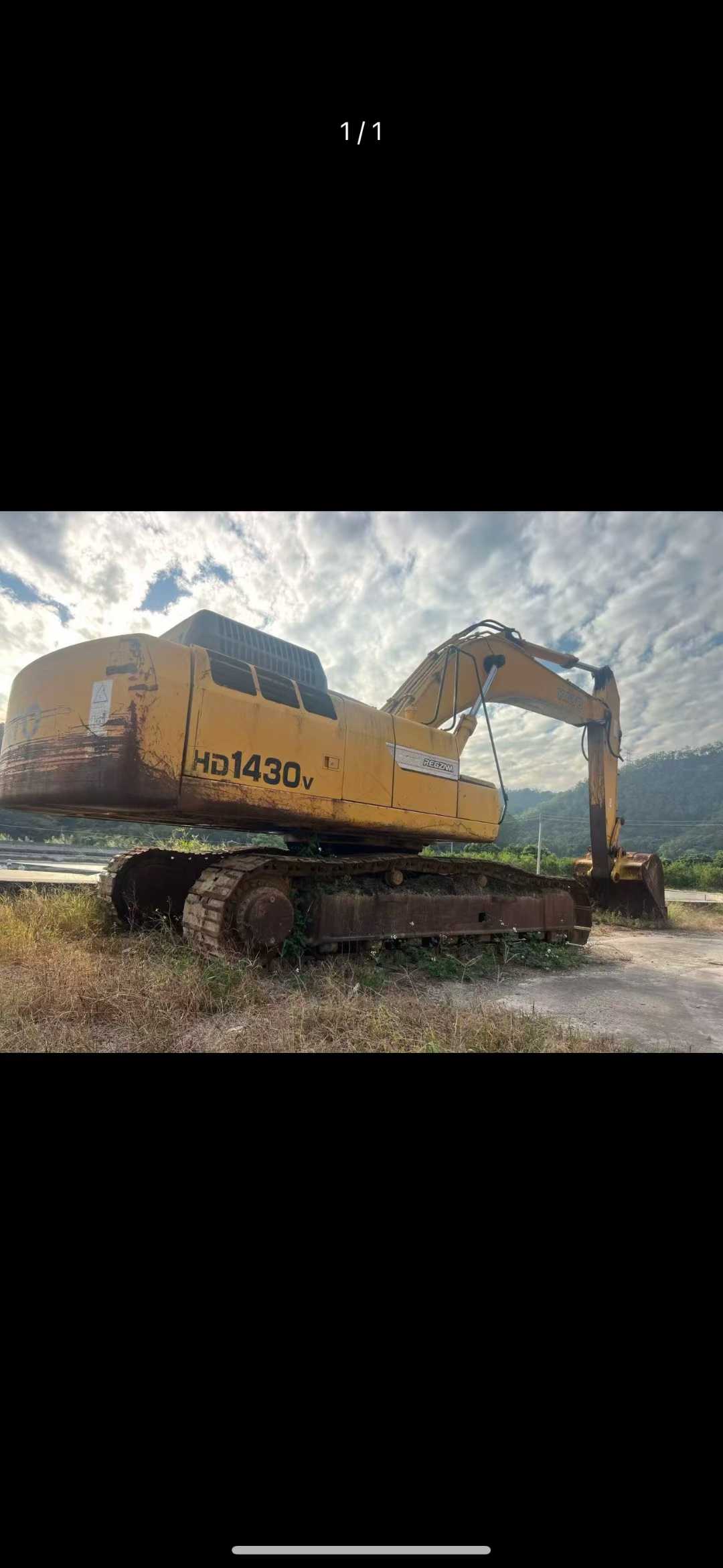

【 Kato 1430V Second-hand Excavator This second-hand Kato 1430V excavator is one of the highly praised medium-sized excavators in the market, featuring outstanding performance and reliability. Since its commissioning, the cumulative working time has been only 3,500 hours. The overall condition is good, with low mechanical wear and tear. It can almost be regarded as a nearly new car condition and is very suitable for buyers who pursue cost performance. In terms of the power system, this device is equipped with a high-performance diesel engine, featuring strong power output and smooth operation characteristics. In the actual operation process, whether it is excavation, loading or crushing operations, it can easily handle various complex working conditions and demonstrate outstanding working efficiency. In addition, its advanced fuel management system effectively reduces fuel consumption, saving users a significant amount of operating costs. The hydraulic system adopts the industry-leading electrically controlled proportional valve technology, ensuring rapid response and precise control of actions. Whether it is meticulous excavation or rapid rotation, a smooth transition can be achieved, significantly enhancing the construction quality
