Product Description

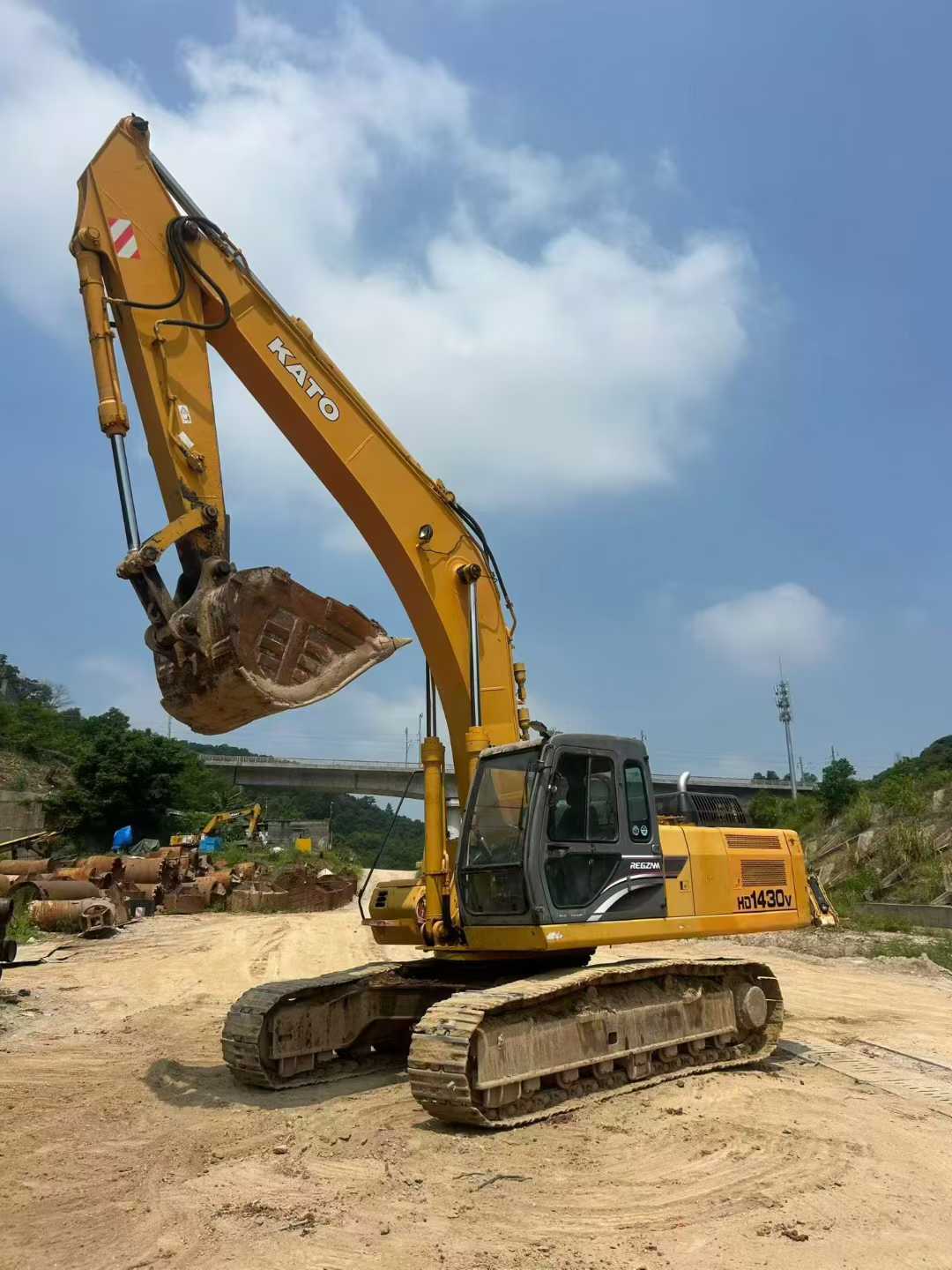

【 Premium Recommendation 】 Kato 1430V second-hand excavator, original imported whole machine, excellent quality and stable performance. This equipment has maintained a good maintenance condition from beginning to end and has never undergone any major repairs or modifications, ensuring its original mechanical performance and structural integrity. The cumulative working time is only 2,500 hours, which is far lower than the average service life of similar models. It is almost in a nearly new state and has an extremely long service life. In terms of the power system, this excavator is equipped with an efficient and energy-saving engine, which not only has strong power but also good fuel economy. Even in harsh working conditions, it can easily handle various challenges. Meanwhile, it is also equipped with an advanced electronic control system, which can achieve precise control and rapid response, ensuring the maximization of operational efficiency. The hydraulic system adopts core components of internationally renowned brands, featuring high-precision flow distribution capabilities and outstanding stability. It can handle both excavation and loading with ease. More importantly, this system has been verified through long-term practice and
| Specifications | Value |
|---|---|
| No. | 971119 |
| Tonnage (tons) | 31 |
| Working weight (kg) | 31000 |
| Bucket capacity (m³) | 1.1-1.8 |
| Boom length (mm) | 6480 |
| Rod length (mm) | 3140 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 6M60-TLE3A |
| Rated power (kw/rpm) | 183/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 118 x 115 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.54 |
| Ground specific pressure (Kpa) | 62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 224 (Standard mode) /235 (Extra mode) |
| Rod digging force (kN) | 159 (Standard Mode) /166 (Power mode) |
| Travel speed (km/h) | 3.9/5.7 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 307 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1230 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1840 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1450 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 404 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3370 |
| Full cab height (mm) | 3020 |
| Counterweight ground clearance (mm) | 1130 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4640 |
| Back end turning radius (mm) | 3460 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3760 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7450 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7280 |
| Maximum vertical digging depth (mm) | 5950 |
