2016 Kato HD1430V

1/6

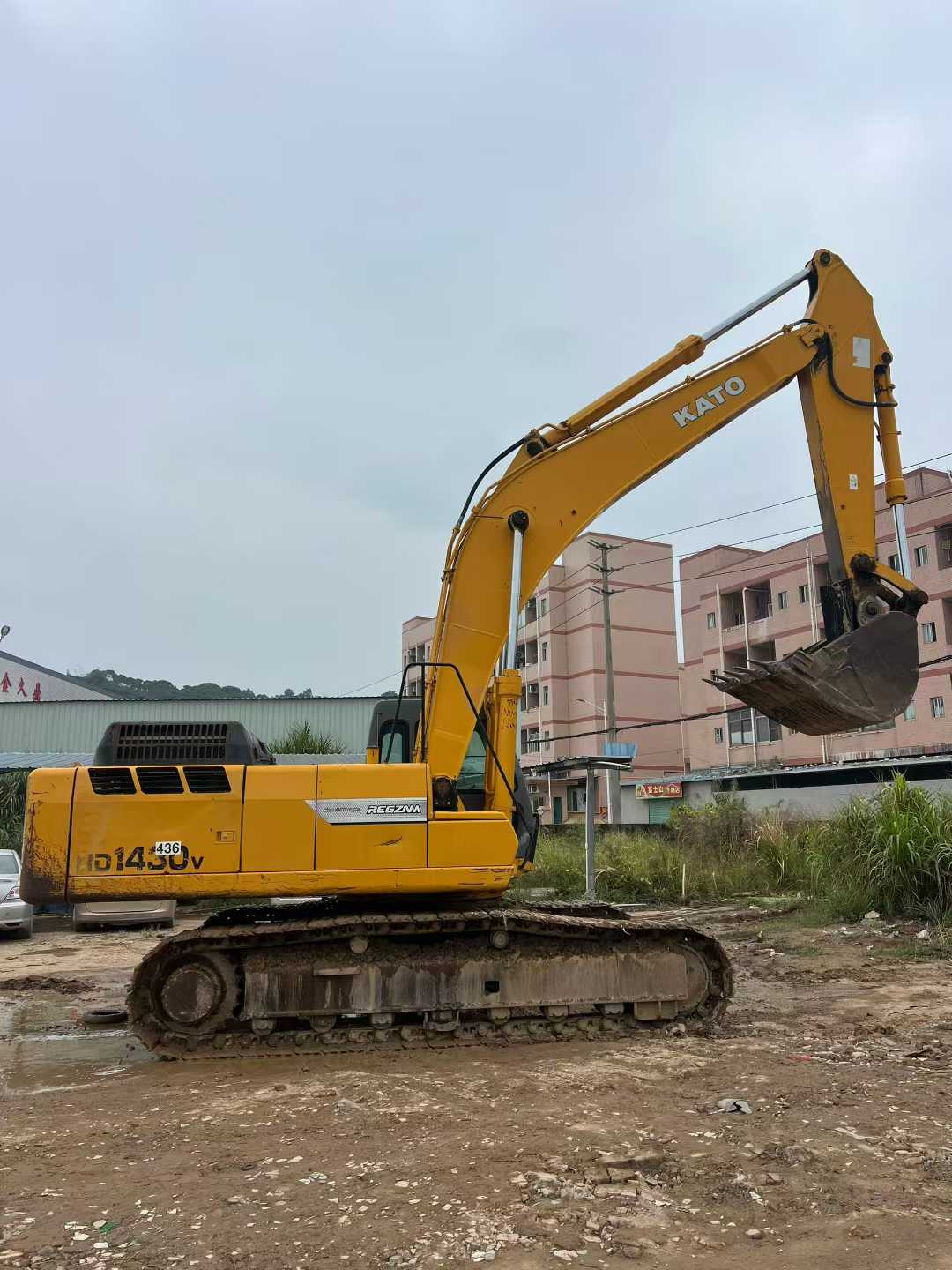

Used Kato HD1430V Excavator 2016 Model / 1
Used Kato HD1430V Excavator 2016 Model / 2
Used Kato HD1430V Excavator 2016 Model / 3
Used Kato HD1430V Excavator 2016 Model / 4

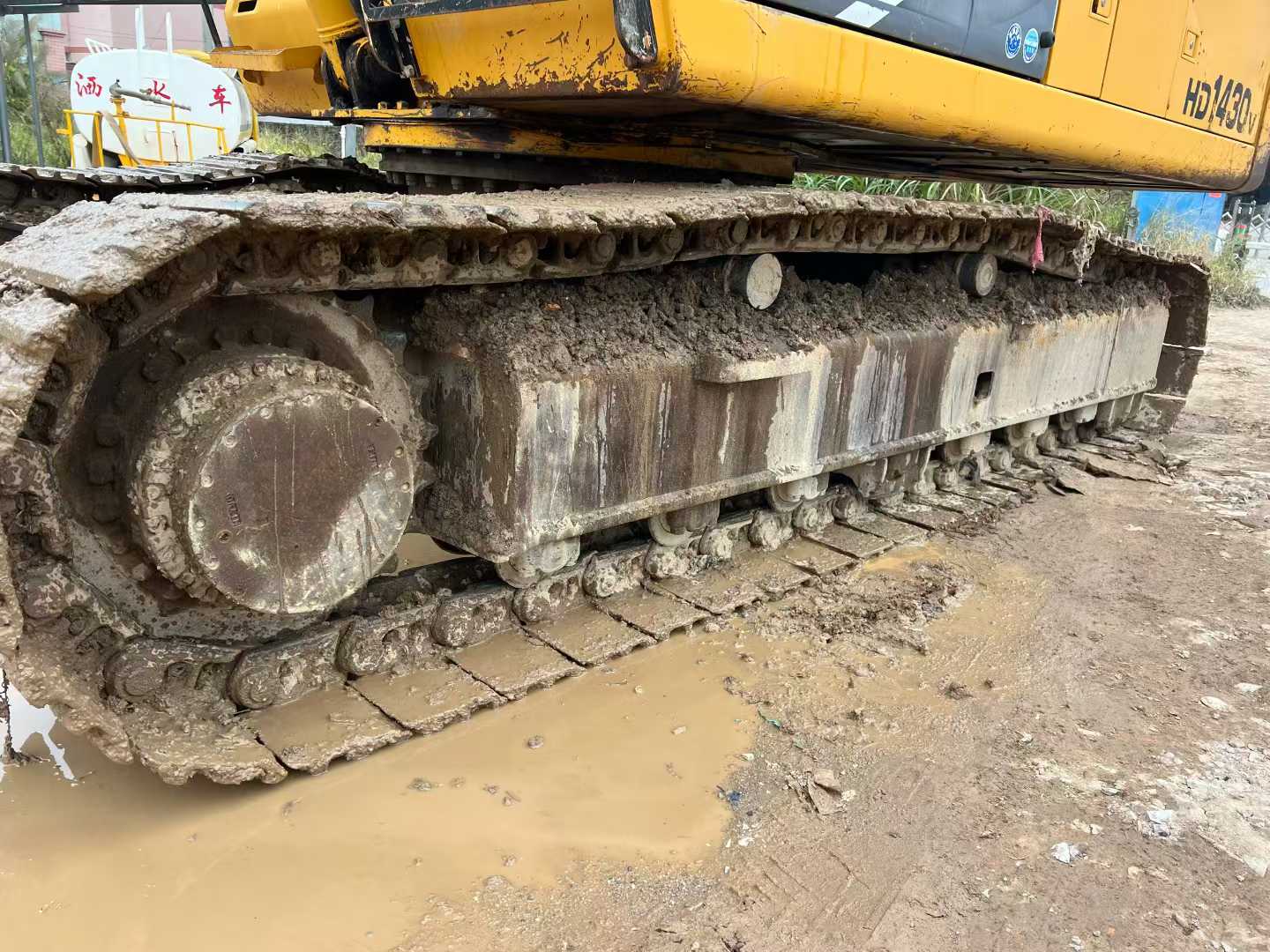

Used Kato HD1430V Excavator 2016 Model / 5

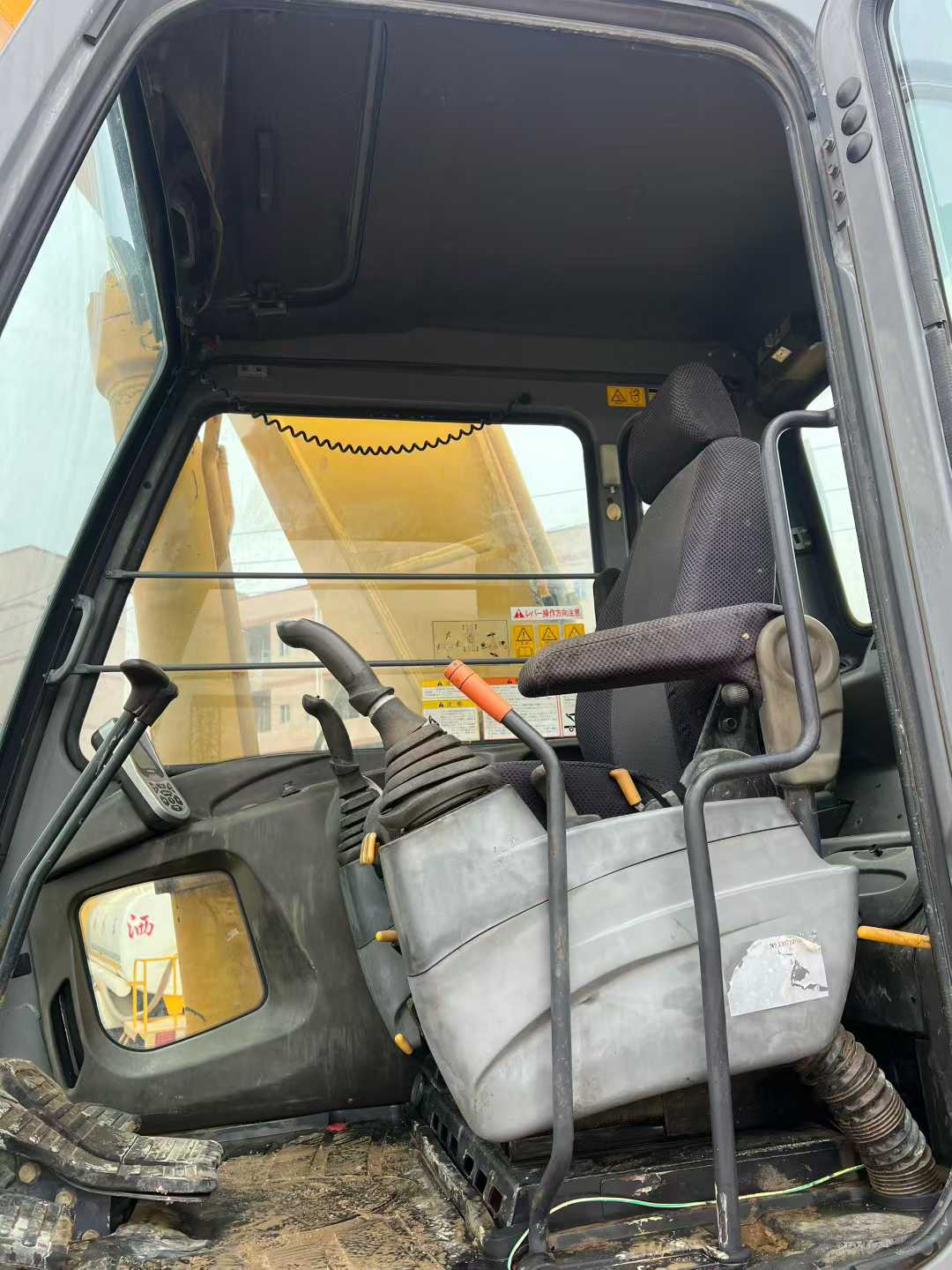

Used Kato HD1430V Excavator 2016 Model / 6

Product Description

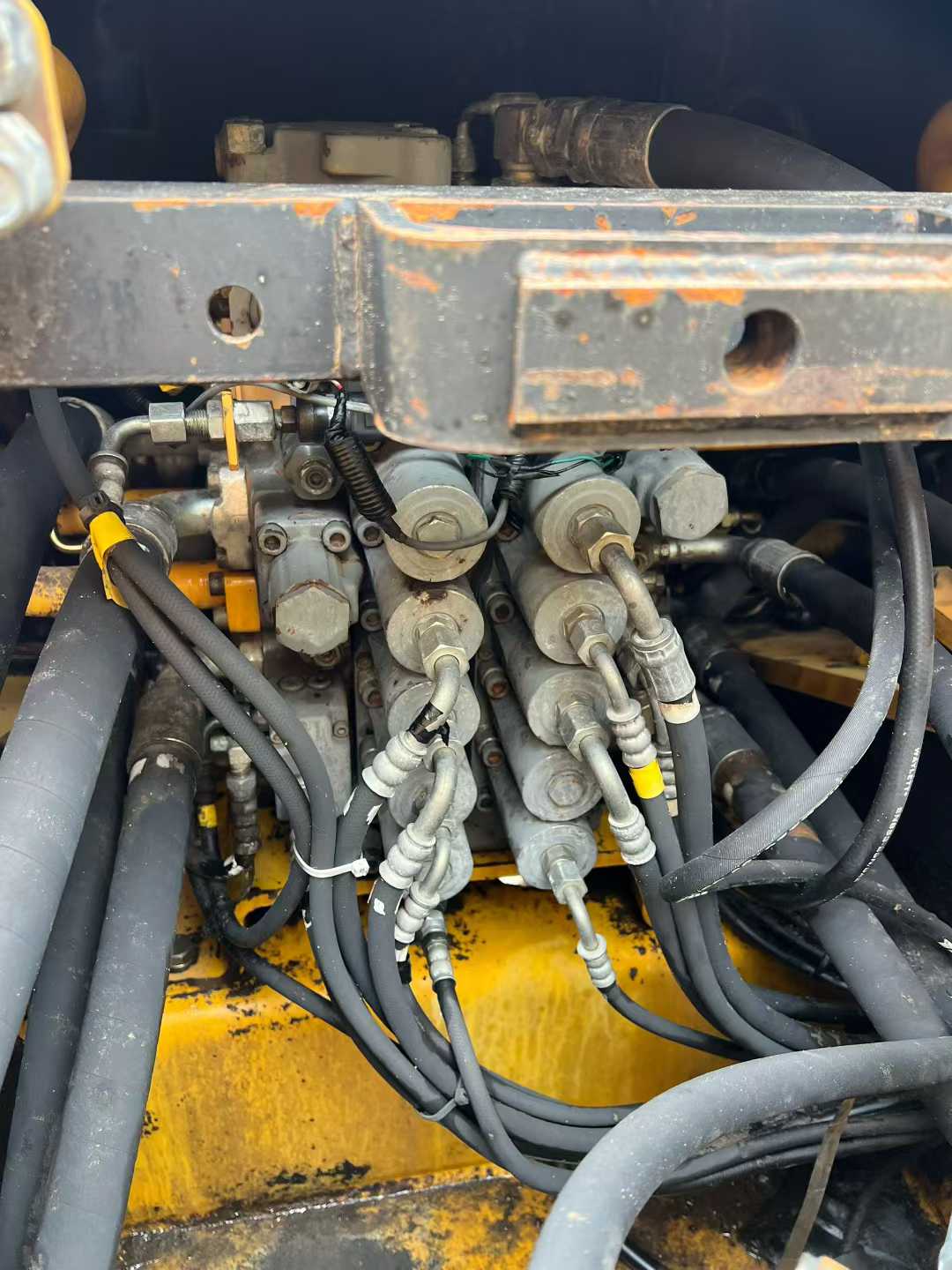

This Kato 1430V excavator is highly praised in the market for its outstanding performance and reliable quality. The working time of this equipment is only a few thousand hours, ensuring its good mechanical condition and long service life. In terms of the power system, it is equipped with a high-performance engine (the model may be a high-performance diesel engine that meets industry standards), providing strong power output. The maximum power is expected to be between 200 and 250 horsepower, ensuring outstanding performance under various complex working conditions. The hydraulic system is a major highlight of this excavator. It adopts an advanced combination of hydraulic pumps and hydraulic motors, which not only responds quickly but also operates smoothly. It can achieve precise control while greatly improving work efficiency. In addition, after professional maintenance and upkeep, the entire hydraulic system operates in an excellent condition with almost no leakage, demonstrating its outstanding sealing performance and durability. As a second-hand device, this Kato 1430V excavator retains all the advantages of the original factory design: a sturdy and durable structure, a spacious and comfortable cab, and an easy-to-maintain design

SpecificationsValue
No.979285
Tonnage (tons)31
Working weight (kg)31000
Bucket capacity (m³)1.1-1.8
Boom length (mm)6480
Rod length (mm)3140
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

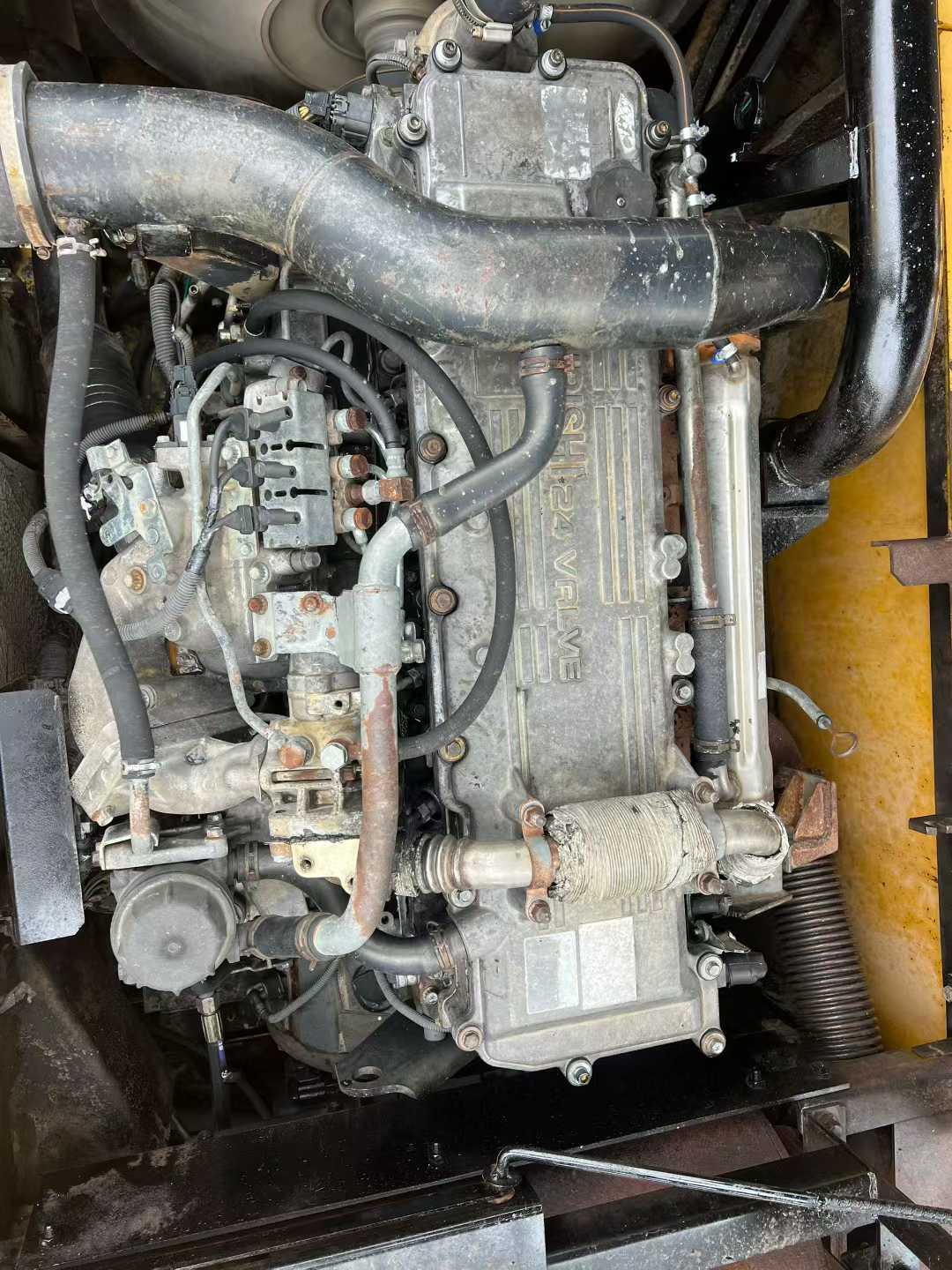

Engine typeMitsubishi 6M60-TLE3A
Rated power (kw/rpm)183/2150
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7.54
Ground specific pressure (Kpa)62
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)224 (Standard mode) /235 (Extra mode)
Rod digging force (kN)159 (Standard Mode) /166 (Power mode)
Travel speed (km/h)3.9/5.7
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)307 x 2
Traveling Hydraulic Circuit (Mpa)32.9
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4
Bucket cylinders - Number × diameter × stroke (mm)1-150 x 1230
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1840
Boom cylinders - Number × diameter × stroke (mm)2-150 x 1450
Fuel Tank (L)650
Hydraulic Tank (L)200
Engine Oil changes (L)32
Coolant (L)44
Hydraulic System (L)404
Total transport length (mm)11200
Total transport width (mm)3190
Total transport height (mm)3370
Full cab height (mm)3020
Counterweight ground clearance (mm)1130
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4640
Back end turning radius (mm)3460
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3760
Maximum digging radius (mm)11180
Maximum digging depth (mm)7450
Maximum excavation height (mm)10330
Maximum unloading height (mm)7280
Maximum vertical digging depth (mm)5950
see more

Overview

No.979285

Brand Name:

Kato

Model Number:

HD1430V

Year:

2016

Location:

Guangdong China
