| Specifications | Value |
|---|---|
| No. | 963045 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6400 |
| Bucket capacity (m³) | 0.12-0.34 |
| Boom length (mm) | 3690 |
| Rod length (mm) | 1720 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

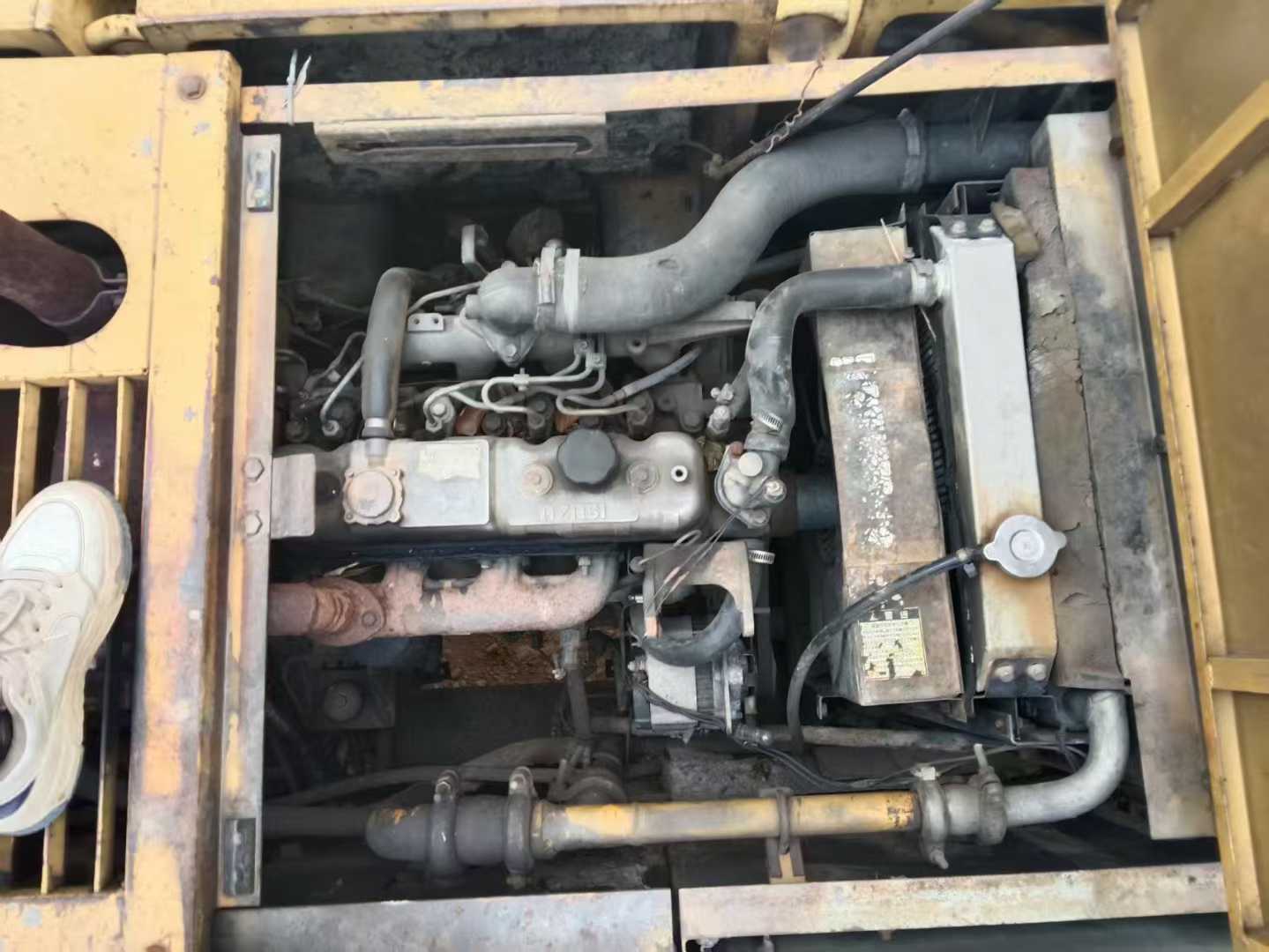

| Engine type | ISUZU A-4JB1 |
| Rated power (kw/rpm) | 42/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 93 x 102 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.771 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30.4 |
| Rotation speed (rpm) | 13 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 57.9 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 3.7/5.5 |
| Rotary hydraulic motor type | Constant piston motor |
| Type of walking hydraulic motor | Variable capacity piston motor |
| Maximum flow of main pump (l/min) | 82 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 24.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-90 x 745 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-100 x 925 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-115 x 975 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 65 |
| Engine Oil changes (L) | 8 |
| Coolant (L) | 9.5 |
| Hydraulic System (L) | 105 |
| Total transport length (mm) | 6370 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2610 |
| Full cab height (mm) | 2560 |
| Counterweight ground clearance (mm) | 730 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1640 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2730 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2300 |
| Track ground length (mm) | 2120 |
| Maximum digging radius (mm) | 6430 |
| Maximum digging depth (mm) | 4210 |
| Maximum excavation height (mm) | 7400 |
| Maximum unloading height (mm) | 5280 |
| Maximum vertical digging depth (mm) | 3740 |
| Bulldozer lift or depth (mm) | 480/450 |
| Dodging plate width × height (mm) | 2300 x 420 |
| Maximum excavation radius of stop surface (mm) | 6280 |
| Maximum effective digging depth (mm) | 3880 |
Description

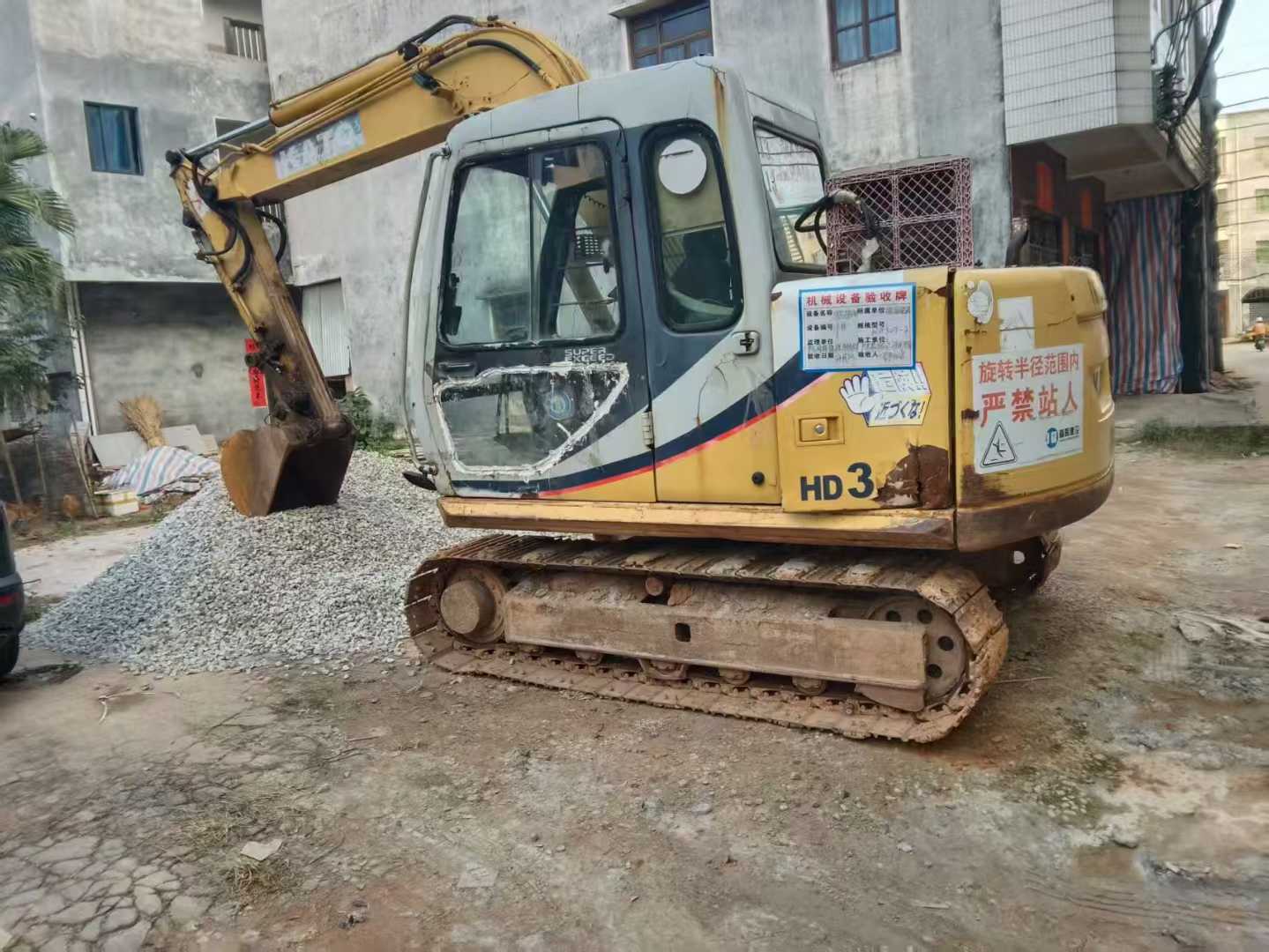

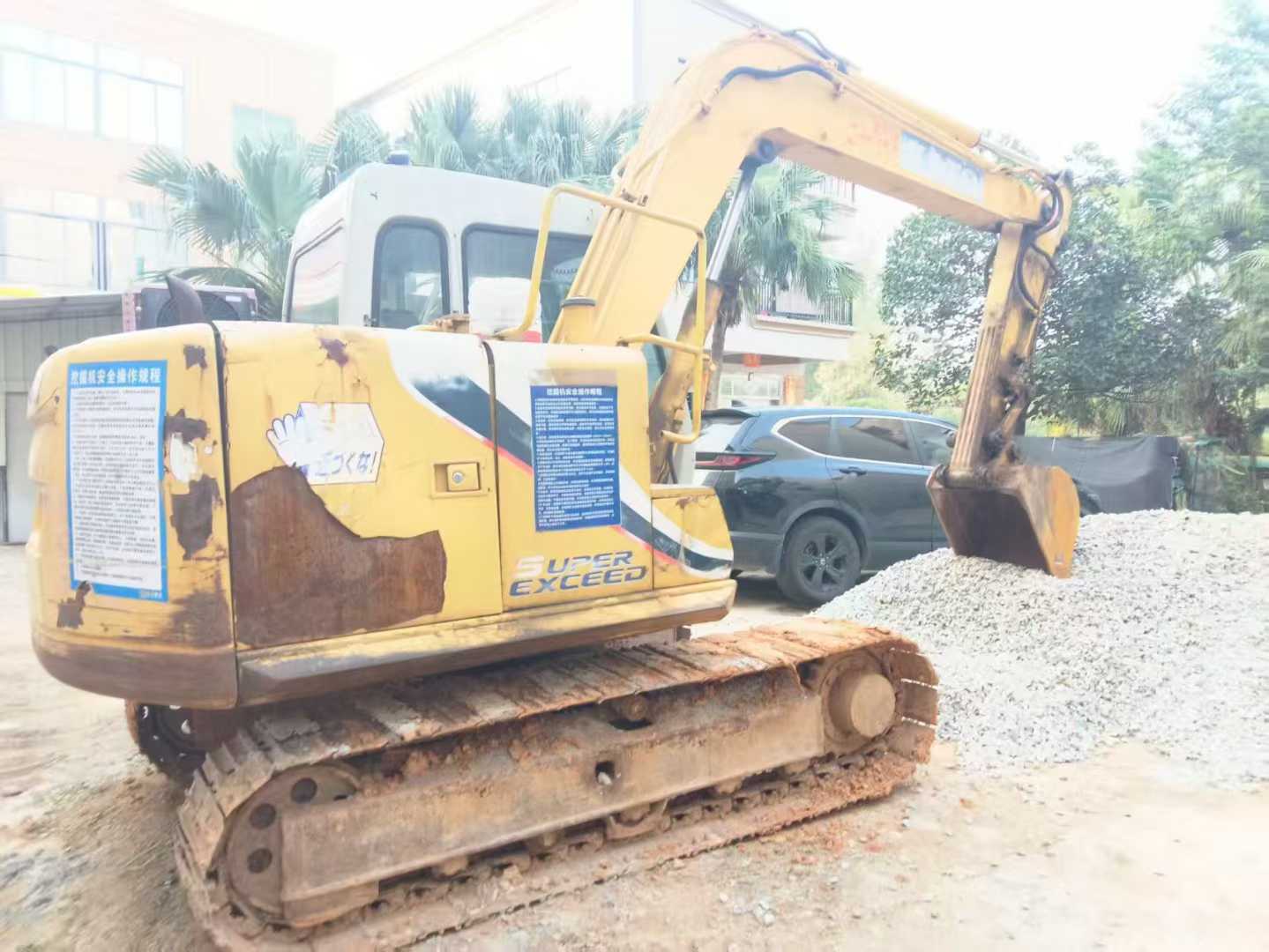

【 Premium Recommendation 】 Kato HD307-2 second-hand excavator, with a total working time of only 40,000 hours, in excellent condition and stable performance, is your ideal choice for construction. This device is equipped with an original imported high-quality engine, which is powerful and has good fuel economy, and can easily meet the operation requirements under various complex working conditions. After meticulous maintenance and upkeep by a professional team, the engine is ensured to be in good operating condition, allowing you to use it without any worries. In terms of the hydraulic system, this machine is equipped with advanced negative flow control technology, which makes the operation more precise and smooth, with a fast response speed and greatly improves work efficiency. Meanwhile, the hydraulic oil circuit is reasonably designed, reducing internal wear and extending the service life of the entire machine. Whether it is tasks such as excavation, loading or crushing, it can demonstrate outstanding expressiveness. Furthermore, "mainly 40,000" indicates that this machine is in the golden stage of its life cycle - neither as expensive as a new one nor more reliable than those old models that have been overused. For users who purs
