2016 Kato HD308US

1/9
Used Kato HD308US Excavator 2016 Model / 1

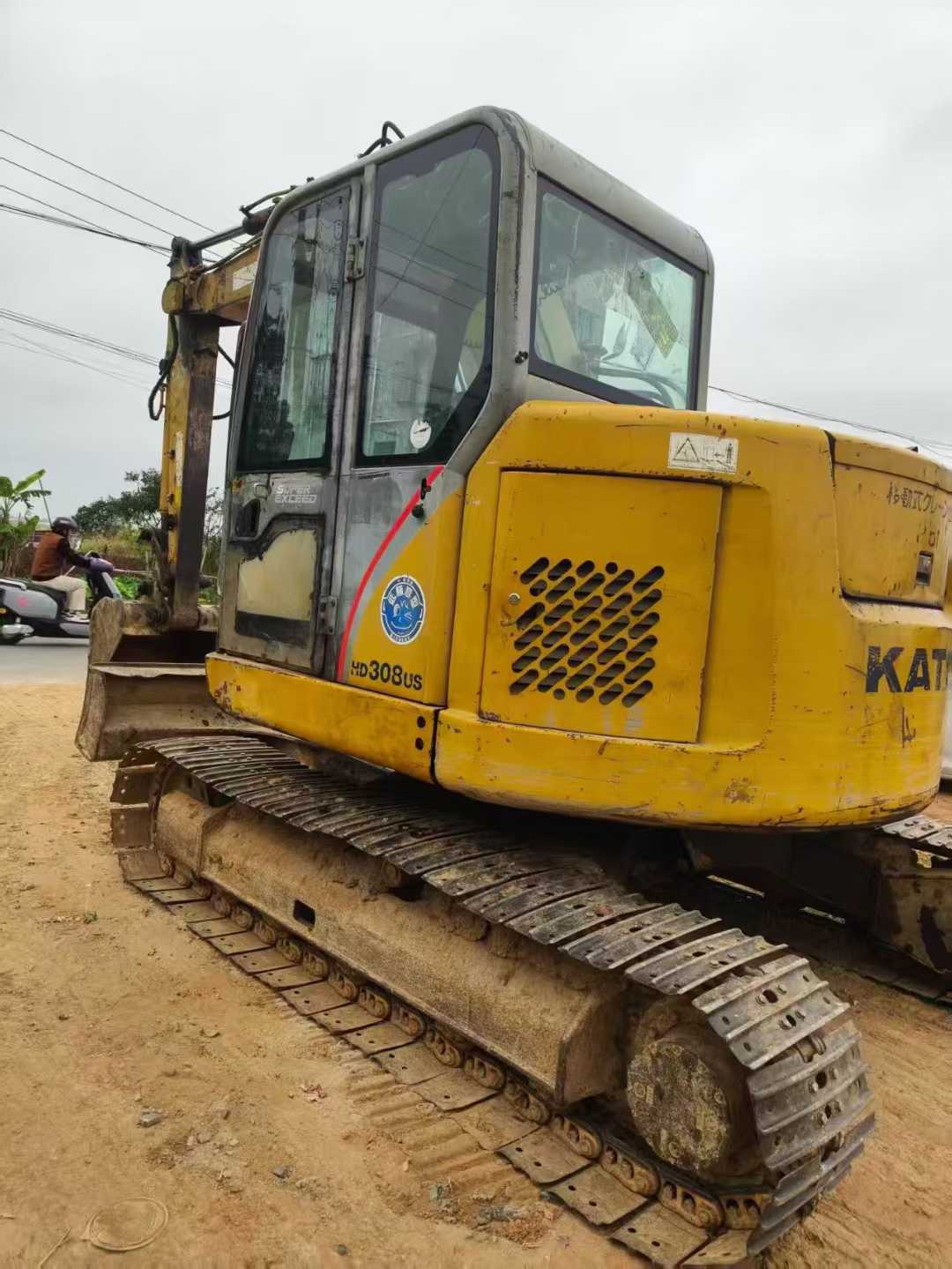

Used Kato HD308US Excavator 2016 Model / 2

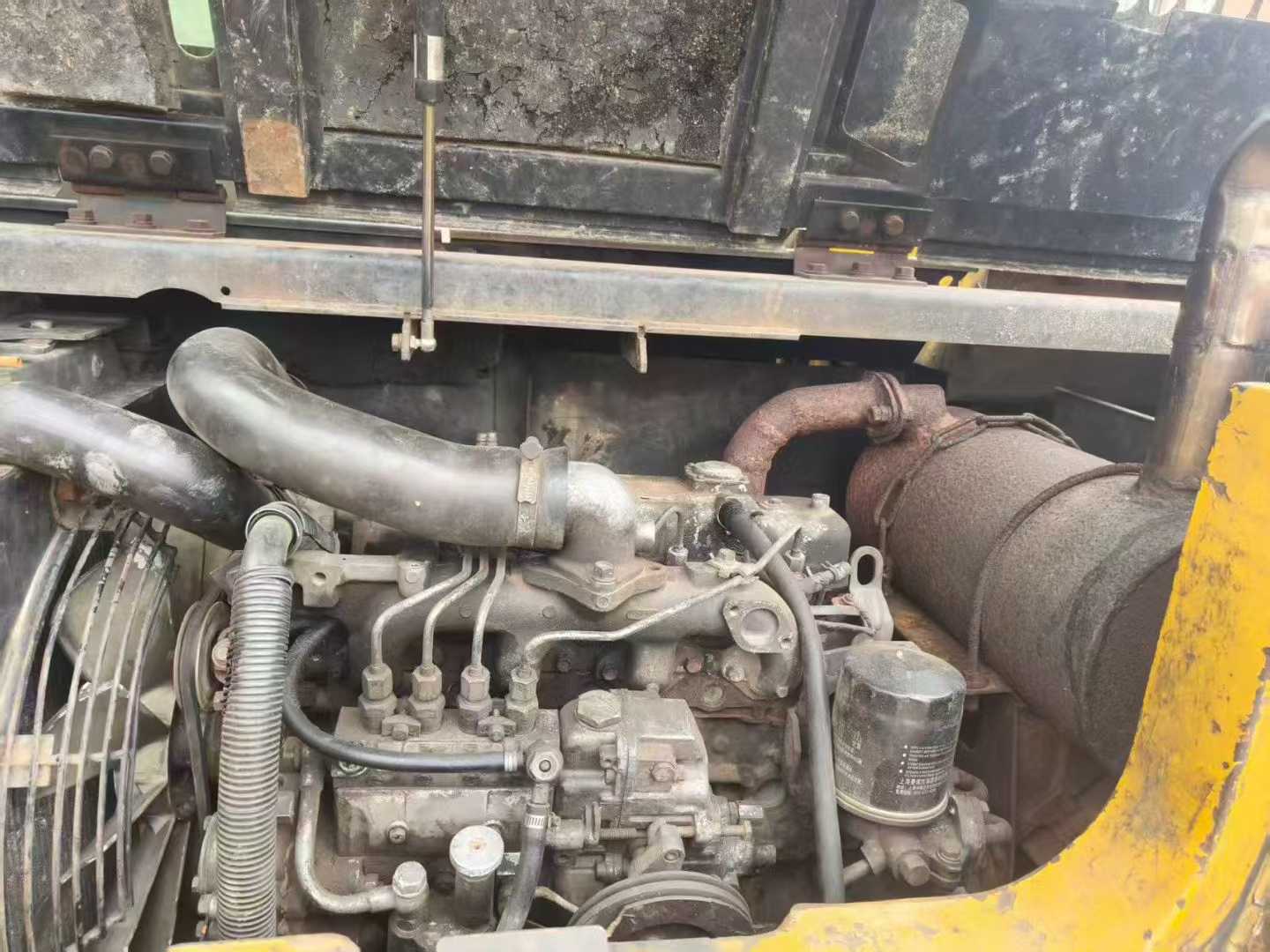

Used Kato HD308US Excavator 2016 Model / 3

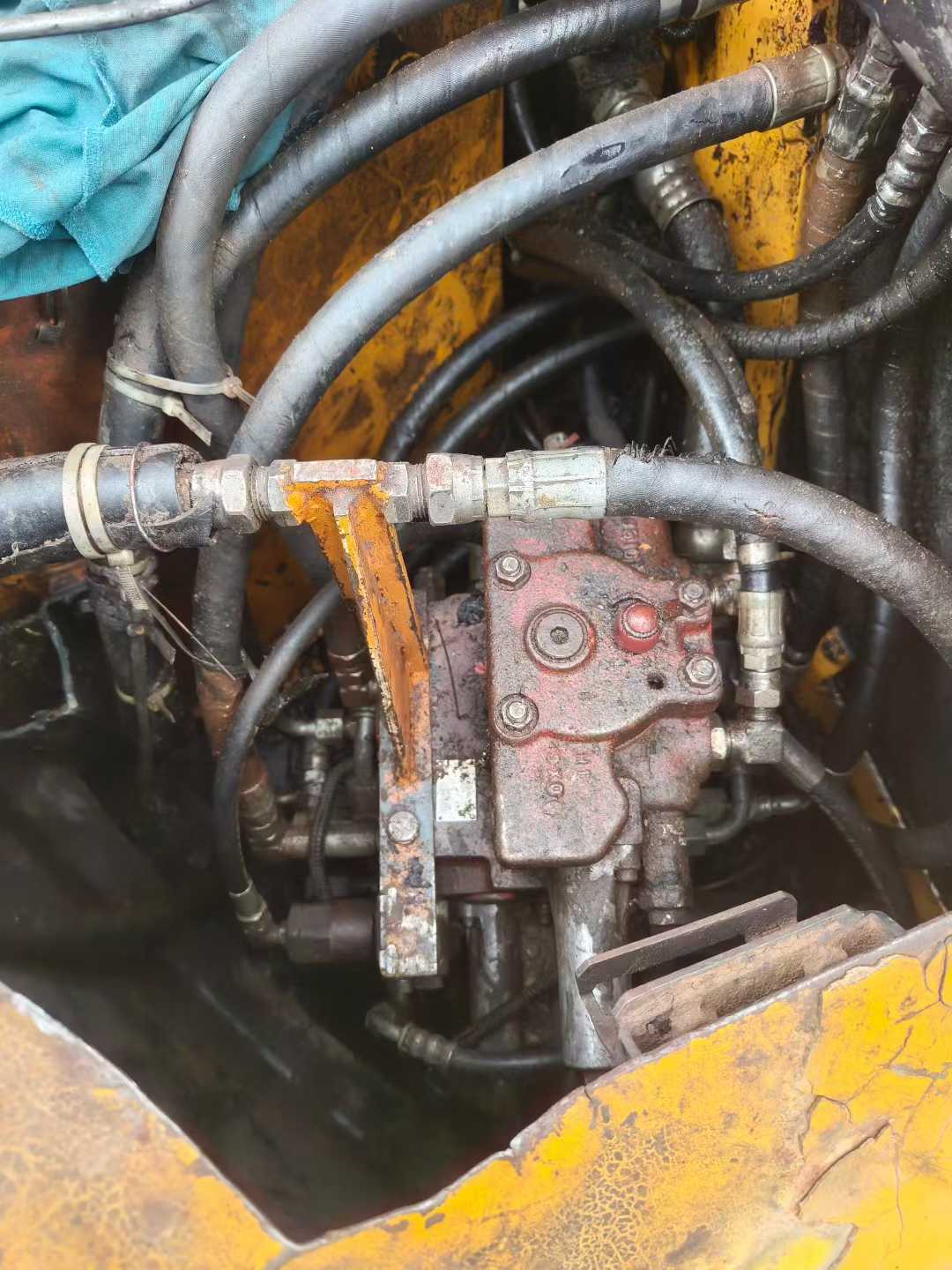

Used Kato HD308US Excavator 2016 Model / 4
Used Kato HD308US Excavator 2016 Model / 5

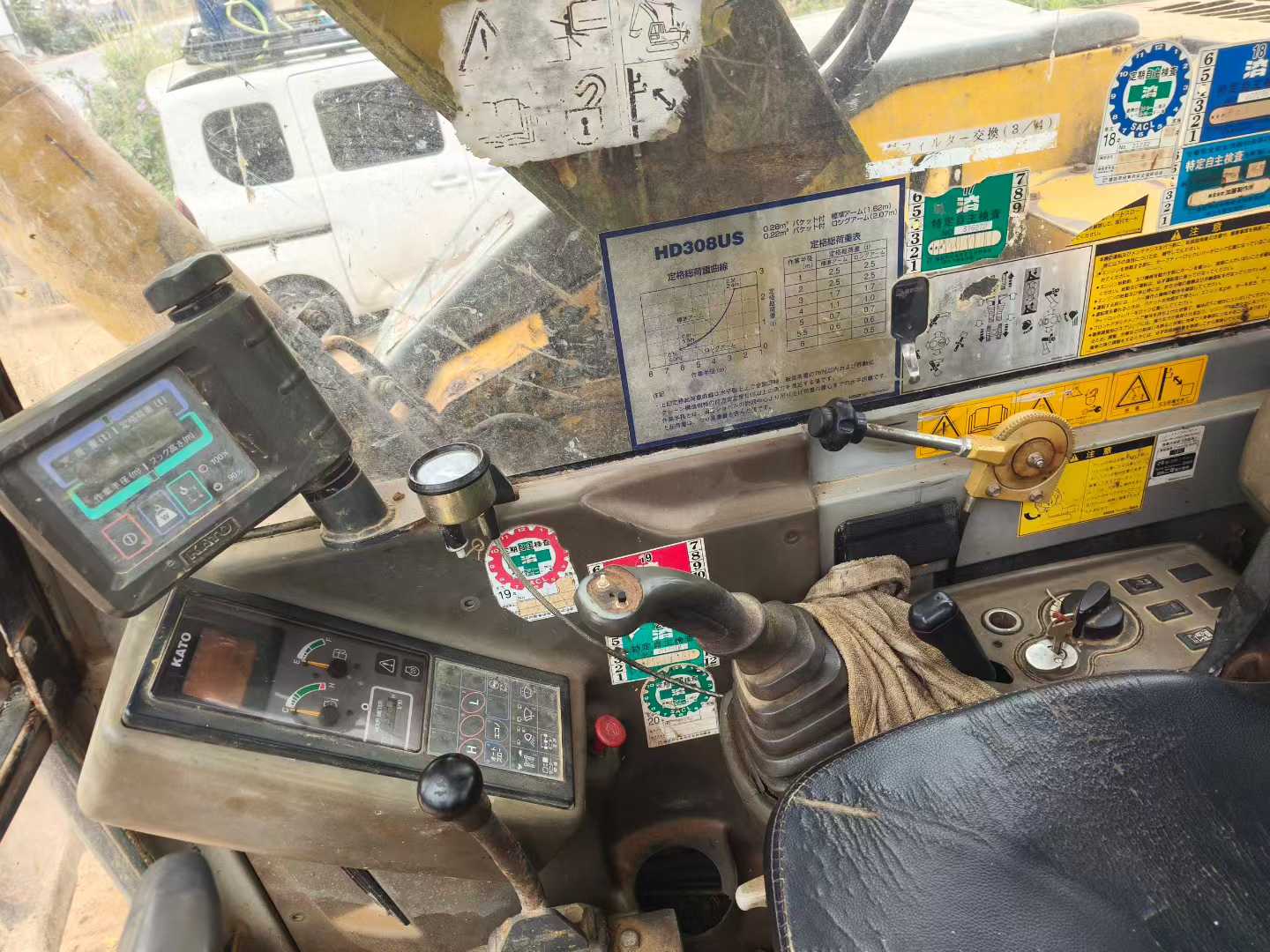

Used Kato HD308US Excavator 2016 Model / 6
Used Kato HD308US Excavator 2016 Model / 7

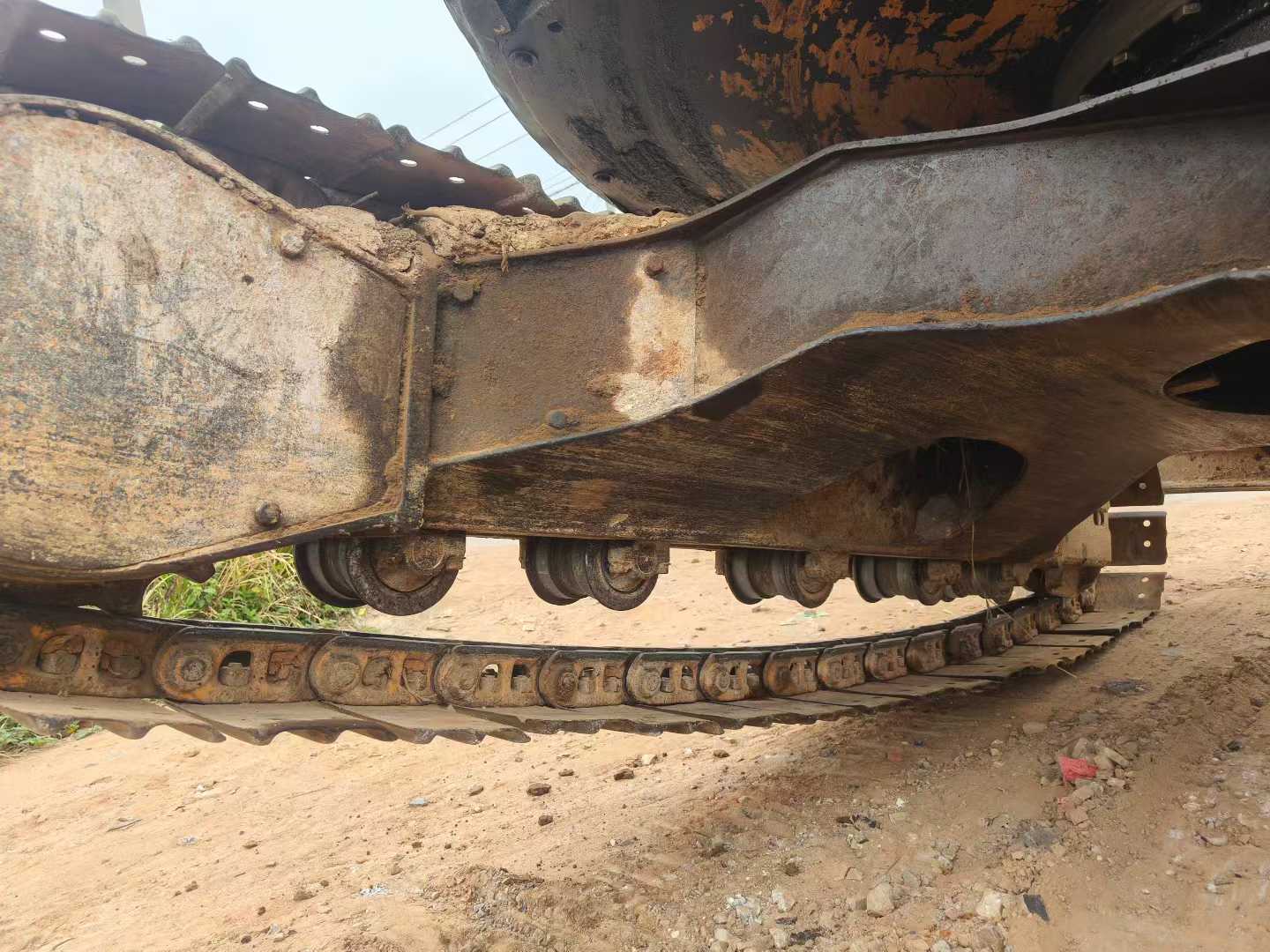

Used Kato HD308US Excavator 2016 Model / 8

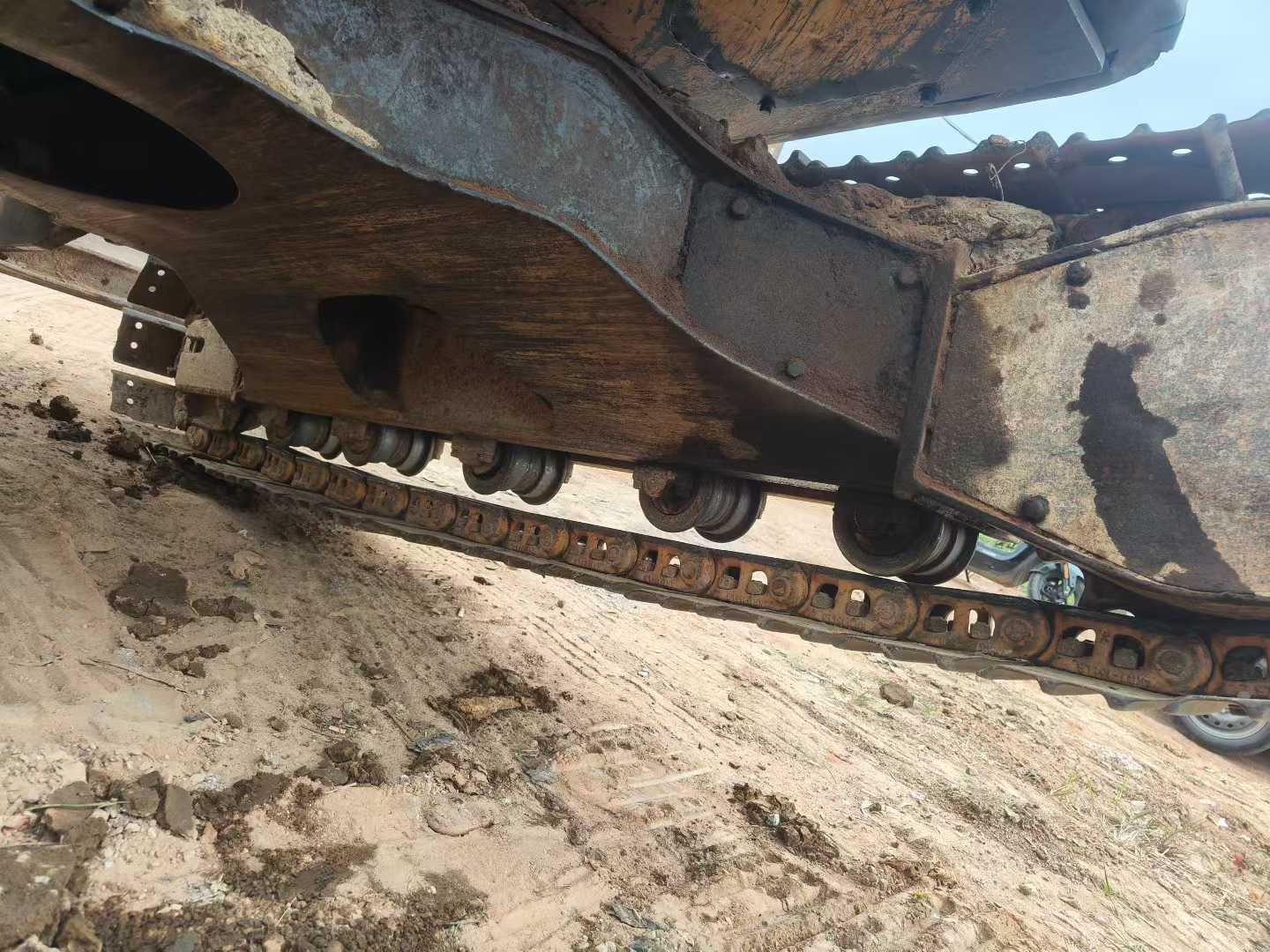

Used Kato HD308US Excavator 2016 Model / 9

Product Description

The second-hand Kato 308US excavator is currently priced at 42,800 yuan. This device has a working time of only 1,500 hours and maintains good mechanical condition and performance. Equipped with an efficient and reliable engine, model Kubota V1505-T-E2B, with a power output of 19.5 kilowatts, it ensures strong power output and excellent fuel economy. In terms of the hydraulic system, the Kato 308US is equipped with high-quality variable piston pumps and hydraulic motors, providing stable and efficient hydraulic power support. This design not only enhances work efficiency but also prolongs the service life of the equipment. In addition, this machine adopts advanced negative flow control technology, which can automatically adjust the hydraulic oil flow according to the actual working conditions, further enhancing the flexibility and response speed of operation. As a compact excavator, the Kato 308US features excellent mobility and flexibility, making it suitable for operations in various confined Spaces. Its unique tailless design enables it to handle complex environments such as urban construction and landscaping with ease. Meanwhile, the spacious and comfortable cab is equipped with all-round view glass Windows and ergonomic seats, p

SpecificationsValue
No.975898
Tonnage (tons)8
Working weight (kg)7600
Bucket capacity (m³)0.28
Boom length (mm)3830
Rod length (mm)1620
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU CC-4JG1
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95.4 x 107
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)31.4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)61.4
Rod digging force (kN)42.2
Travel speed (km/h)2.0/3.4/5.0
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)77.7 x 2
Traveling Hydraulic Circuit (Mpa)31.4
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)29.4
Bucket cylinders - Number × diameter × stroke (mm)1-85 x 745
Bucket rod cylinders - Number × diameter × stroke (mm)1-95 x 920
Boom cylinders - Number × diameter × stroke (mm)1-105 x 960
Fuel Tank (L)100
Hydraulic Tank (L)48
Engine Oil changes (L)9.6
Coolant (L)11
Hydraulic System (L)95
Total transport length (mm)6300
Total transport width (mm)2300
Total transport height (mm)2600
Full cab height (mm)2600
Counterweight ground clearance (mm)740
Minimum turning radius of front working device (mm)1630
Back end turning radius (mm)1190
Total track length (mm)2850
Track gauge (mm)1850
Track plate width (mm)450
Total track width (mm)2300
Track ground length (mm)2260
Maximum digging radius (mm)6470
Maximum digging depth (mm)4120
Maximum excavation height (mm)7430
Maximum unloading height (mm)5320
Maximum vertical digging depth (mm)3620
Bulldozer lift or depth (mm)430/330
Dodging plate width × height (mm)2300 x 360
see more

Overview

No.975898

Brand Name:

Kato

Model Number:

HD308US

Year:

2016

Location:

Guangdong China
